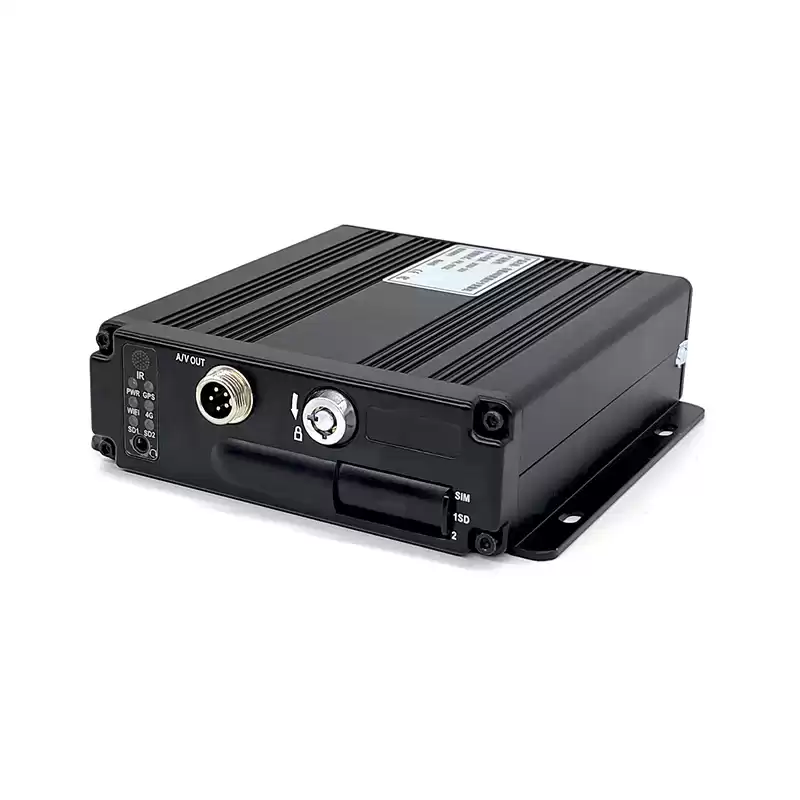

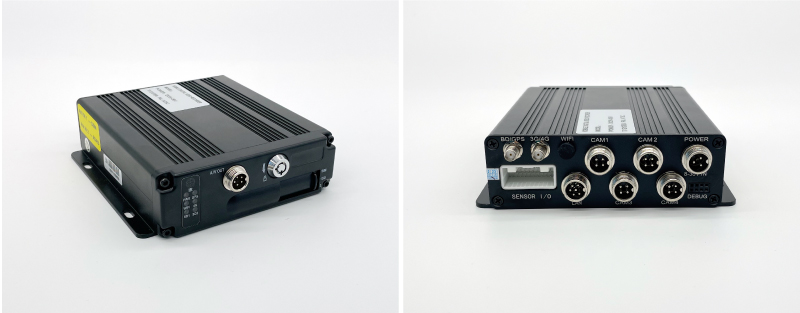

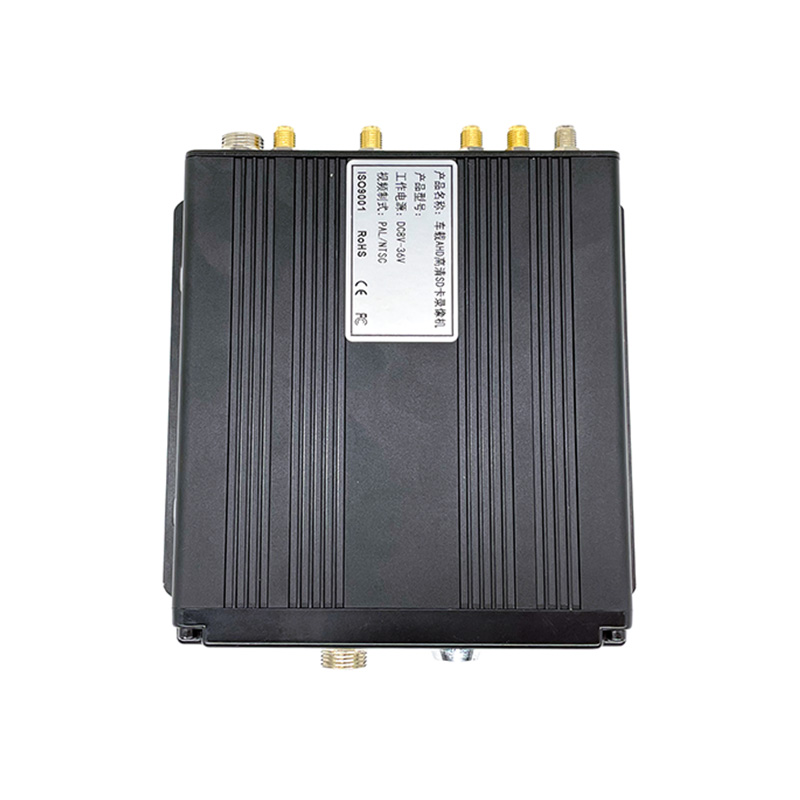

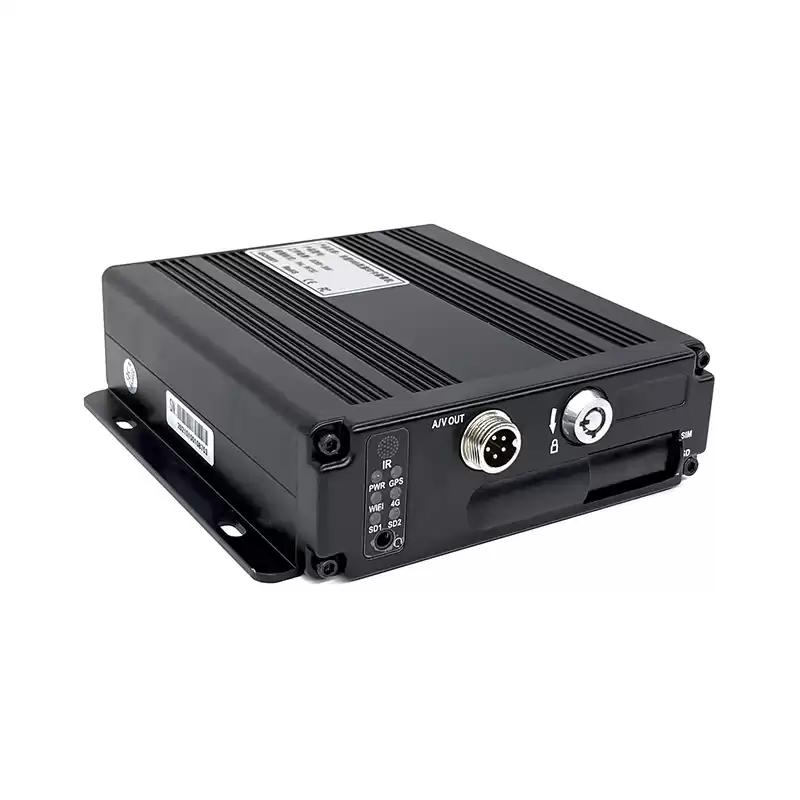

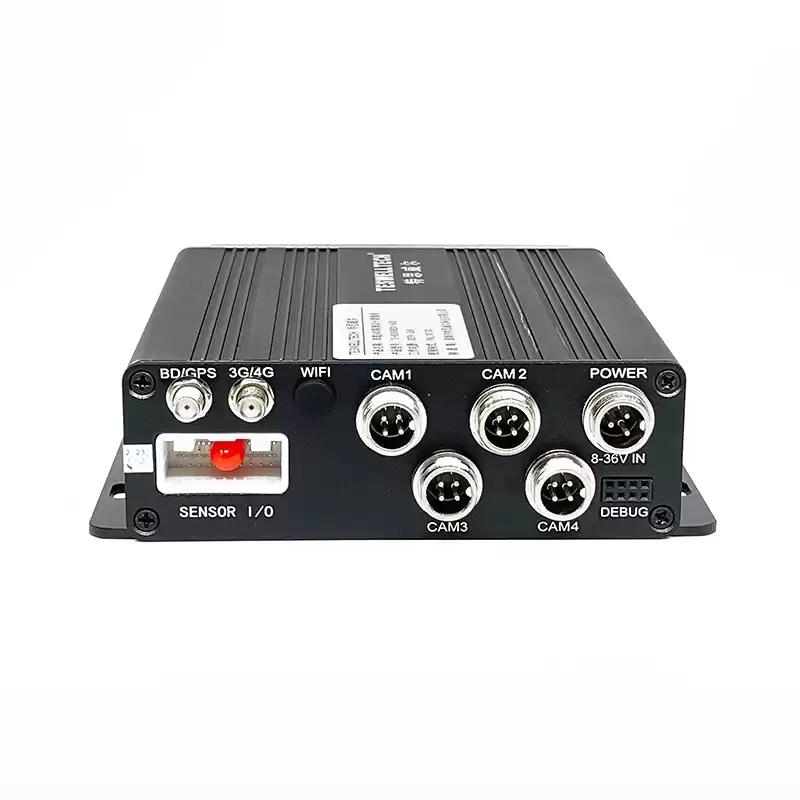

4ch 1080p dual sd MDVR TS-830X
Product advantages：

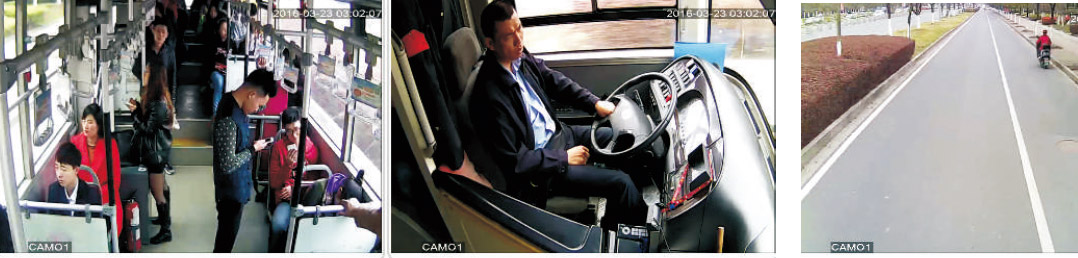

TS-830X 4ch SD Mobile Digital Video Recorder for Real time online video surveillance, support Video: H.264 & H.265; Audio:G711A; AHD camera resolution:720P/960P/1080P, Integrated with worldwide 4G, GPS, Car recorder with dual SD card max to 512GB, RS232*1, RS485*1, VGA*1, CVBS*1, support Intercom for two-way communication, ADAS, DSM and BSD for supervising driver behavior, besides, CANBUS and WIFI module are optional etc, TS-830X MNVR widely used for logistics vehicles, long-distance passenger transport, dangerous goods transport, bus companies, vehicle rental, taxi and other industries.
Product introduction:
-4CH video local recording and playback, support 1080P/720P/960H/D1/CIF resolution.
-Meet anti-electric disturbance standard ISO7637-2, adopted stable positioning communication modules and stable performance.
-Record information: vehicle speed, steering, braking, reversing, and opening& closing doors.
-Watermark: prevent data from been tampered and ensure the data authenticity and legal validity.
-Network: support resume from break-point resume, remote video monitoring, video download, remote alarm and network timing sync, remote settings and upgrade.
-Upgrade: support local and remote upgrade.
-Support integration with third party platform(universal platform or third party CMS), high flexibility.
-Dynamic transmitting: Self adapt to 3G/4G according to bandwidth changing, improving the video consistency.

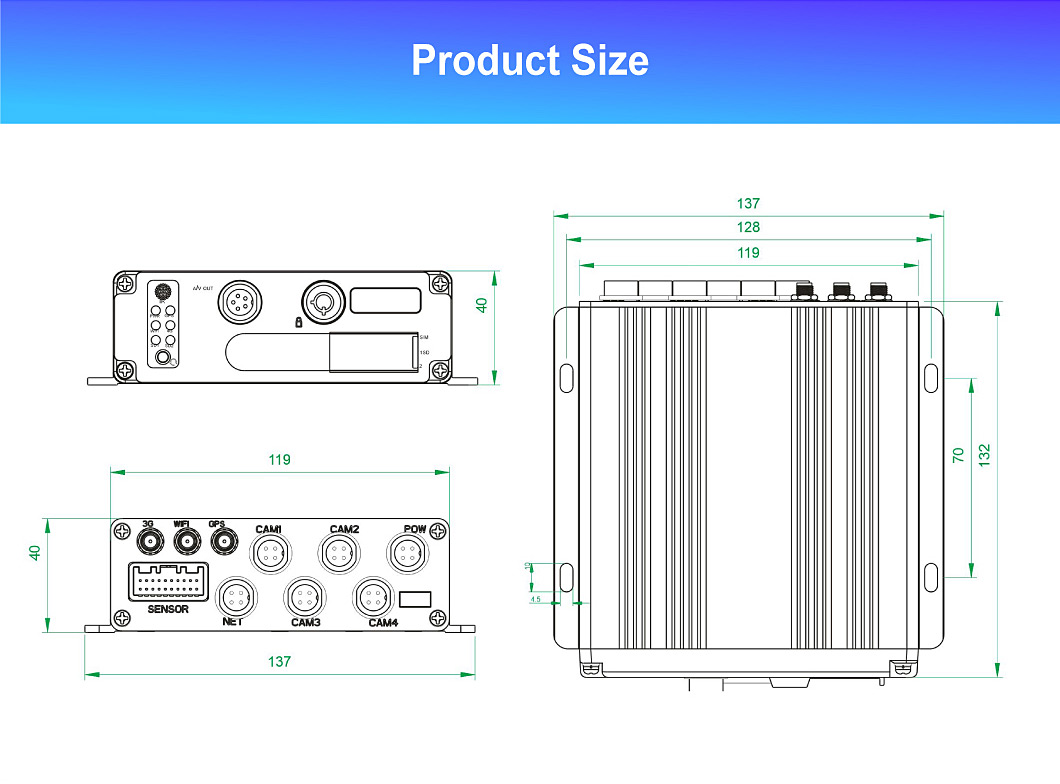

-Mini size(132×137×40mm) ranks the top of the industry, easier for shipping and installation.
-Right Side Blind Spot Detection Function: Automatic monitoring the people and non-motorized vehicle which in the vehicle blind area and alarm when the condition is triggered, it can remind driver and people to avoid the accident in time.
-Active Safety Assisted Driving System Function: The alarm supports fatigue driving, yawning, calling, smoking, camera blocked, LDW, HMW, FCW etc.
Product Feature:
-Mini size
-Encrypted
-Lockable
-HD 1080P H.265/H.264
-24 hours off delay
-Loop recording
-ADAS/DSM/BSD/Passenger counting
Product Parameter:
|
Item
|
Equipment parameter
|
Performance standard
|
|
Name
|
Product name
|
TS-830X DVR Series
|
TS-830X NVR Series
|
|
System
|
OS
|
LINUX
|
|
Operation Interface
|
Graphical menu operation interface (OSD Menu)
|
|
File system
|
TES Error correction encrypted file management system
|
|
Video
|
Video input
|
4 Channels AHD/IPC
|
|
Video output
|
1ch PAL/NTSC output 1.0Vp-p，75Ω，CVBS；1ch VGA output（support 720P）
|
|
Video display
|
1 or 4 channels
|
|
Video standard
|
PAL: 25FPS; NTSC: 30FPS
|
|
System resource
|
PAL: 100FPS; NTSC: 120FPS
|
|
Video compression
|
H.264/H.265
|
|
Audio
|
Audio input
|
4 Channels independent input 600Ω
|
|
Audio output
|
1 Channel(4 Channels Can Be Convert Freey) 600Ω,1.0-2.2V
|
|
Record format
|
Synchronized video & audio
|
|
Audio compression
|
G711A
|
|
Active Safety
Assisted Driving
System
|
Video compression
|
1CH DSM video input, support safety alarm of yawning, calling, smoking, blocked and device malfunction, etc.
|
|
DSM
|
1CH BSD video input, support safety alarm of pedestrians, non-motorized vehicles, including front, side and back.
|
|
ADAS
|
1CH BSD video input, support safety alarm of pedestrians, non-motorized vehicles(bicycles, motorcycles,
|
|
BSD
|
electric bicycles, tricycles,etc), including front, side and back.
|
|
Digital processing
|
Image resolution
|
PAL:4*1080P(1920*1080), NTSC:4*1080P(1920*1080)
|
|
Image quality
|
1-14 levels adjustable
|
|
Video bit-rate
|
1080P: 192K~8M bps(per channel)
|
|
Video space taken
|
1080P: 85M~3600M Byte/hour(per channel)
|
|
Playback resolution
|
PAL:1-2*1080P(1920*1080), NTSC:1-2*1080P(1920*1080)
|
|
SD storage
|
2xSD slot, Support 64GB/128GB/256GB
|
|
Alarm
|
Alarm input
|
4 channels ( activated by high voltage)
|
|
Alarm output
|
1 Channels dry contact output
|
|
Motion detection
|
Support
|
|
LAN
|
RJ45
|
1x RJ45 optional
|
|
Wifi
|
Optional built-in wifi module( supportIEEE 802.11b/g/n ) for remote video check and download
|
|
3G/4G
|
Optional built-in 3G/4G module
|
|
GPS
|
GPS
|
Optional GPS/Beidou/GLONASS module
|
|
Extension
|
RS232
|
1xRS232 standard
|
|
RS485
|
1xRS485 standard
|
|
Intercom
|
Can expand Intercom Module Inside
|
|
G-Sensor
|
Standard
|
|
Others
|
Power
|
DC9.5-36V 5% ≤8W
|
|
Operating temperature /humidity
|
-40℃~+70℃ / ≤80%
|
|
Dimension
|
132（L）*137（W）*40（H） mm
|
|
Package
|
L178*W120*H178mm/unit
|
Product Application:
Mini dual SD MDVR can work in mini bus, truck, forklift, etc. require up to 4 cameras.
FAQ:
1： MDVR does not start？
a: Please check the power supply of the host to see if the power of the host is connected correctly and whether there is real voltage to the host
b: Whether the key switch of the host is locked
c: Whether the ignition control line of the host is connected properly,
d: whether there is a control voltage input (when testing in the office, the ignition control line is directly connected to the positive pole of the host power input)
2：The hard disk video recorder automatically restarts after a few minutes of startup or often crashes？
a: Input voltage is unstable or too low
b: The hard disk wiring is loose or poorly connected
c: Hard disk has bad sectors
d: Poor heat dissipation, too much dust, and the machine operating environment is too harsh
e: Inadequate installation of anti-vibration facilities
3:The remote control does not work?
a: Check the power section on the remote control
b: If the hard disk is installed, check whether the hard disk is inserted in place
4:Can't enter the settings menu?
The factory default of this machine is to automatically record when the system is started, unless it is manually stopped or the system is powered off;
to enter the setting menu, you must first stop the recording with the stop button on the remote control, and then press the menu button to enter.
