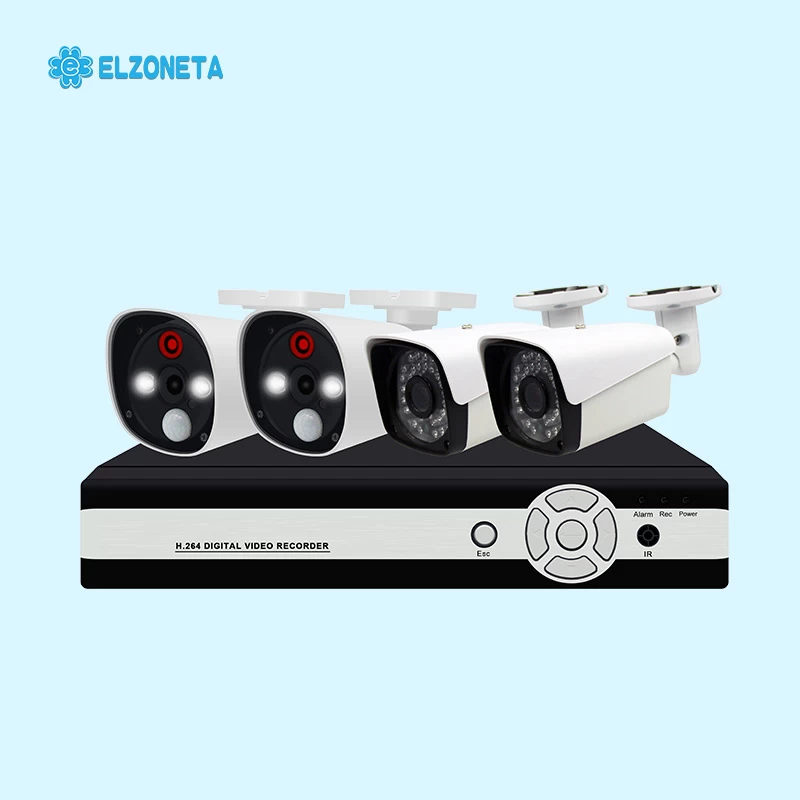

EC-DKSA04 4CH Smart Alarm XVR DVR CCTV Kit
What is XVR?
The XVR supports 4 mainstream analogue camera types, not only traditional CVBS (analogue) cameras, but also HDCVI, AHD and TVI , as well as IP cameras. Moreover, XVR recognizes the signal formats from camera automatically. True plug & play makes operation more users friendly and convenient.
But customers seldom to called XVR Kits, mostly, they will say 5 in 1 DVR kits meaning a video recorder can be recognized CVBS, HDCVI, AHD, TVI and IP cameras.

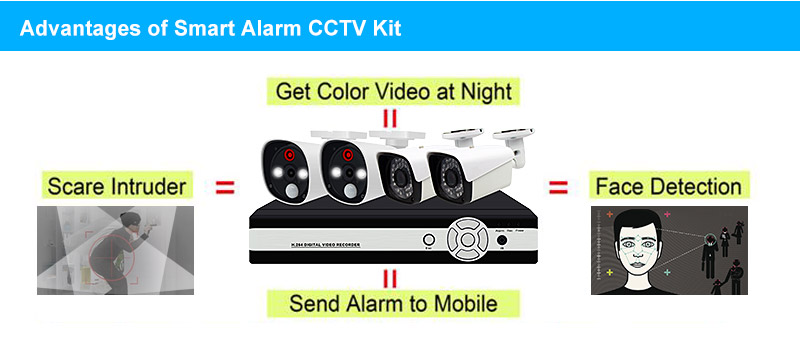

Features:

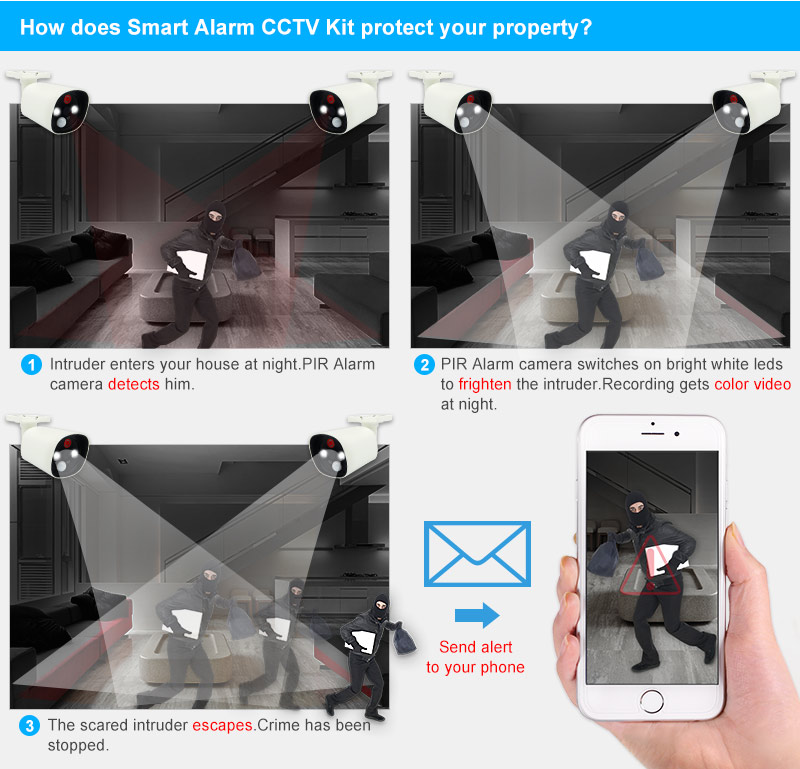

1.) Integrated Alarm system and CCTV system
2.) Alarm Type: PIR(Passive Infrared Detector)
3.) Get clearly color video at night with PIR sensor
4.) Frighten intruder with strong white leds at night
5.) Real time Alarm push to mobile app
6.) 1CH face detection or 4CH perimeter function
7.) Product Guarantee: 2 years
Specification:
|
4CH Smart
Alarm CCTV KIT
|
|
Model No.
|
EC-DKSA04
|
|
|

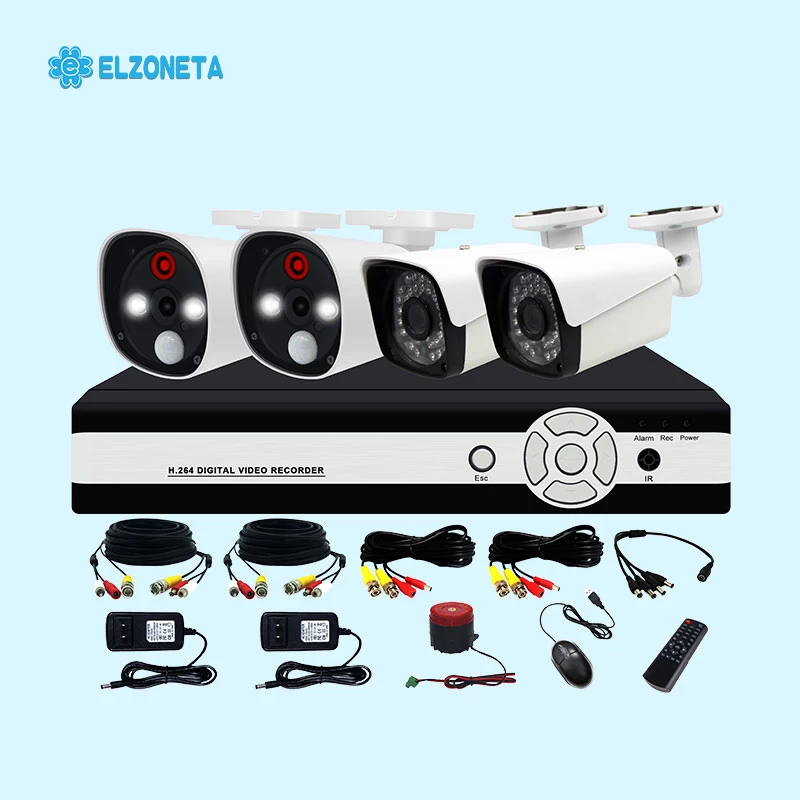

Package content:
4CH 4MP
Alarm XVR 1pcs
PIR Alarm
Camera(Sony 2.0MP) 2pcs
IR Bullet
Camera(Sony 2.0MP 2pcs
Alarm
Siren 1pcs
18.3M
power/video/alarm cable 2pcs
18.3M
power/video cable 2pcs
12/2.5A
power adapter(with splitter) 2pcs
|
|
Camera
|
|
Type
|
PIR Alarm Camera
|
TVI Bullet Camera
|
|
Resolution
|
2.0Megapixel
|
2.0Megapixel
|
|
Signal
System
|
PAL /
NTSC
|
|
Mini
Illumination
|
0.01lux(IR
off), 0.00lux(IR on)
|
|
Lens
|
3.6mm HD fixed
lensoptional
|
|
Angle
of View: 74.6°(3.6mm), 92.6°(2.8mm), 49°(6mm)
|
|
Alarm
type
|
Passive
Infrared Detector
|
NO
|
|
PIR
distance
|
5-8 Meter
range
|
NO
|
|
Alarm
Control
|
TianJian
PIR IC mainboard
|
NO
|
|
Leds
|
2pcs
white array leds/1pcs IR array leds
|
36pcs IR
leds
|
|
Siren function
|
DC12V
output Siren is optional
|
NO
|
|

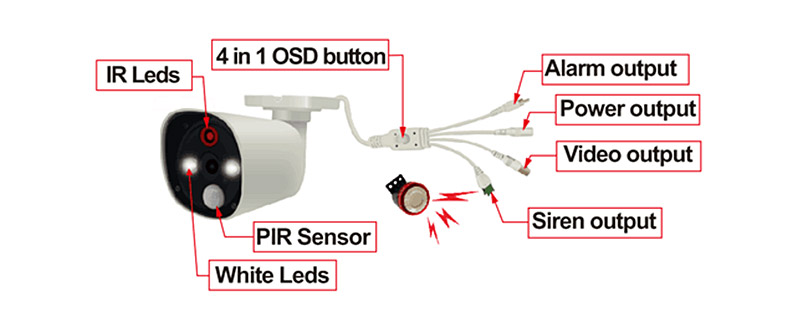

Interface
|
1ch
BNC/1ch power/1ch Alarm/1ch siren
|
1ch
BNC/1ch power
|
|
5in1 Face detection XVR
|
|
Chipset
|
Hi3520Dv300
|
|
Smart
function
|
1CH face
detection or 4ch perimeter function
|
|
HDD
|
Support 1
HDD
|
|
Alarm
|
4in/1out
|
|
Audio
|
1in/1out
|
|
Output
|
HDMI/TVI/VGA
|
|
Network
|
1RJ45
Fast Ethernet
|
|
Others
|
Support
digital zoom, cloud, P2P, Onvif, App alarm push
|
More Information:
