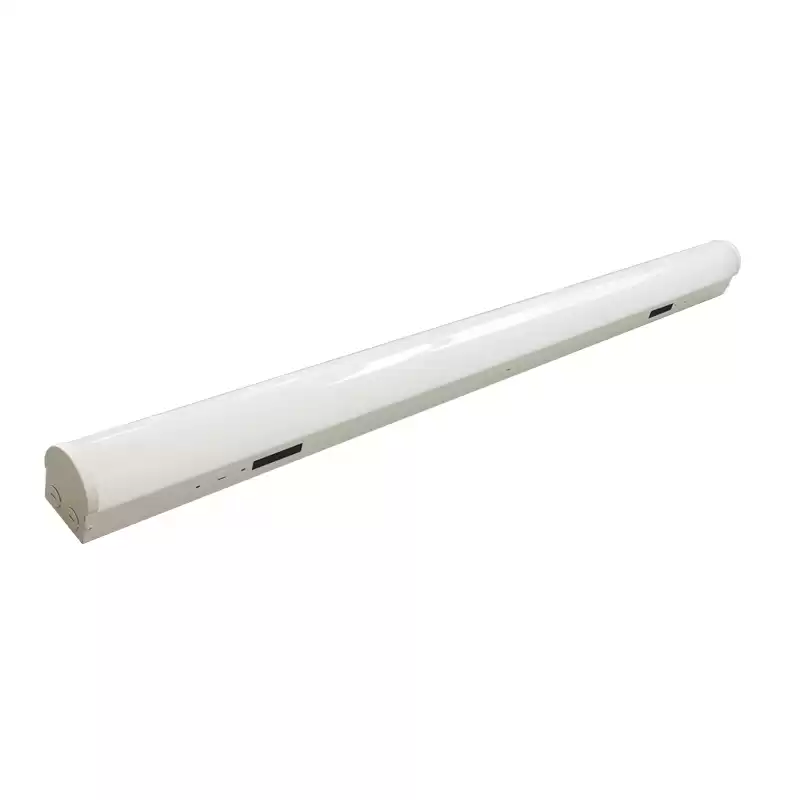

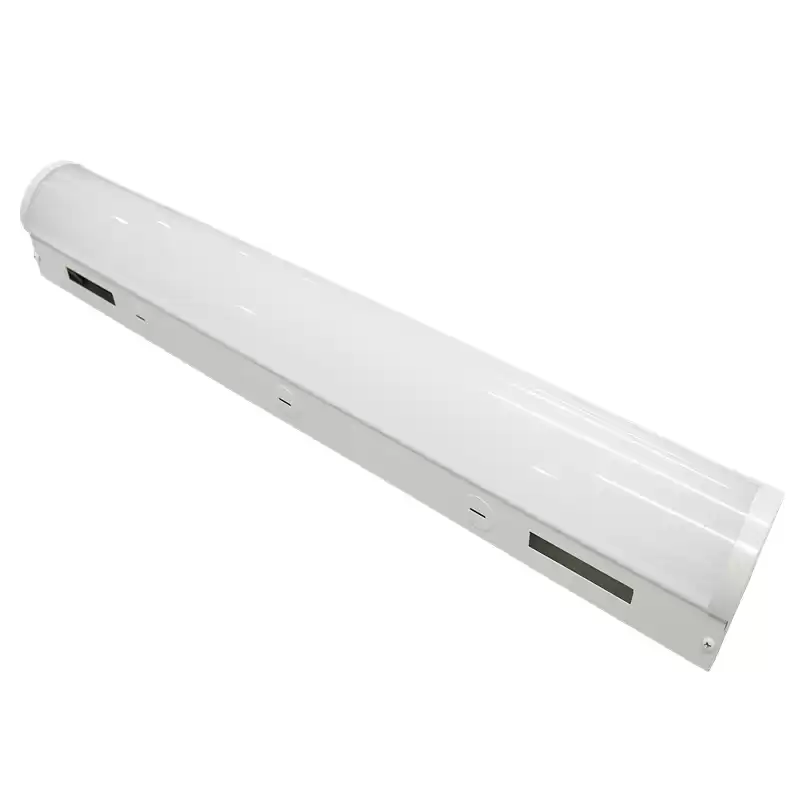

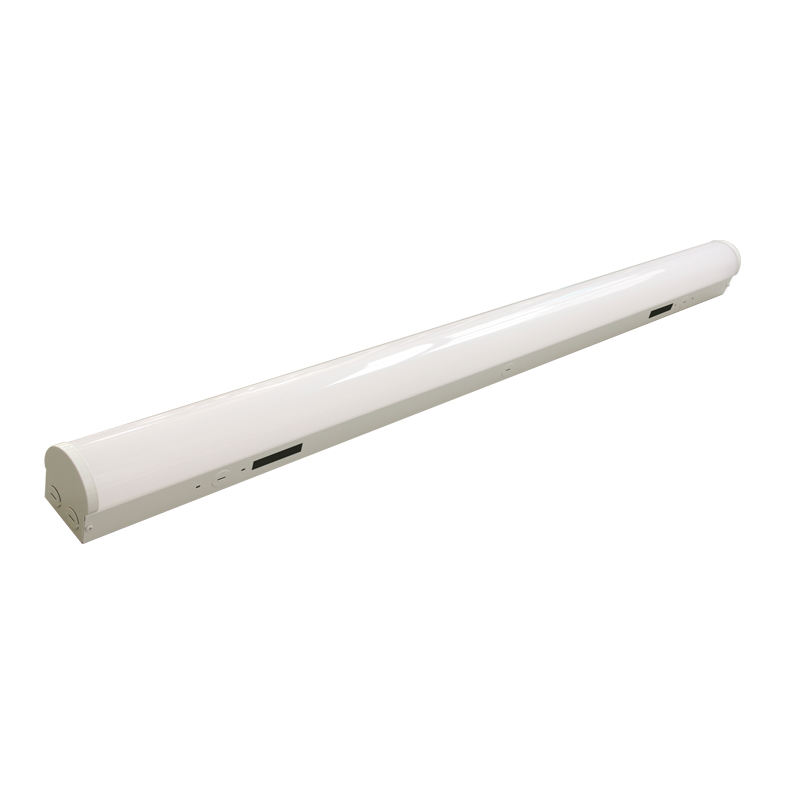

40W Low Bay Light Fixture
The 40W smart low bay lighting can provide a variety of installation options and dimming functions to adapt to residential or commercial spaces. It can be surface or wall-mounted, suspended lighting or ceiling plane installation slots, to meet the different design needs of customers. Its fixtures reduce expensive maintenance, disposal costs and replacement requirements, all of which have a life expectancy that is 5 times that of traditional equivalent equipment. Equipped with 0-10V dimmable driver, high luminous efficiency 130lm/W, 4ft LED indoor light strip has the characteristics of strong tolerance, low energy consumption and high luminous efficiency, reducing energy consumption by up to 60%. It is suitable for humid places. LED technology can easily replace T8 fluorescent light strips. 40W LED light strip sconce not only provides uniform light distribution, high color fidelity and color gamut, but also presents the most realistic colors in the design. It can be used in conjunction with Tuya Technology's control system to control lamps, creating more comfortable lighting for garages, offices, school lighting areas, etc.
PRODUCT SPECIFICATION
|
Size
|
Power
|
Input
Voltage
|
Input
Current
|
CCT
|
Light
Efficacy
|
Luminous
Flux
|
Viewing
Angle
|
Ra
|
PF
|
Warranty
|
|
4ft
|
40W
|
AC100-277V
|
0.4A
|
4000K
5000K
|
130lm/W
|
5200LM
|
120°
|
>80
|
>0.9
|
5 Years
|

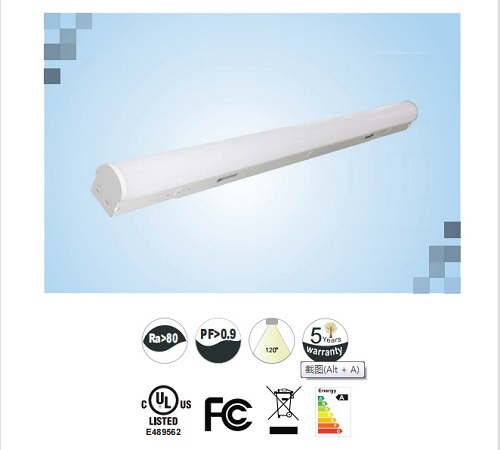

Features:
-
High luminous efficiency 130lm/W, Ra>80
-
0-10V dimmable driver, AC100-277V
-
Reduce energy consumption by up to 60%
-
No glass
-
Suitable for wet places
-
Surface mount installation
-
5-year warranty

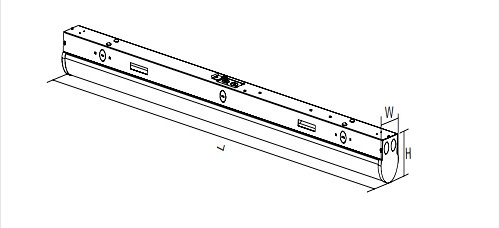

PRODUCT DIMENSION
|
Model
|
L×W×H（inch）
|
|
MA-HLHB410D-40W
|
96” x 3.14” x 3.43”
|

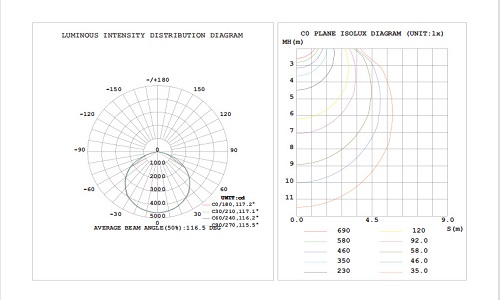

PRODUCT REPORT

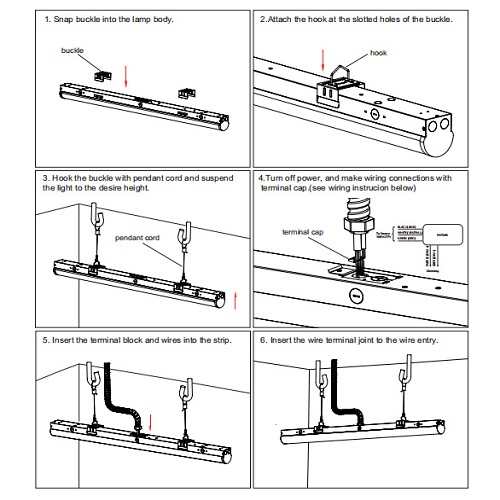

CHAIN INSTALLATION

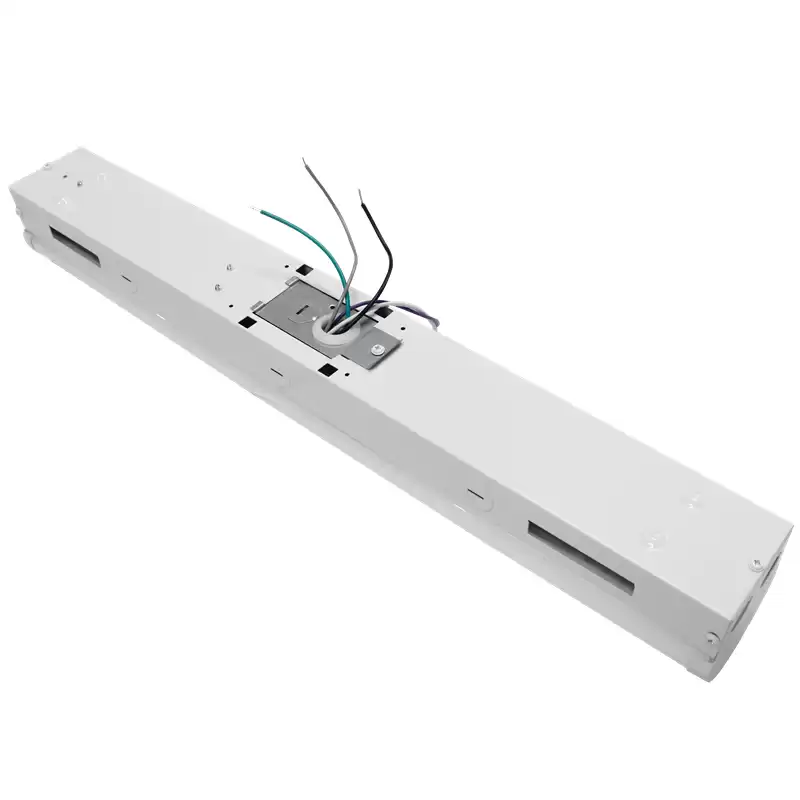

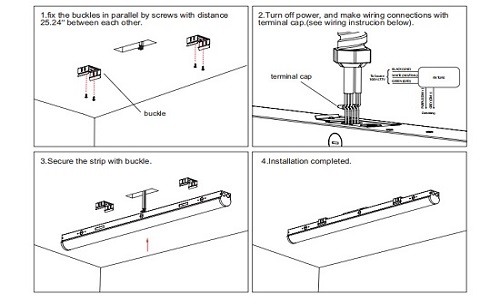

SURFACE MOUNT INSTALLATION
PACKING/WEIGHT
|
Size
|
Inner box (L*W*H)
|
Outer box
(L*W*H)
|
Qty/Ctn (pcs)
|
N.W/pcs (lbs)
|
G.W/Ctn(lbs)
|
|
4ft
|
51.2’’*3.86’’*4.41’’
1300*98*112mm
|
52’’*12.8’’*10.4’’ 1320*325*265mm
|
6
|
4.81
|
40.8
|

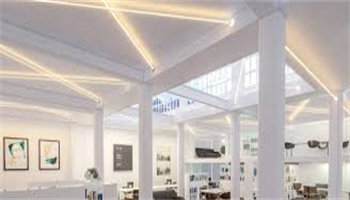

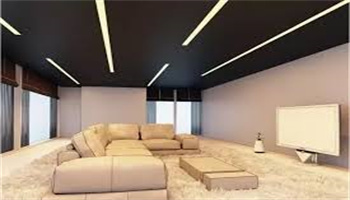

APPLICATION
FAQ
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
