3kw Solar Grid Tie Inverter
SKE-Mini-4G Single phase series string inverter are green power leader in affordable small residential and commercial rooftops, adopt full digital control technology, advanced topological structure and accurate MPPT algorithm, whose efficiency higher than the industry's leading conversion is up to 97.5% at the maximum.Meanwhile adopt multiple protection functions, ultra-high switching frequency technology.
Product Information:
|
Datasheet
|
|
Model Name
|
SKE-mini-700-4G
|
SKE-mini-1000-4G
|
SKE-mini-1500-4G
|
SKE-mini-2000-4G
|
SKE-mini-2500-4G
|
SKE-mini--3000-4G
|
SKE-mini-3600-4G
|
|
Input DC
|
|
Recommended max. PV power
|
0.9kW
|
1.2kW
|
1.8kW
|
2.3kW
|
3kW
|
3.5kW
|
4kW
|
|
Max. input voltage
|
600V
|
|
Rated voltage
|
200V
|
330V
|
|
Start-up voltage
|
60V
|
90V
|
|
MPPT voltage range
|
50-500V
|
80-500V
|
|
Max. Input current
|
11A
|
19A
|
|
Max. short circuit current
|
17.2A
|
30A
|
|
MPPT number/Max. input strings number
|
1/1
|
1/2
|
|
Output AC
|
|
Rated output power
|
0.7kW
|
1kW
|
1.5kW
|
2kW
|
2.5kW
|
3kW
|
3.6kW
|
|
Max. apparent output power
|
0.8kVA
|
1.1kVA
|
1.7kVA
|
2.2kVA
|
2.8kVA
|
3.3kVA
|
3.6kVA
|
|
Max. output power
|
0.8kW
|
1.1kW
|
1.7kW
|
2.2kW
|
2.8kW
|
3.3kW
|
3.6kW
|
|
Rated grid voltage
|
1/N/PE,220/230V
|
|
Rated grid frequency
|
50/60HZ
|
|
Rated grid output current
|
3.2A/3.0A
|
4.5A/4.3A
|
6.8A/6.5A
|
9.1A/8.7A
|
11.4A/10.9A
|
13.6A/13A
|
16A
|
|
Max. output current
|
4.4A
|
5.2A
|
8.1A
|
10.5A
|
13.3A
|
15.7A
|
16A
|
|
Power Factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
THDi
|
<3%
|
|
Efficiency
|
|
Max. efficiency
|
97.2%
|
97.5%
|
|
EU efficiency
|
96.5%
|
96.8%
|
|
Protection
|
|
DC reverse-polarity protection
|
Yes
|
|
Short circuit protection
|
Yes
|
|
Output over current protection
|
Yes
|
|
Surge protection
|
Yes
|
|
Grid monitoring
|
Yes
|
|
Anti-islanding protection
|
Yes
|
|
Temperature protection
|
Yes
|
|
Integrated DC switch
|
Optional
|
|
General Data
|
|
Dimensions(W*H*D)
|
310*373*160 mm
|
|
Weight
|
7.4kg
|
7.7kg
|
|
Topology
|
Transformerless
|
|
Self consumption
|
<1W (night)
|
|
Operating ambient temperature range
|
-25~ +60°C
|
|
Relative humidity
|
0-100%
|
|
Ingress protection
|
IP65
|
|
Cooling concept
|
Natural convection
|
|
Max. operation altitude
|
4000m
|
|
Grid connection standard
|
VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99,
EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727
|
|
Safety/EMC standard
|
IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4
|
|
Features
|
|

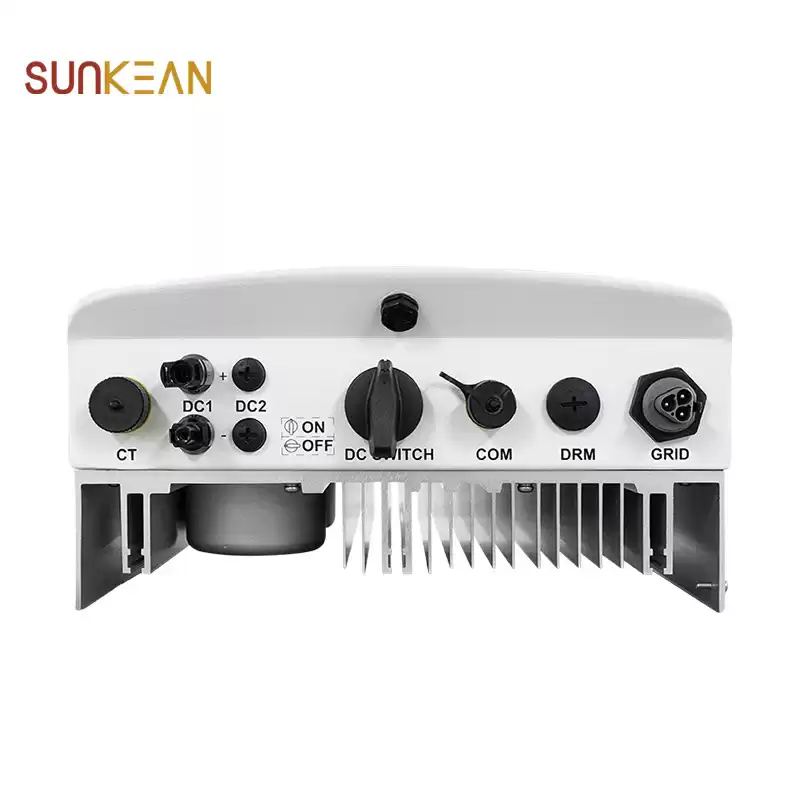

DC connection
|
MC4 connector
|
|
AC connection
|
Quick connection plug
|
|
Display
|
LCD
|
|
Communication
|
RS485, Optional: Wi-Fi, GPRS
|
Product Features:
------Max. efficiency 97.5%;
------Super high frequency switching technology;
------Wide voltage range and low startup voltage;
------Precise MPPT algorithm;
------Intergrated Export Power Manager (EPM);
------Compact and lightweight;
------Friendly and adaptable connection to the grid.
PV Grid Tie Inverter production process:
Application Scenario:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover solar inverter,Mini inverter, home solar panel , PV connectors, mini inverter for home use, Mini Single Phase Solar Inverter etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
