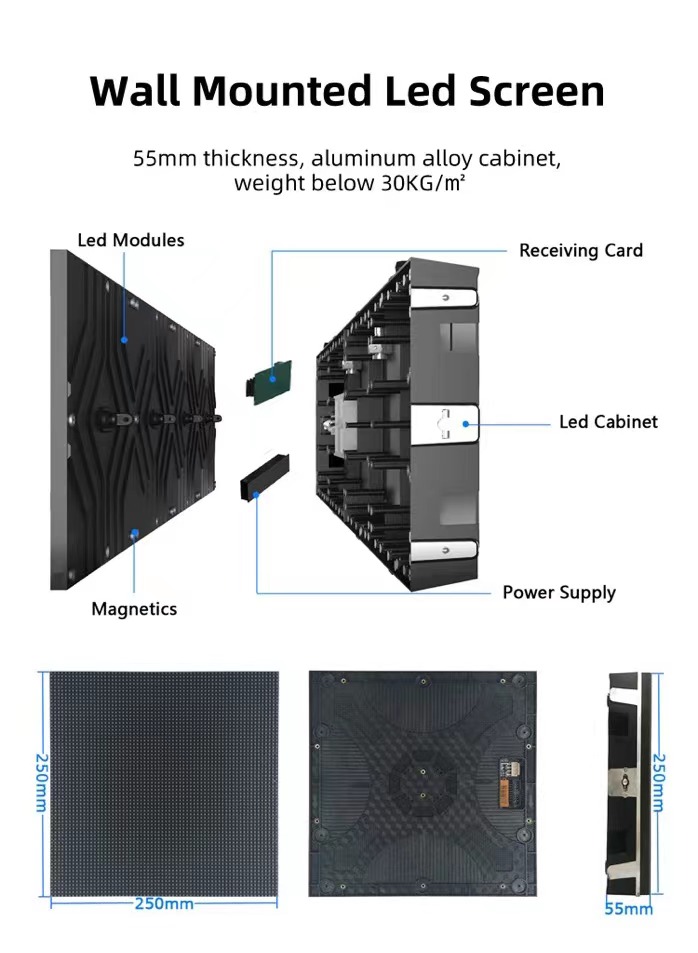

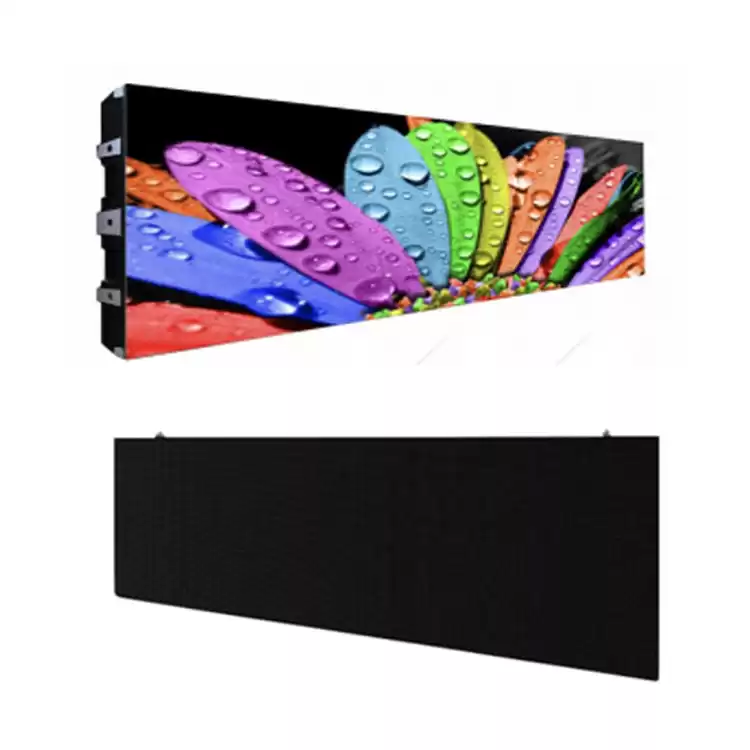

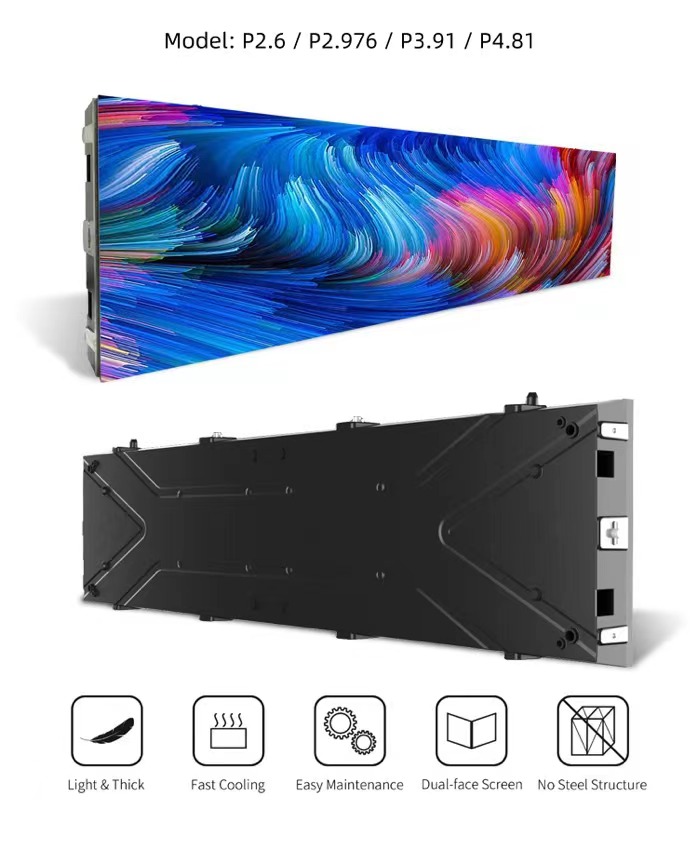

Perfect Structure Design
This cabinet adopts high-standard industry-leading design, and the die-cast aluminum cabinet bottom shell is high-end and atmospheric.
Equipped with a quick lock design, the installation and assembly are more convenient.
Cinema-like Visual Experience

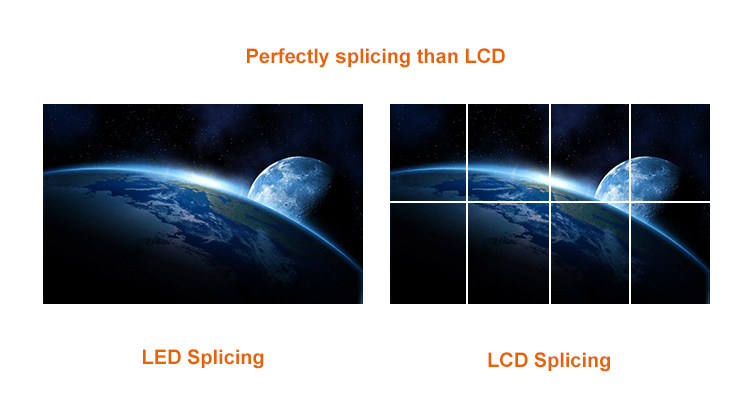

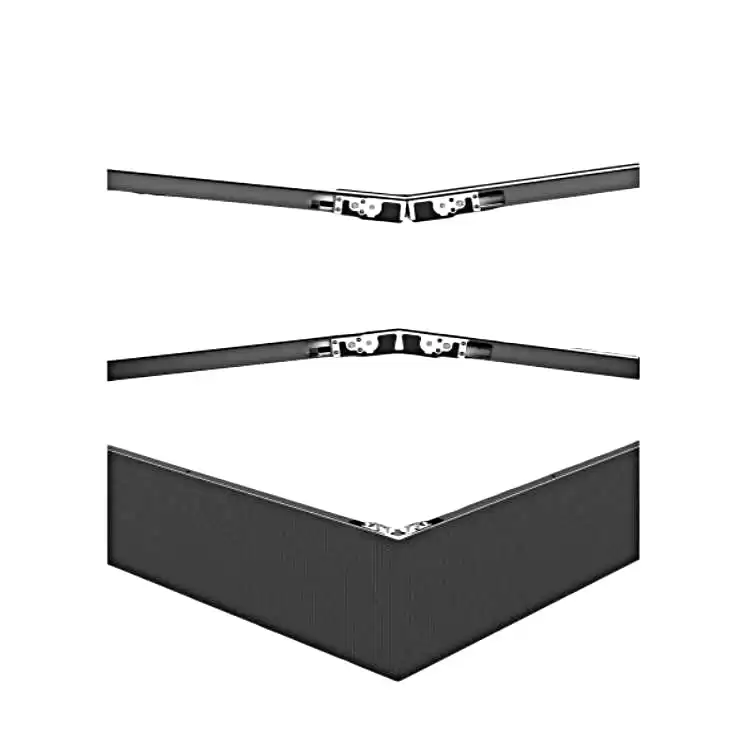

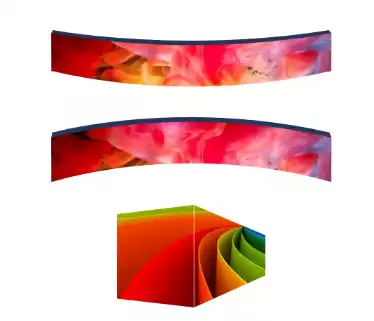

Seamless splicing design, simple internal wiring, and perfect cabinet splicing.
The picture quality is gorgeous, bringing you a movie-like visual experience.
Wide Viewing Angle
Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
Specifications:
|
Pixel Pitch
|
1.953mm
|
|
Model
|
P1.953 indoor full color led module
|
|
Pixel Configuration
|
SMD1515 1R1G1B
|
|
Module Resolution
|
128dotsX128dots
|
|
Module Pixles
|
16384dots
|
|
Module Size
|
250mm(W) x250mm(H)
|
|

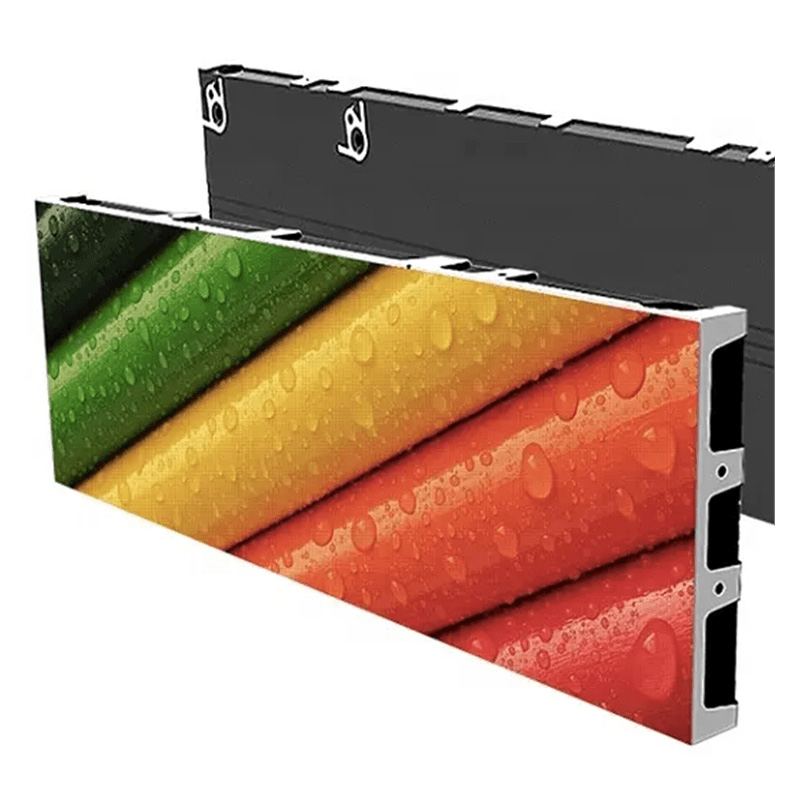

Cabinet size
|
1000mm(W)x250mm(H)x 62mm(D)
|
|
Cabinet Weight
|
7kg
|
|
Material
|
Indoor Die cast al-Cabinet Design(optional)
|
|
Voltage
|
AC 220V(110V)± 10%, 50 Hz-60Hz
|
|
Power Consumption
|
MAX≤600W/sq.m, AVG≤200W/sq.m
|
|
Waterproof
|
IP45
|
|

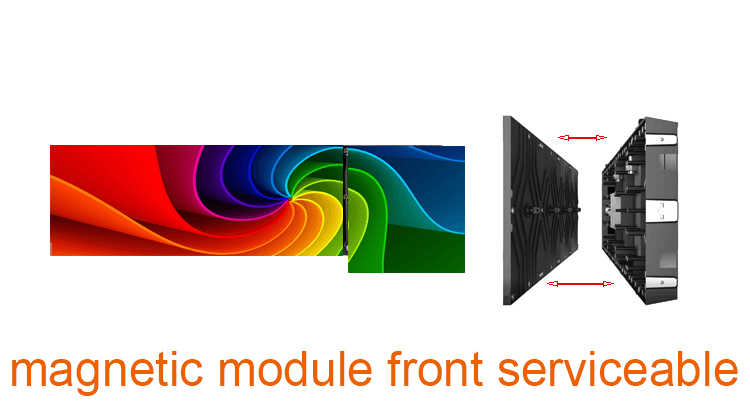

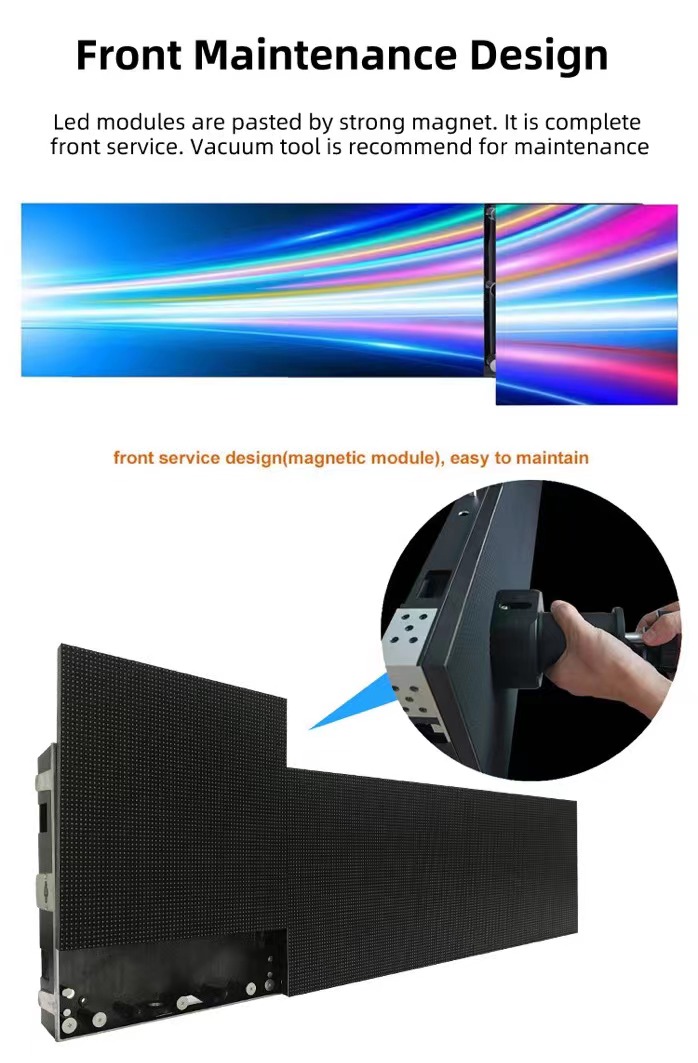

Serviceability
|
Front service
|
|
Viewing Angle
|
H:160° V:160°
|
|
Brightness
|
≥1000 cd/sq.m
|
|
Optimal Viewing Distance
|
≥2m
|
|
Drive Method
|
1/26 scan
|
|
Contrast ratio
|
10000:01:00
|
|
Operating temperature
|
-20ºC to +60ºC
|
|
Operating humidity
|
20% to 90%
|
|
Lifetime (50% brightness)
|
100,000 hours
|
|
Refresh Rate
|
1920 Hz
|
|
Operating Platform
|
WINDOWS(WIN98,WIN2000, WIN XP)
|
FAQ:
Q1. Can I have a sample order?
A: A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-25 days.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ,1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express (DHL, UPS, FedEx ). lt usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products
lf you have more questions, pls write mail to us or call us, we will reply you ASAP
