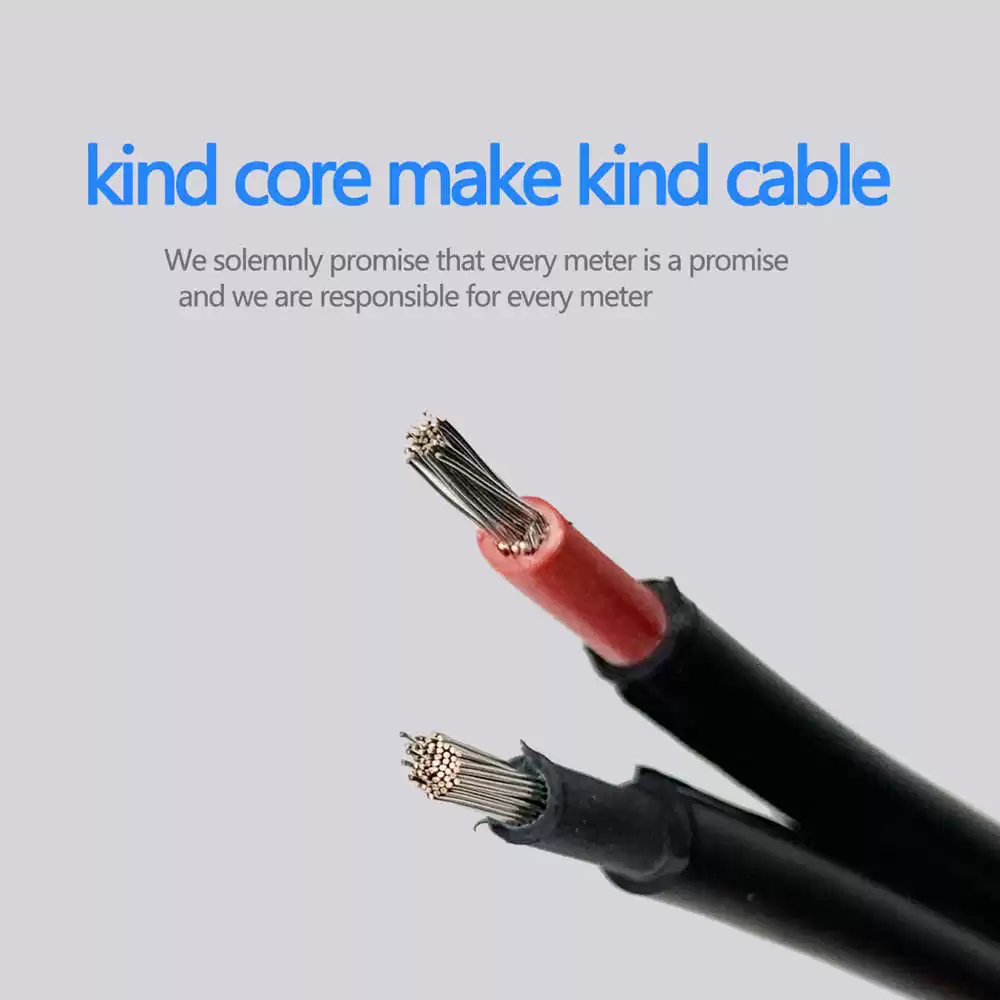

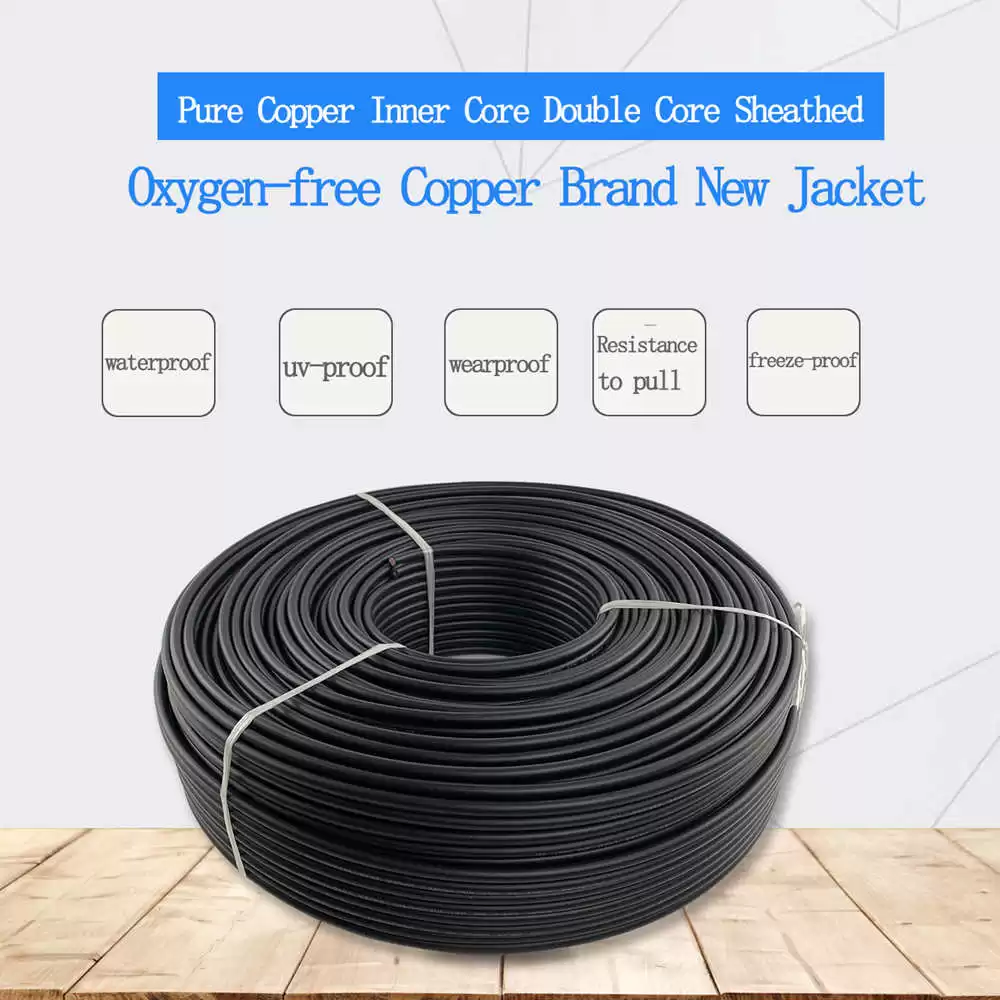

4mm 2 Twin Core DC Solar Panel PV Cable
These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.
Main Features
-
Excellent flexibility and stripping performance
-
High current carring capacity
-
Dual wall insulation.Electron beam cross-linked
-
Excellent resistance to U.V, oil, greases, oxygen and ozone
-
Excellent resistance to abrasion
-
Halogen free, flame retardant,low toxicity
Specification
|
Material
|
Tinned Copper
|
|
Construction
|
2*56/0.283±0.02mm
|
|
Resistance
|
≤5.09 Ω/km (MAX. at 20℃)
|
|
Insulation
|
Material
|
XLpe
|
|
Diameter
|
3.7±0.1 mm
|
|
Thickness
|
0.6±0.1 mm
|
|
Colour
|
Black & Red
|
|
Inner Shield
|
Material
|
-------------
|
|
Overlap
|
-------------
|
|
Out Shield
|
Material
|
-------------
|
|
Construction
|
-------------
|
|
Coverage
|
-------------
|
|
Jacket
|
Material
|
UV Res. XLPE
|
|
Diameter
|
(4.9±0.1mm)
10±1 mm
|
|
Thickness
|
0.6±0.10 mm
|
|
Colour
|
BLACK
|
