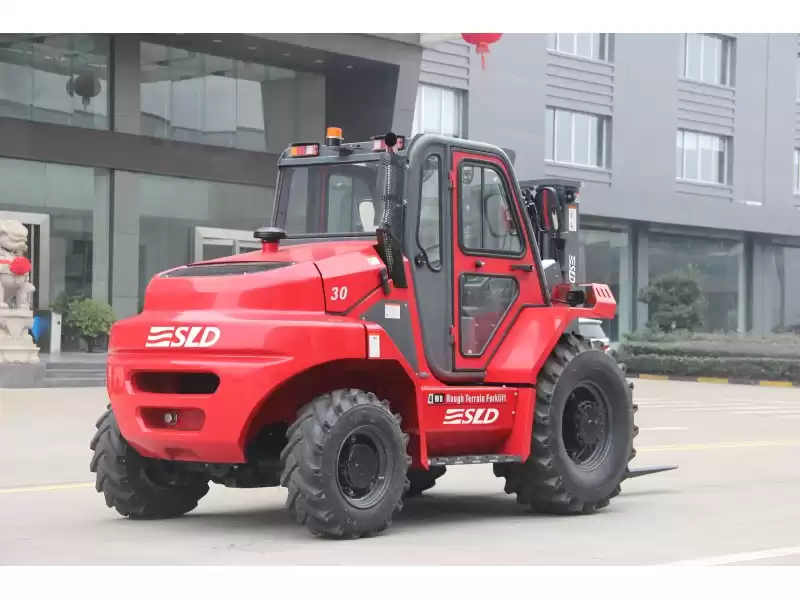

Main Features of 3.0 ton Rough terrain Forklift
1
,Adopt low noise engine with features of low displacement and environmental protection.
2, Full hydraulic mechanic automatic transmission and steering system for
flexible and easy handling.
3, Large hauling capacity from its double-axle four wheel drive for improved
safety and stability.
4 ,It is suitable to operate on soft soils, grass, terrain, mine sites and many
other rugged surfaces.
5, Extensive range of attachments is available for this model to extend its
working capacity for heavy duty mining projects.
6. Air filter with a vacuum alarm, double filtration; external high exhaust
silencer, the external protective shield against hot processing; setting
reversing buzzer, make driving safer.

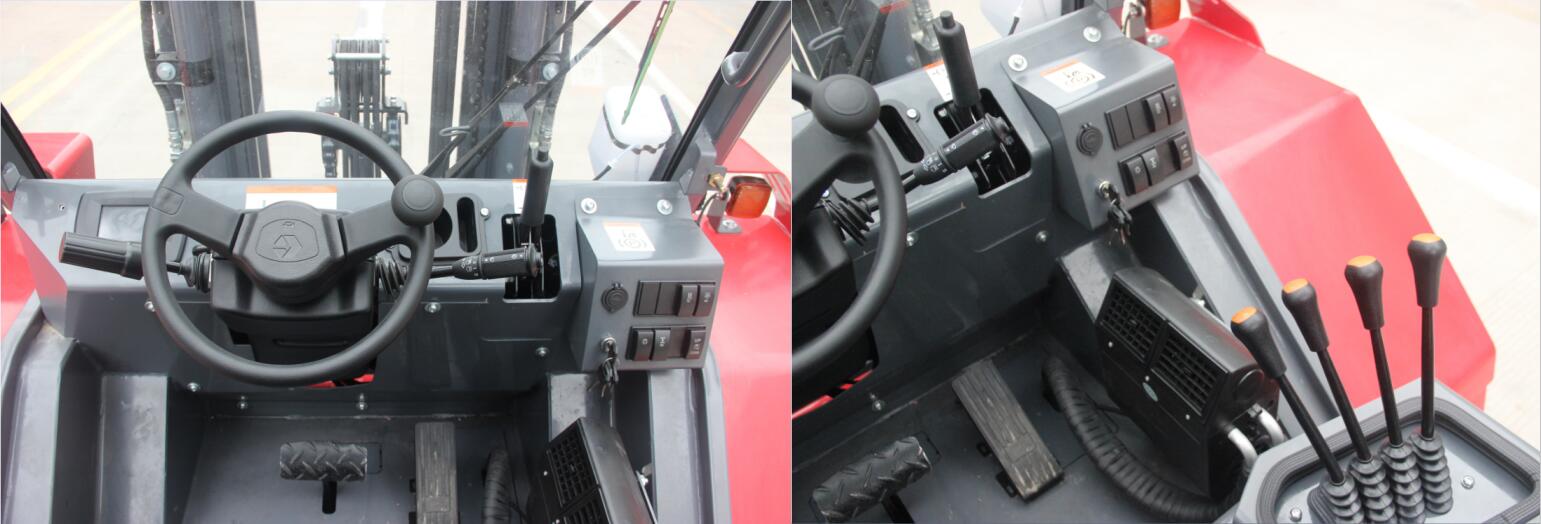

7. Comfort humanized design uses multifunction steering, European-style
instruments, and equipped with car cigarette lighter; excellent damping
performance seats with seat belts, side-mounted joystick, so easy to operate,
safe, flexible.

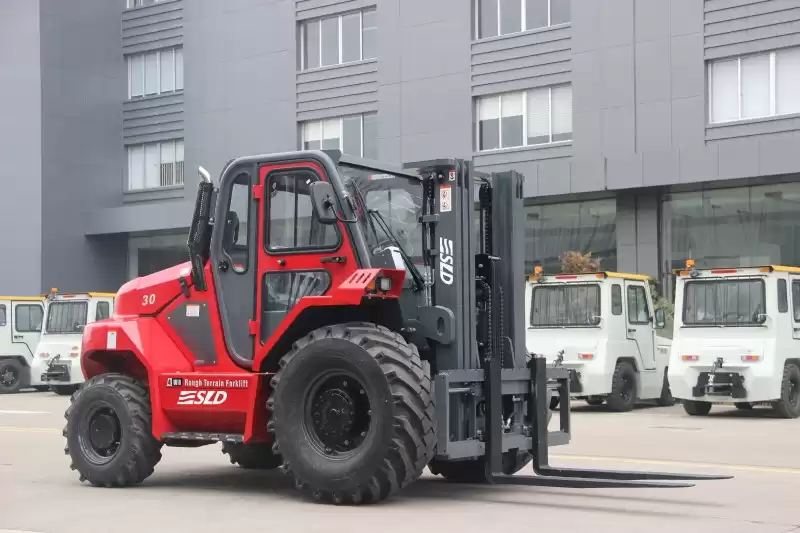

The Specification of 4x4 four wheel drive 3 ton small rough terrain forklift
|
General
|
Model
|
|
RTD30
|
|
Power Type
|
|
Diesel
|
|
Characteristic&Dimension
|
Lift Height
|
mm
|
3000
|
|
Mast Tilt Angle
|
F/R
|
Deg
|
10°/12°
|
|
Front Overhang(Wheel center to fork face)
|
mm
|
601
|
|
Ground Clearance(Bottom of mast)
|
mm
|
265
|
|
Overall Dimension
|
Length to face of fork(Without fork)
|
mm
|
3060
|
|
Overall Width
|
mm
|
1604
|
|
Mast Lowered Height
|
mm
|
2115
|
|
Mast Extended Height(With backrest)
|
mm
|
4250
|
|
Overhead Guard Height
|
mm
|
2200
|
|
Turning Radius(outside)
|
mm
|
2750
|
|
|
Min. intersecting aisle
|
mm
|
2615
|
|
Performance
|
Speed
|
Travel (Empty load)
|
km/h
|
22
|
|
Lifting(Full load)
|
mm/s
|
450
|
|
Max.Gradeability
|
%
|
16
|
|
Chassis
|
Tire
|
Front
|
mm
|
14-17.5-14PR
|
|
Rear
|
mm
|
27×10-12-12PR
|
|
Wheelbase
|
mm
|
1835
|
|
Service weight
|
kg
|
4800
|
|
Power&Transmission
|
Battery
|
Voltage/Capacity
|
V/Ah
|
12/90
|
|
Engine
|
Model
|
|
4TNE98
|
|
Rated output/r.p.m.
|
kw
|
42.1/2300
|
|
Rated torque/r.p.m.
|
N·m
|
186-206/1700
|
|
No.of Cylinder
|
|
4
|
|
Bore×Stroke
|
mm
|
98×110
|
|
Displacement
|
cc
|
3318
|
|
Fuel Tank Capacity
|
L
|
60
|
|
Transmission Type
|
|
Automatic
|
|
Drive Type
|
|
4WD
|
