4x4 CNC Router Wood Craft and Advertising Industry
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1530A
|
|
1
|
Working Area
|
1500x3000x200mm
|
|
2
|
Packing Size
|
3680x2330x1880mm
|
|
3
|
Working Table
|
T-Slot Aluminum Table
|
|
4
|
Spindle
|
3KW Water cooling Spindle
|
|
5
|
Cooling System
|
Water cooling
|
|
6
|
Control System
|
NC Studio
|
|
7
|
Inverter
|
Sunfar
|
|
8
|
Transmission
|
X,Y axis rack drive,Z axis screw drive
|
|
9
|
Guide Rail
|
Taiwan Square rail
|
|
10
|
Ball Screw
|
TBI ball screw from Taiwan
|
|
11
|
Drive System
|
Leadshine driving system and stepper motor
|
|
12
|
Body
|
Welded steel T type structure as a whole
|
|
13
|
Spindle Speed
|
24000r/min
|
|
14
|
Control Software
|
Artcam/Type3,other CAD/CAM
|
|
15
|
Traveling Speed
|
10m/min
|
|
16
|
Working Speed
|
8m/min
|
|
17
|
Reposition Accuracy
|
0.03mm
|
|
18
|
Command Code
|
G Code*.u00*.mmg*.plt
|
|
19
|
Voltage
|
AC220V/380V,50HZ/60HZ
|
PRODUCT DESCRIPTION

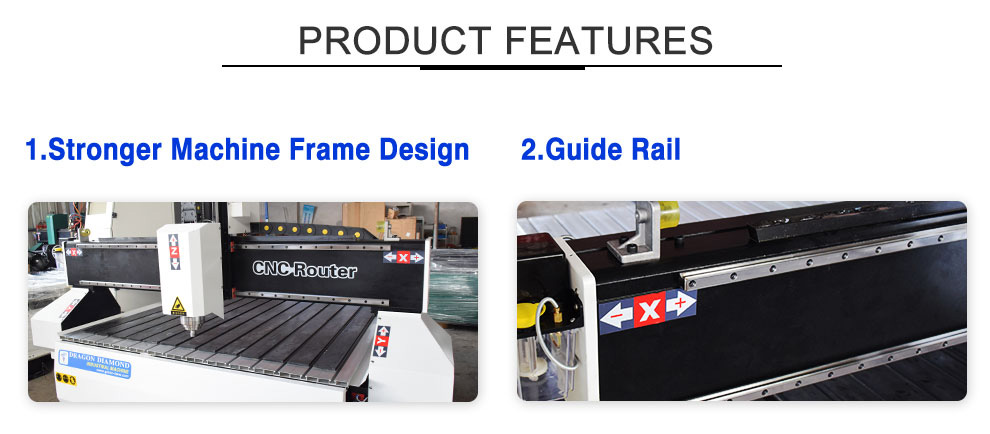

1.Stronger Machine Frame Design
Welded steel T type structure as a whole, six-legged heavy-duty body,large bearing capacity with vibration temper aging treatment ensures no deformation for long time, avoid broken knife, more stable, durable.
2.Guide Rail
Imported Hiwin, Taiwan linear squareguide rail with ball bearing slide block-which ensure high weight capacity,high.precision, smooth and steady running. Adopt iported precision ball screws, tools feeded with more accuracy.

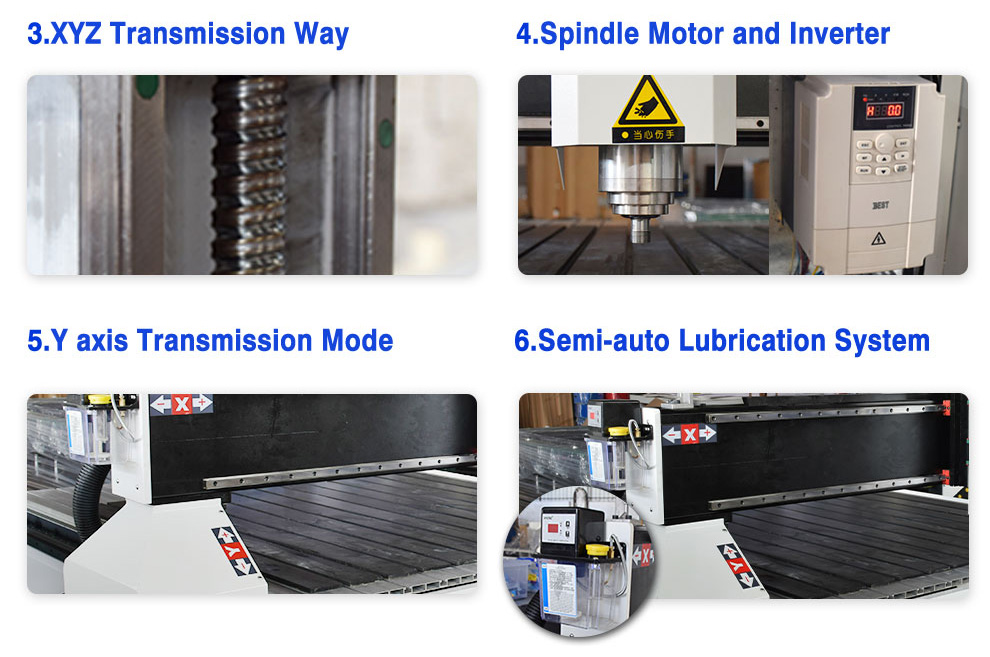

3.XYZ Transmission Way
Rack gear transmission for X and Y axis,higher running speed and efficiency,saving cost. Z- axis with precision ball screw, high precision and more durable.
4.Spindle Motor and Inverter
Large power 3.0kw water cooling spindle which is with stable performance, lower noise,powerful and high torque，matched with high-performance frequency inverter.
5.Y axis Transmission Mode
The Y axis transmission mode for stepping two-way drive, more efficient, simplified carpentry and maintenance of the processing of the maintenance work.
6.Semi-auto Lubrication System
Reduce machine parts loss Encrypted oil cap, no oil leakage, use assured

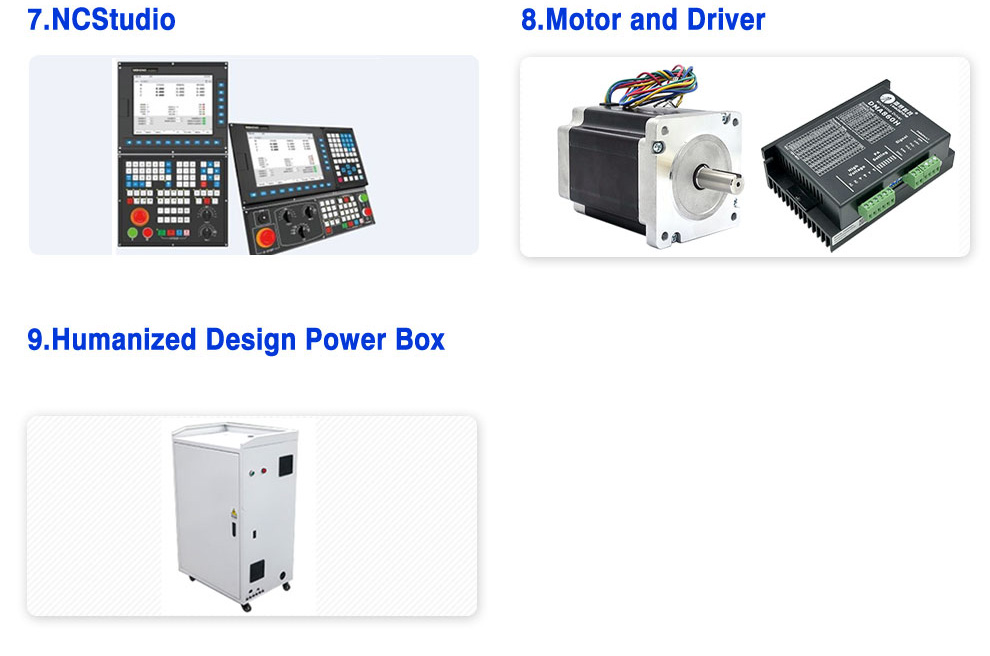

7.NC Studio
More functions, more efficient operating system
8.Motor and Driver
China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable,dual motor driver Y axis with traveling speed up to more than 25000 mm/min.
9.Humanized Design Power Box
More humanized design, dustproof, integrated power box.
