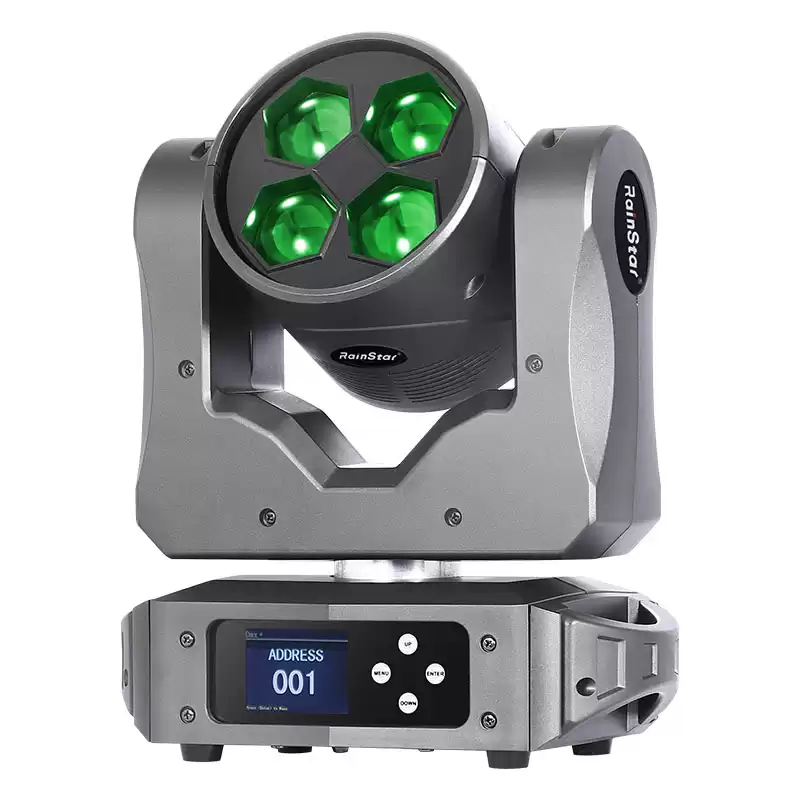

It uses 4*40W RGBW LEDs as the light source, 4-60 °large-angle zoom, which can be switched from Beam to Wash at will, the projected light spot is uniform, the color mixing is more pure, and the light projection distance is longer. In addition to DMX control, it also has Powerful RDM. Suitable for TV stations, bars, etc.
● Optics

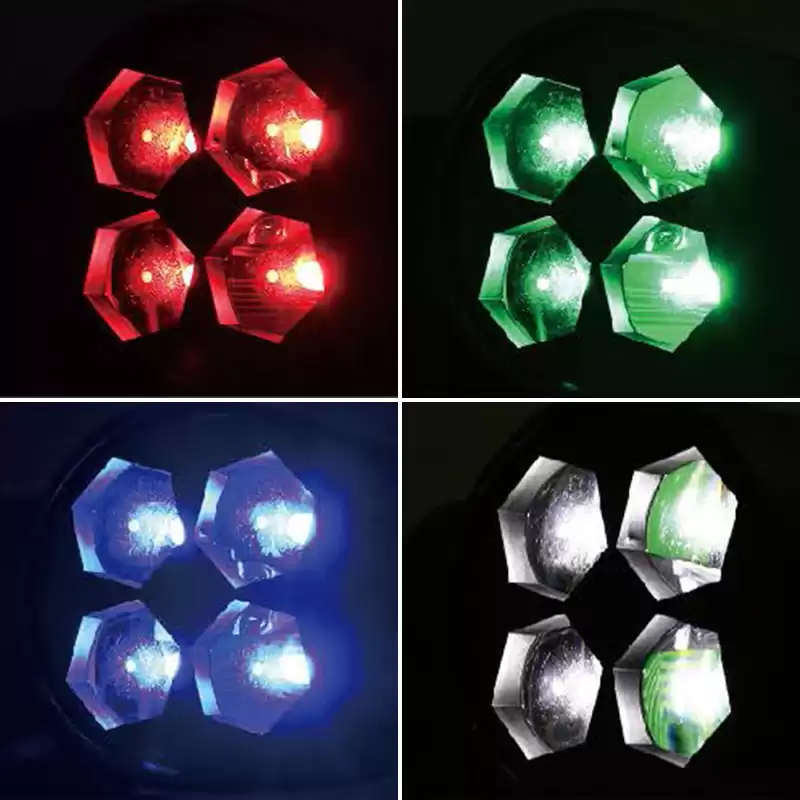

. LED : 4x40W 4 in 1 RGBW LED, uniform and delicate color mixing effect
. Beam angle: 4-60 ° zoom
. Excellent color mixing effect and rainbow effect
. Life span : 50000H, low power consumption, energy saving and environmental protection
● Scanning
. Pan l / tilt operation:
※ 8bit and 16bit fine-tuning
※ Smooth and precise positioning
※ Pan: 540 ° Tilt 270 °
※ The scanning position can be memorized, and it will be reset
automatically after no expected operation.
※ Pan and tilt with error correction function
● Colour
. Uniform RGBW color mixing system and rainbow effect
. White balance can be adjusted manually
● Specification
. 3 DMX channel modes: 5CH / 12CH / 18CH international standard DMX512 channels
. 3 control modes: DMX512, voice control, master-slave
. Light spot angle: 4-60 ° linear zoom
. Strobe effect :Puls Random、Ramp up Random、Ramp down Random、Random strobe、Strobe Breakeffect, 5s…..1s、Strobe0-20Hz。
. Dimming: 0-100% linear dimming, which can control the change of light and dark of 4 colors and light off at the same time
● Display
. 2.4-inch TFT color display
. High anti-interference four-button touch button
. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.
● Software
. Software update :Update via DMX link
. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
. LED refresh frequency: 3000Hz
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
. Dimmer mode: 2 kinds.(LED and Halogen)
● Other functions
. Setting and addressing: RDM
. RJ45 input and output
. Fan cooling (fan changes speed with temperature change)
. LED temperature detection system to protect the life of lamp beads

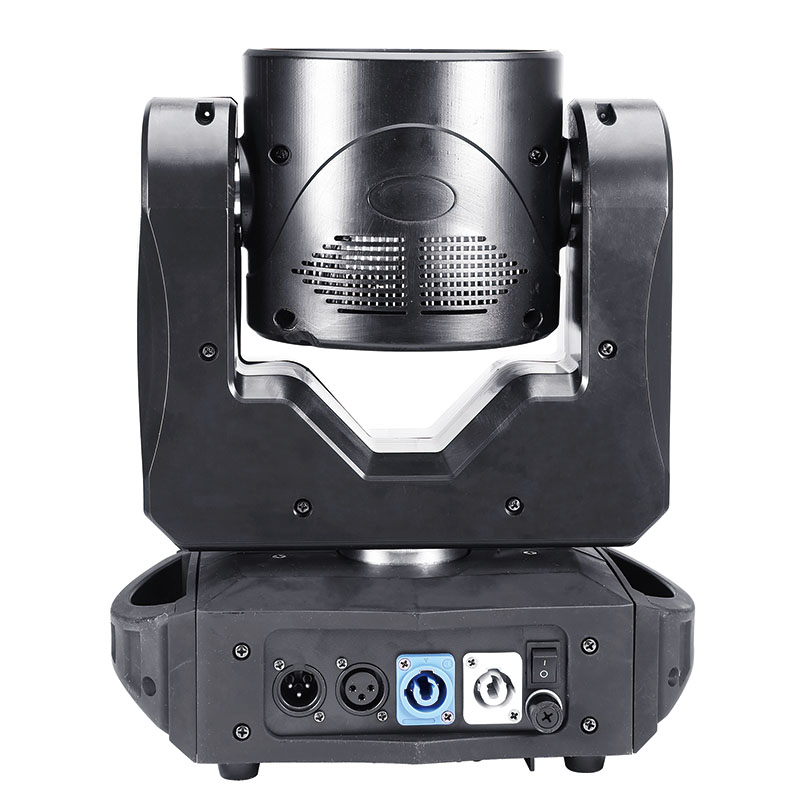

● Power / DMX connection
. Power connection: PowerCON power line input and output
. DMX XLR socket: 3 PinXLR socket input, output
● Power
. AC100-240V 50 / 60HZ
. Power consumption: 180W
● Protection class
. Housing material: ABS plastic fireproof material
. Waterproof level: IP20
● Working environment
. Indoor working temperature: -20 ° C ～ + 40 ° C
● size and weight
. Packing size: 220x320x420mm
. Net weight: 5.1KG
. Gross weight: 6.2KG
● Certification:
. CE, ROHS
