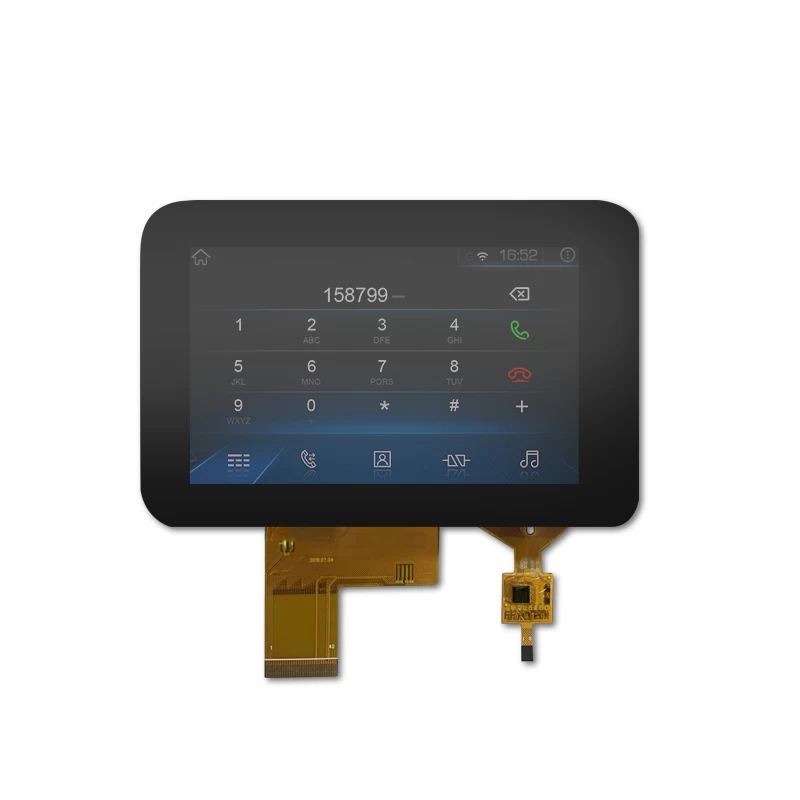

5" IPS lcd module 800×480 resolution with Capacitive touch panel
|
Specification
|
|
Part No.
|
TST050WVHS-36C
|
|
Outline Dimension(mm)
|
120.70x75.80x2.9
|
|
Active Area(mm)
|
108.00x64.80
|
|
Resolution(dots)
|
800*RGB*480
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
800RGB(H)xRGBx480(V)
|
|
Touch panel
|
with Capacitive touch panel
|
|
Dot Pitch
|
0.0642(W)x0.1790(H)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal black,IPS, 5.0 inch TFT
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
ALL
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
TTL
|
|
Module lifetime(Hours)
|
50,000-100,000
|
