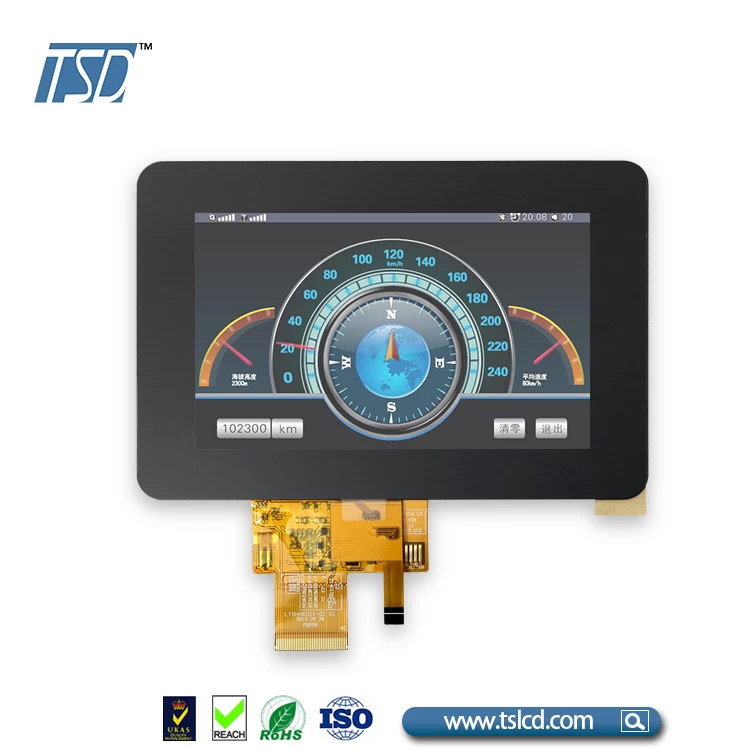

5.0" TFT LCD Module WQVGA 800x480 resolution with Capacitive touch panel



Specification
Part No. TST050WVHI-12C
Outline Dimension(mm) 120.9 x 75.95 x2.9(Typ)
Display Area(mm) 110.8(H) x 62.823(V)
Viewing angle 12 o'clock
Resolution(dots) 480x800
Back-Light LED Side-light type
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 480 RGB (H) x 800(V)
Pixel Pitch 0.077(H) x 0.231(V)
Pixel arrangement RGB Vertical stripe
Display mode Normal white
Luminance 500 nits
Weight(g) 50(Typ.)
Backlight 12 white LEDs
