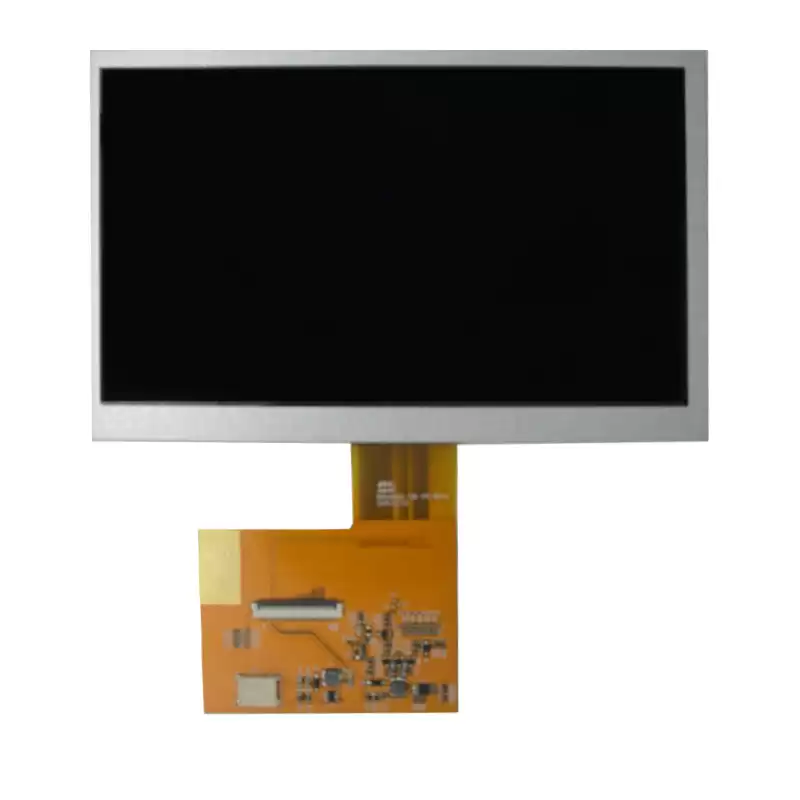

5.0 Inch TFT 480(RGB)*272 LCD module with 750 nits brightness

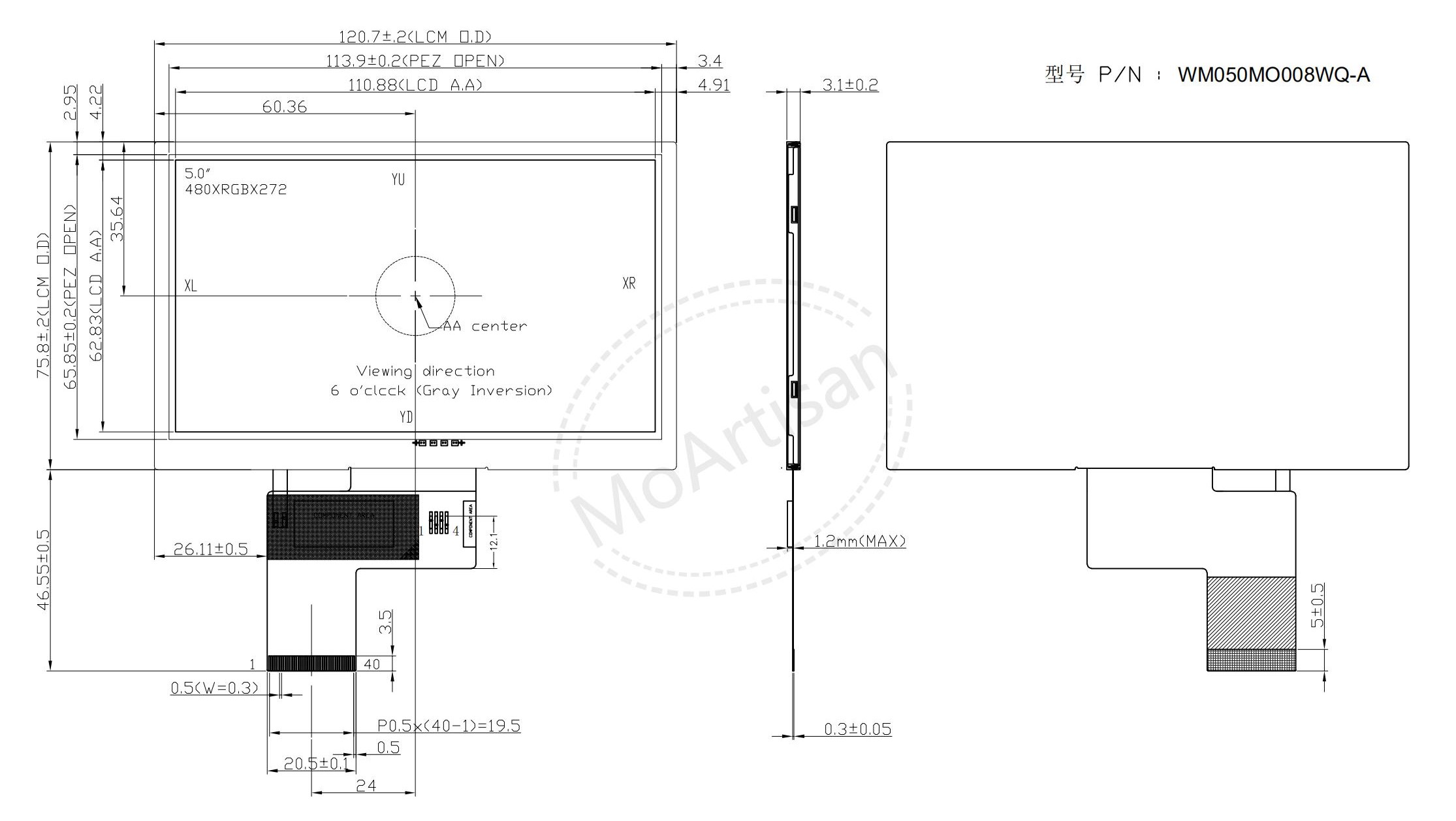

Production drawings
WM050MO008WQ-A Introduction
-
5.0 (16:9) inch diagonally measured
active display area.
-
WQVGA (480 horizontal by 272 vertical pixel)
resolution.
-
5.0 inch TN lcd module with 750 nits brightness.
|
|
About Part Number WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
5.0
|
WQVGA, 480RGB*272, TN,
6-O'clock, landscape view screen
|
120.8x76x3.1
|
3X6 LED (50K)
|
40 PIN FPC, 24-Bit,RGB
|
750 nits/600
|
Topa: -20~+70
Tstg: -30~+80
|
60/70/75/75
|
WM050MO008WQ-A
|
Production Applications
GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ:
What are the features of this product WM050MO008WQ-A?
ANSWER:
If you have a new development project, this production is not fit for your choice.
If you need replacement urgently, you can buy it.
