5.0 Inch TFT 800(RGB)*480 LCD module 1000 nits brightness

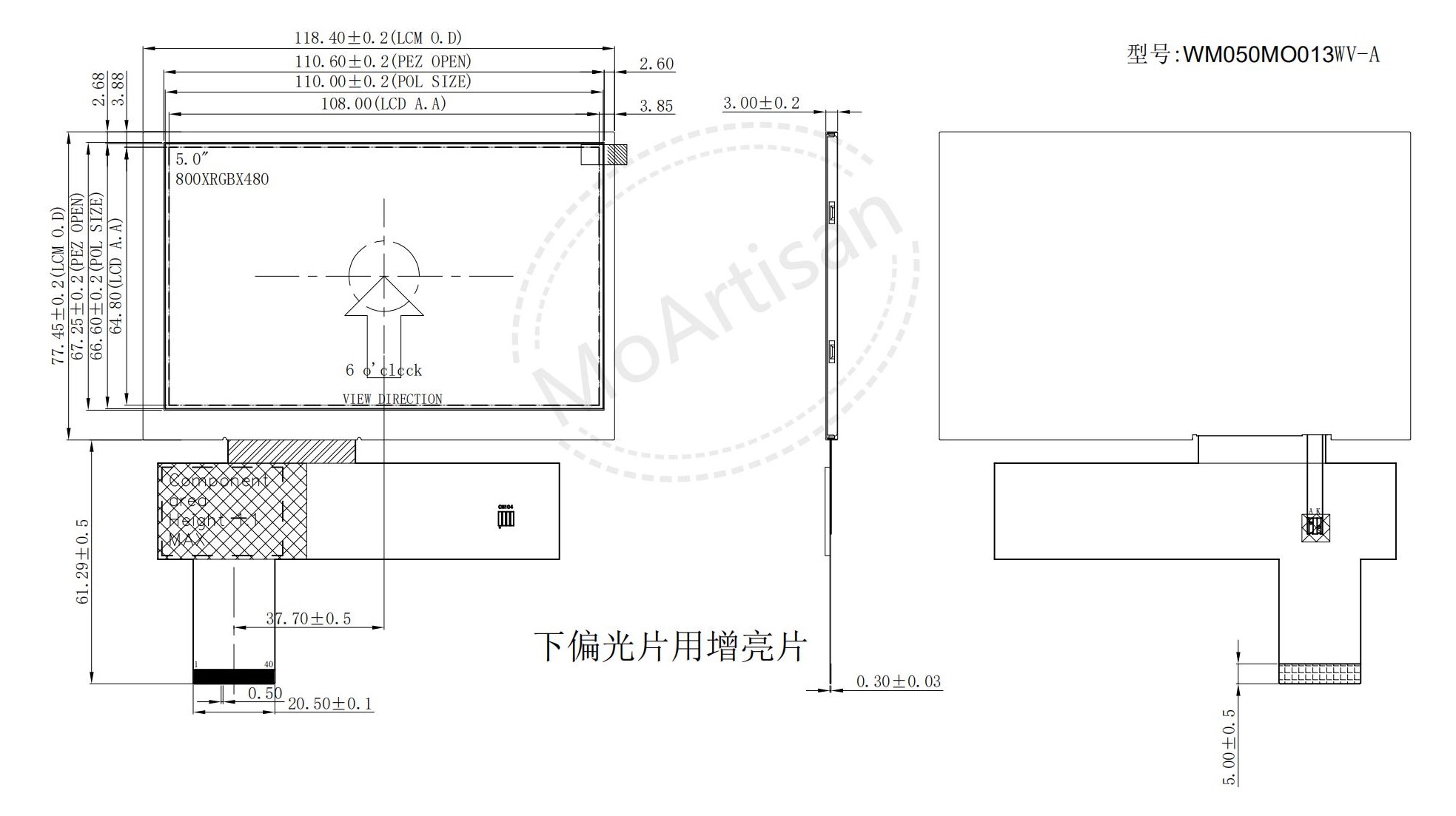

Production drawins

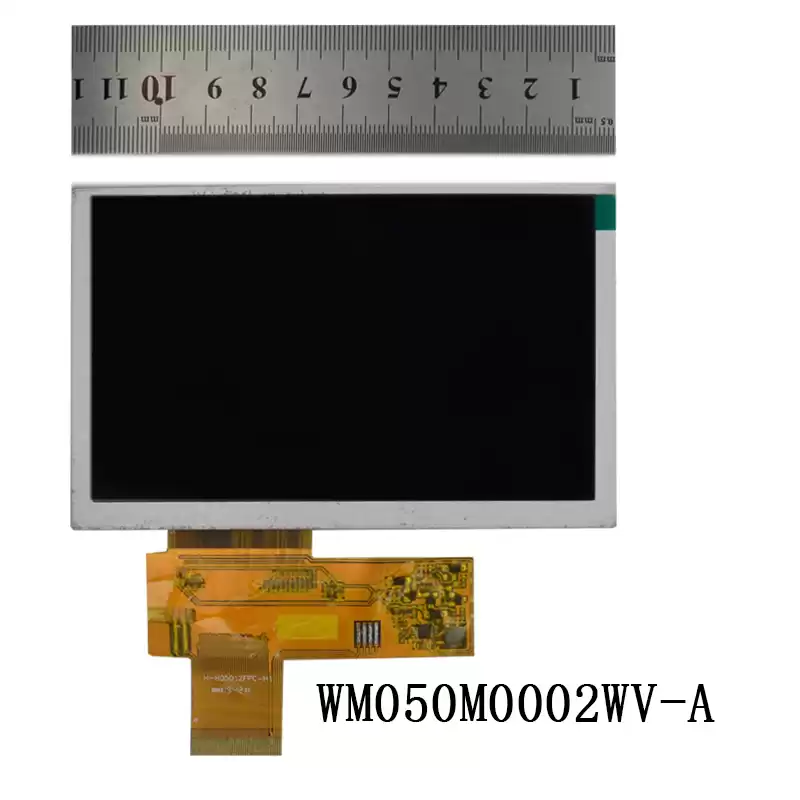

WM050MO002WV-A Introduction
-
5.0 (15:9) inch diagonally measured
active display area.
-
WVGA (800 horizontal by 480 vertical pixel)
resolution.
-
5.0 inch TN lcd module with 1000 nits brightness.
|
|
About Part Number WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
5.0
|
WVGA, 800RGB*480, TN,
6-O'clock, landscape view screen
|
118.4x77.45x3.1
|
3X6 LED (50K)
|
40 PIN FPC, 24-Bit,RGB
|
1000 nits/600
|
Topa: -20~+70
Tstg: -30~+80
|
60/70/75/75
|

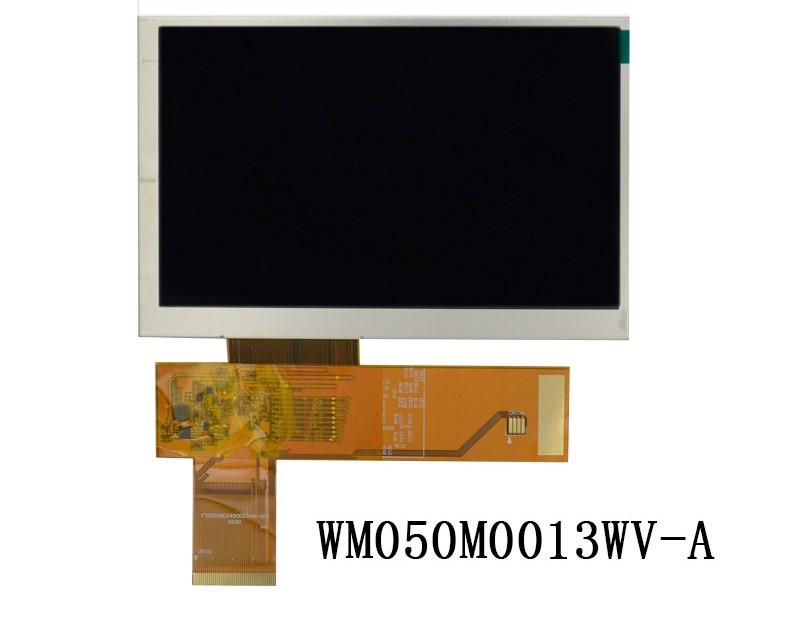

WM050MO013WV-A
|
Production Applications
GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ:
Liquid crystal backlight is how to achieve high brightness?
ANSWER:
LCD backlight brightness can be improved in a variety of ways.
The most straightforward method is to increase the number of the LEDs, or to use more efficient LEDs, or to use dual core LEDs.
