5.0x 3.2mm Voltage Controlled Temperature Compensated Crystal Oscillators (VC-TCXO) PVC5032
Features
Low voltage operation
Low phase noise
Single packaged structure
Prevention of moisture packing is unnecessary
Moisture sensitivity level: LEVEL 1 (IPC/ JEDC J-STD-033)
Applications
Mobile phone (W-CDMA, CDMA2000, TD-SCDMA, GSM, GPRS, Mobile W-PHS)
Other wireless radio communications(WIMAX)
GPS
Voltage Controlled Temperature Compensated Crystal Oscillators PVC5032
VC-TCXO in ceramic seam seal SMD packages - HCMOS/ LVCMOS output
Electrical Parameters
| Item | Value |
| Frequency Range | 10~30MHz |
| Standard Frequency | 13/19.2/26MHz |
| Supply Voltage Range | +2.3~+5.5V |
| Supply Voltage (Voc) | +2.6/+2.8/+3.0/+3.3V |
| Current Consumption |
+1.1mA max. (f≤15MHz) +1.3mA max. (f>15MHz) |
| Output Level | 0.8Vp-p min. (Clipped Sinewave/ DC-coupled) |
| Output Load | 10kΩ//10pF |
| Frequency Stability Tolerance | ±1.5×10-6max. (After 2reflows) |
| vs. Temperature |
±2.0×10-6max. /-30~+85℃ @CDMA; ±2.5×10-6max. /-30~+85℃ @GSM |
| vs. Supply Voltage | ±0.2×10-6max. (Vcc±5%) |
| vs. Aging | ±0.1×10-6max. /year |
| vs. Load Variation | ±0.2×10-6max. (10kΩ//10pF±10%) |
| Frequency Control | |
| Control Sensitivity |
±7.8×10-6 ~
±12×10-6/Vcont=+1.4±1V @CDMA ±9.0×10-6 ~ ±15×10-6/Vcont=+1.5±1V @Vcc≥+2.6V ±9.0×10-6 ~ ±15×10-6/Vcont=+0.9±0.6V @Vcc=+1.8V |
| Response Slope | Positive |
| Start up Time | 2.0ms max. |
| Phase Noise | [f≤15MHz] [15MHz<f] |
| Offset 100Hz | -110dBc/Hz -105dBc/Hz |
| Offset 1kHz | -130dBc/Hz -125dBc/Hz |
| Offset 10kHz | -145dBc/Hz -140dBc/Hz |
| Offset 100kHz | -145dBc/Hz -145dBc/Hz |
| Packing Unit | 4000pcs./reel(Φ330) |

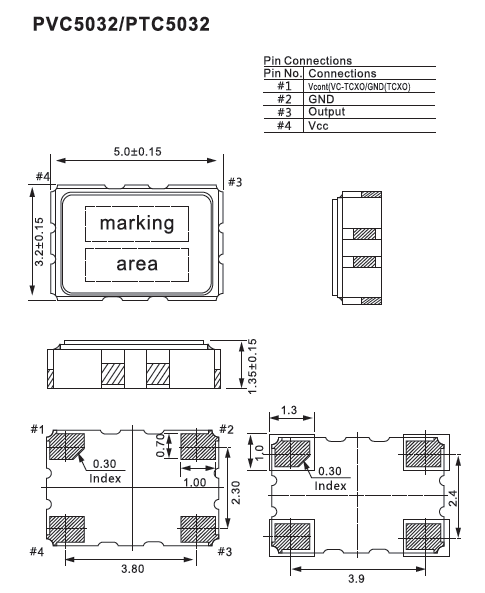

Dimensions
Reflow
| Profiles Feature | Pb-Free Assembly |
| Average Ramp-up Rate (Ts max to Tp) | 3℃/second max. |
|
Preheat ■ Temperature Min (Ts min) ■ Temperature Max (Ts max) ■ Time (ts min to ts max) |
125℃ 200℃ 60~180 seconds |
|
Time maintained above ■ Temperature (TL) ■ Time (tL) |
217℃ 60~150 seconds |
| Peak/Classification Temperature (Tp) | 260℃ |
|
Time within 5℃ of
actual Peak Temperature (tp) |
20~40 seconds |
| Ramp-down rate | 6℃/second max. |
| Time 25℃ to Peak Temperature | 8 minutes max. |
| Suggest reflow times | 3 Times max |
