5.5 Inch IPS 1080(RGB)*1920 LCD portrait view screen 2000 nits brightness

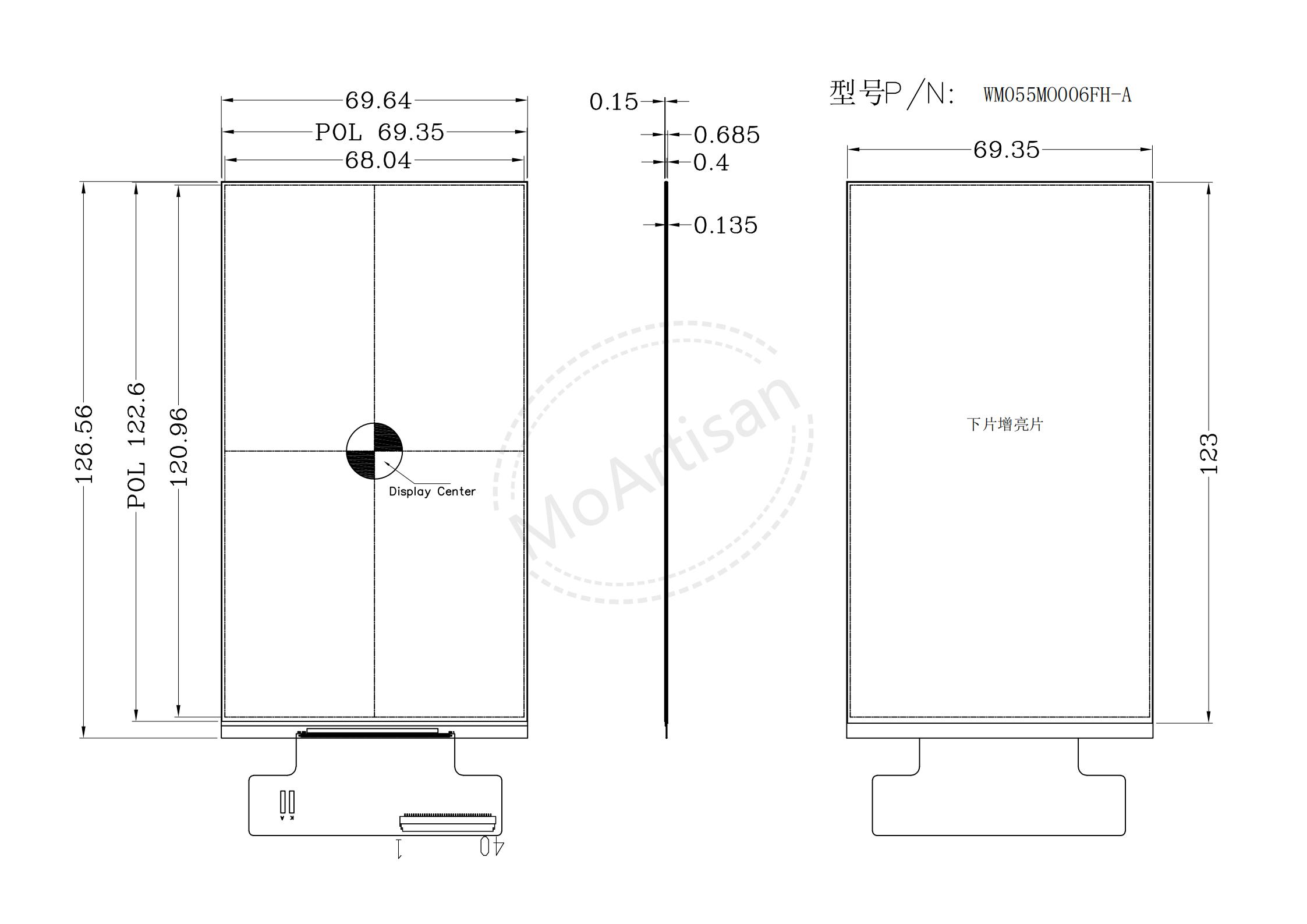

Production Drawings
WM055MO006FH-A Introduction
-
5.5 (9:16) inch
diagonally measured active display area.
-
FHD (1080 horizontal by 1920
vertical pixel) resolution.
-
5.5 inch ips wide view angle lcd.
-
This module's sueface brightness is over 2000 nits and at the same time the surface temperature is below 50 degrees Celsius.
-
1000 contrast ratio for this panel.
-
40 PIN CON, MIPI interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
5.5
|
FHD, 1080RGB*1920,
IPS, portrait view screen, wide temp
|
76*136*4.5
|
4X7 LED (50K)
|
40 PIN CON, 8
Bit, MIPI
|
2000 nits/1000
|
Topa: -30~+80
Tstg: -30~+80
|
85/85/85/85
|
WM055MO006FH-A
|
Production Applications
Mobile Terminal, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized also.
Lead time for samples: 3~4
weeks.
FAQ:
How hot will the surface temperature of this bright LCD screen be?
ANSWER:
The surface temperature of the working LCM is approximately 50 ° C at 25 ° C using an aluminum base LED light bar.
After special treatment, the LCM surface temperature can be reduced to 45 degrees Celsius.
