Key Features:

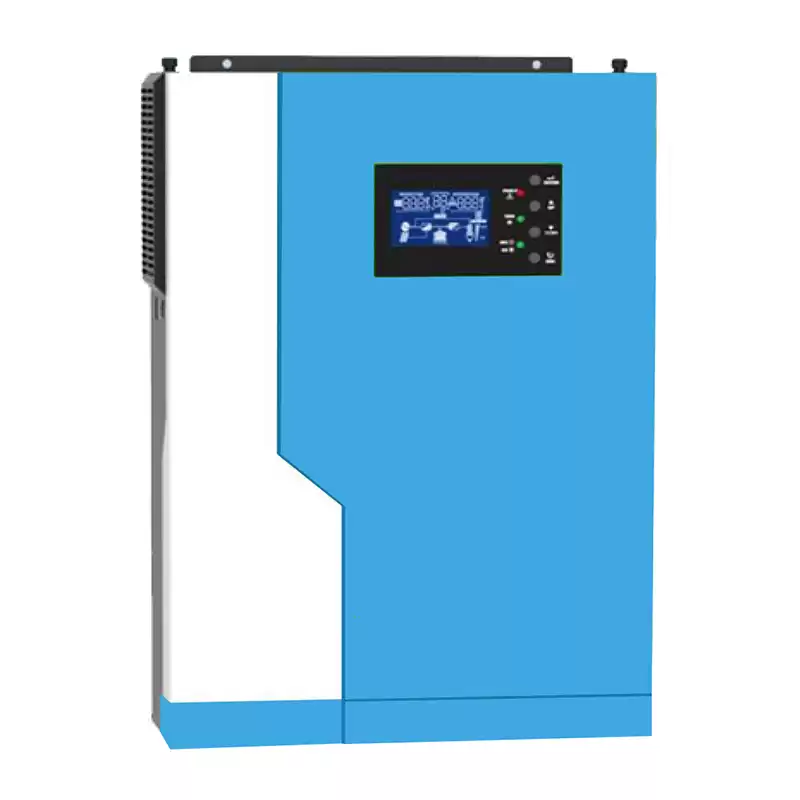

1.Pure sine wave solar inverter
2.Output power factor 1.0
3.High PV input voltage range(120~450VDC)
4.Inverter running without battery
5.Buit-in 80A MPPT solar charger
6.Smart battery charge design to optimize battery life
7.Wifi&GPRS available for IOS and android
ff Grid Solar System Without Battery Design Bebnefits
It can be running without batteries, energy share from utility and solar to loads alternatively.
Without batteries, it can help to reduce the whole solar system cost and more importantly it can save electricity fee.
It combines a high PV input MPPT controller, it can convert solar energy form PV to loads directly and the same time the remaining solar energy converted to batteries.
When PV output is reduces by clouds or at night, resulting in no surplus PV power available, loads powered by utility and batteries is charged, when utility outage, batteries discharged.
Off grid solar system running without battery can help to reduce the cost and save electricity fee, energy share from utility and solar to loads alternatively.
|
Model
|
HF-NB-5.5K
|
INVERTER OUTPUT &INPUT
|
Rated Power
|
5500VA/5500W-48V
|
Output Waveform
|
Pure sine wave
|
Input Voltage
|
230VAC
|
Selectable Voltage Range
|
170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances)
|
Output Frequency Range
|
50Hz/60Hz(Auto sensing)
|
AC Output Voltage Requlation(Batt. Mode)
|
230VAC±5%
|
Surge Power
|
11000VA
|
Efficiency (Peak) PV to INV.
|
97%
|
Transfer Time
|
10 ms (For Personal Computers) 20 ms(For Home Appliances)94%
|
SOLAR CHARGER
|
Maximum PV Array Power
|
5500W
|
MPPT Range@Operating Voltage
|
120~450VDCVDC
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
Maximum Charging Current
|
80A
|
