5.7 Inch TFT 640(RGB)*480 lcd screen with 3000 nits, or 1000 nits, 0r 1200 nits brightness

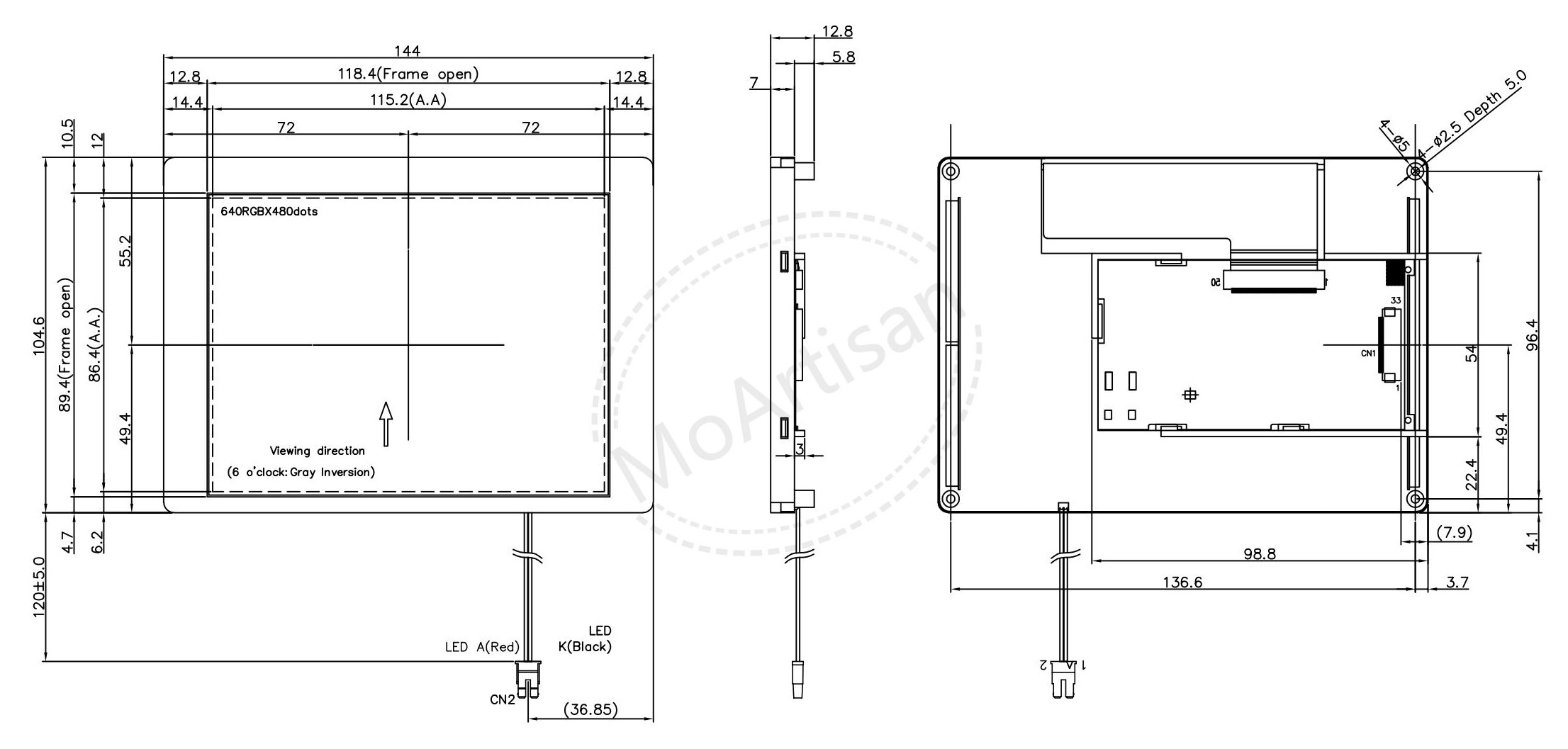

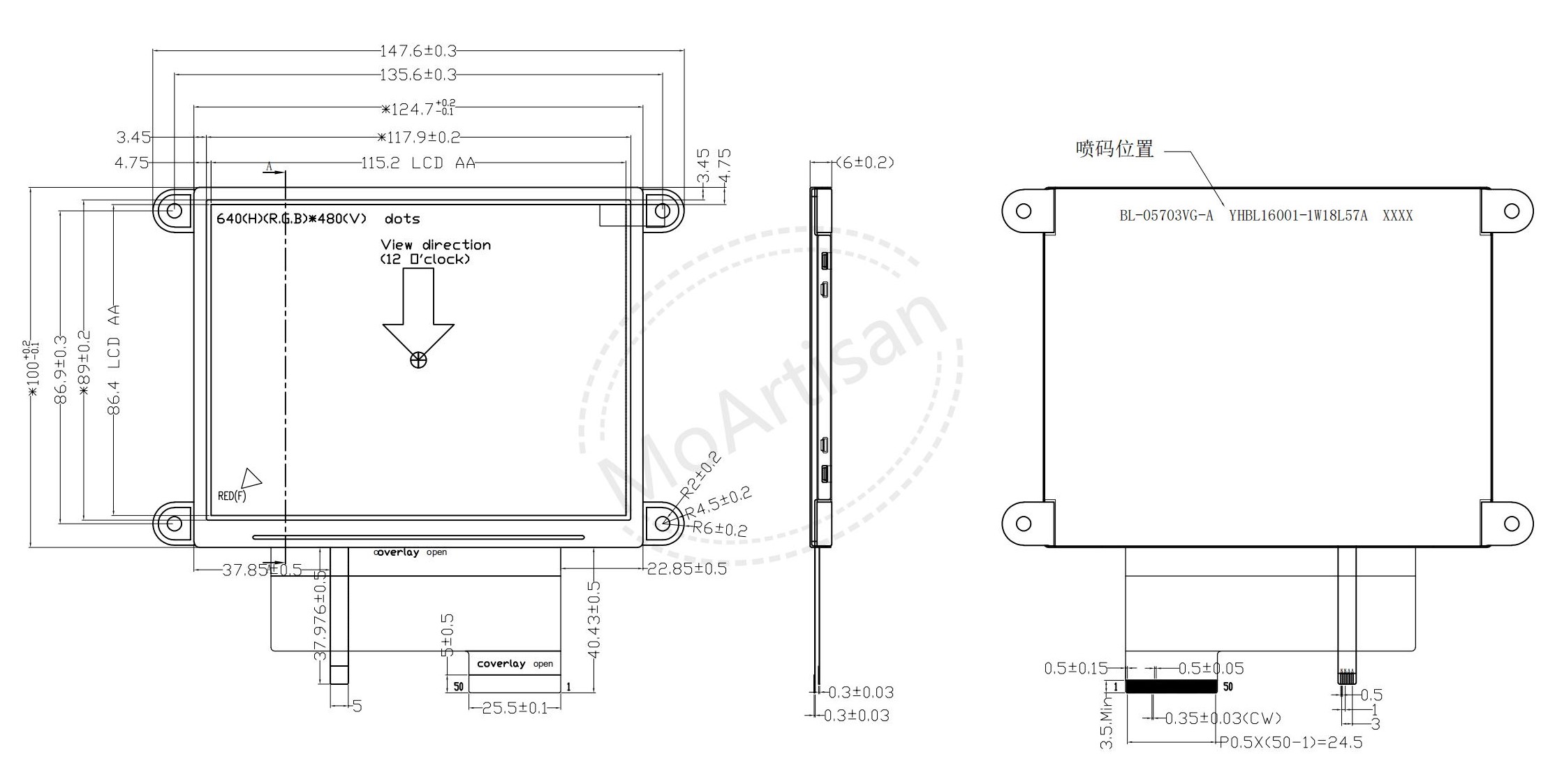

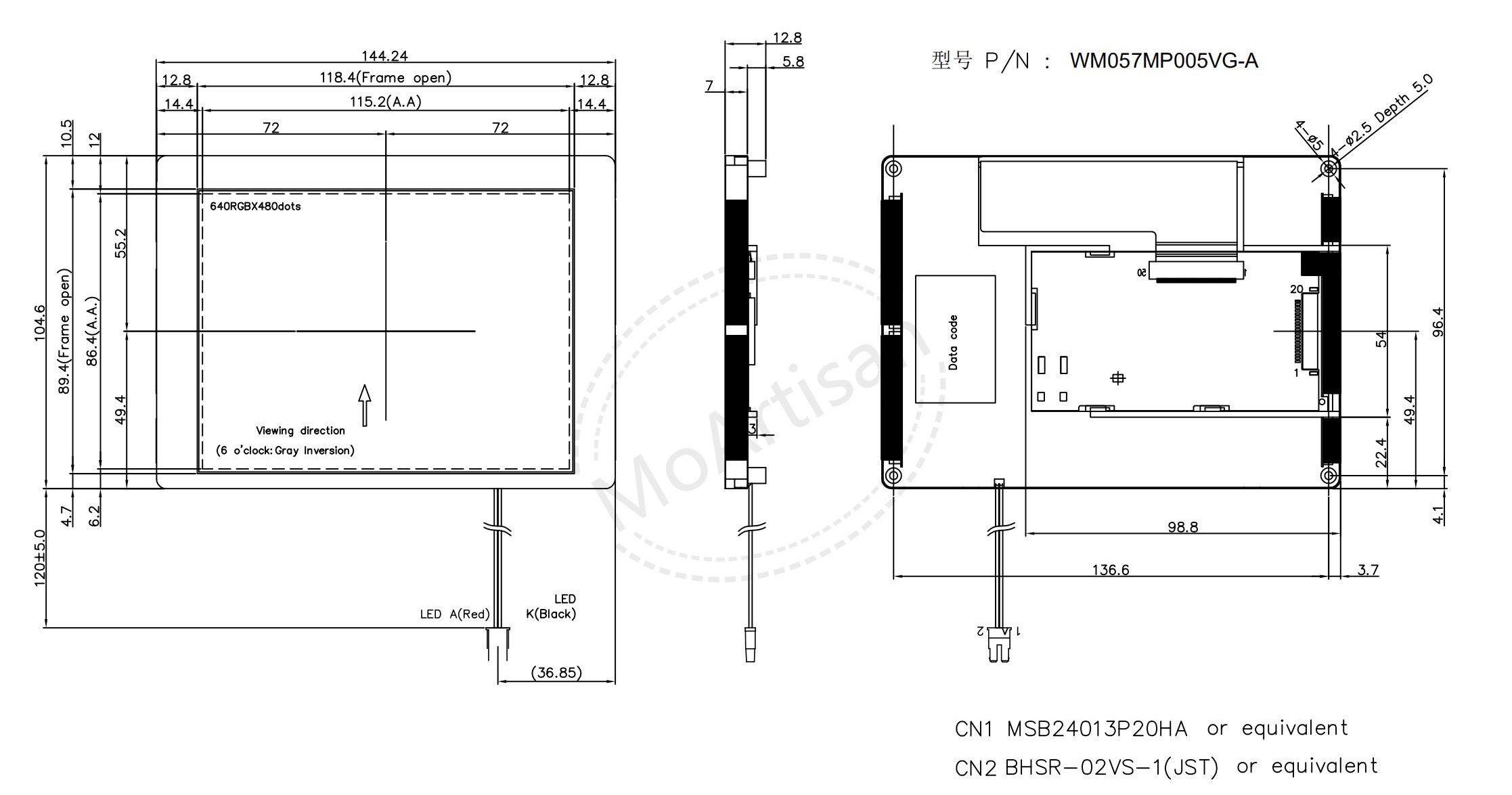

Production drawings
WM057MP005VG-A Introduction
-
5.7 inch diagonally measured active display area.
-
VGA (640 horizontal by 480 vertical pixel) resolution.
-
lcm surface brightness 3000 nits.
-
4:3 screnn LVDS LCD module with powerboard.
-
WM057MP003VG-A 1000 nits brightness.
-
WM057MP002VG-A 1200 nits brightness,
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T
(Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
5.7
|
VGA, 640*RGB*480, TN, 6 -O'CLOCK, 4:3 LCD screen, with powerboard invert.
|
144*104.6*12.8
124.7*100*9.1
144*104.6*12.8
|
3*6
2*9
10*3 LED (50K)
|
20 PIN Con, LVDS
20 PIN Con, LVDS
33 PIN Con, 18 bits RGB
|
3000 nits/300
1000 nits/300
1200 nits/300
|
Topa: -20~+70
Tstg: -30~+80
|
50/65/65/65
|
WM057MP005VG-A
WM057MP003VG-A
WM057MP002VG-A
|
Production Applications
Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks
FAQ:
What's any special about this product WM057MP005VG-A?
ANSWER:
This product is very difference from normal LCMs.
It has been used for military vehicles, outdoor signage board, construction machinery and agricultural machinery, and so on.
