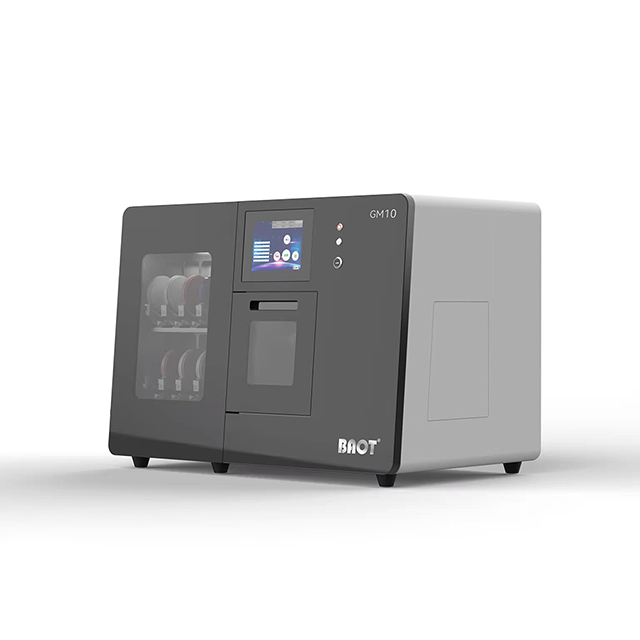

5 Axis CNC Milling Machine GM10 for Dental Lab CAD CAM
The GM10 milling machine has 5 axes, 3 linear axes (X, Y, Z) and 2 rotary axes (A and B). The feed bin has 10 slots for placing 10 different kinds of discs at the same time. This machine is suitable for milling high-precision dental products with high-speed cutting solid carbide tools.

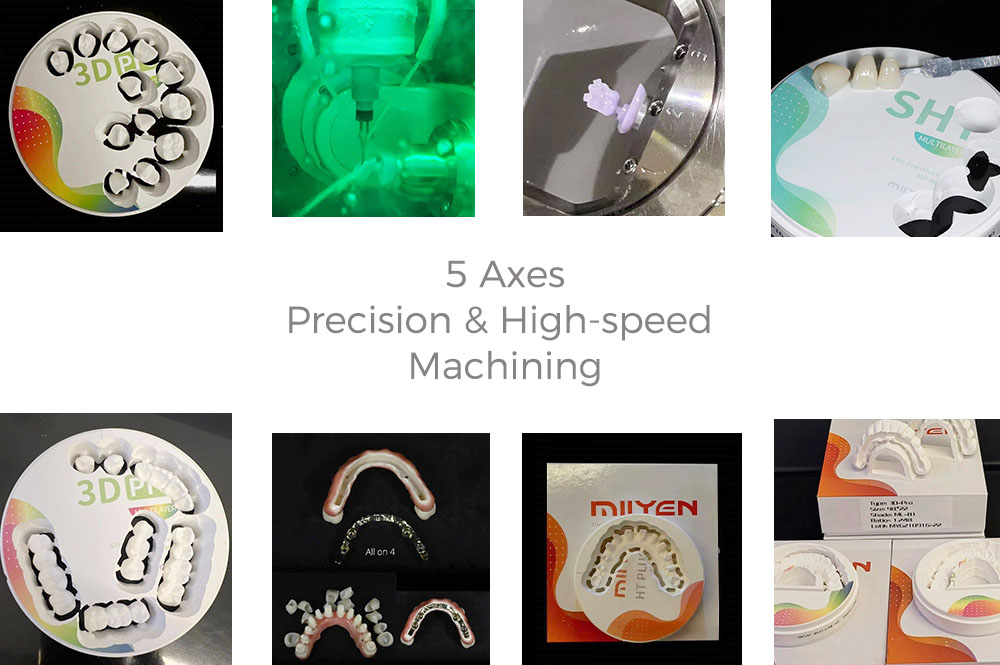

Materials that can be processed by dry cutting: Pre-sintered zirconia (ZrO²), PMMA, WAX, nanocomposites, and model materials. And wet cutting: lithium disilicate block, etc.
- Stable performance, high precision, suitable for high-efficiency 5 axes machining center
- Industrial grade precision ball screw, precision full servo drive system

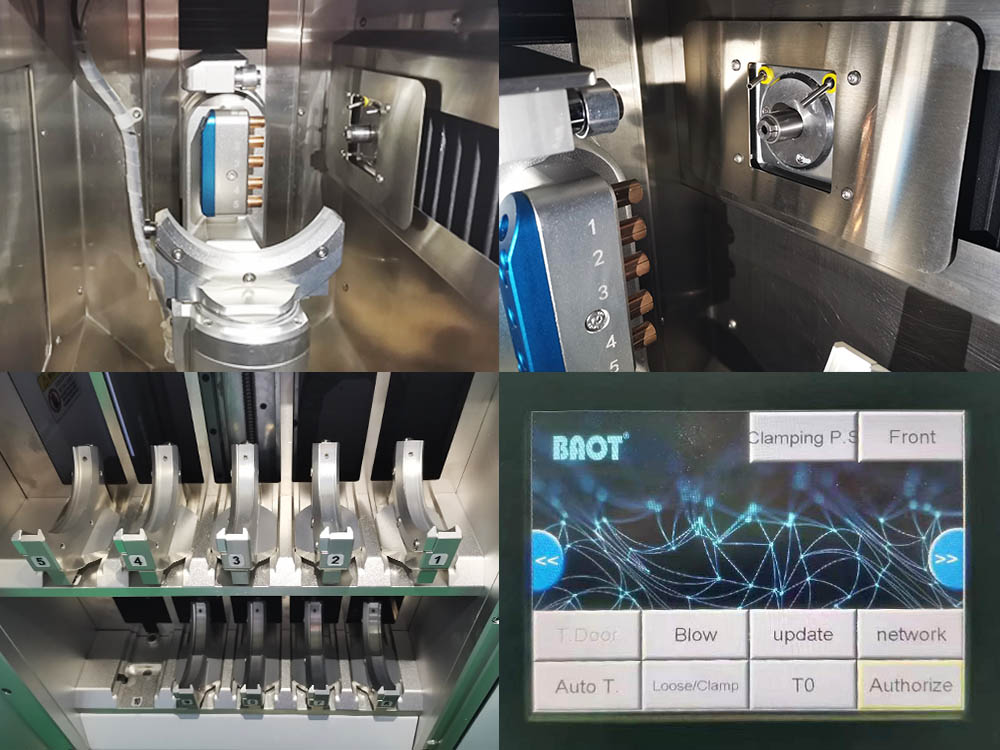

- 118°opening fixture with a secondary fixture to maximize material utilization
- 10 blocks for feed bin capacity, intelligent automatic material refueling, 24 hours efficient production
- 60000rmp high-frequency, high-precision heavy-duty spindle
- Fast milling burs switching
- Burs wear and life control system

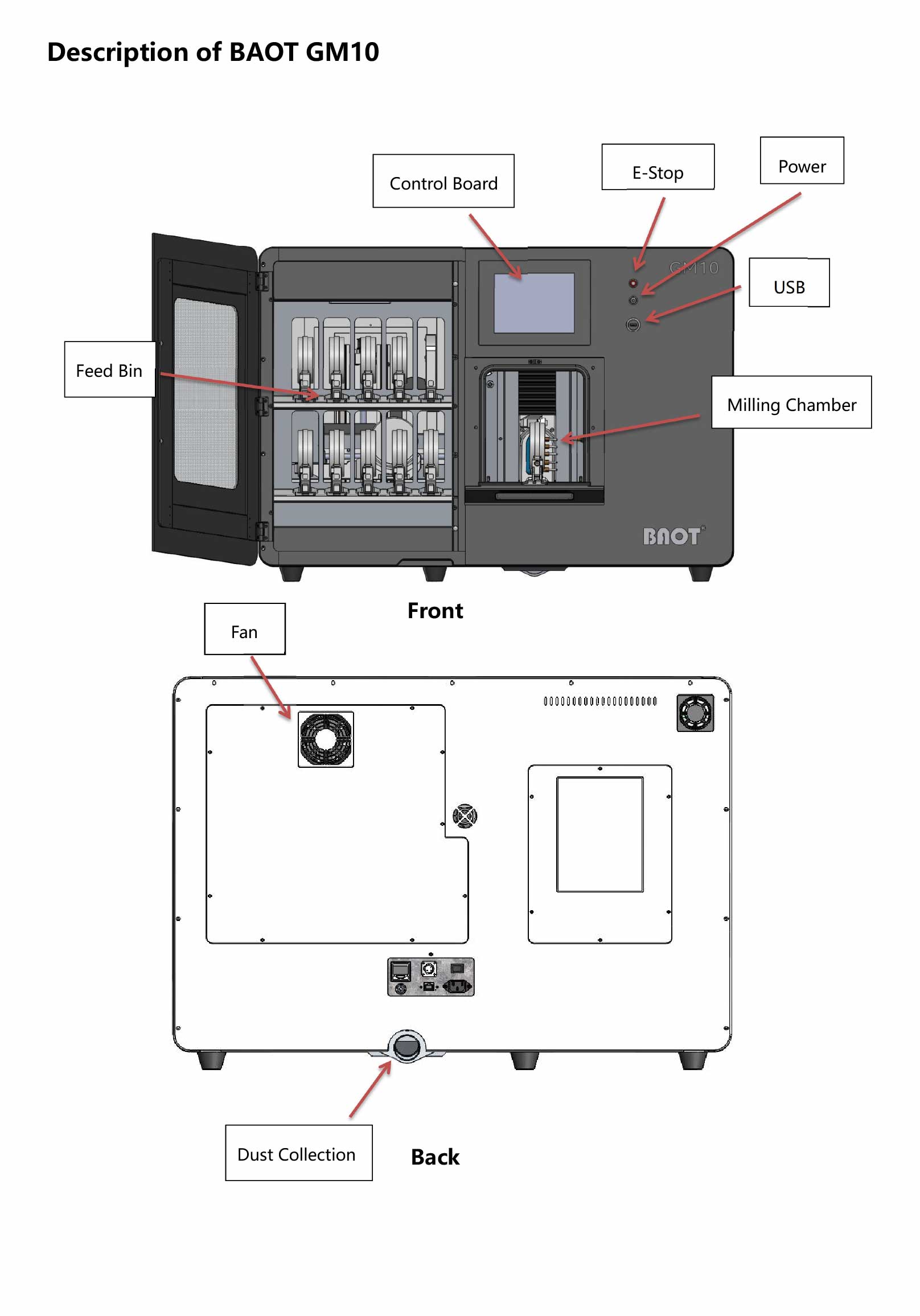

Description of BAOT GM10 Milling Machine

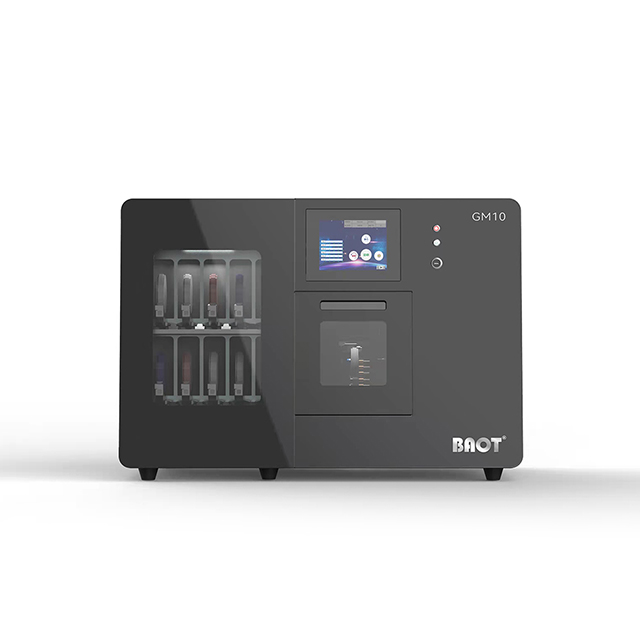

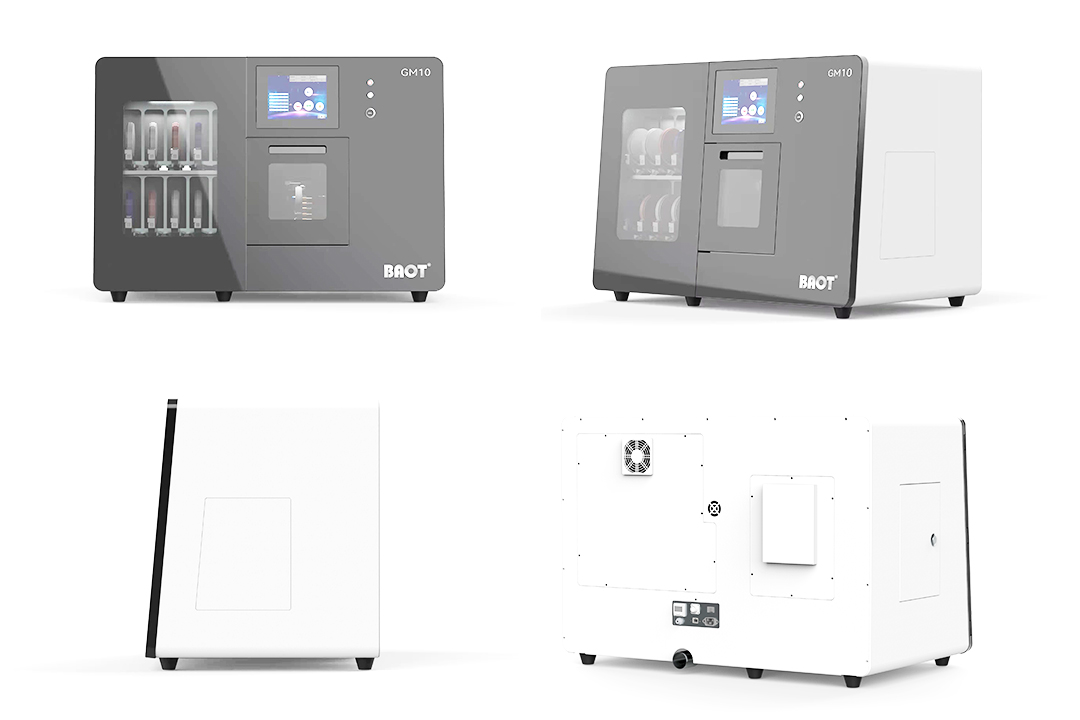

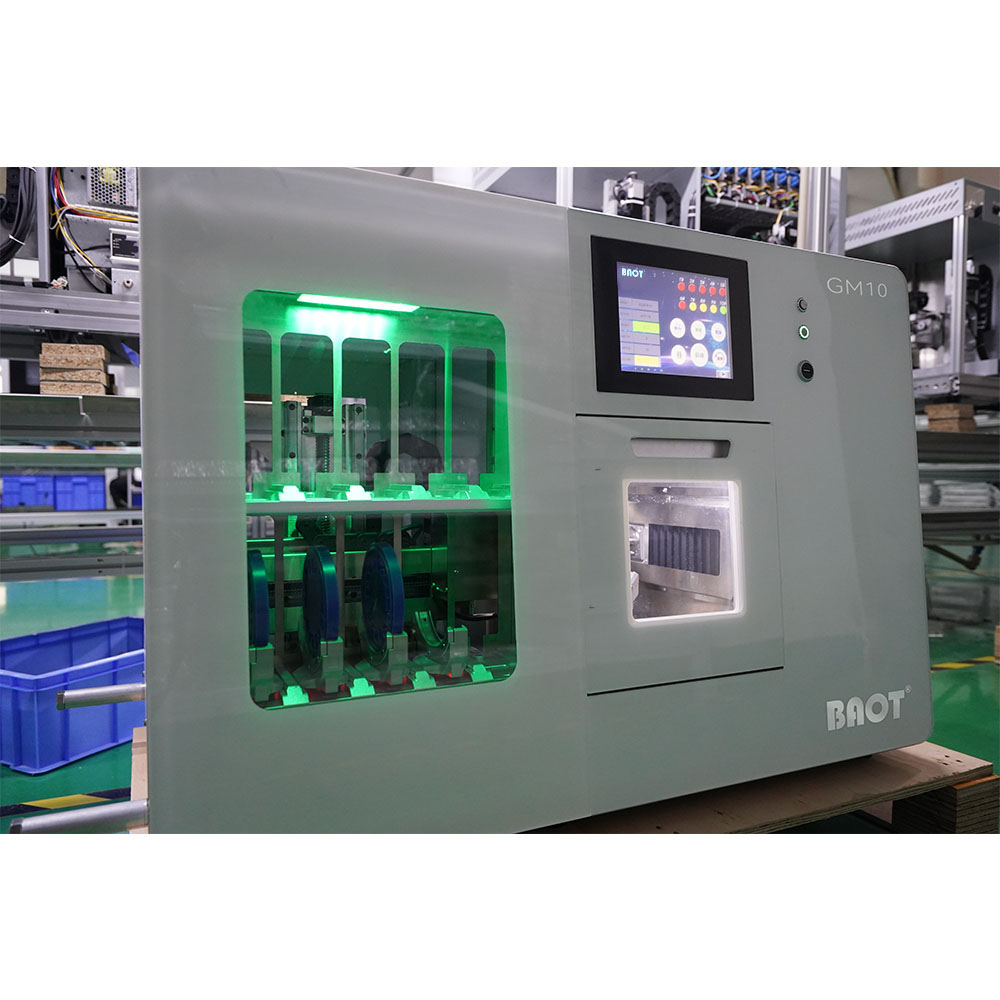

5 Axis CAD CAM Milling Machine GM10 White

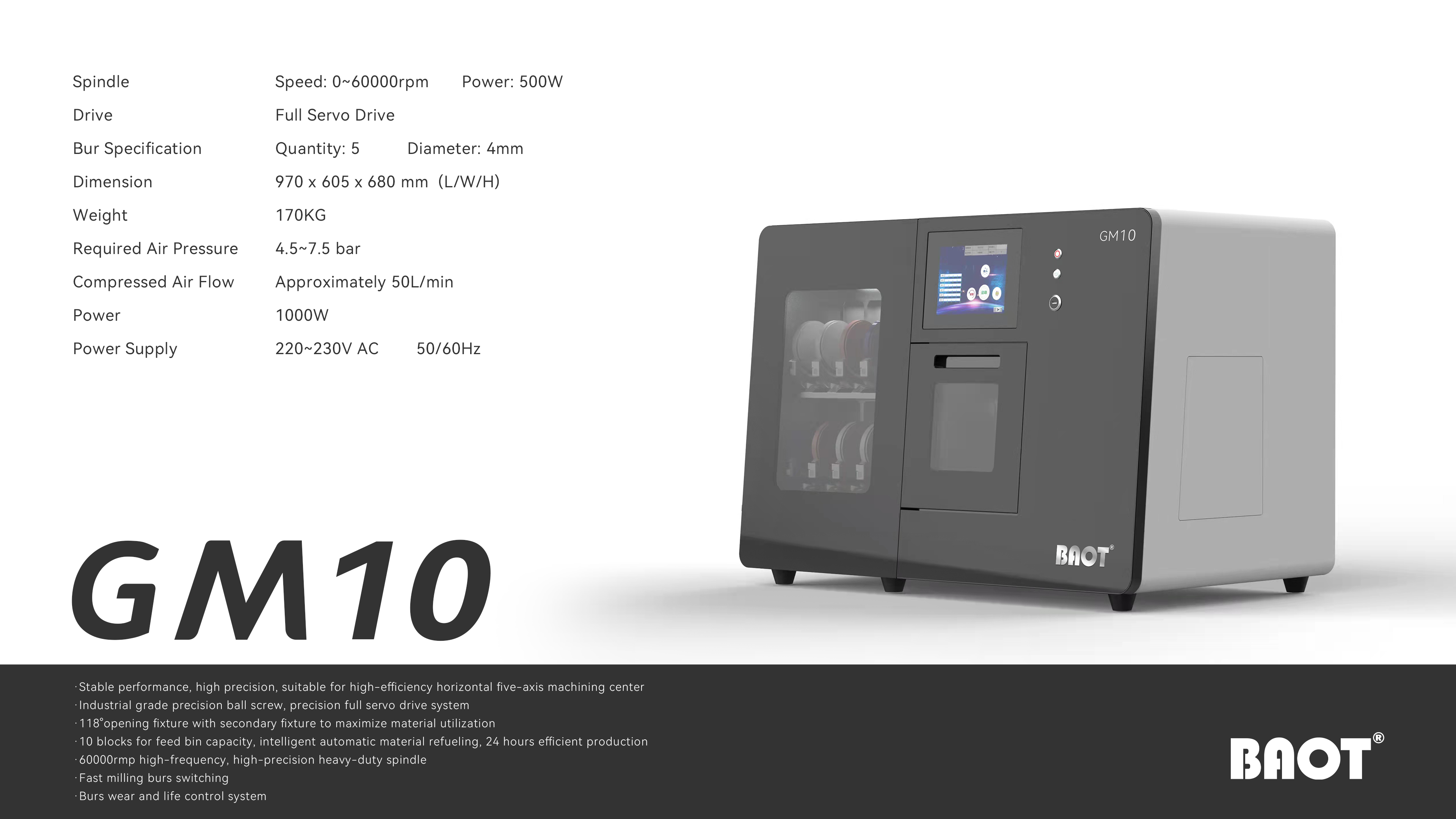

Specification of Milling Machine GM10
|
Specification
|
Description
|
|
Dimension（W x L x H）
|
605x970x680（mm）
|
|
Weight
|
170(kg)
|
|
Traversing Range
|
X：105mm
Y：135mm
Z：90mm
A：360°
B：±30°
|
|
Required Air Pressure
|
4.5-7.5bar（Free of oil & water）
|
|
Spindle Speed
|
Max.60000rpm
|
|
Power
|
Max.1000W,220-230V
|
|
Power Supply
|
50-60Hz
|
|
Ambient Temperature
|
15-35℃
|
|
Machinable Materials
|
Zirconia, Lithium Disilicate, WAX, PMMA, Composite material, etc.
|
|
Bur Specification
|
Quantity: 5
Diameter: 4mm
|
|
Feed Bin
|
10 Slots
|

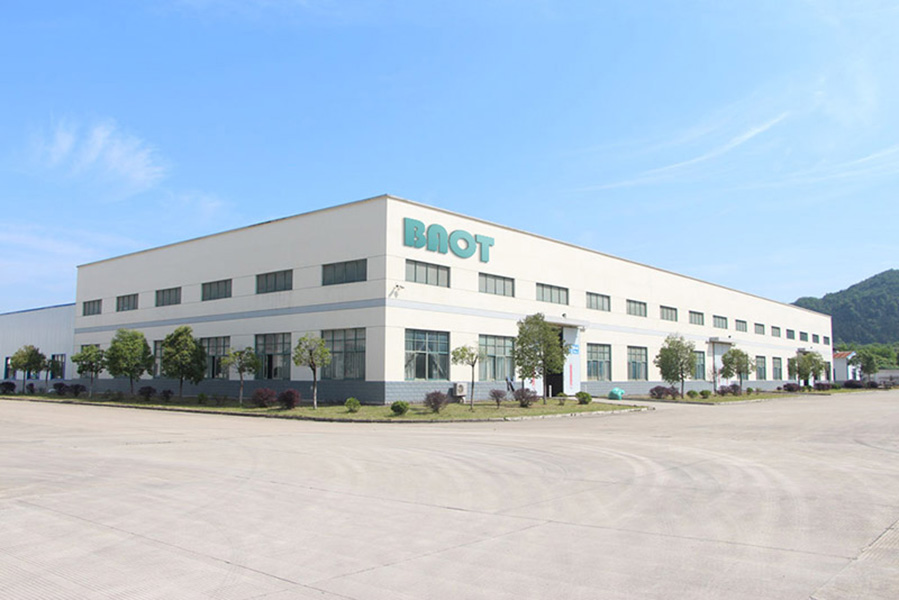

BAOT Biological Technology Co., Ltd. has been established for decades. We have strong R&D capabilities, which are driven by a group of scientists and engineers to ensure product portfolios catch up with the dentistry trends. Modernized production lines of dental materials and equipment, such as dental ceramic powder, zirconia blocks, lithium disilicate glass ceramics, press ingot, milling machines, etc. guarantee strict quality control and fast delivery.
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer based in China. With more than 20-year experience in materials and equipment, we are specialized in manufacturing dental materials and equipment, such as dental porcelain, zirconia blocks, lithium disilicate glass ceramics, press ingot, milling machines, etc.
Q: Could we print our own logo?
A: Yes, we supply OEM/ODM service.
Q: What's the payment term?
A: We accept Western Union, credit cards, bank transfers, visas, etc.
Q: Can I get samples?
A: Yes, we accept the sample order.
Q: Can I customize products?
A: Of course, we can build a new mold to produce your products. Mold cost will depend on the quantity.
Q: How long is the delivery time?
A: Delivery time will be up to the purchasing quantity. Usually, It takes 3~5 days for sample and 10~15 days for mass order.
