5 Channels Automatic 18650 21700 Cylindrical Battery Sorting Machine Battery Selector for All Types Cylindrical Cell
The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.
The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.
Working Principle of Equipment:
The device measures the voltage resistance of the battery through a voltage internal resistance tester.
The voltage internal resistance parameters of four gears are set by man-machine interface. The voltage internal resistance of the core is tested by PLC and judged by the parameters. The battery grade is obtained. The sorting cylinder is controlled by PLC to send the battery to the corresponding receiving gears.
Features:
It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 cells.
Sort by cell's voltage and impedance up to 5 groups.
Automatic sorting control.
Fast sorting speed (80PPM).
Easy to refill cells during the process.
wheels design, easy to move the machine to any operating place.
Specifications:
|
Voltage Supply
|
220V±10%/50Hz±10%
|
|
Power
|
＜800W
|
|
Display Screen
|
Large size LCD screen/Touch screen
|
|
Battery Types
|
Cylindrical Cell
(18650,32650,18500,26650,14500,21700 etc.)
|
|
Receiving Channel
|
5 channels
|
|
Test Parameter
|
AC internal resistance, DC voltage
|
|
Internal Resistance Test
|
Test range: 0-80mΩ
Accuracy: +/- 0.5% rdg
Display resolution: 0.01 milliohm
|
|
Voltage Test
|
Test range: 0-8V
Accuracy:±0.1% rdg
Resolution: 0.01mV
|
|
Sorting Speed
|
80PPM
|
|
Weight
|
<200KG
|
|
Dimension
|
1120mm(L)*880mm(W)*1250mm(H)
|
|
Tester
|
HK3561
|
|
Productivity
|
3000pcs/h
|

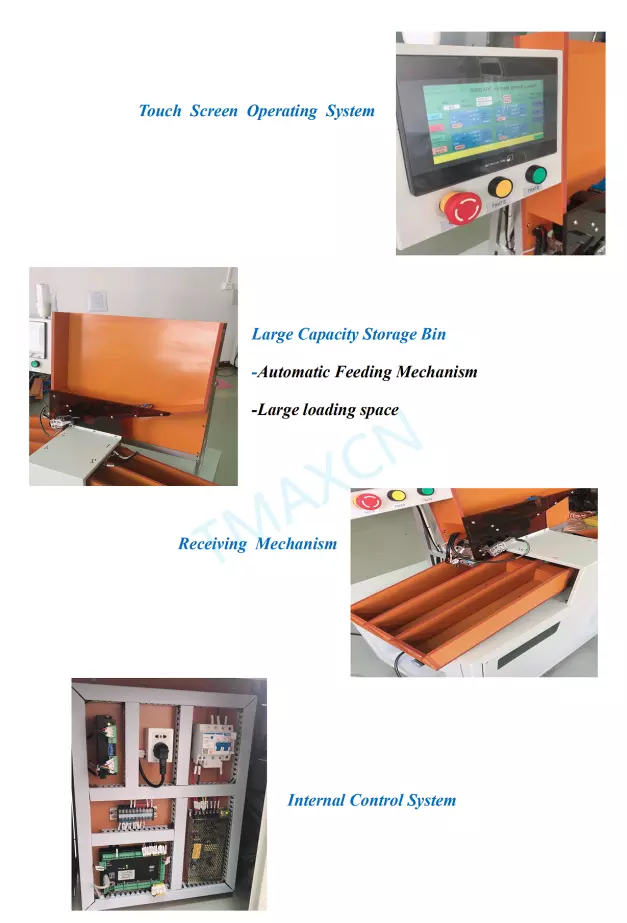

Product Details
