Product description:
1, 5 in 1 glass surface Superlative Multifunctional HUB equipped with HD + RJ45 +USBA 3.1 GEN 2 + USBC 3.1 GEN 2
,easily expand your daily Usb C devices.
2, USBA 3.1 GEN 2 Ports at 10 Gbps:Allow you to connect keyboard, mouse, thumb drive to your laptop; enable your SSD or HDD a high speed transfer rate up to 10Gbps.
3, 4K display Adapter: This Usb C adapter enables you to mirror or extend the display of your laptop to your TV,monitor or projector in up to ultra HD (4K) at 30Hz or Full HD (1080p) at 60Hz resolution.

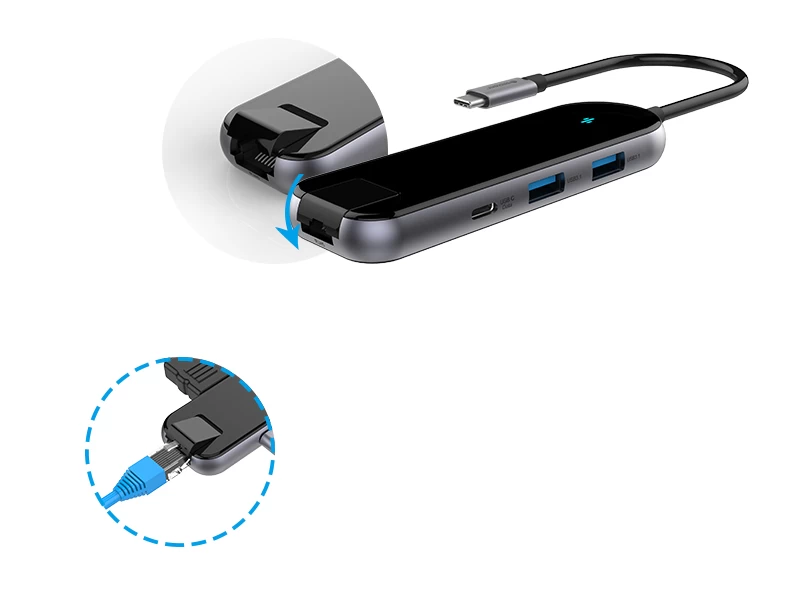

4,Gigabit Ethernet port: Connect your laptop to ethernet and get faster downloads(faster internet up to 1000 Mbps), more reliable video calls, less buffering, and less waiting around.
5, USBC 3.1 GEN 2 Ports with Data transmission and PD charging :Power is shared between all dock-connected USB-C devices and adjusted based on needs,
the 5 in 1 usb C HUB delivers about 52W for charging a connected laptop and 8W for powering the hub
when connected to a 60W power input,delivers about 32W for charging the connected laptop and 8W for
powering the hub when connected to a 40W power input.
Interface:
2*USBA 3.1
1*HDMI 4K 30Hz
1*Ethernet 10/100/1000
1*USBC 3.1
Details Display:
Specification:
Brand:
|
Broway
|
Item Name:
|
BH142A
|
Color:
|
Black &Grey &Silver
|
Material :
|
Glass+Aluminum+ABS
|

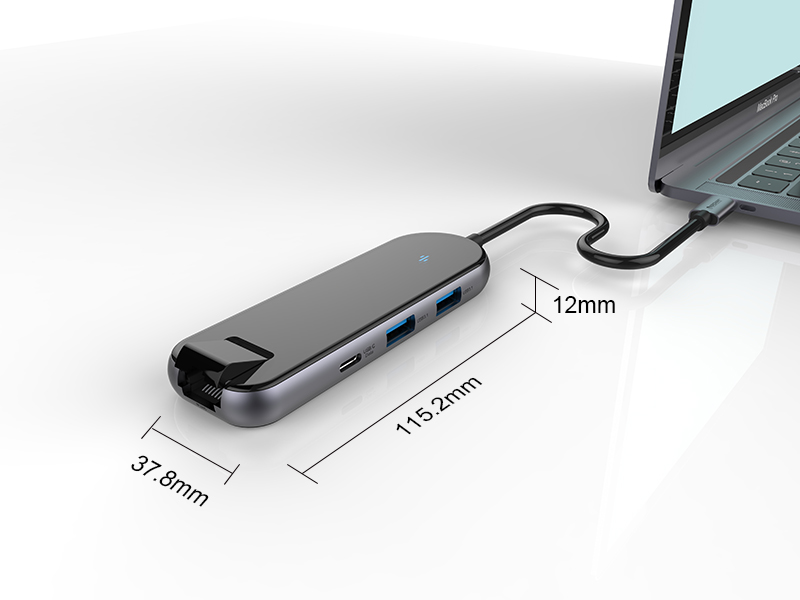

Product size:
|
115.2*37.8*12MM
|
Working Temperature:
|
0℃~40℃
|
|
Weight:
|
---
|
Storage temperature:
|
'-20℃~60℃
|
Supported Systems:
|
Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later
|
Humidity:
|
25%RH.~93%RH.
|
Incompatible Devices:
|
iPad Pro 2018；Nintendo Switch; Apple USB Super Drive
|
Compatible Devices :
|
Apple Macbook Air (2018), Apple MacBook/ Pro
(2016 / 2017/2018), Apple iMac / iMac Pro (21.5 in & 27 in).
Google ChromeBook Pixel, Dell, HP, Dell, Asus, HP, Lenovo and more laptops based on USB Type-C Protocol (USB 3.1 & PD 3.0 & DP 1.2).
|
Notice:
1, For a stable connection, connected devices should not exceed a combined current of 900mA.
2, Not intended for use with high-power devices (external hard drives, iPads, etc.).Due to power output limitations of some laptops, it is recommended that you connect only one HDD/SSD at a time.
3, 2.4 GHz wireless devices, MIDI devices and some USB 3.0 devices may not be supported.The extended cable is 0.5 ft long.
Service:
Warranty:14 month warranty
Service: OEM &OEM Support is available
FAQ:
1,Does it support 4K@60hz or just 30hz?
It just supports 4K@ 30hz
2, This type-C PD Port can be used for data transfer as well ?
No,it just be used for charging 60W max
3,Will this usb c adapter work well with all ports together?
Yes,all ports work perfectly at the same time
4, Does this require driver install ?
No,just attach it to your Usb C laptop and all of the ports worked without having to add any drivers.
