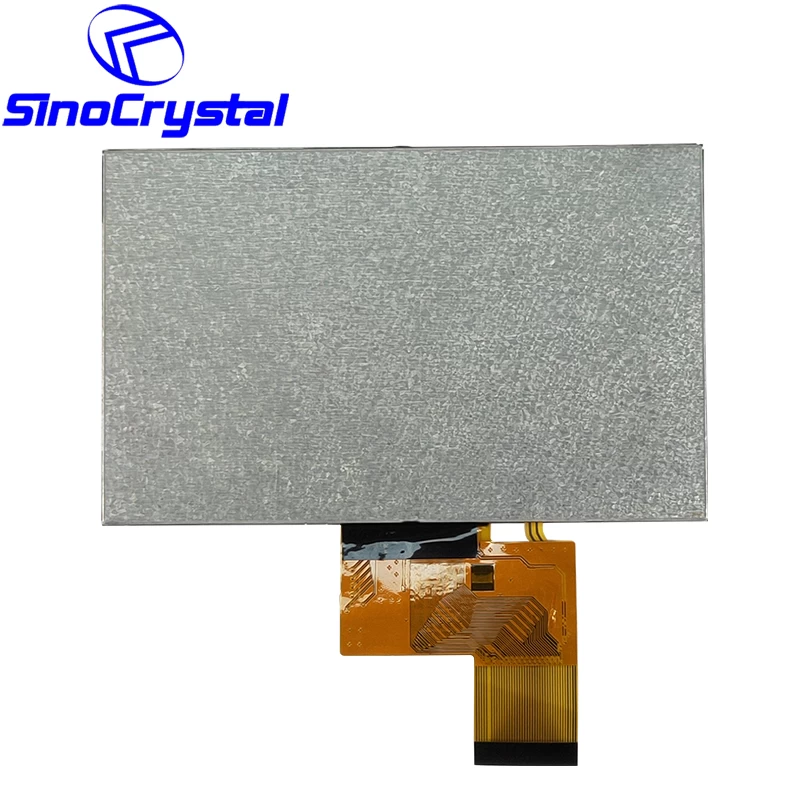

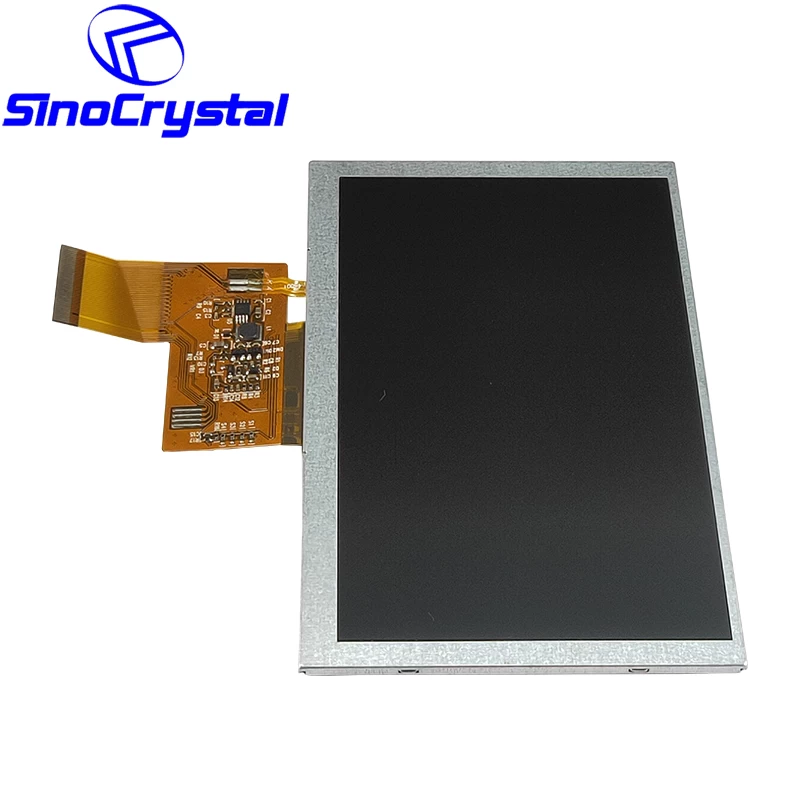

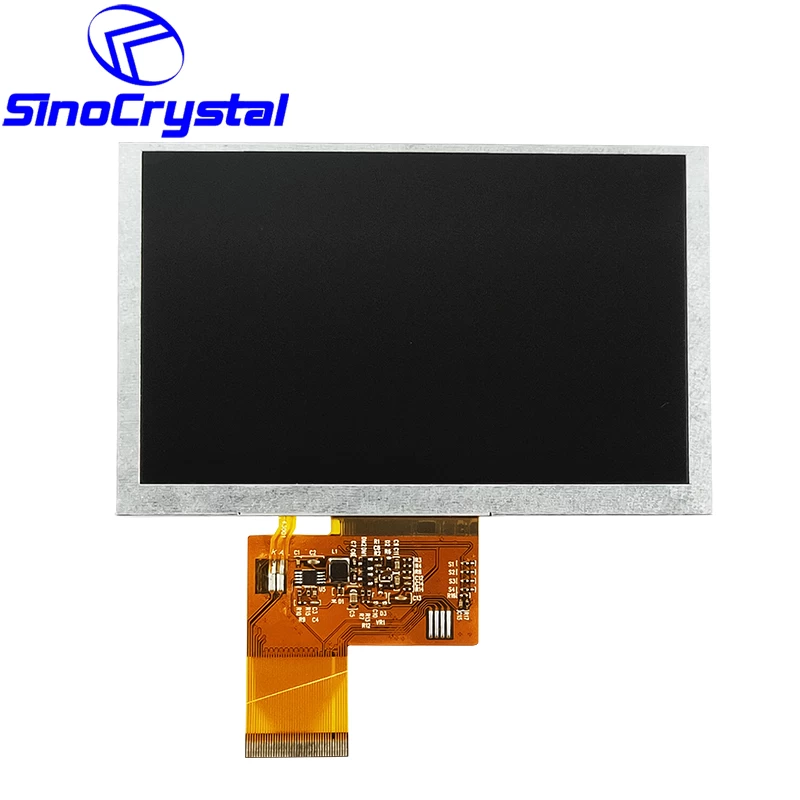

5 inch IPS TFT LCD Display with 720RGB x 1280 resolution MIPI DSI interface ST7703 IC

SCT050003-V03 is a 5 inch IPS TFT LCD Display with 720(RGB)×1280 resolution, it built in with ST7703 IC, and it supports MIPI Display Serial interface, 30 PIN


  • IC Part No.ST7703
  • InterfaceMIPI Display Serial Interface(MIPI DSI)
  • View DirectionIPS
  • Brightness (cd/m²)300
  • Active Area (mm)61.78*109.82
  • Viewing Area (mm)-
  • Outline Dimension (mm)64.30*118.30*1.55
  • Resolution720*1280
  • Touch ScreenNo
  • Temperature (℃)-20°C~70°C

Basic Information


Resolution:                    720 x RGB x 1280

Outline Dimension:       64.30*118.30*1.55

Active Area:                  61.78*109.82

Interface:                      MIPI Display Serial Interface(MIPI DSI)

Driver IC:                       ST7703

View Direction:              IPS

PIN:                                30

Backlight:                      White LED

Touch Screen:               No touch screen for standard. If you need touch, click for a inquiry





Description


This LCM Module: SCT050003-V03 is a 5'' TFT LCD module, MIPI Display Serial Interface, 720(RGB)x 1280 dots graphic, and power supply circuit. The 16M color can be display.
This TFT-LCD has 4.96 inch diagonally measured active display area with HD resolution.

 Features
-          Transmissive and back-light with 18 LEDs are available.
-          TN (Twisted Nematic) mode.
-          Digital RGB (6bits/color) data transfer.
-          Data enable mode.
-          Back-light Dimming control

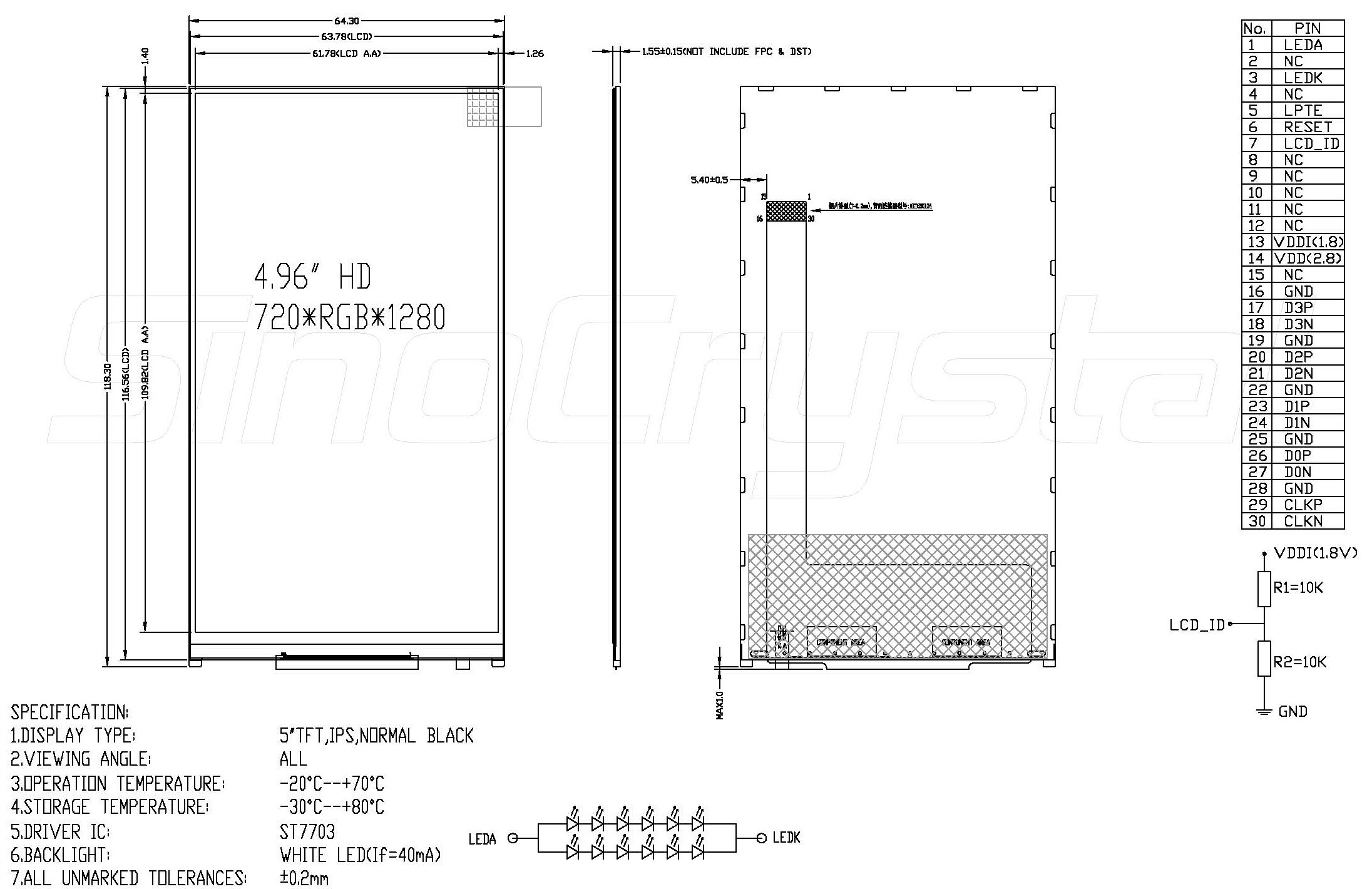

Drawing



General Specification

Item Nominal Dimension Unit
  Dot Matrix 720 x RGB x 1280 Dots
  Module Size ( W×H×T ) 64.30 x 118.30 x 1.55 mm.
  Active Area ( W×H ) 61.78 x 109.82 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.0858 x 0.0858 mm.
  Color depth 16M(MAX) colors
  Interface MIPI Display Serial Interface -
  Driving IC ST7703 -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode Normal BLACK -
  Backlight Type LED x 12 PCS



Interface Definition

Pin No Pin Symbol Type Description
1 LEDA P LED backlight anode
2 NC - No connection
3 LEDK P LED backlight cathode
4 NC - No connection
5 TE O Tear effect signal output
6 RESET I Hardware reset
7 LED_ID O LCD ID
43689 NC - No connection
13 VDDI P Power supply for logic circuit.(1.65V-2.0V)
14 VDD P Power supply for analog circuit.(2.5V-5.0V)
15 NC - No connection
16 GND P Ground
17 D3P I High speed interface data differential signal input
18 D3N I High speed interface data differential signal input
19 GND P Ground
20 D2P I High speed interface data differential signal input
21 D2N I High speed interface data differential signal input
22 GND P Ground
23 D1P I High speed interface data differential signal input
24 D1N I High speed interface data differential signal input
25 GND P Ground
26 D0P IO High speed interface data differential signal input/output
27 D0N IO High speed interface data differential signal input/output
28 GND P Ground
29 D3P I High speed interface clock differential signal input
30 D3N I High speed interface clock differential signal input
