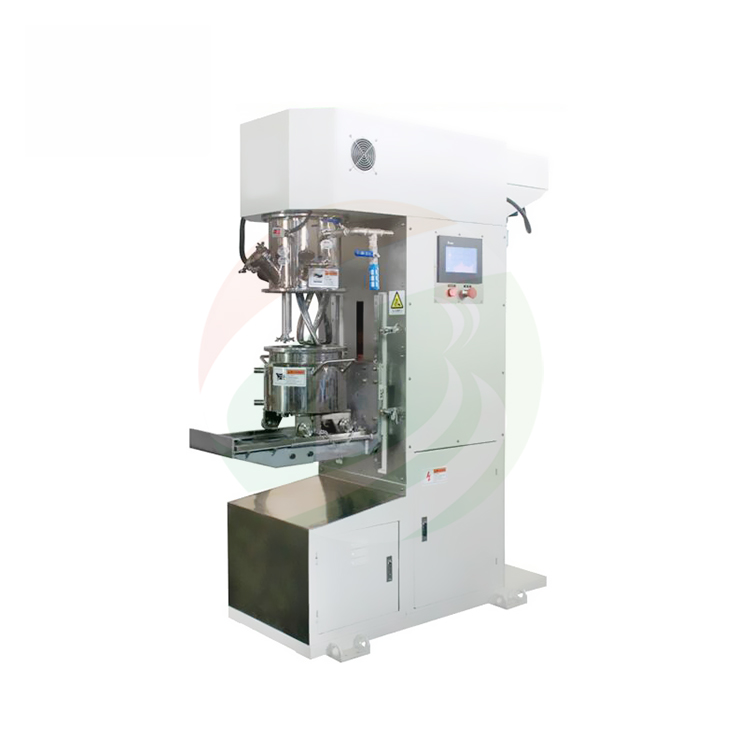

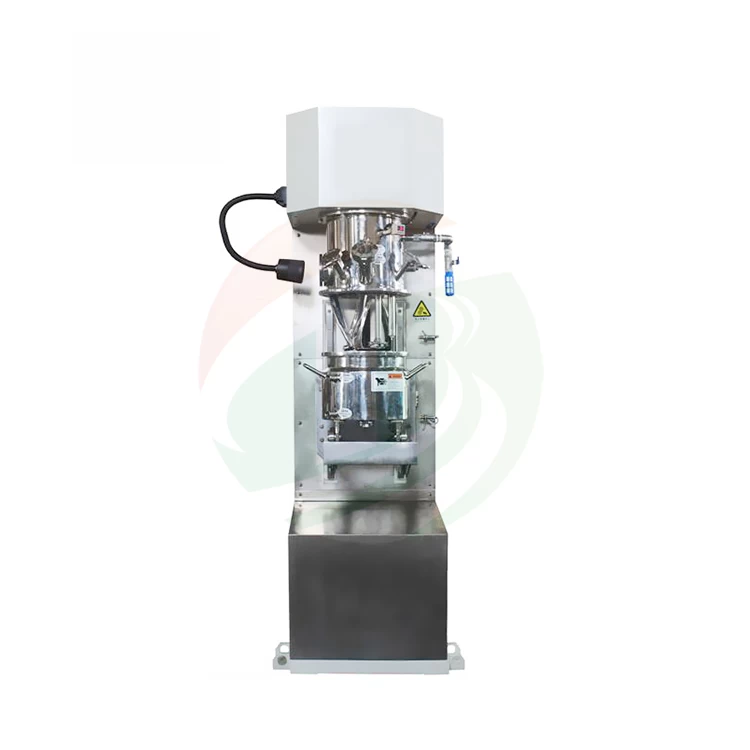

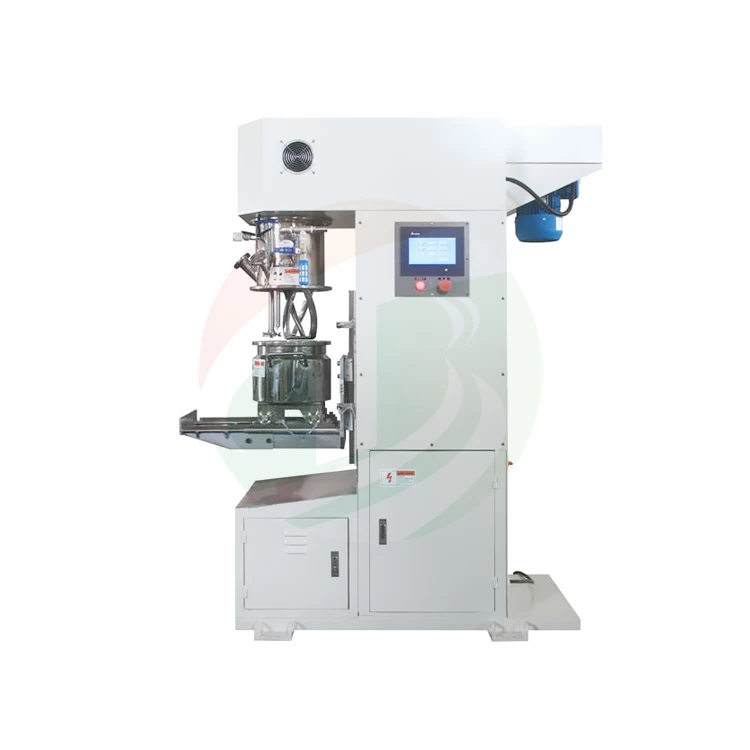

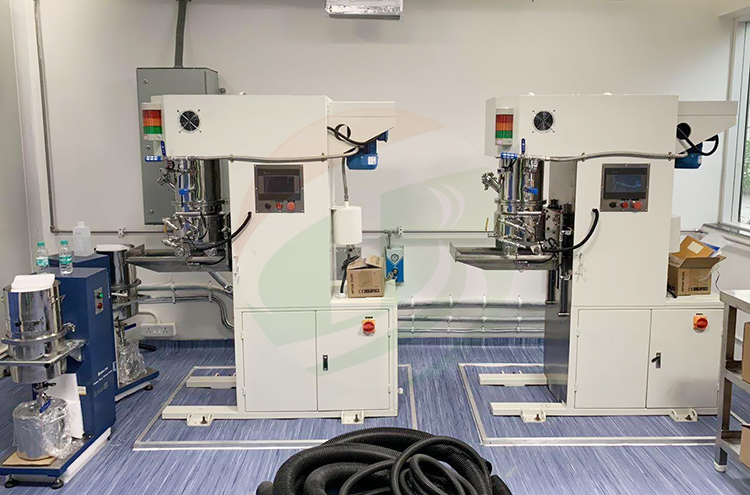

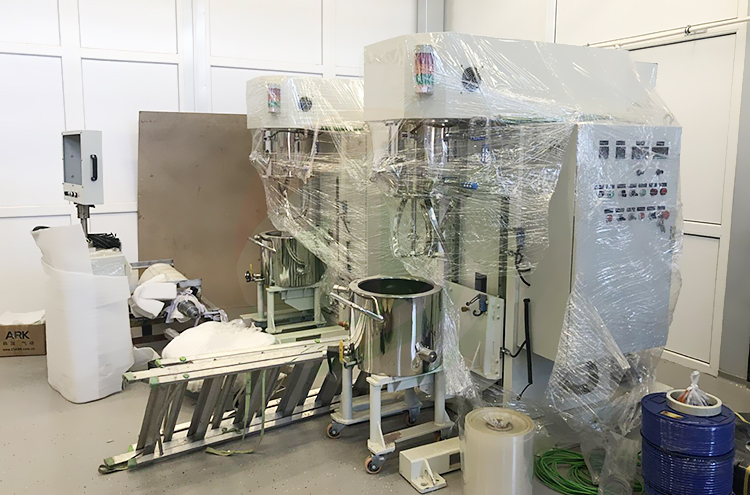

Model
|
TOB-XFZH05
|
|
Lower Barrel Parts
|
|
Design total volume
|
8L
|
|
Elective volume
|
2.7-5L
|
|
Container inner diameter
|
240mm
|
|
Container inside depth
|
180mm
|
|
Container material
|
The parts in
connect with materials is 304 stainless steel
|
|
Tempering jacket form
|
The bottom and
the barrel jacket can input water for cooling, heat preservation and heating
|
|
Tempering jacket
port
|
G3/4"，with quick opening movable joint，
|
|
jacket withstand pressure≤0.4MPa
|
|
Tempering jacket
circulation system
|
prepared by
customer，
|
|
jacket water inlet temperature≤8℃，
|
|
cooling water flow＞3.5L/min
|
|
Discharge materials form
|
bottom of a
G1-1/2" three-piece discharge ball valve, equipped with 2 "standard
ISO quick connect clamp connector
|
|
Design environment temperature
|
-10～+120°C
|
|
Move mode
|
Casters move
|
|

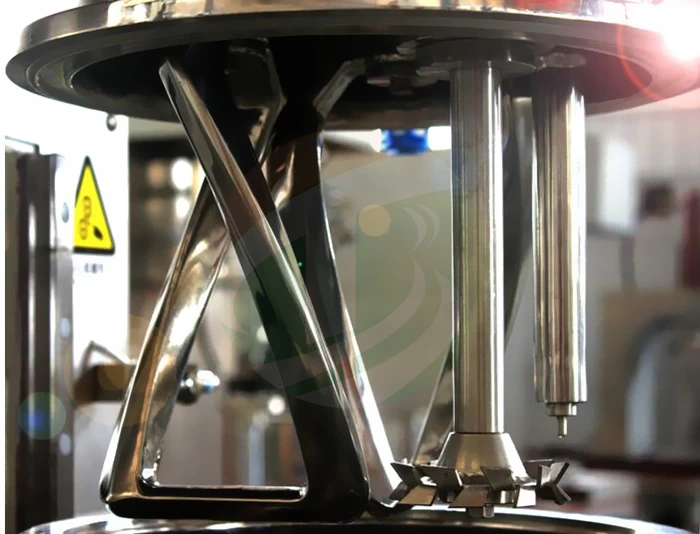

Mixing Parts
|
|
Working frequency
|
5-50hz
|
|
Mixing power
|
1.5kw
|
|
Mixing blade speed
|
10-98rpm
|
|
Planetary box rotate speed
|
5-50rpm
|
|
Mixing blade diameter
|
124mm
|
|
Mixing blade model
|
Variable
cross-section spiral twist type, 90 ° helix
|
|
Mixing blade material
|
304 stainless
steel
|
|
Mixing blade line speed
|
0.06-0.6m/s
|
|
Mixing blade number
|
2pcs
|
|
Dispersing Parts
|
|
Working frequency
|
5-50hz
|
|
Dispersing power
|
2.2kw
|
|
Dispersing rotate speed
|
610-6100rpm
|
|
Dispersing plate diameter
|
70mm
|
|
Dispersing model
|
Serrated
|
|
Dispersing plate material
|
304 stainless
steel
|
|
Dispersing line speed
|
2.2-22m/s
|
|
Dispersing number
|
1pcs
|
|
Dispersing shaft number
|
1pcs
|
|
Scratch the Wall
Parts
|
Scratch wall bracket material：304 stainless steel
|
|
Scratch wall material：Teflon
|
|
Scratch wall rotate speed：Consistent with planetary box
rotate speed
|
|
Removable or not：Removable design (Need to remove
when scraping the wall on high viscosity process)
|
|
Base and Lifting
Parts
|
Parts materials：High rigidity structural carbon steel
|
|
Lifting way：electric
|
|
Lifting guide：High-precision linear guide
|
|
Lifting itinerary：≤290mm
|
|
Upper Barrel
Parts
|
Upper barrel material：304 stainless steel
|
|
Power feed port： quick opening interface DN40 1pcs
|
|
Liquid feed port：ISO standard 1/2" quick interface 1pcs
|
|
Mirror port： DN50 tempered glass sight glass 1pcs
|
|
Vacuumize port：G1/2 " 1pcs
|
|
Exhaust port：together with vacuumize port
|
|
Digital vacuum gauge port：M14×1.5 Internal thread metric tooth interface 1pcs
|
|
Control System
|
Electrical cabinet：Used to install low-voltage electrical components such as
inverter
|
|
Manual operation panel：For placement buttons, knobs,
gauges etc
|
|
Power supply：AC 3×380V±5﹪，50Hz
|
|
Control mode：electronic control
|
|
Power control and speed adjustment mode: Inverter start and
control
|
|
Cooling mode：Air-cooled (wind cooling)
|
|
Operation mode：Touch screen
|
|
Digital temperature display gauge：material temperature
|
|
Emergency stop button：1pcs
|
|
Alarm system：Over-temperature alarm, over-temperature alarm shutdown, alarm
shutdown
|
|
Speed display: Touch screen shows the speed
|
|
Power instructions: 1pcs
|
|
Safety Chain
System
|
Emergency stop:
press the emergency stop switch, the device immediately stop, and can not do
anything
|
|
Start low-speed mixing: can lift the barrel and turning at the
same time
|
|
High-speed dispersion: barrel up in place before turning
|
|
Safe lock in operation: When the machine is
running, the mixing barrel can not be lowered, can not open the mixing
barrel.
|
|
Prevent vacuum tube backflow: special vacuum buffer tank design,
can effectively prevent the vacuum pump oil back to the mixing drum
phenomenon
|
|
Stop running fault: Inverter comes with
overload, overcurrent, overvoltage, leakage, lack of equal protection
|
|
Mixing barrel lift: stirring barrel in place to rise
|
|
Mixing barrel did not return to normal pressure can not be
dropped.
|
|
After mixing barrel rises in place and
high-speed dispersion, then can be started.
|
|
After mixing barrel rises in place, with
locking protection system, to prevent while the mixing barrel rises to high
place abnormal fall.
|
|
Dry mixing stage, while the barrel rising, the
stirring paddle need to rotate at the same time.
|
|
Other
description
|
Temperature probe：Pt100
|
|
Temperature measurement: Located of the barrel wall to
detection of internal material temperature
|
|
Transmission parts bearings：High-speed components for imported
bearings, low-speed components for domestic bearings
|
|
Oil seal：Domestic brands，O-ring for Static seal，dynamic seal using mechanical seals or skeleton oil seal
|
|
Grease：Domestic brands
|
|
Mechanical seal lubricants：Imported brand
|
|
Petrol cylinder：Domestic brands
|
|
Petrol station：Domestic brands
|
|
Valve：Domestic brands
|
|
acuum design
quantity demand：vacuum
system prepared by customer own, air exhaust volume 2L/S（2X-2）
|
|
Vacuum hold：-0.098Mpa，holding
pressure for 24 hours＞-0.085Mpa，do not leak to the barrel
|
|
Total host power：＞4kw
|
|
Total weight: about 700kg
|
|
Dimensions：L1463mm×W610mm×H1770mm
|
|
Appearance color：off-white
|
|
Ground bearing：900kg/㎡
|
