5'' tft lcd modulle with AR/Anti-reflective coating

5inch Customized capacitive touch screen panel cheap factory price

AR,AG,AF design if need




5inch TFT LCD 800*480:

Specification
Item Spec.
LCD size 5.0 inch TFT LCD
Resolution 800 x (RGB) × 480
LCM (W × H × D ) 120.7(W) x 75.8(H) x 4.1(D)
Active Area (W × H) 108 (W) x 64.8 (H)
Viewing Direction 12 o’clock
Color Depth 16.7M
Backlight Type 14 LEDs
Surface Luminance 500
Surface Treatment Anti-Glare
Interface RGB24-bit
Driver IC Source: ILI6122 + Gate: ILI5960
Operating temperature -20 C°~70 C°.
Storage temperature -30 C°~80 C°.
Storage Humidity: 10RH ~ 40RH

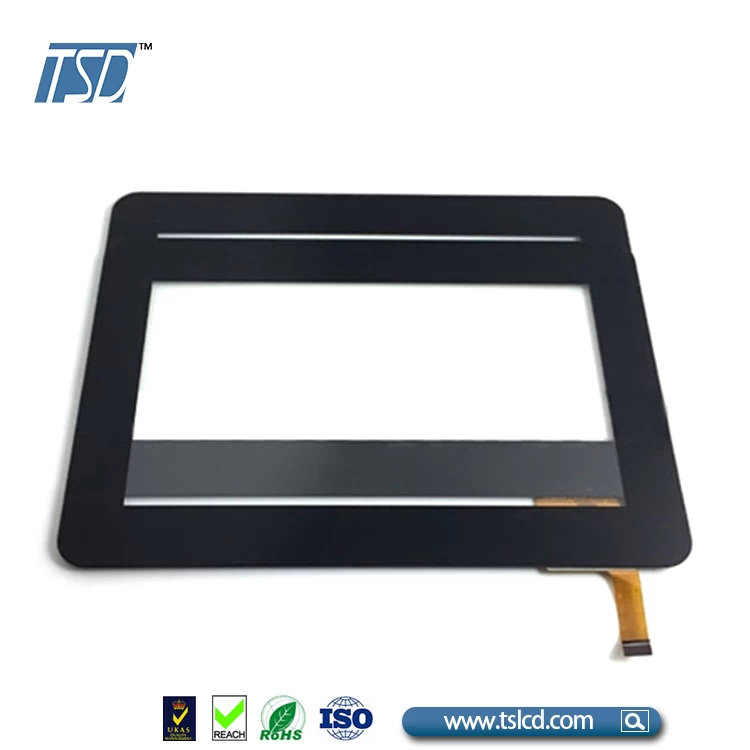

Standard CTP for 5.0" TFT:

Outline Dimension(OD)

140.7*93.83mm

Product Thickness

1.6mm(max)

Glass Thickness

0.7mm

Ink View Area

109.04*65.55mm

Sensor Active Area

109.04*65.55mm

Input Method

5Fingers

Activation Force

Touch

Surface Hardness

6H( 750gf)

Interface

I2C

Driver IC

FT5336

CTP PINs

10pins


We can design and customize Capacitive touch panel for you with different size, shape and Logo. Welcome to contact us for details. We would like to help you develop your project.


Custom CTP Feature

1.up to 10 touch points

2. CTP Bonding : OCA bonding or 3M double side tape

3.  AG/AF/AR coating available

4. …



Custom Process:

Confirm specific requirements → pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect



Lead time for custom LCD:

drawing making:2-5days

tooling and samples: around 3wks
