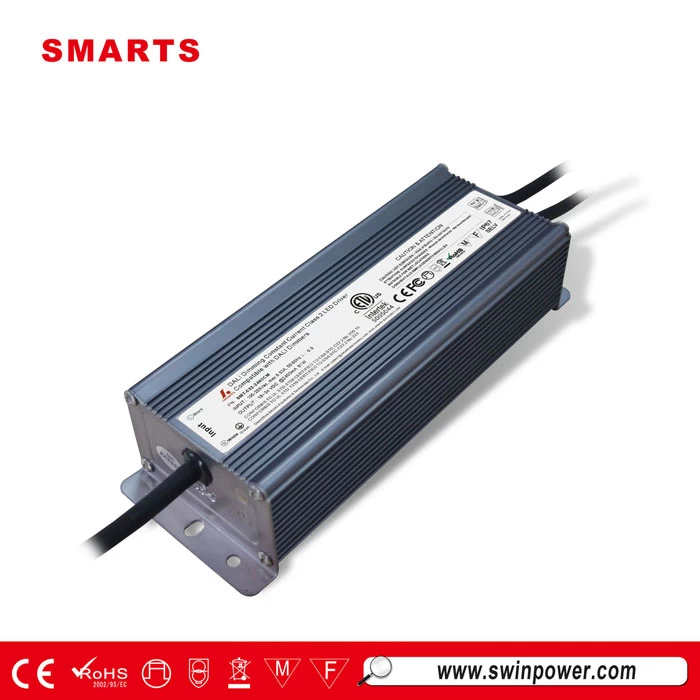

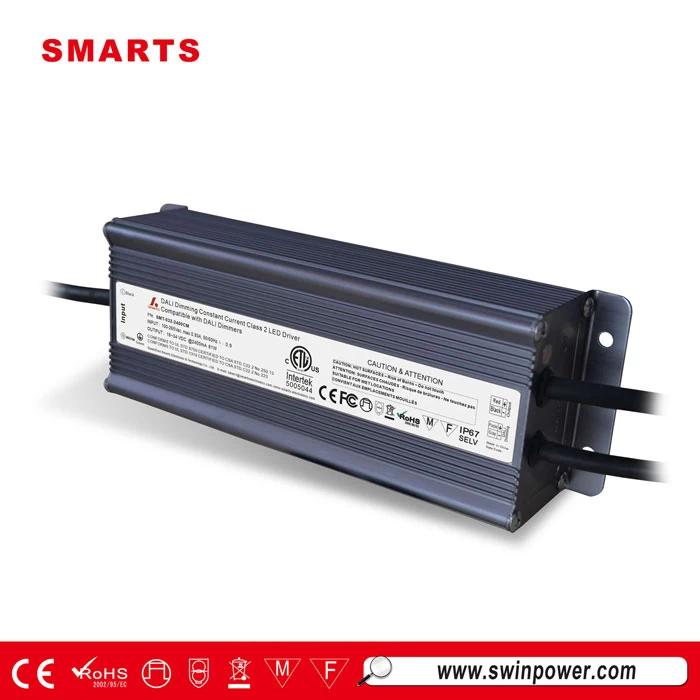

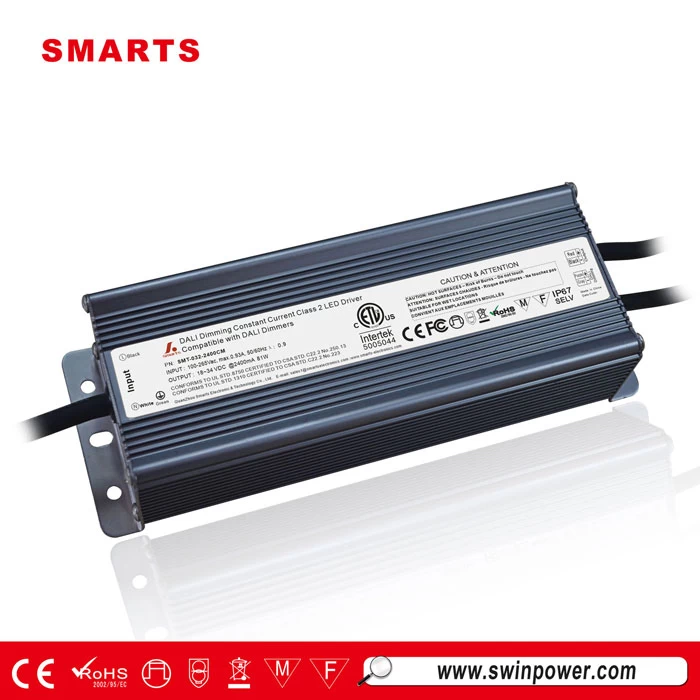

5 years warranty Dali dimmable led driver 2400mA 81w power supply with ETL CE ROHS
81w power supply dali dimmable constant current led driver are ETL CE ROHS FCC approval,the input voltage range is: 100-265vAC(<100W),170-375Vac(>100w).
Specification
|
Model
|
SMT-034-2400CM
|
SMT-036-2100CM
|
SMT-040-2000CM
|
SMT-057-1400CM
|
SMT-067-1020CM
|
|
Output
|
DC Voltage
|
18~34V
|
20~36V
|
20~40V
|
35~57V
|
36~67V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0～2400mA
|
0～2100mA
|
0～2000mA
|
0～1400mA
|
0~1020mA
|
|
Rated power
|
81W
|
79W
|
80W
|
80W
|
80w
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.95/100V, 220V
|
|
Full Load Efficiency（Typ.）
|
>89%(110,220V)
|
>88%(110,220V)
|
>88%(110,220V)
|
>88%(110,220V)
|
>88%(110,220V)
|
|
AC
Current（Typ.）
|
0.960A(110,220V)
|
1.042A(110,220V)
|
1.031A(110,220V)
|
1.038A(110,220V)
|
1.037A(110,220V)
|
|
Leakage current
|
﹤0.75mA/110, 220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition
is removed
|
|
Over Current
|
≦1.4*I out
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+50℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP66
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
200*68*45mm（L*W*H）
|
|
packing
|
324*298*176mm/10pcs/CTN 240*70*50 mm for inner box
|
|
Not
es
|
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Application
All of our drivers are got ETL CE SAA ROHS listed .OEM Welcome.
Our led drivers are widely used for:
-
1.Indoor LED illuminating lights
-
2.LED Neon, LED urban Decoration
-
3.LED Lighting Advertising,LED Display
-
4.Safety Protection Apparatus
-
5.Telecommunications, Networks
-
6.Vehicle Lights, Controller Panels
