5 years warranty dali dimmable led power supply 50w 80w 100w
Smarts offers constant current dali dimmable led power supply for years. This item is IP66 design for indoor or outdoor installation ,the Dimming function:DALI with better compatibility Suitable for LED lighting applications by PWM output Compliance to worldwide safety regulations for lighting, suitable for dry/damp/wet locations
Features：
·Output constant current
·Range 100-265VAC
·Built-in PFC function, PF>0.9
·Efficiency > 88%
·Protections:short circuit/over current/over temperature
·Cooling by free air convection
·IP66 design for indoor or outdoor installation .
·Dimming function:DALI with better compatibility
·Suitable for LED lighting applications by PWM output
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp/wet locations
Specification sheet:
|
Model
|
SMT-090-0900CM
|
SMT-080-1050CM
|
SMT-057-1400CM
|
SMT-038-2100CM
|
|
Output
|
DC Voltage
|
50-90V
|
45-80V
|
35-57V
|
20-38V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0～900mA
|
0～1050mA
|
0～1400mA
|
0～2100mA
|
|
Rated power
|
80W
|
84W
|
80W
|
79W
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.92/120V / PF≧0.95/220V
|
|
Full Load Efficiency（Typ.）
|
>87%
|
>86%
|
>85%
|
>85%
|
|
AC Current（Typ.）
|
0.960A
|
1.042A
|
1.031A
|
1.031A
|
|
Leakage current
|
﹤0.63mA/120VAC, ﹤0.75mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Current
|
≦1.4*Iout
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+50℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
1Kg
|
|
Size
|
210*69*45mm（L*W*H）
|
|
packing
|
355*215*215mm/10pcs/CTN 220*70*50 mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature.
Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|

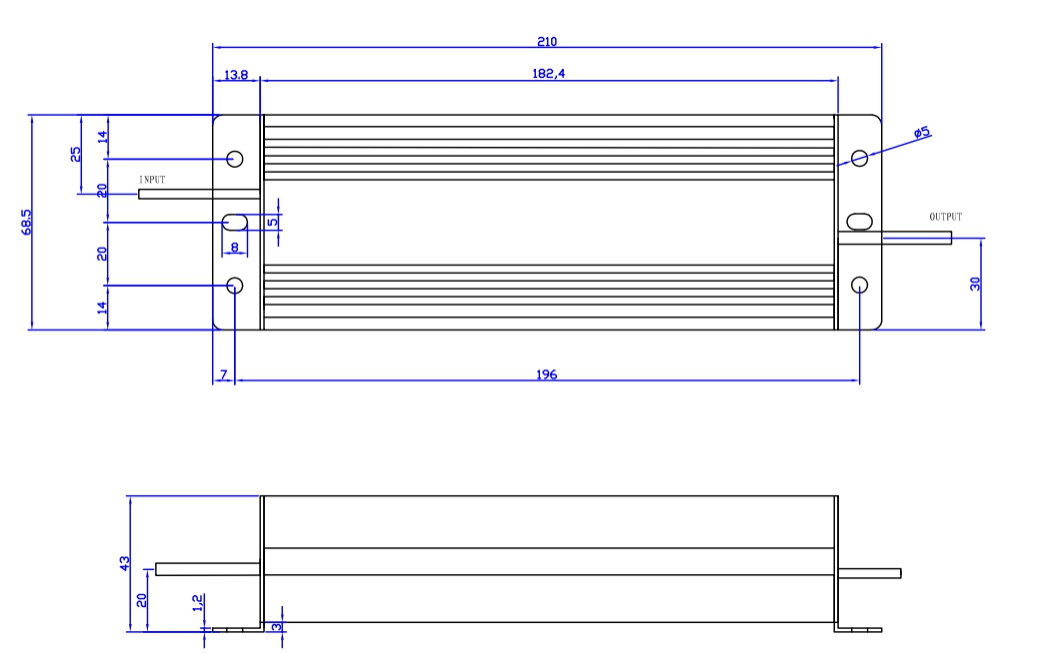

Mechanical Specification:

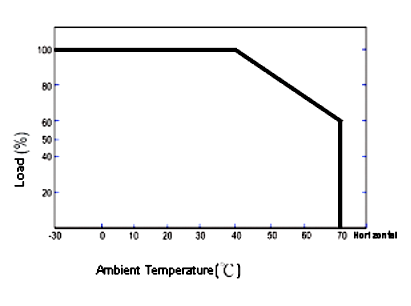

Derating Curve:
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
FAQ:
1.What is the wire gauge that fits into the ETL Triac Dimmable LED Driver?
Answer: 14-26 AWG
2.What is the difference between the 20w/45w UL and 24w/48w ETL model?
Answer:
-- when you install a 20w/45w UL led driver in your led light you should consider abbot min. 55% load limtation. If it less than 55%, the led light will have flick problem. But the 20w/45w ETL model is no load limitation. You can load it in the led light 1-48w.
-- the height of 24w(20mm)/48w(24mm) is lower than 20w(28mm)/45w(34mm).
3.If the connection load less than 55% for the load limitation led driver, what will happen?
Answer: If you take our 1.0V triac dimmable led drivers, the led light will have flick problem
4.Can we make our company information on the label?
Answer:
--As per the policy of ETL/UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..
--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
