50-70v 500ma 35w triac dimmable led transformer

50-70v 500ma 35w triac dimmable  led transformer; led driver for led lighting;light fixture driver


  • Size180*60*34mm
  • Dimming modetriac dimmable
  • Working Modeconstant current
  • Output Current500ma
  • Output Voltage50-70vdc
  • Input Voltage100-130V/ 170-265V
  • CertificationCE,ETL ,FCC,RoHS

50-70v 500ma 35w triac dimmable  led transformer

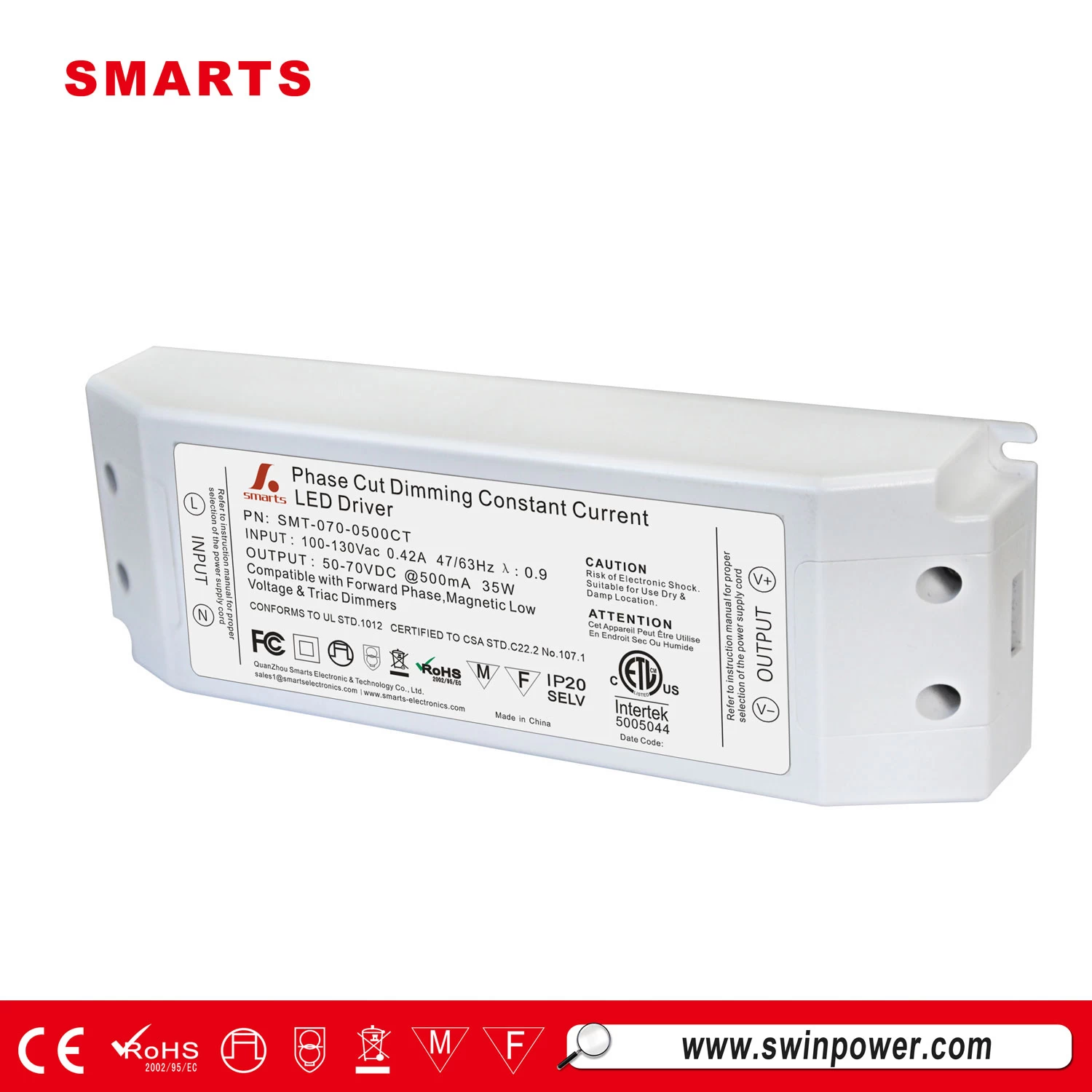

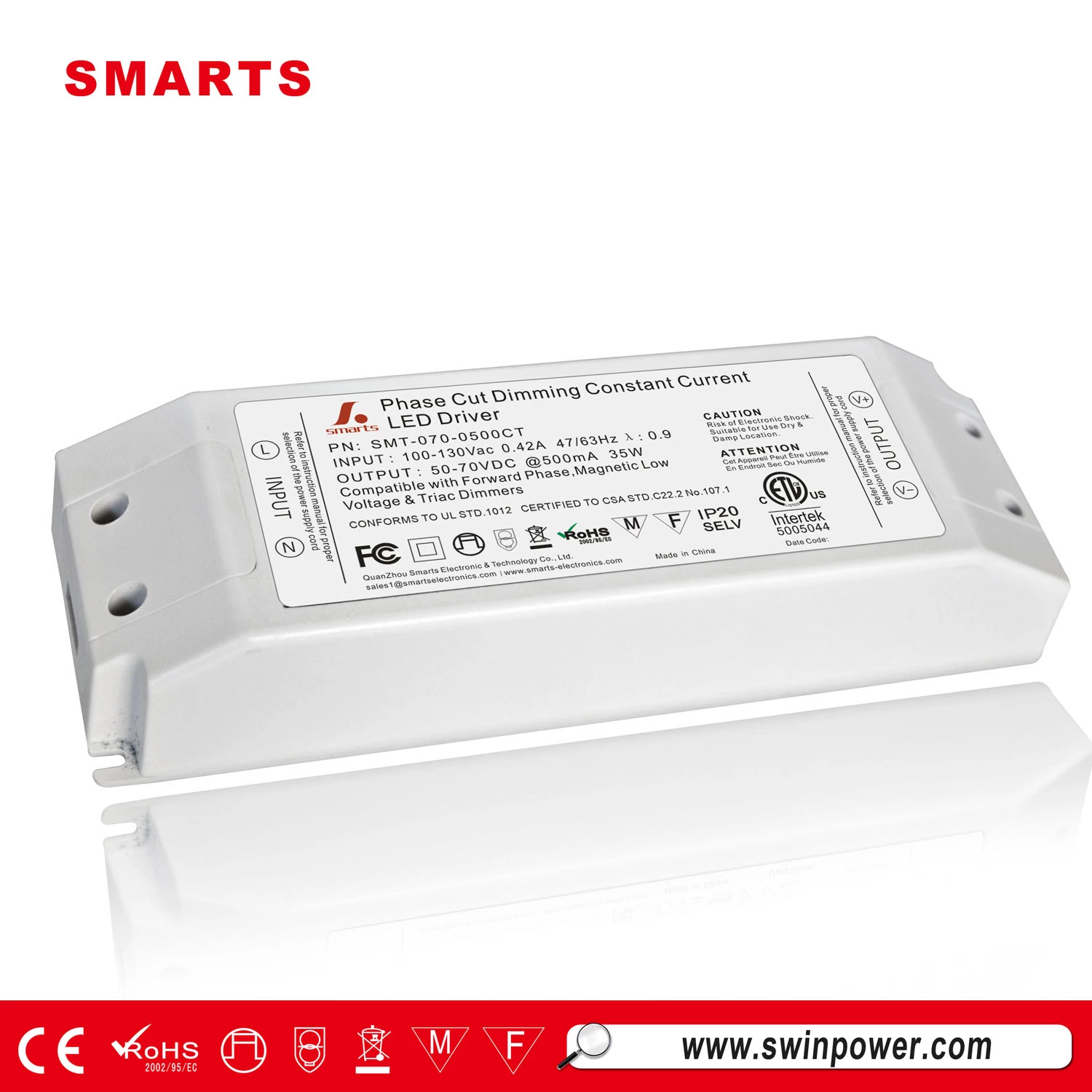

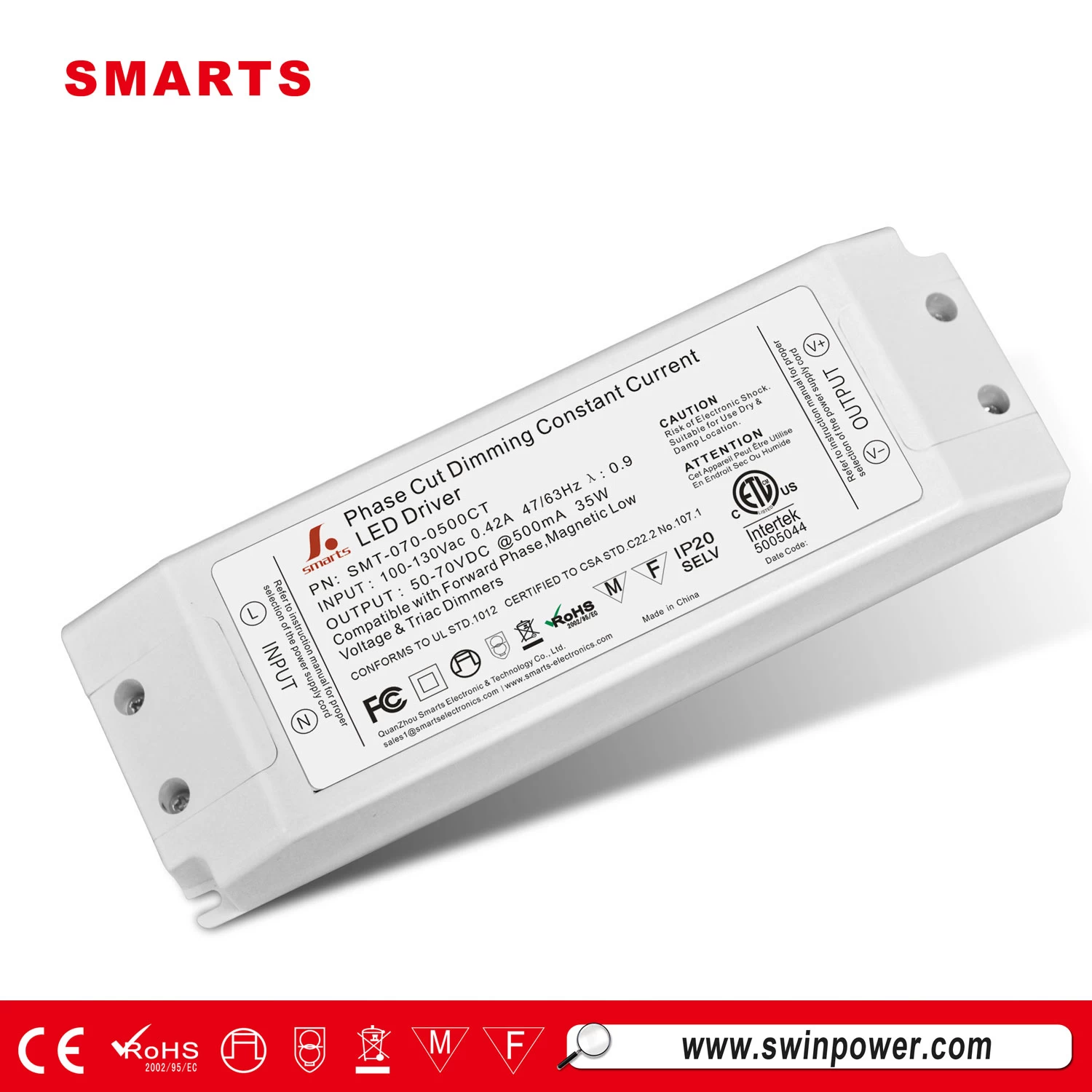

The size of Smarts SMT-070-0500CT triac dimmable led transformer is 180*60*34mm ,and with wide input volt and freq: 90-135V/ 170-265V  /47~63Hz,With short-circuit and overload projection.


Product Description

Model

Input voltage(vAC)

Working Frequency (Hz)

Output voltage

(vDC)

Output Current (A)

Output power (W)

Working Temp.

Protection grade

SMT-090-0350CT

90-135V/

170-265V

47~63Hz

70-90vDC

350mA

31W

-25~50°C

IP20

SMT-060-0500CT

90-135V/

170-265V

47~63Hz

40-60vDC

500mA

30W

-25~50°C

IP20

SMT-048-0500CT

90-135V/

170-265V

47~63Hz

30-48vDC

500mA

24W

-25~50°C

IP20

SMT-070-0500CT

90-135V/

170-265V

47~63Hz

50-70vDC

500mA

35W

-25~50°C

IP20

SMT-030-0700CT

90-135V/

170-265V

47~63Hz

15-30vDC

700mA

21W

-25~50°C

IP20

 SMT-045-0700CT

90-135V/

170-265V

47~63Hz

27-45vDC

700mA

 31W

-25~50°C

IP20



Environment parameter:

  1. Working temperature:-40 -80°C
  2. Store temperature:-40 -85°C
  3. Working humidity:10-90%
  4. Lifespan:(MTBF)50,000 hours
  5. Case machine specifications
  6. Case: plastic case

Product Features:

  1. Universal AC input (90~135VAC, 170~ 265VAC)
  2. Protections: Short circuit/Overload/Over voltage/Over temp.
  3. Built-in active PFC function
  4. PF>0.90
  5. designing standard: Ul1310 Class 2 power unit
  6. Cooling by nature
  7. Suitable for dry location
  8. Suitable for LED lighting and moving sign applications
  9. Follow the global lighting safety regulations

Safety:

  1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  2. Withstand Voltage : I/P-O/P: 3000KVAC
  3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC


Question:

1. If all dimmable LED drivers we ordered will provide more than 12 or 24 volts? As our some of LED lighting 's voltage is more than 24VDC a bit .


Answer:

±0.5% is the acceptable margin of error for both 12v dc and 24vdc led drivers.
