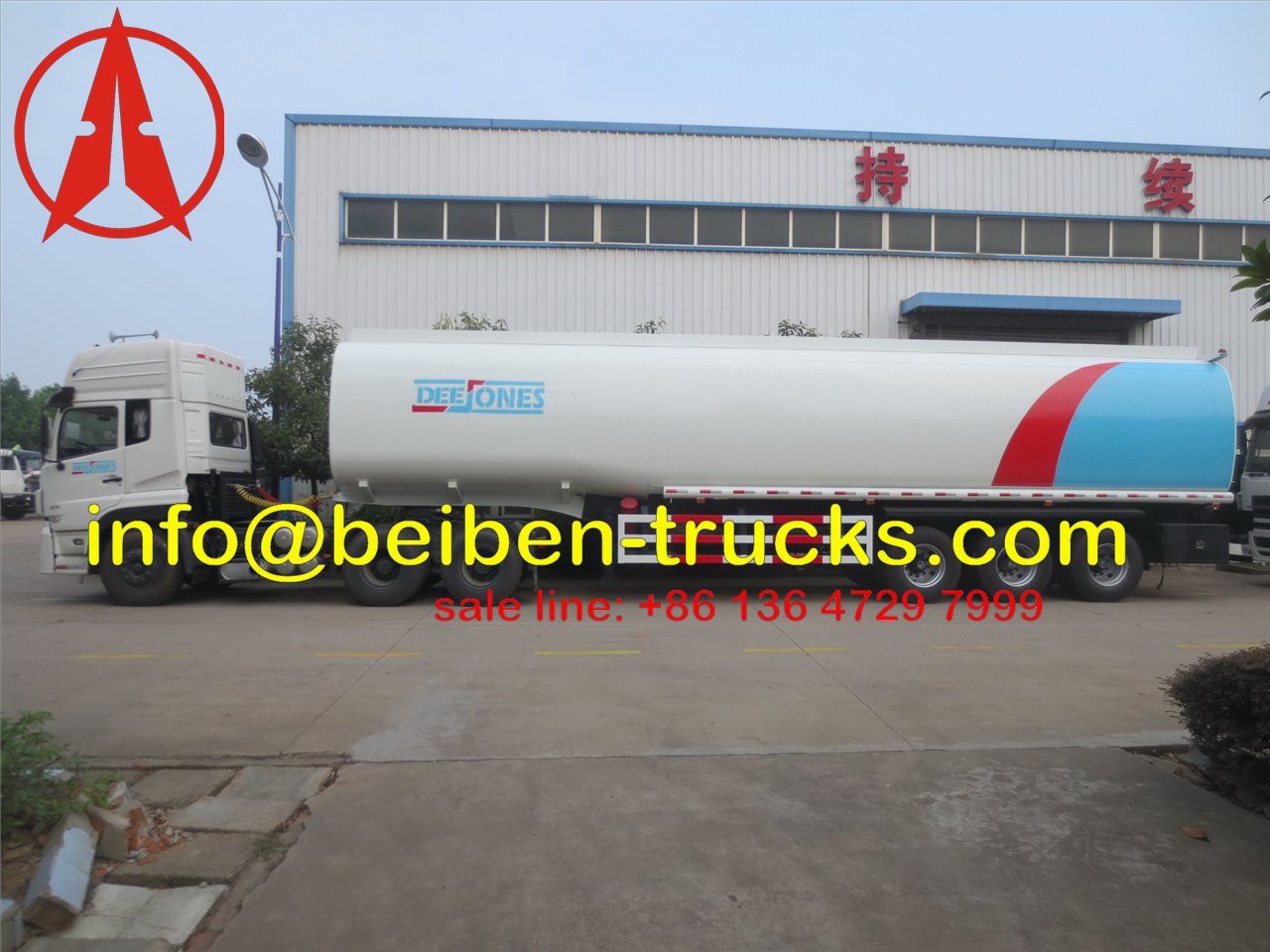

Description:

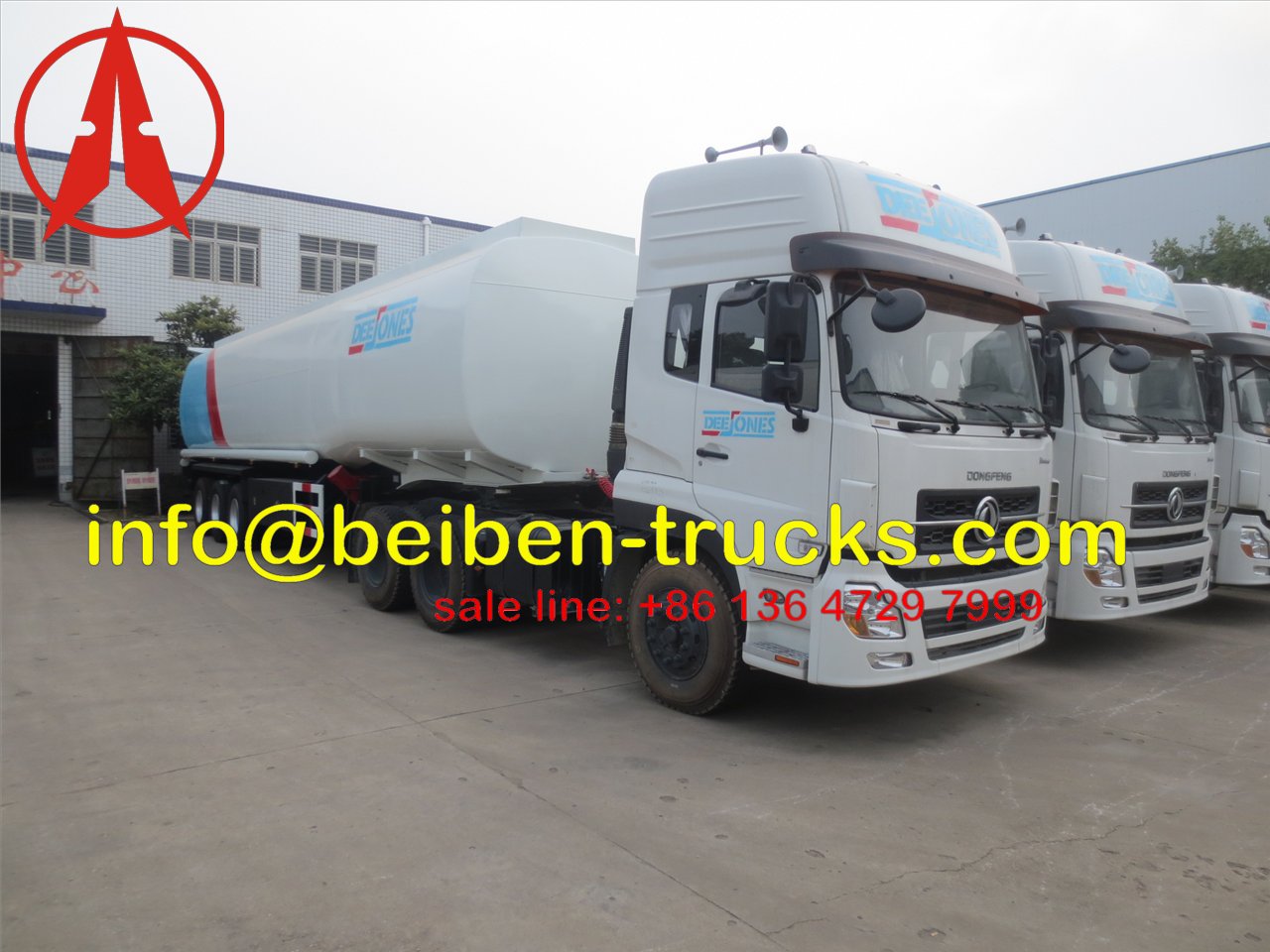

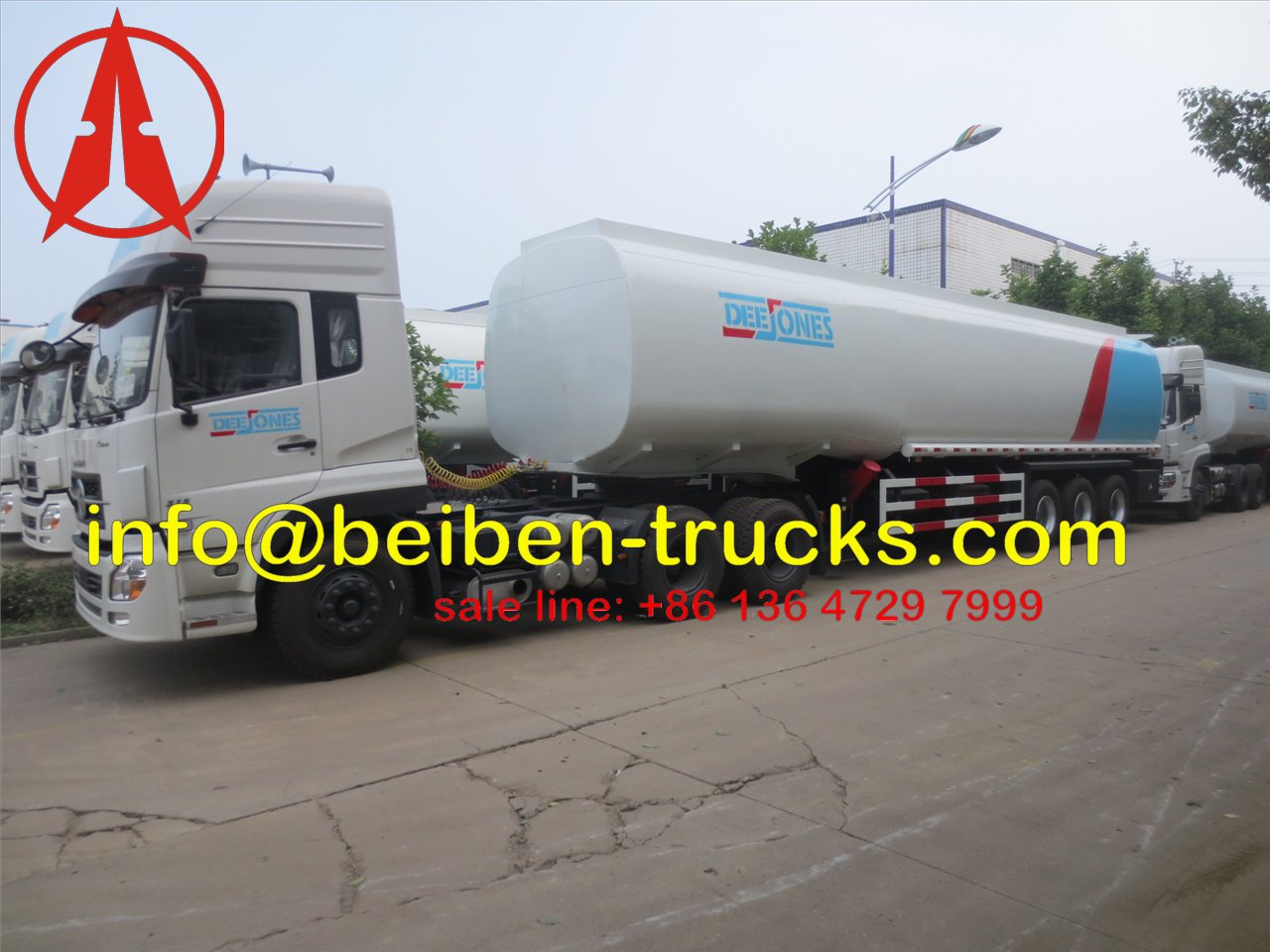

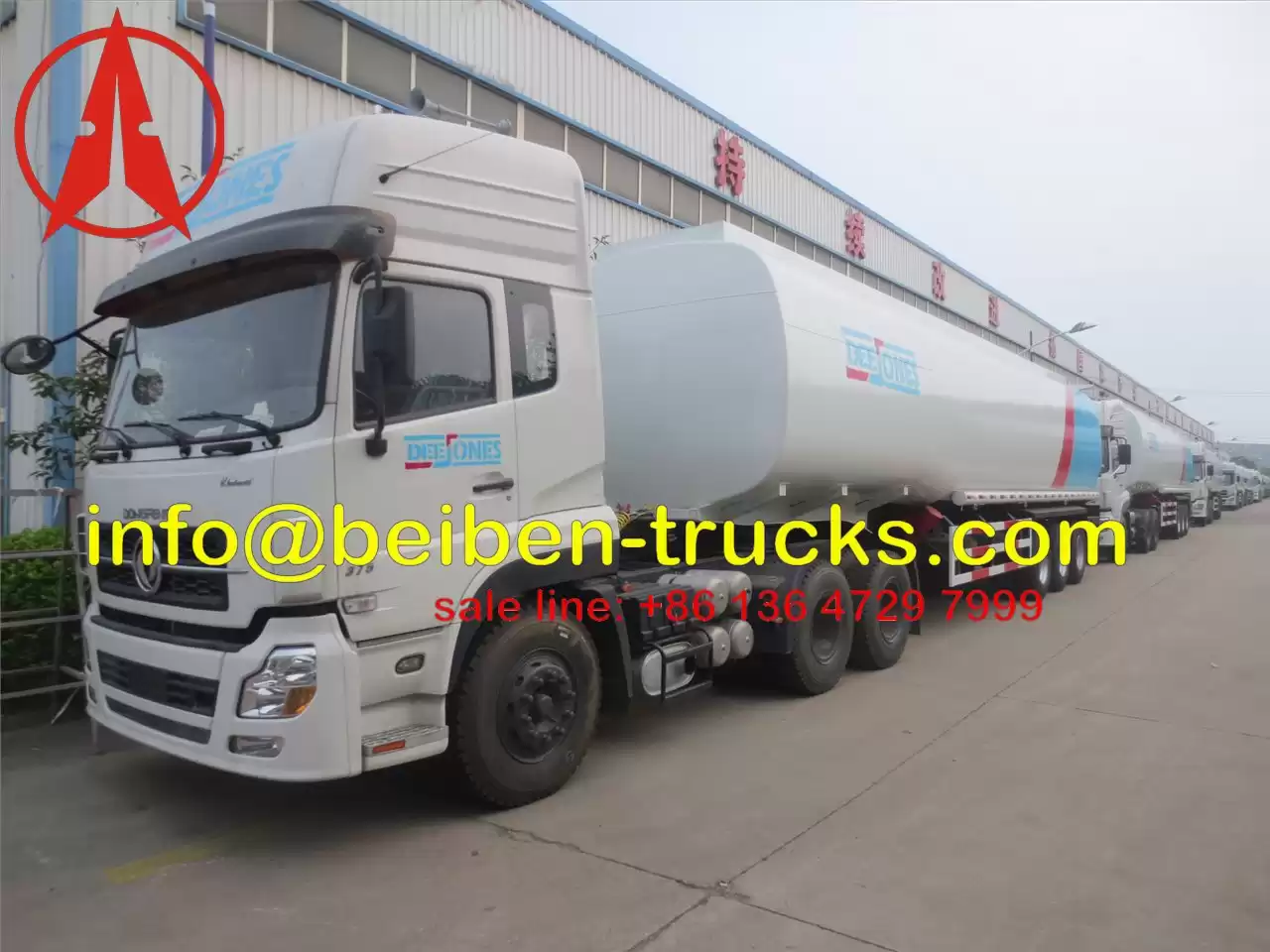

This fuel tanker semi trailer, also known as oil tank
trailer, is mainly used for transporting bulk liquid goods, such as diesel oil,
gasoline, and sulfuric acid. It is widely used in chemical industry, metallurgy
field, environmental
protection field, brewing industry, food field,
pharmacy, storage and transportation field, and more.
Key
Features:
◆More than 10years manufacturer experience, quality assurance
◆The tank section is designed with round, rectangle with circular
arc, or oval structure, which ensures the trailer a simple structure and
convenient operation.
◆It has a stable and reliable unloading capacity and lower gravity
center.
◆Special requirement according to the buyer
Detail
Technical Parameters:
|
Manufacturer
|
Unit
|
|
Type
|
3-axle fuel tank semi-trailer can be loading 380,000Liter
diesel
|
|
Weight:
|
|
|
|
Tare Weight
|
9.85Ton
|
|
|
Volume
|
45000L +3% expansion
|
|
|
Tank material
|
Aluminum
|
|
|
Thickness of shell
|
5mm
|
|
|
Thickness of dish
|
6mm
|
|
|
Inside baffles
|
4mm
|
|
Specification:
|
|
|
|
Compartment
|
3 to 5 compartments
(according to buyer)
|
|
|
Each compartment equipped with
|
Aluminum Manhole cover
16" or 20"

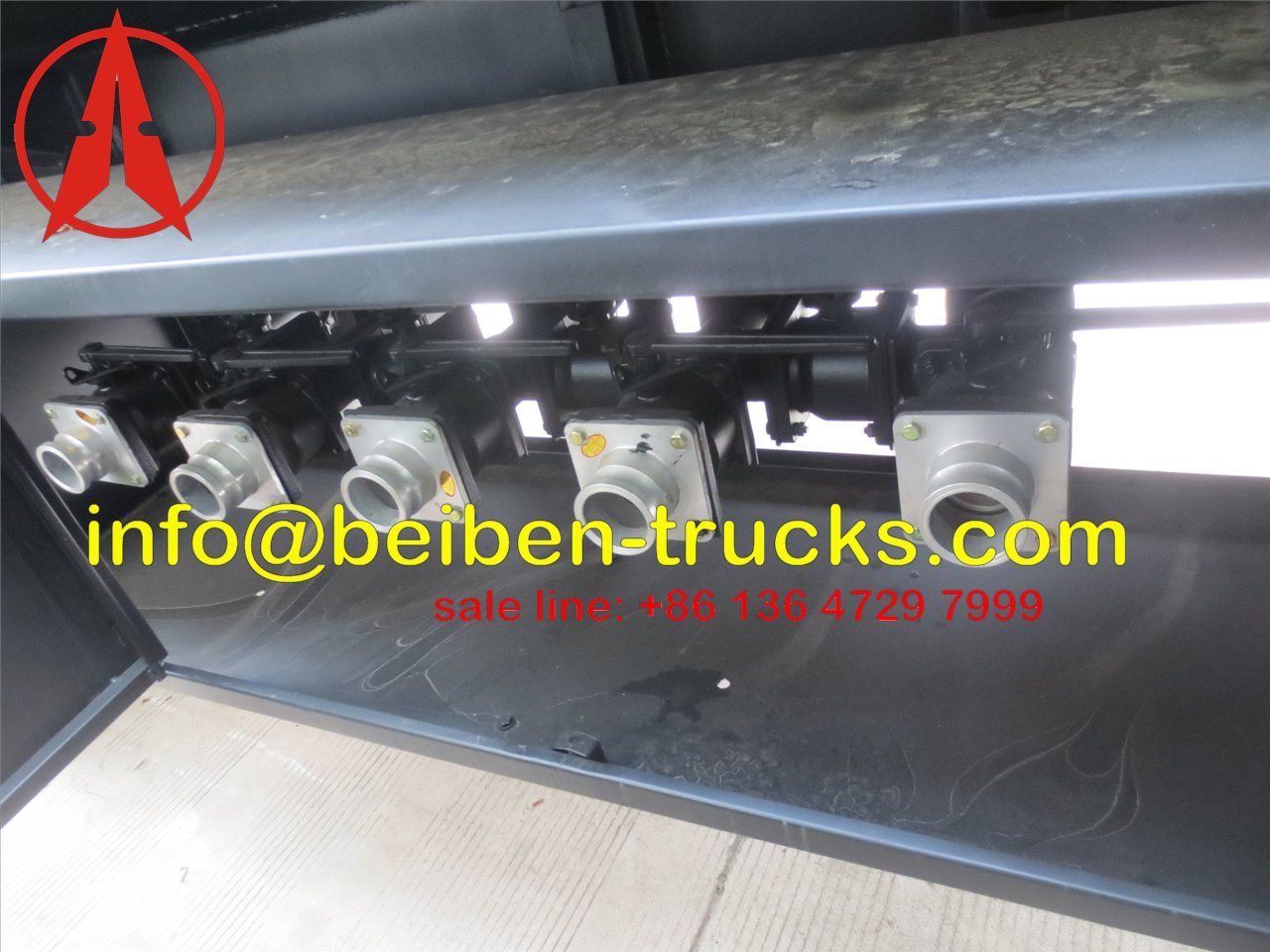

Aluminum Emergency
Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve
3” or 4",
Discharging Nylon hose
6m
|
|
|
Vapor Recovery System
|
Optional
|
|
|
Loading type
|
Top loading
|
|
|
Discharge type
|
Gravity discharge
|
|
|
Axle number
|
Three
|
|
|
Axle specs.
|
Original FUWA axle
13Tonlow-maintenance axles
(Optional BPW
axle)
|
|
|
Suspension type
|
Heavy duty spring suspension 18*16*9mm
|
|
|
King Pin
|
50#(2.0”) traction pin JOST brand
|
|
|

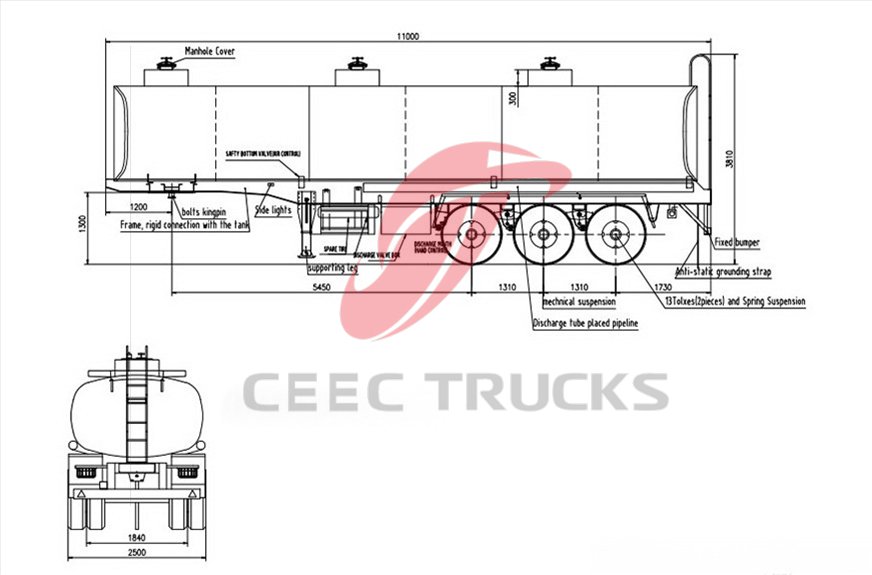

Outside Dimensions (LxWxH)
|
11000×2500×1530mm
|
|
|
Steel Spring
|
10pieces
|
|

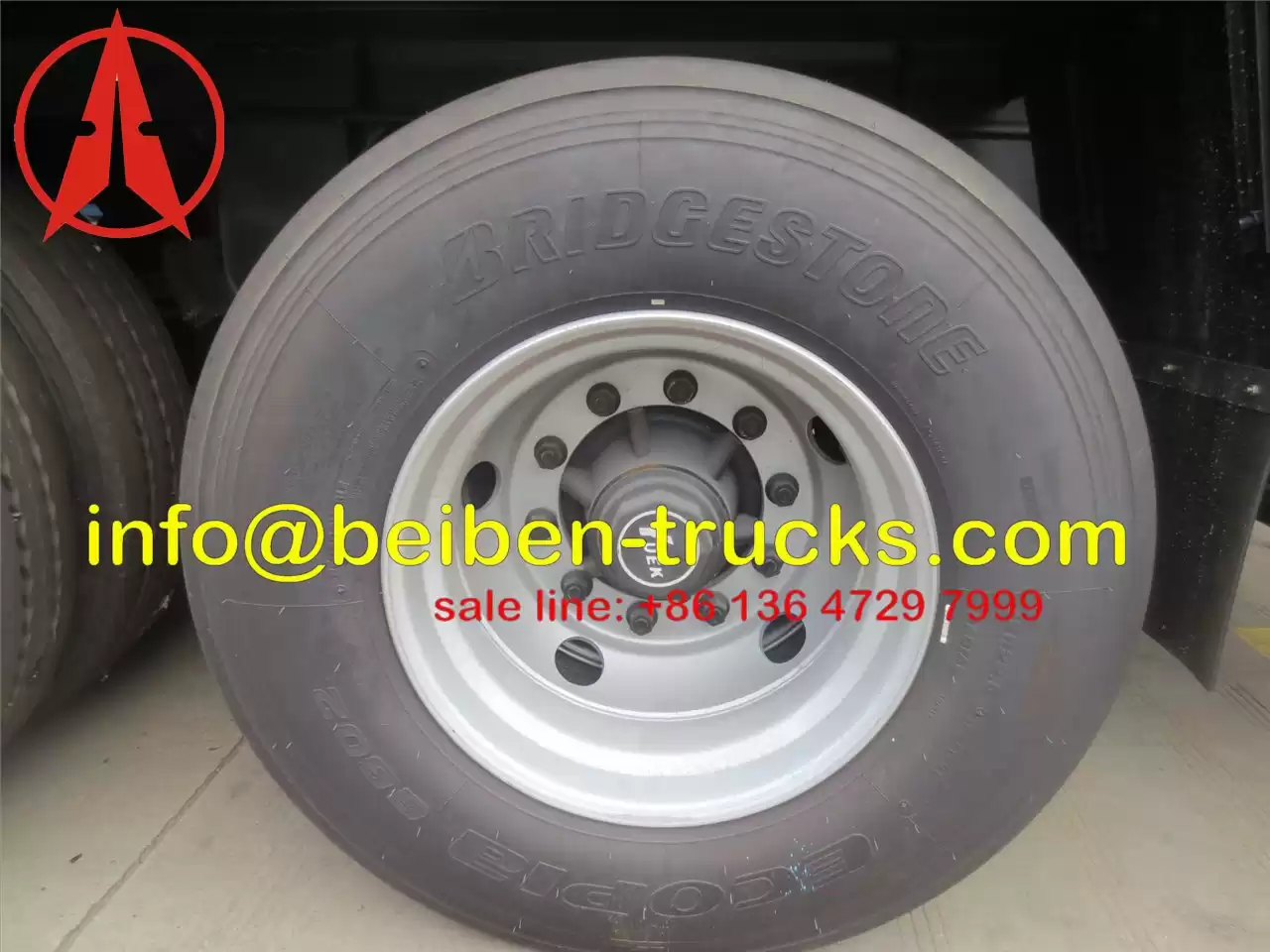

Tire:
|
|
|
|
Tire specs.
|
12.00R22.5
|
|
|
Number of Tire
|
12 pieces
|
|
|
Spare Tire Carries
|
1 pieces
|
|
Frame: (specs. And
materials)
|
Main beam height is 500mm
|
|
|
Frame Beam
|
Upper plate is 14mm, lower plate is 16mm,middle is 8 mm.
The frame will be reinforced in strength and high
tensile.
|
|
|
Platform bed
|
3mm diamond steel plate
|
|
|

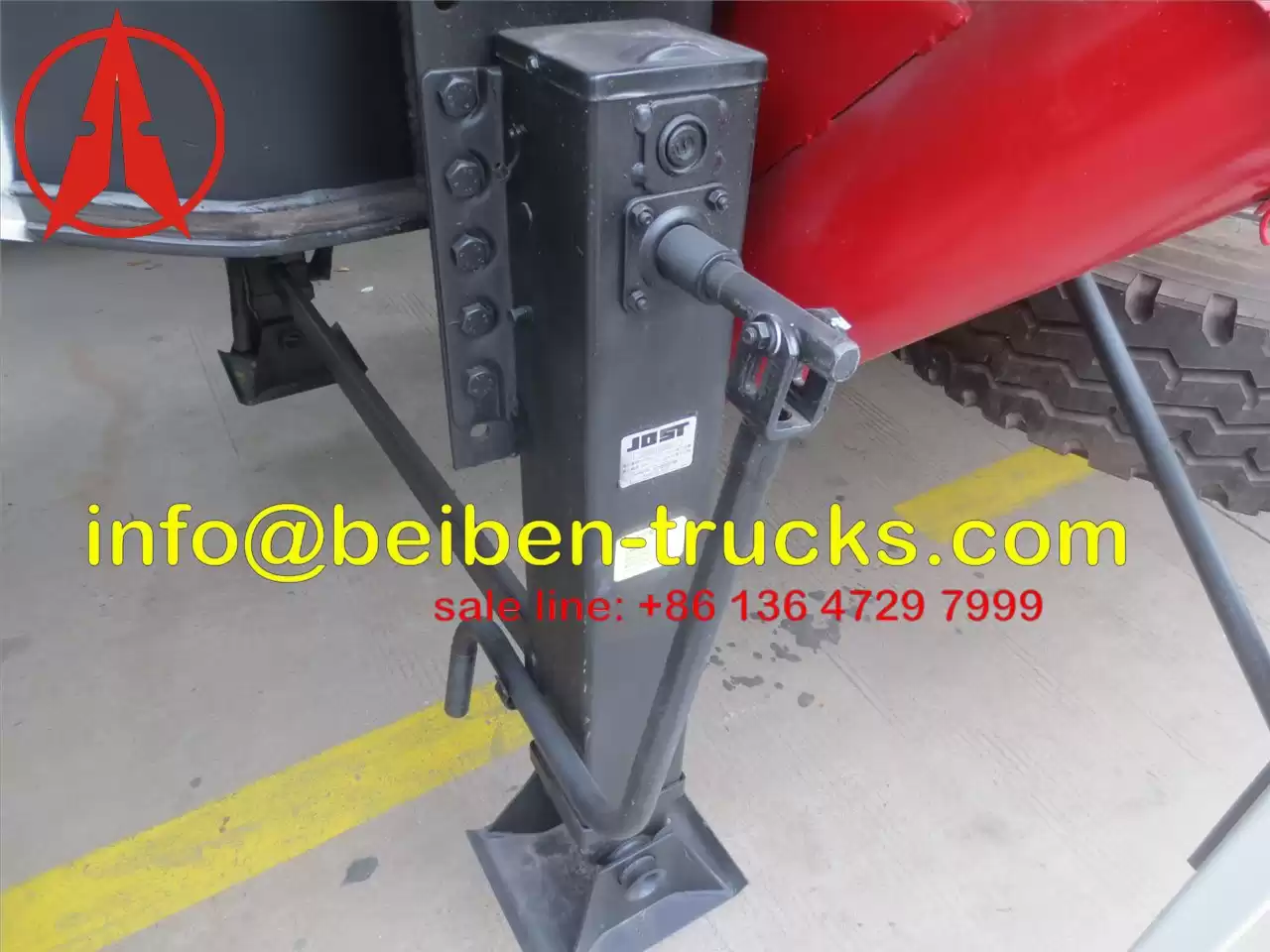

Landing Leg Support
|
28T JOST
2-geared mechanical operated landing legs
|
|
Brake:
|
|
|
|
Brake Chamber
|
Four double and two single chamber( TKL brand )
|
|
|
ABS system
|
STANDARD WABCO ABS System
|
|
Electrical:
|
|
|
|
Voltage
|
Complete 24V system in explosion proof installation
|
|
|
Receptacle
|
7 ways(7 wire harness)
|
|
|
Rear lighting type
|
Rear lighting with rear, stop, parking, direction, fog,
reverse lights, side lights
|
|
Light color:
|
LED brand
|
|
|
Front marker lamp
|
front corner marker lamp is red,Reflector lamp is white
|
|
|
Side marker lamp
|
Orange
|
|
|
Rear lamp
|
Red
|
|
|
Turn signal lamp
|
Orange
|
|
Miscellaneous:
|
|
|
|
Painting
|
Exterior surface treatment by shot blasting.
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo
cabin color or the color chosen by the customer
|
|
|
Marking
|
According to the requirement of the buyer
|
|
|

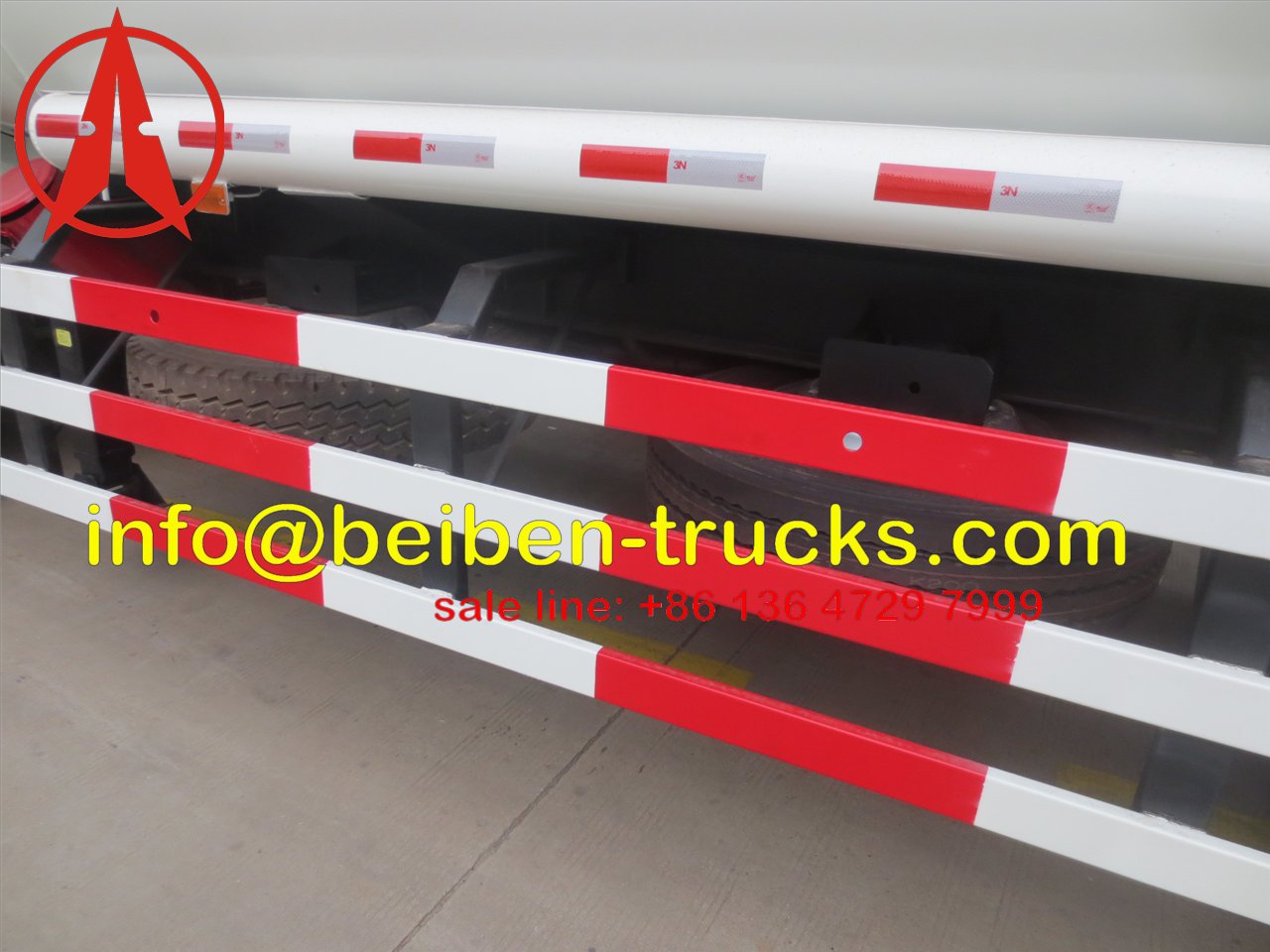

Side Guard
|
According to the requirement of the buyer
|
|
|
Tools box
|
1 tool box with our factory's standard matching tools
|
|
Accessories
|
Plastic half-circle mudguards;
Fire extinguisher 2 PCS
Pipe 1 PCS
Cranking bar 1 PCS
Gudgeon sleeve 1 PCS

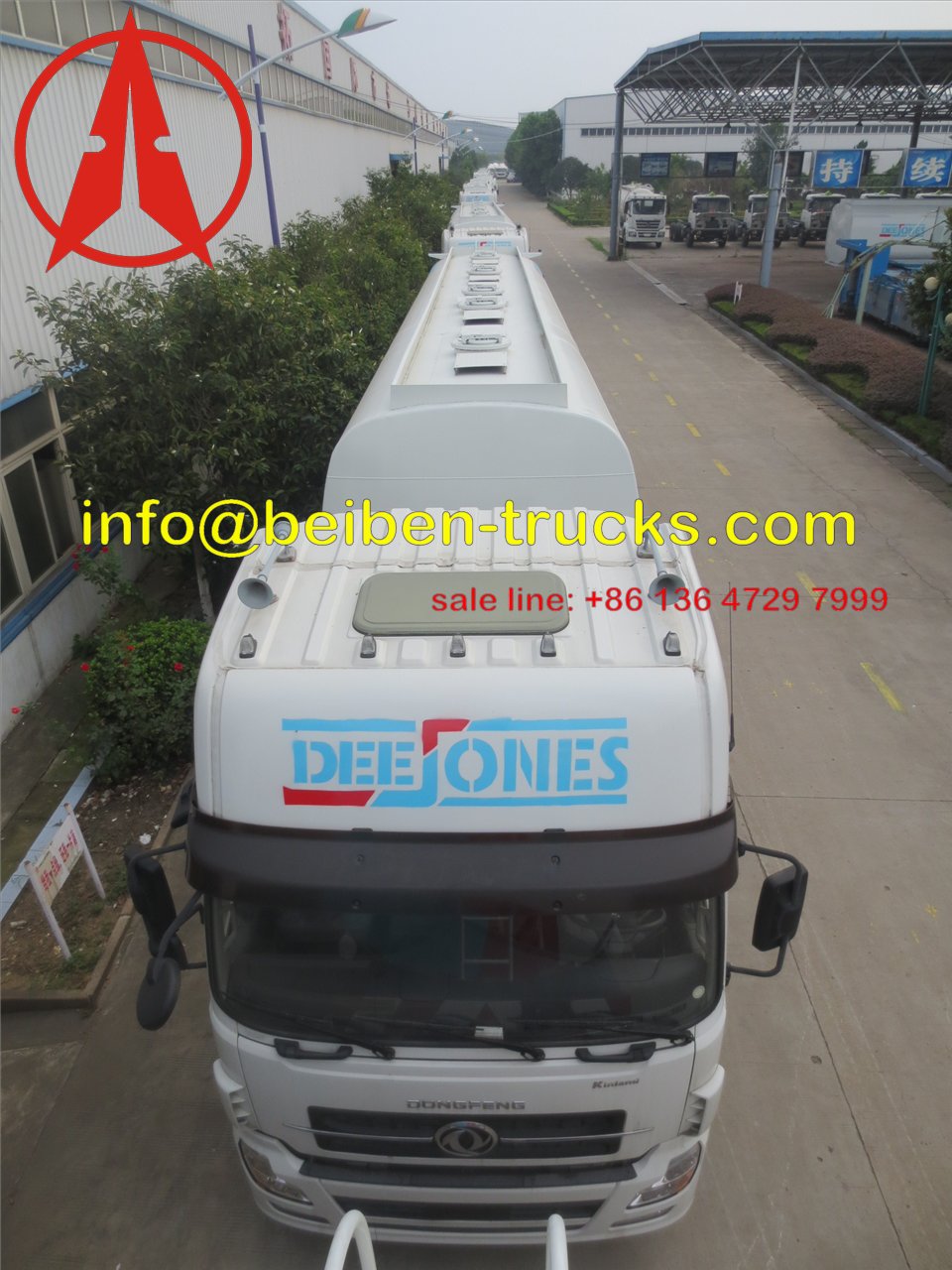

Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach
the manholes,
Not covering the complete length of the tank.
|
