50 kva 500kw 600 kva Soundproof Deutz Diesel Generator Set 220V 400V 480V
Generator Set Description
DEUTZ is a world leader in the engineering and manufacturing of world-class diesel engines with a product range of between 30 and 700hp,
You’ll find DEUTZ diesel engines working in a variety of applications. As the world’s first manufacturer of the four-stroke diesel engine, DEUTZ has led the way for more than 150 years in the areas of technology, power, and fuel efficiency. Many models of DEUTZ diesel engines for sale are already European Stage 5 ready, leading the way in emissions standards while providing plenty of power and torque. While DEUTZ Power Centers and Service Centers certainly support the current lineup of Tier 4 engines, we also support DEUTZ diesel engines from previous generations. We’re also happy to discuss the complete current DEUTZ diesel engine models that are offered globally from DEUTZ AG.
Deutz Diesel Engine Specification
|
Engine manufacturer
|
Hebei Huabei Diesel Engine Co.,Ltd
|
|
Engine brand
|
Deutz
|
|
Engine model
|
HC12V132ZL-LAG 1A
|
|
Engine speed (rpm)
|
1500
|
|
Engine output(kW)
|
660
|
|
Control Systems
|
electronic governor
|
|
Displacment (litre)
|
23.812
|
|
No. of cyliner
|
12
|
|
Cylinder Arrangement
|
V-form 90° angle
|
|
Aspiration mode
|
Turbocharged
|
|
Bore * Stroke
|
132 * 145 mm
|
|
Compression ratio
|
16.5
|
|
Rotation direction ( View from flywheel)
|
Anti-clockwise
|
|
Fuel Consumption @100% load (L/h)
|
137.4
|
Brushless Leroysomer alternator Specification
|
Alternator manufacturer
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
Alternator brand
|
Leroysomer
|
|
Alternator model
|
TAL-A49-B
|
|
Control system
|
SHUNT
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1.0%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
Output ratings (kVA/kW)
|
|
|
----------------Cont.H-40°C
|
750/600
|
|
----------------Standby-27°C
|
805/644
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|

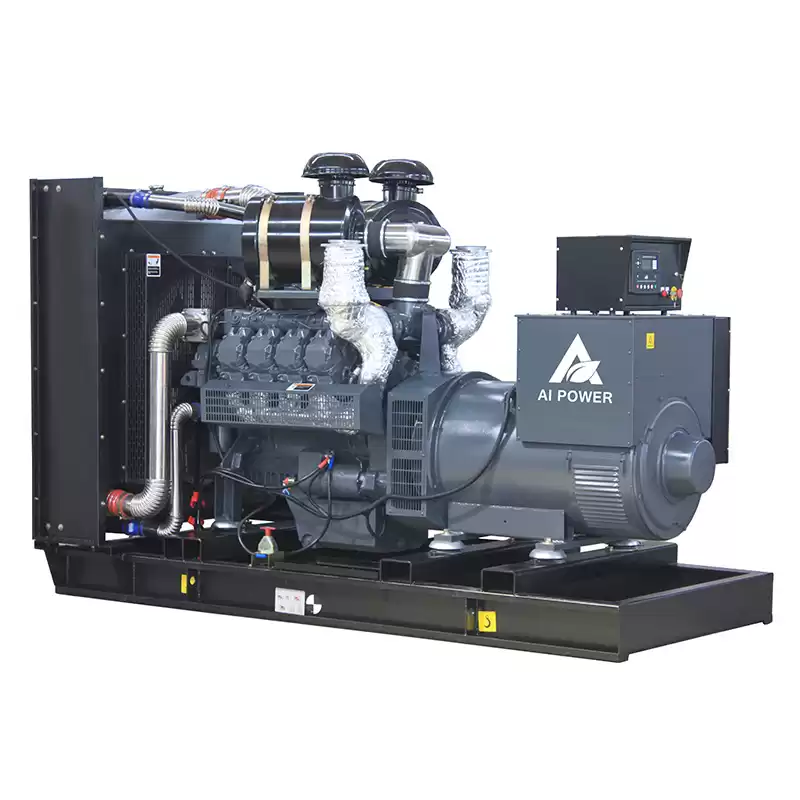

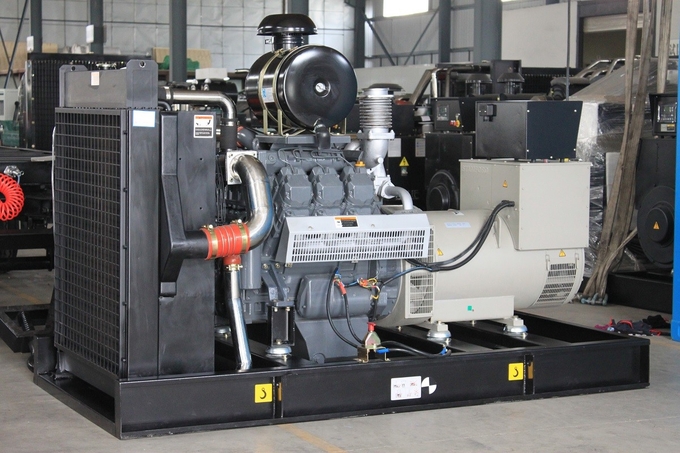

Deutz Open Generator Set Sample Photos

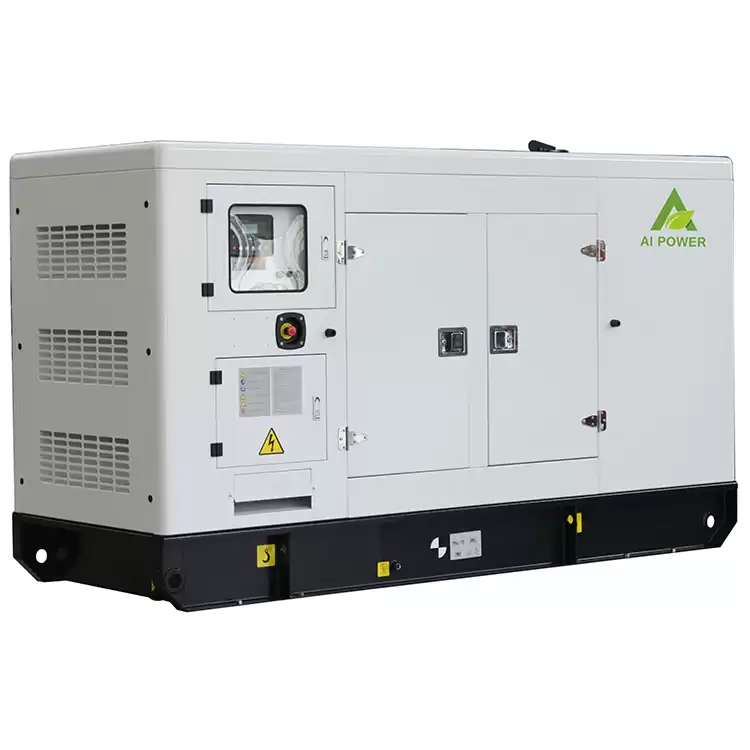

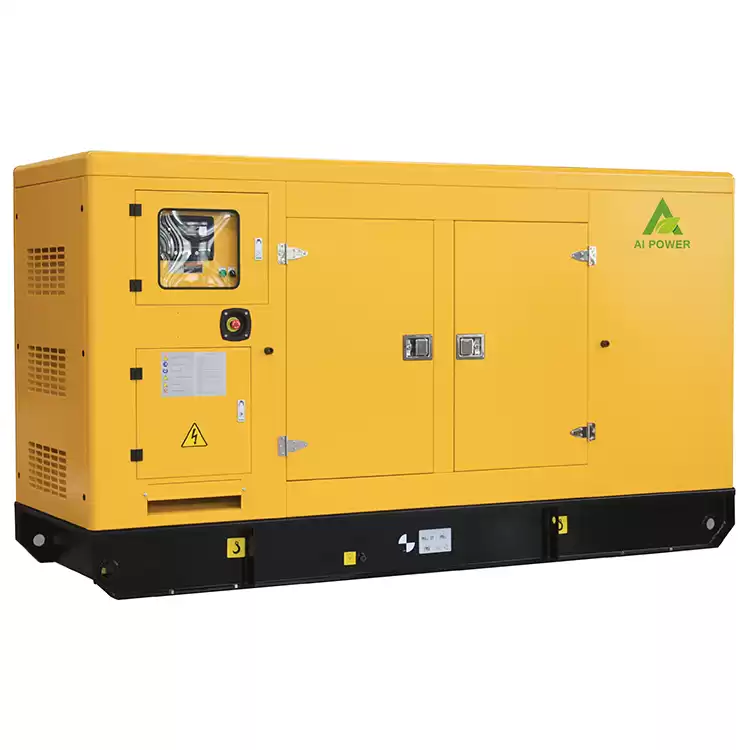

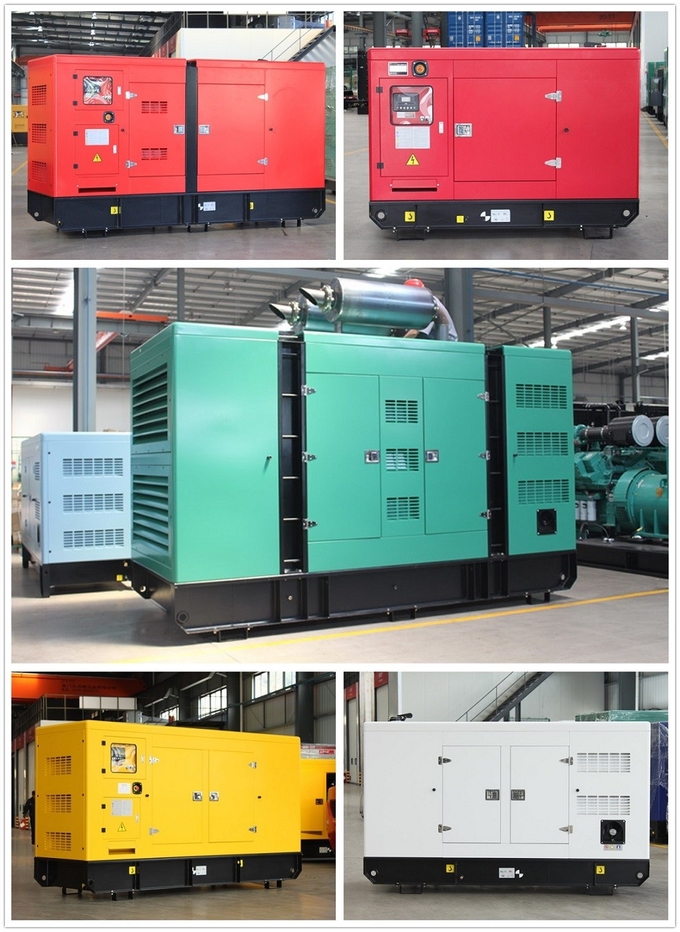

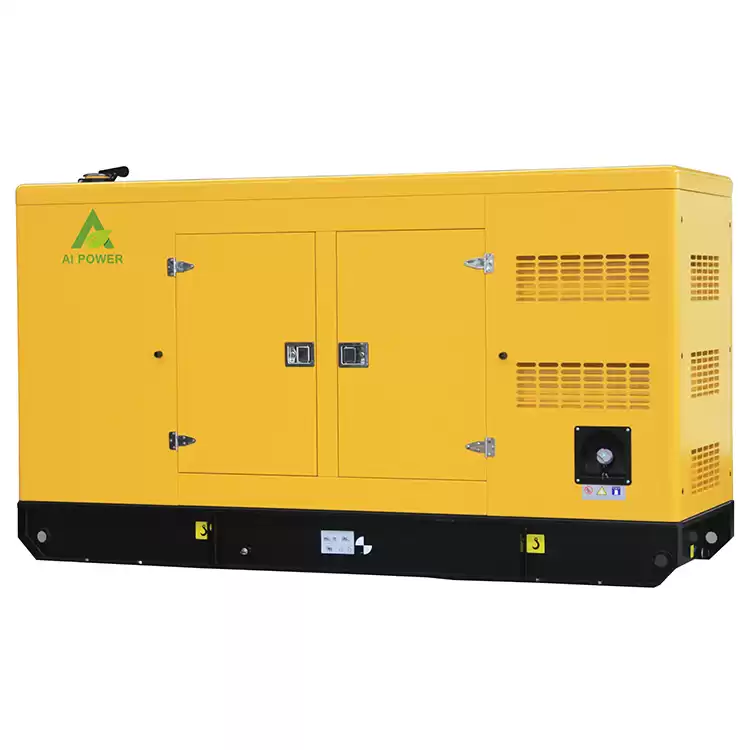

Deutz Silent Generator Set Photos

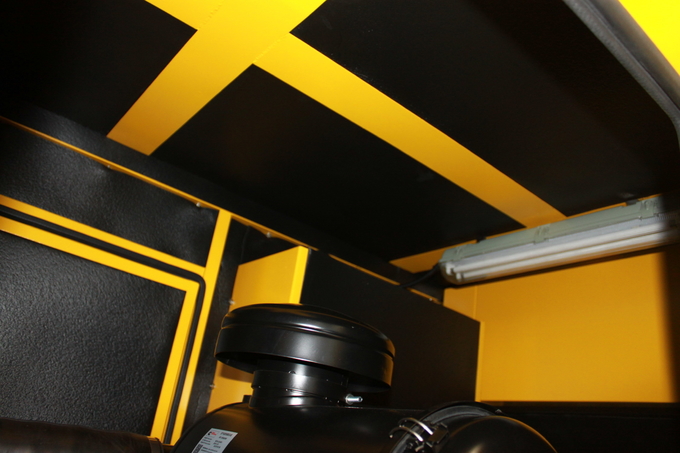

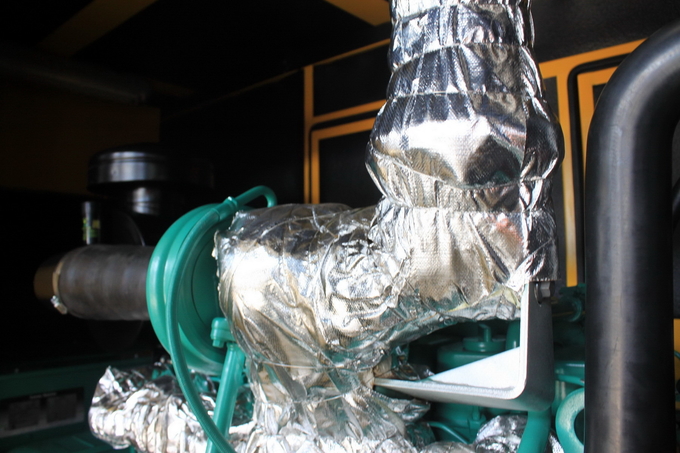

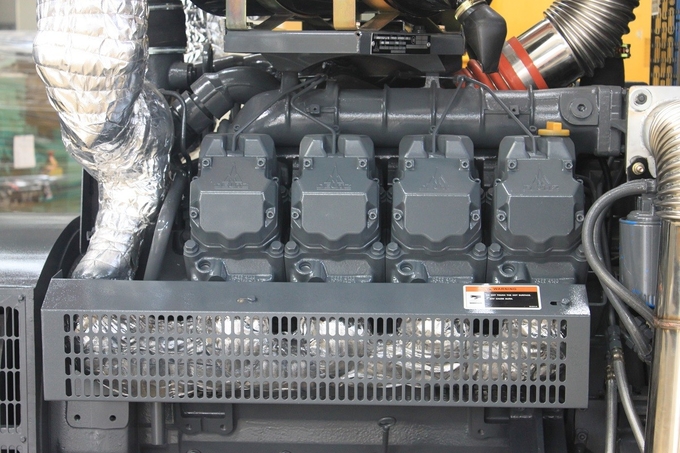

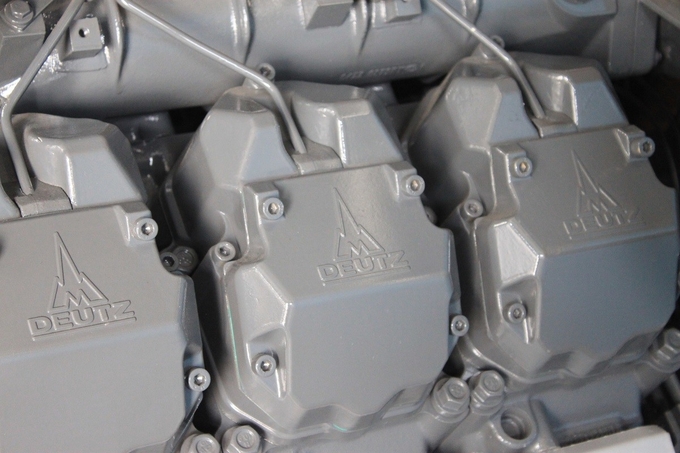

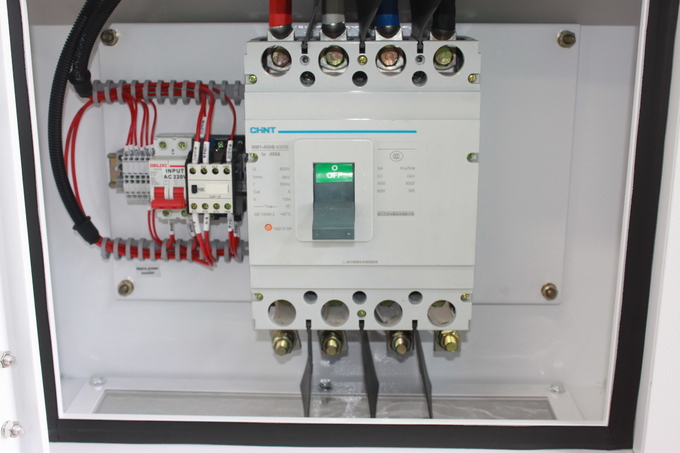

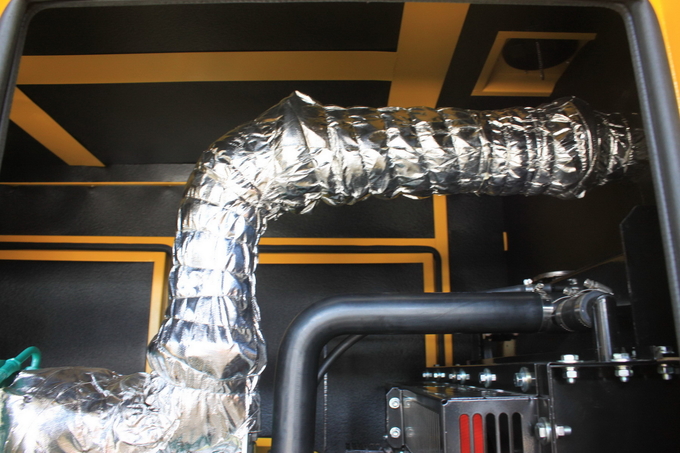

Silent Generator Details
Cooperation Partner
Factory Overview
FAQ
Q1: How is your Package & Payment & Delivery Date & Warranty?

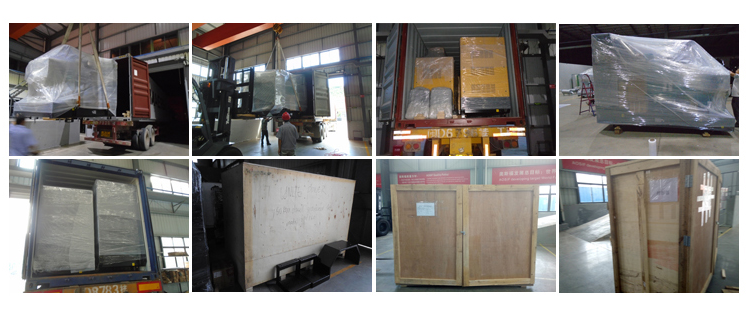

A.1) Package: Plastic film (free of charge) or wooden case (add USD200 for wooden)
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 7-25 days after we get the down payment.
A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply) from installed date.During the guarantee period. such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide. you can contact your country's after-sale or contact us for repairment. when replacing spare parts, please kindly take some pictures to describe the problems. we will solve it a.s.a.p.
Q2: Any advantages about your company?
Answers: LM Brand Diesel Generators with following advantages:
----MOQ is 1 set and we could finis more than 100sets/month
---- Middle-high Positioning;
---- 7-25days Lead-time;
---- Got the ISO and CE certificate; OEM Certifications
--- High quality with the best price can help you get more benefit and beat your competitors;
---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;
---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.
Q3: Any advantage of Digital Control Panel?
1) Controller Brand: Smartgen, Deepsea,ComAp
2) Control Panel: English interface,LED screen and touch buttons.
3) Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
