500℃ 24T Lab Manual Double Heat Plate Hydraulic Hot Press
The hot press is mainly used in some laboratories and units that need to perform high temperature and high pressure sample preparation or testing on powder samples, granular samples, plastic films and other solid samples. The particles or powders of the samples are heated and pressurized to make them chemically stable It has the advantages of improved performance, not easy to break, and good for cutting and preservation. It is an ideal supporting equipment for the engineering and technical personnel of various universities, colleges and research institutes to carry out spectroscopy detection and analysis. This machine can be used as a machine for multiple purposes, equipped with a suitable pressure die, and can also be used as an ordinary manual powder tableting machine. At the same time, the machine is also suitable for other working occasions that require corresponding pressure. It can be used as a press to test various objects. The degree of pressure resistance and so on.
The RYJ-600C electric heating tablet press is an intelligent, high-temperature hydraulic press developed by our company in accordance with market demand and on the basis of the original old hot press. This hot press has a very wide range of applications, which meets the needs of some customers for large tonnage pressure, especially the high temperature requirements for heating samples. This machine adopts our integrated structure patented technology. The main board, oil sump, and oil cylinder are on one main body. There is no sealing connection, which reduces the oil leakage point and reduces the oil leakage probability of the heat press. It is deeply loved by users at home and abroad.
Specification
|

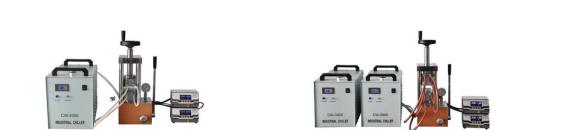

Model
|
RYJ-600C
|
RYJ-600CS
|
RYJ-600CG
|
RYJ-600CGS
|
|
Model purchase
|
Pointer pressure gauge
|
Digital pressure gauge
|
Pointer pressure gauge
|
Digital pressure gauge
|
|
Pressure range
|
0-24T（0-34MPa）
|
|
Pressure conversion
|
1T=1.41Mpa
|
|
Piston diameter
|
Ф95mm chrome-plated cylinder
|
|
Max. piston stroke
|
30mm
|
|
Pressure gauge type
|
Pointer gauge, double scale display of pressure tonnage and pressure MPa
|
|

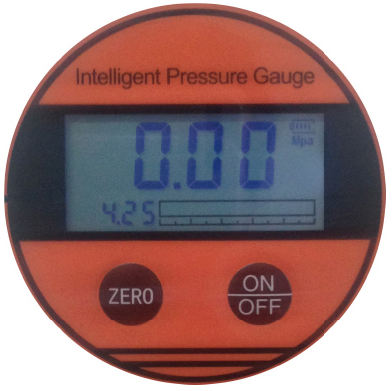

Digital pressure gauge
|
Digital display 0.00-40.00MPa/0.01MPa (optional, only "S" type)
|
|
Pressure method
|
Manual pressure
|
|
Thermostat type
|
XNNETS PLC program temperature controller
|
|
Number of thermostats
|
2 sets
|
|
Temperature control range of thermostat
|
RT -600.0℃/0.1℃
|
|
Heating mold size
|
100×100mm（2sets）
|
|
Mold heating temperature
|
RT-300℃
|
RT-500℃
|
|
Mold cooling method
|
Water cooling cycle to cool down quickly
|
Water cooling cycle to cool down quickly
|
|
Equipment insulation method
|
Imported heat insulation board
|
Imported heat insulation board + stainless steel water-cooled heat insulation board
|
|
Power
|
220V/600W
|
220V/1000W
|
|
Dimension
|
1000×470×500mm
|
|
Host size
|
245×175×500mm (without matching)
|
|
Weight
|
About 60kg
|
|
Structure
|
Split structure
|
|
Standard configuration
|

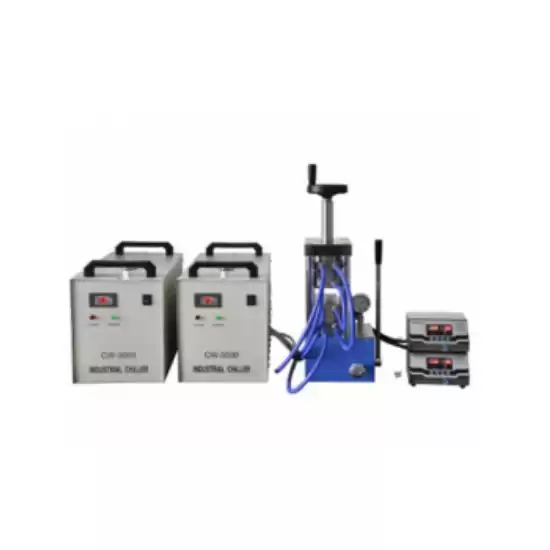

1 hot press host, 2 thermostats (optional water cooler, 1 water cooler must be equipped above 300℃)
|
Pressure Conversion
|
Model No.
|
Pressure conversion table for RYJ-600C series double-plate heat press
|
|
Actual output pressure
|
Pressure gauge system pressure
|
Pressure gauge type
|
|
1 T
|
1.41 MPa
|
|
|
2T
|
2.82 MPa
|
|
3 T
|
4.23 MPa
|
|
5 T
|
7.06 MPa
|
|
8 T
|
11.3 MPa
|
|
10 T
|
14.1 MPa
|
|
15 T
|
21.2 MPa
|
|
20 T
|
28.3 MPa
|
|
24 T
|
34.0 MPa
|
|
Pressure calculation formula
|
The area of the oil cylinder/the area of the mold × the reading of the pressure gauge = the actual pressure of the mold (Mpa)
|
|
Note
|
The system pressure (ie pressure gauge reading) should not exceed 34MPa, otherwise it will affect the service life of the equipment
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
