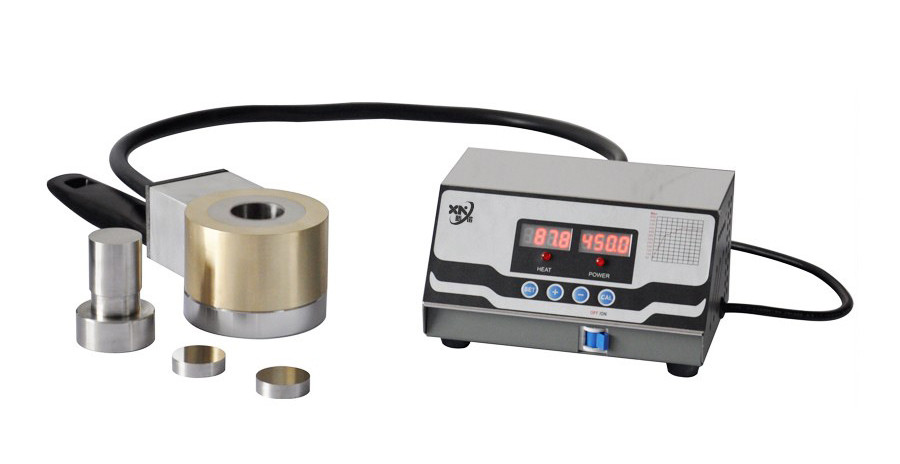

500℃ Cylindrical Electric Heating Mold With Temperature Controller
Cylindrical electric heating mold is a kind of heating mold developed on the basis of ordinary cylindrical mold that can heat and press mold samples through intelligent temperature controller to control temperature. This type of mold can be used to press powder or granular samples into cylindrical flakes or cylinders, etc. The specific mold size and shape can be customized according to customer needs. Suitable for rubber, plastics, leather, chemicals, paints, electronic appliances, textiles, hardware and other major fields. It is a qualitative supporting equipment for the engineering and technical personnel of various universities, colleges and research institutes to carry out spectral detection and analysis.
Standard configuration: usually 1 set of electric heating mold + 1 set of high temperature insulation board + 1 temperature controller. Tablet press and water cooler are optional. If the mold needs to be cooled quickly after heating, it is recommended to configure a water cooler. If you need to purchase a tablet press separately, it is recommended to purchase our electric heating tablet press directly, so that users can operate and experiment more conveniently.
Specifications
|
Name
|
Cylindrical electric heating mold
|
|
Actual drawing of molding sample
|
|
|
Mold heating temperature
|
RT-500℃
|
|
Power
|
220V/500W
|
|
Common mold specifications
|
Ф10, Ф12, Ф13, Ф15, Ф18, Ф20, Ф25, Ф30, etc., mold size customization
|
|
Mold material
|
Alloy tool steel: Cr12MoV (can be customized hard alloy steel)
|
|
Hardness of die indenter
|
HRC60-HRC62
|
|
Mold cavity depth
|
45mm
|
|
Mould dimensions
|
Ф78×138mm、Ф90×138mm
|
|
Mould weight
|
2.7kg
|
|
Standard configuration
|
1 set of electric heating mold + 1 set of heat insulation board + 1 set of smart thermostat (tablet press and water cooler are optional)
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|

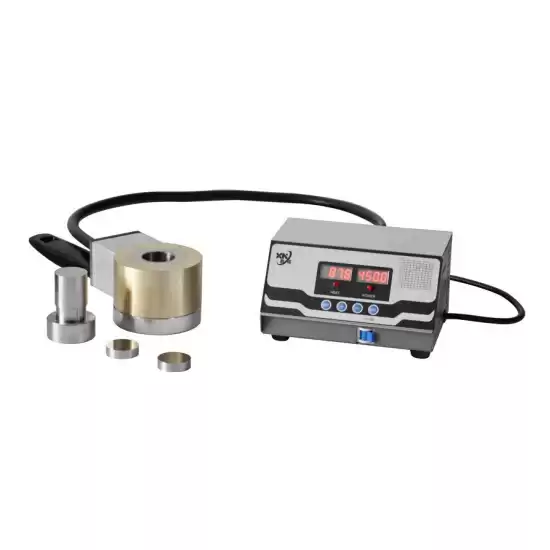

Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
