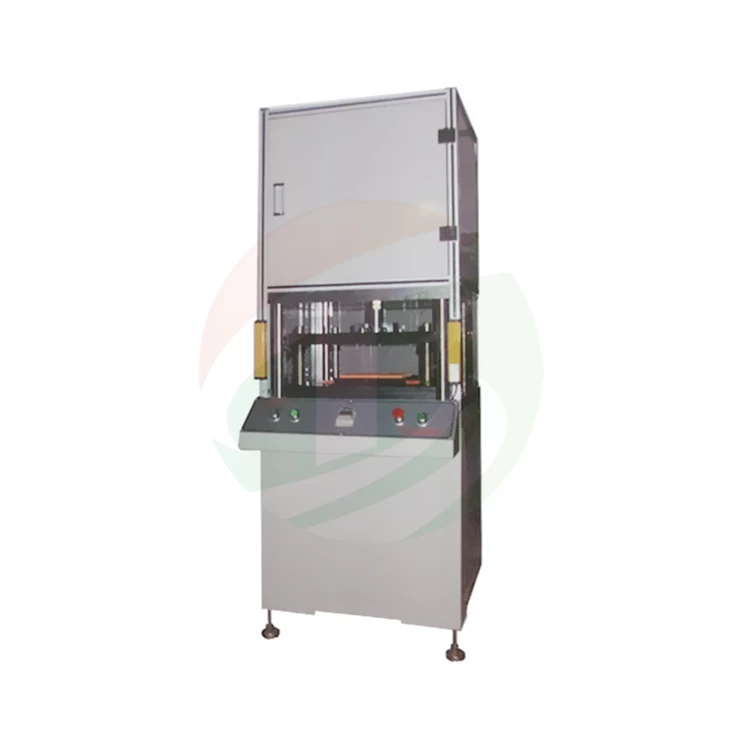

Semi-Automatic Die Cutting Machine For Pouch Cell Electrode Sheet For Producing Line
Specifications
1 TOB-JD-500semi-automatic electrode die cutteris mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.
2 ThisSemi Automatic Die Cutter machineadopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.
3 High speed, high accuracy,long lifetime to make cutted electrode without burr, to get a good consistency.
4 This model has max die dimension with 500*500mm, It is mainly used for producing, if we want smaller size for lab research, please choose the TOB-MQ300 model.
|
Model
|
Battery Electrode Die Cutting Machine TOB-JD-500
|
|
Work voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
500W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Max cutter die size
|
500mm(L) * 500mm(W)
|
|
Die Set Dimensions
|
One set of standard electrode die is included.within the dimensions:
500mm(L) *500mm(W) Customized size die is available upon request
|
|
Safety Protection
|
Built in Safety Curtain to protect against hand injuires during
electrode feeding Double start press button
|
|
Cutting Accuracy
|
±0.1mm
|
|
Air Cylinder
|
5 tons Max. pressure
|
|
Feeding
|
Manually
|
|
Production Yield
|
100-400 pieces of electrodes per hour According to battery sheet size
|
|
Air Pressure
|
0.6-0.7Mpa, 40L/S
|
|
Dimension
(L*W*H)
|
1000*760* 2160mm
|
|
Net Weight
|
1000kg
|

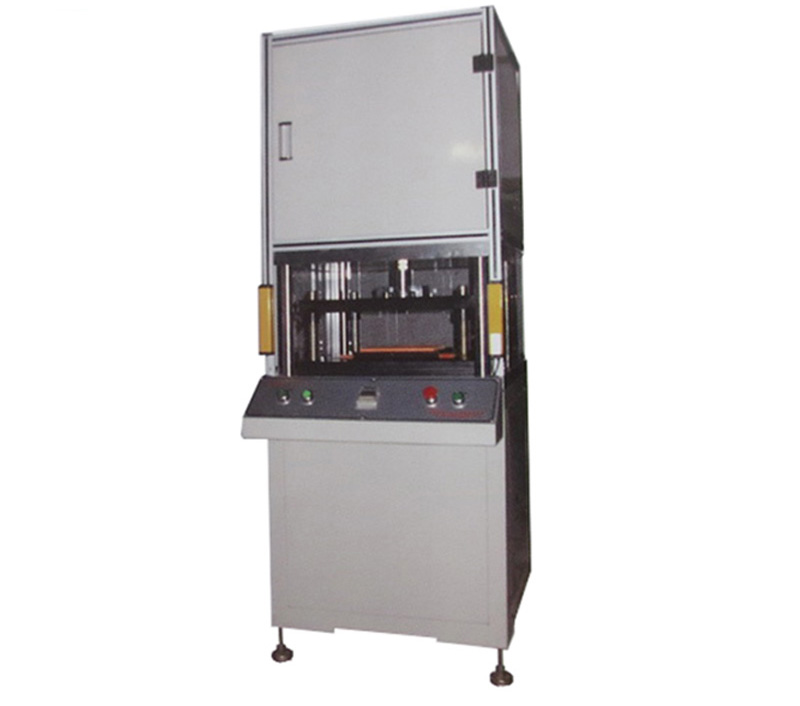

PRODUCT DISPLAY
Finished electrode of the Semi-auto die cutter machine

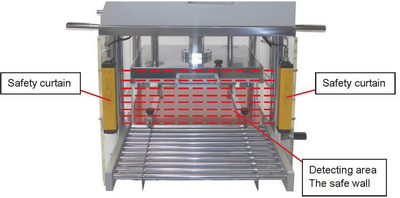

Safety protection
