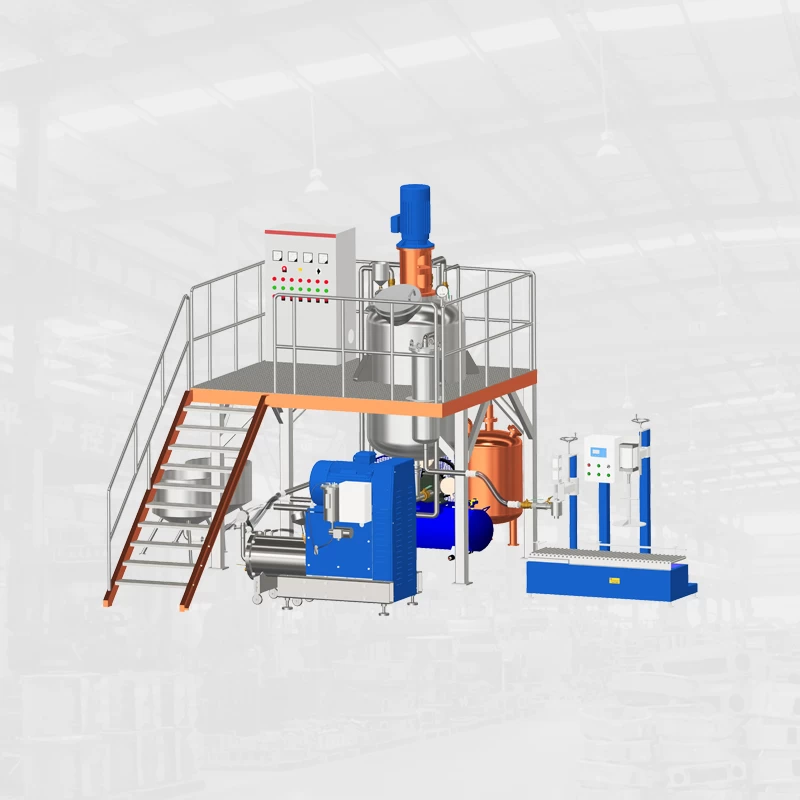

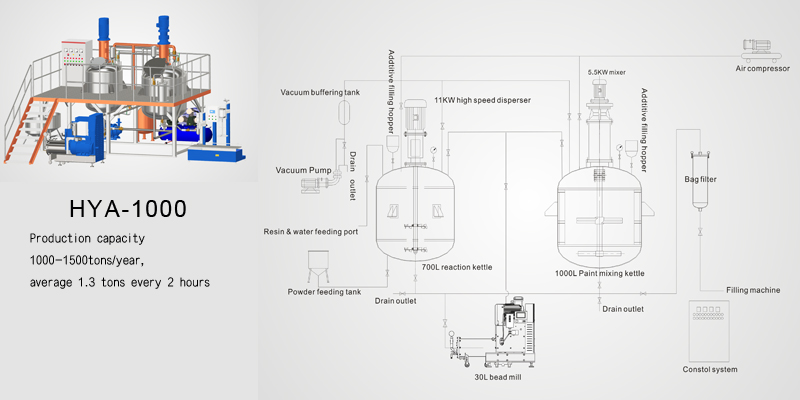

500 tons/year paint production line
Fully closed production process has been adopted to the automatic integration paint manufacturing machine. No leakage of du st pollution and organic solvent,thus it saves the loss of leakage and will not cause the air pollution. Production process is automatic intelligentized. Efficiency and quality are highly improved by monitoring and recording process regularly,adopting computer management model.
Feeding the material from the tank base
Feeding the material from the base of paint manufacturing equipment by vacuum pressure makes the short feeding distance and feeding speed quickly. It avoid backflow and excavation which might happen if do this job by labour.The material is surrounded by water after entering in the tank,this avoid the powder pollution into the air and blocking at the feeding port. It can feed 500kgs material to the tank within 2 min and keep the performance constantly. Traditional way is to feed materail from the top of tank,It will take 25min to complete the same job,and the material is easy to adhere to the tank inwall causing the loss of material.
