5000 liter LPG Cylinder Filling Station with Dispenser and Weight Scale

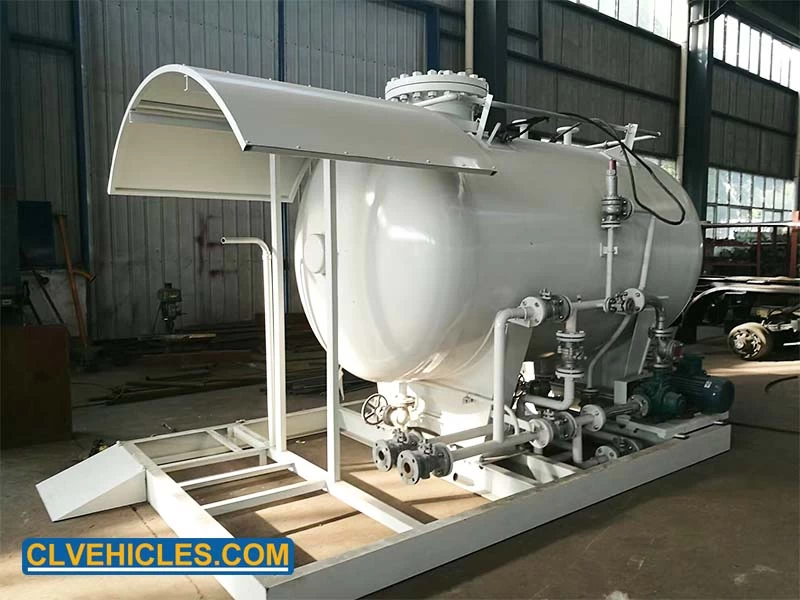

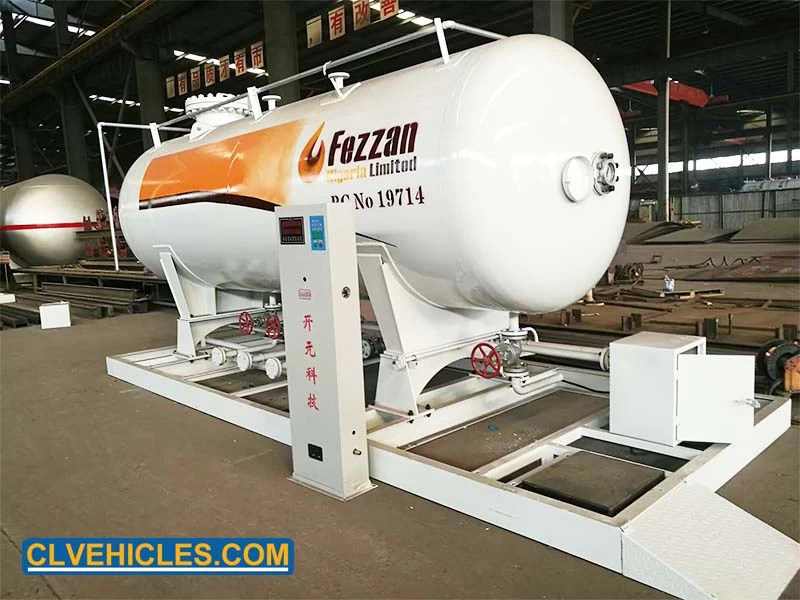

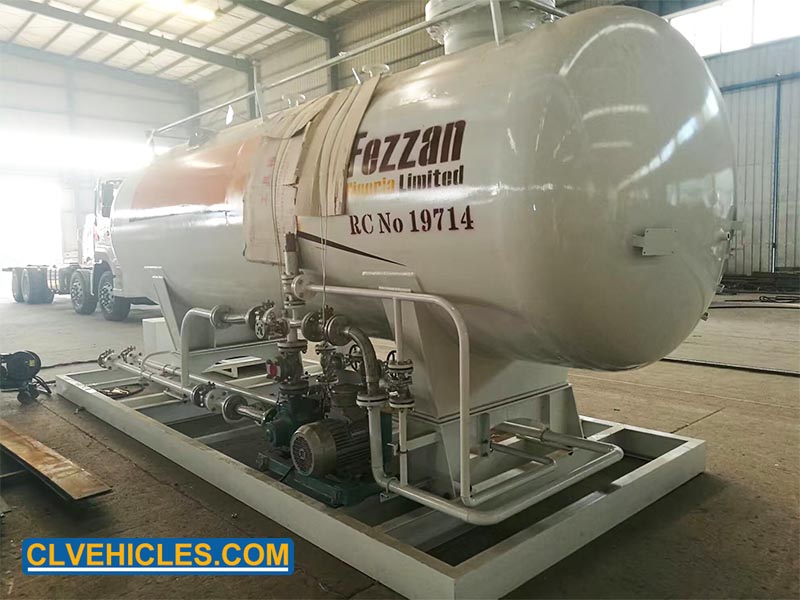

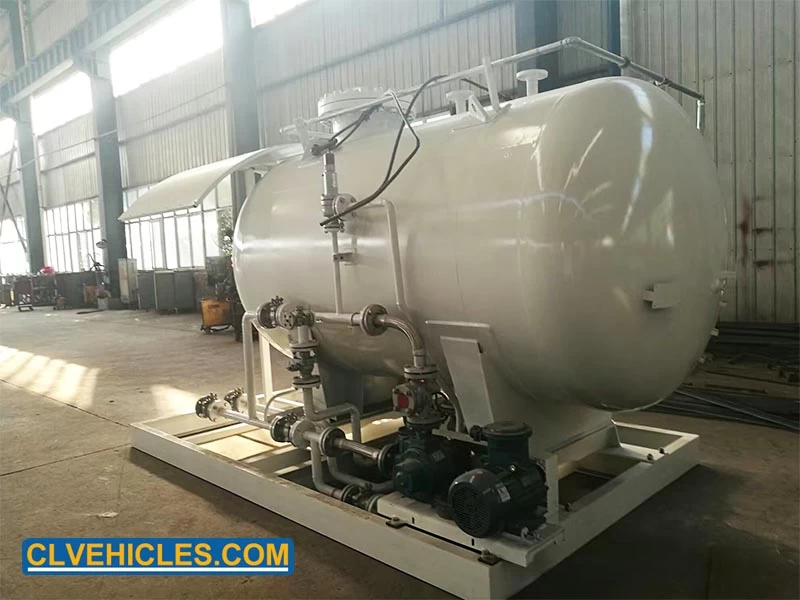

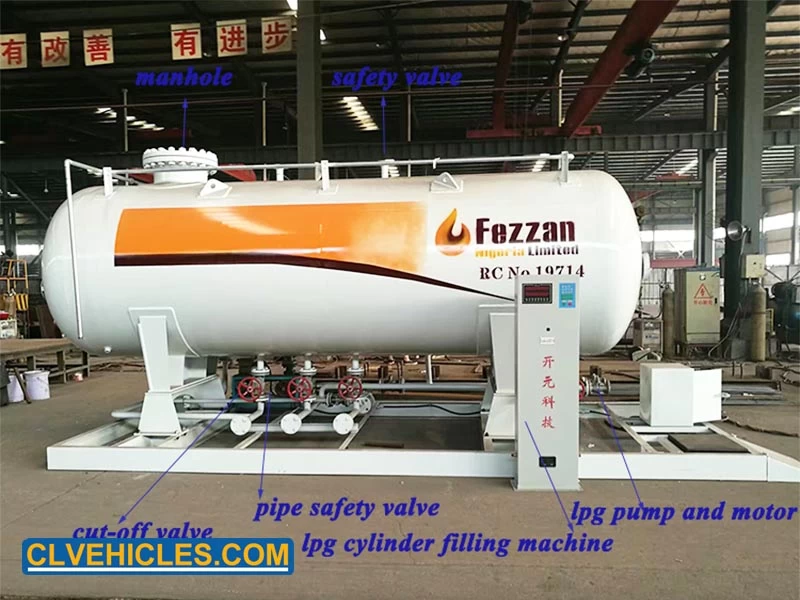

Skid- mounted station consists of a storage tank and two pumps, Pipe section : one pump forms unloading system, another forms filling system, these two systems under fault conditions can be used temporarily. The structure of Skid-mounted stations is divided into four parts, the tank, skid body, LPG dispenser, electronic control box.
Quick Details
|
LPG tank size
|
3070*2224*2814
|
|
Propane tank capacity
|
25000 liter
|
|
Design temperature
|
50℃
|
|
Design pressure
|
1.77Mpa
|
|
Leak test pressure
|
1.77Mpa
|
|
Hydraulic test pressure
|
2.3Mpa
|
Applications
LPG skid station equipped with two hydrocarbon pumps, one unloading pump, one twin screw pump, can be used interchangeably to meet the dump truck, car filling, cylinder filling, flip, sewage, emptying, emergency cut off , Level alarm, leak alarm and other functions.
Competitive Advantages
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection
|
Emergency shut off valve fore safety
|
|
|
|
Double side for discharge and loading ,double tool box and valve box
|
LPG dispenser optional with automatic fault detection and overload protection
|
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
Supply only upper body without chassis. According to your chassis drawing,
design function parts.
Customization
Communicate with engineer,making design drawings and produce customized products.
Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts
on trucks as tank and box.
|
|
