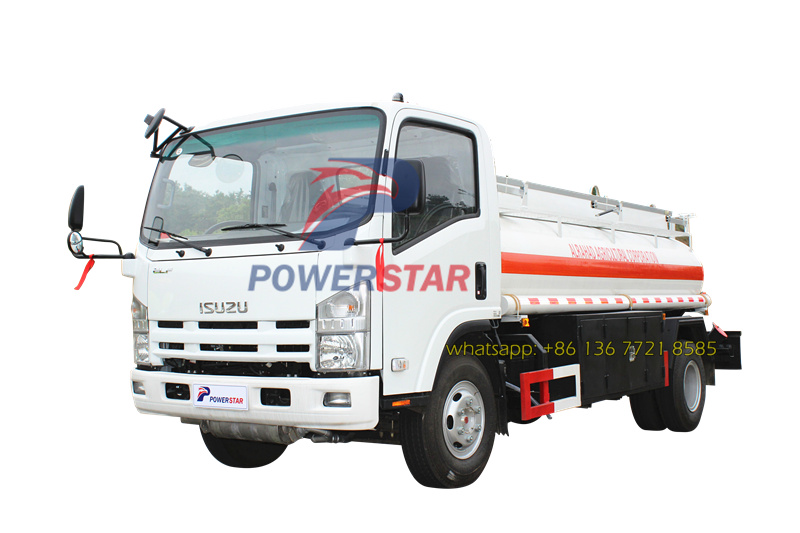

Custom Made Isuzu 5cbm Oil Fuel Tank Truck for Sudan market
Description:
Customer made Refuel truck Isuzu (also called Customer oil tank truck Isuzu, Oil tank Isuzu engine, Oil dispenser tank truck, Diesel tank truck, Cheap fuel tank truck, 4x2 fuel tank, Fuel bowser, 6wheels fuel truck Isuzu, Fuel tank vehicle truck) is used to transport oil, diesel, gasoline, kerosene, etc.
Our range of refueling tank truck is designed for the transport and storage of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc. It has found a wide range of applications. For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers. Hence, our refueling tank truck is commonly seen in filling stations and transport companies.
The refueling tank truck manufactured by PowerStar Trucks is designed based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.
Areas of Application and Use:
◆ Gasoline transport and
delivery
◆ Diesel transport and delivery
◆ Kerosene transport and
delivery
◆ Other liquid fuel material
◆ Mobile refueling vehicle of
Filling stations
Key Features:
◆ World-class ISUZU heavy duty Chassis, High
power and Fuel efficiency, Reliability, Uptime
◆ High-power, Lighten weight, Nice performance,
widely used in oil station and some logistic companies
◆ We use OEM fittings, makes
the tanker solid and durable, and reduce the cost to operate and maintain.
◆ The liquid tanker
is produced with the special equipments such as automatic welding machine(8m)
and CNC plasma cutting and automatic submerged arc welding forming which can
realize welding by one side in shape by two sides, having the merits of stable
quality, less cost, and good-looking.
◆ Carbon Steel, Stainless Steel, and Aluminum
Tanks Available
◆ Colors can be customized.
◆ Tank capacity can be customized. 5000L
to 25000Liters
Main
specifications:
|
Model
|
PT5100GJY
|
|
Driving
Type
|
4x2 (Left
hand drive)
|
|
Wheelbase
|
4175 mm
|
|
Engine
|
139 kw (190hp)
|
|
Tyre
|
8.25-20
|
|
Tank
|
Material:
|
Carbon steel(Q345)
|
|
Shell Body
|
5 mm nominal thickness
|
|
Head
|
6 mm nominal thickness
|
|
Baffles
|
3mm nominal thick, wave shape, four
pieces with Ø 500mm service port
|
|
Tank shape
|
Ellipse
|
|
Capacity
|
Full capacity 7000L
|
|
Compartment
|
No
|
|
Shell Finish
|
Shot blasted with 1anti-rust, 1
base coat and 1 finishing coat, the color of tank is according to
customer requirement.
|
|
Testing Pressure
|
36kPa, Water pressure test
|
|
Tank Fittings
|
Top inlet port
|
2pieces
|
|
Manhole Cover
|
Aluminum alloy, 20”
self-latching manhole cover, with air-van.
|
|

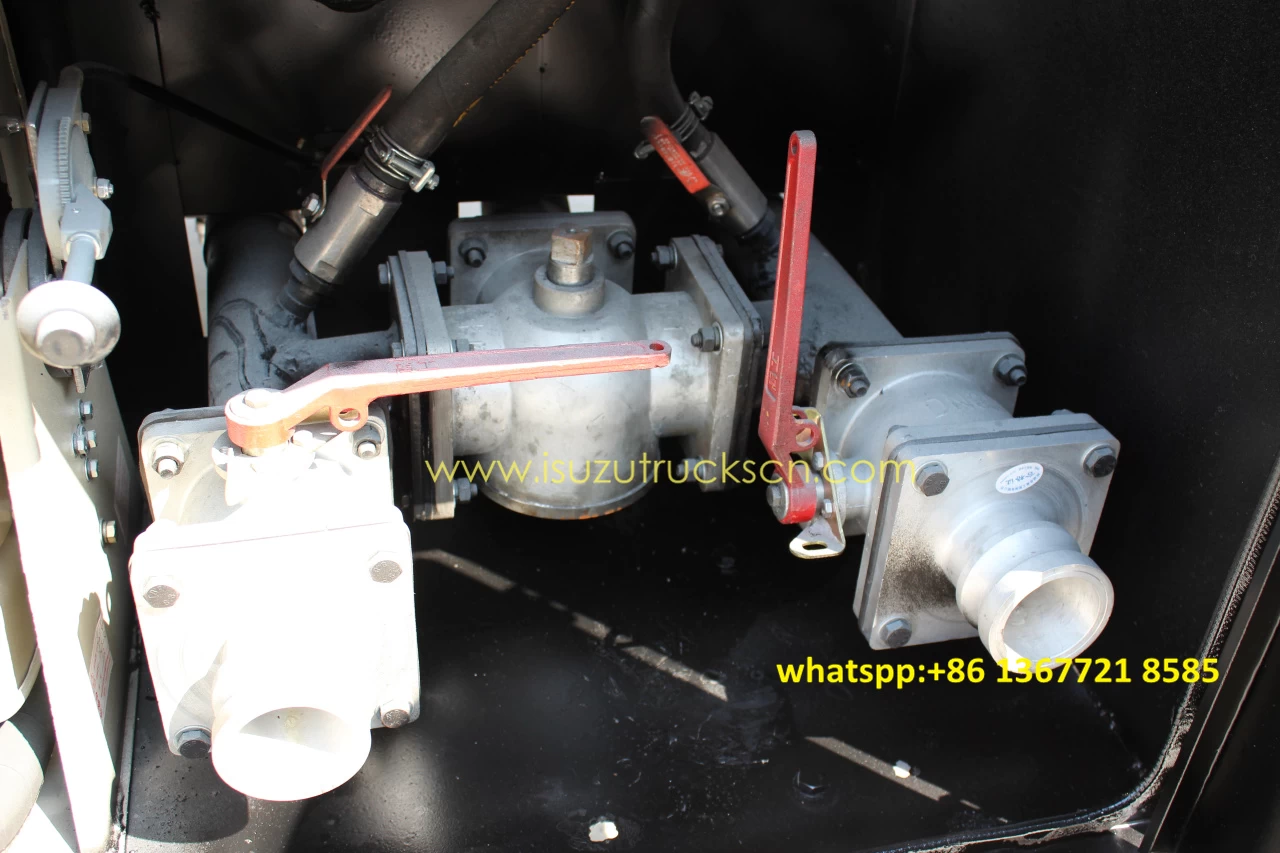

Outlet port:
|
One pneumatic sea valve which at the
front of tank, the size of outlet port is 3 inches, fix all connector.
|
|

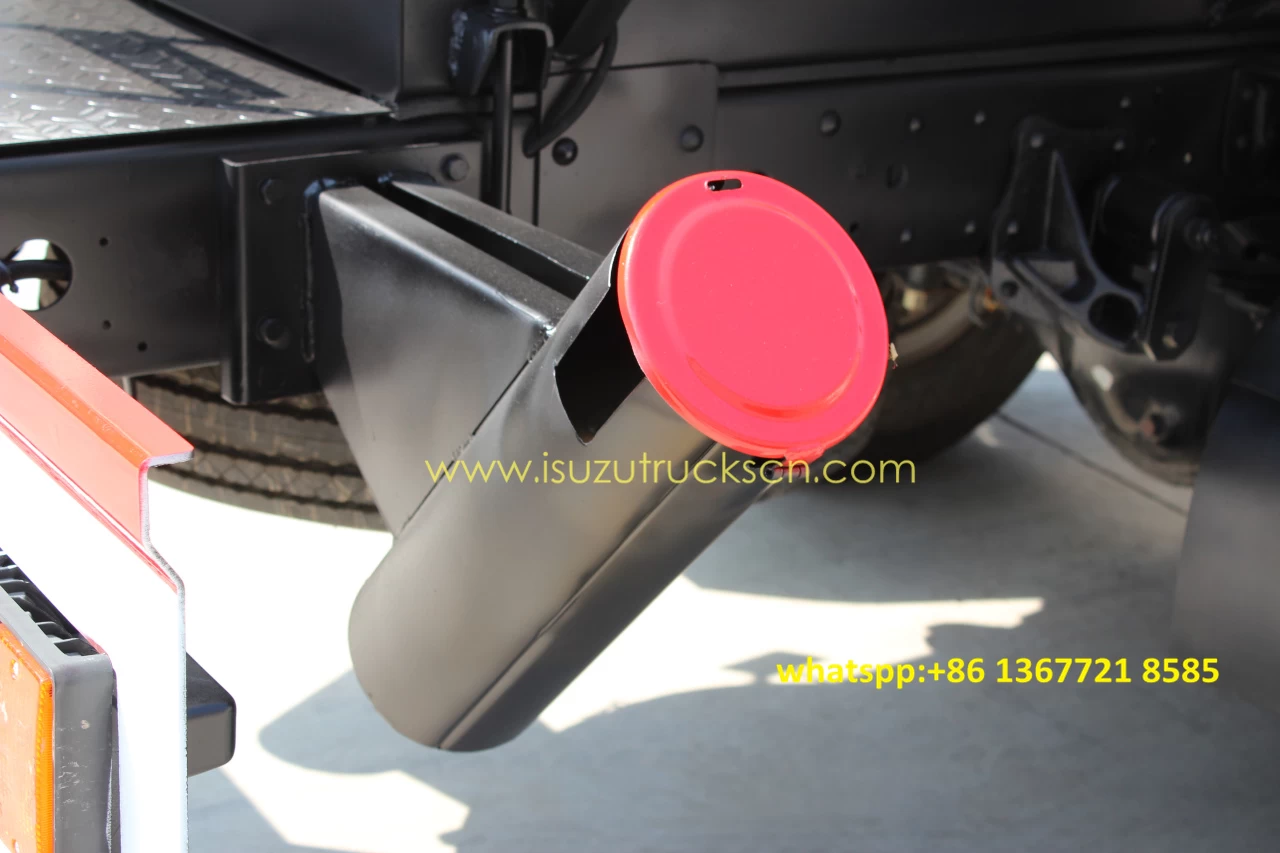

Pipe box:
|
It made of PVC material, round shape
which on the both sides of tank, one plastic pipe (5m)
|
|
Anti –Static System:
|
Static electricity plate ,
copper plate and earth cable reel
|
|
Tank Accessories
|
Ladder:
|
Stainless Steel
ladder fixed at rear of tank
|
|

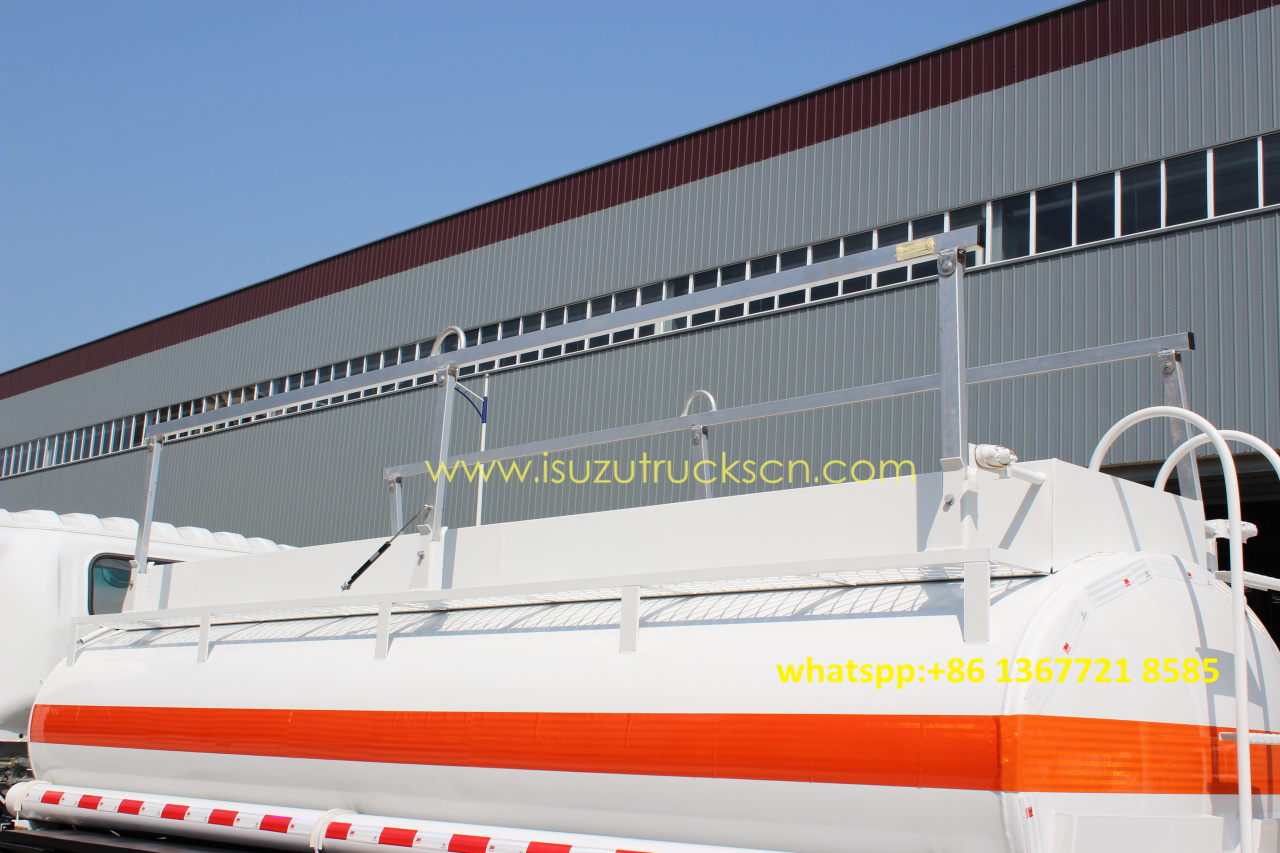

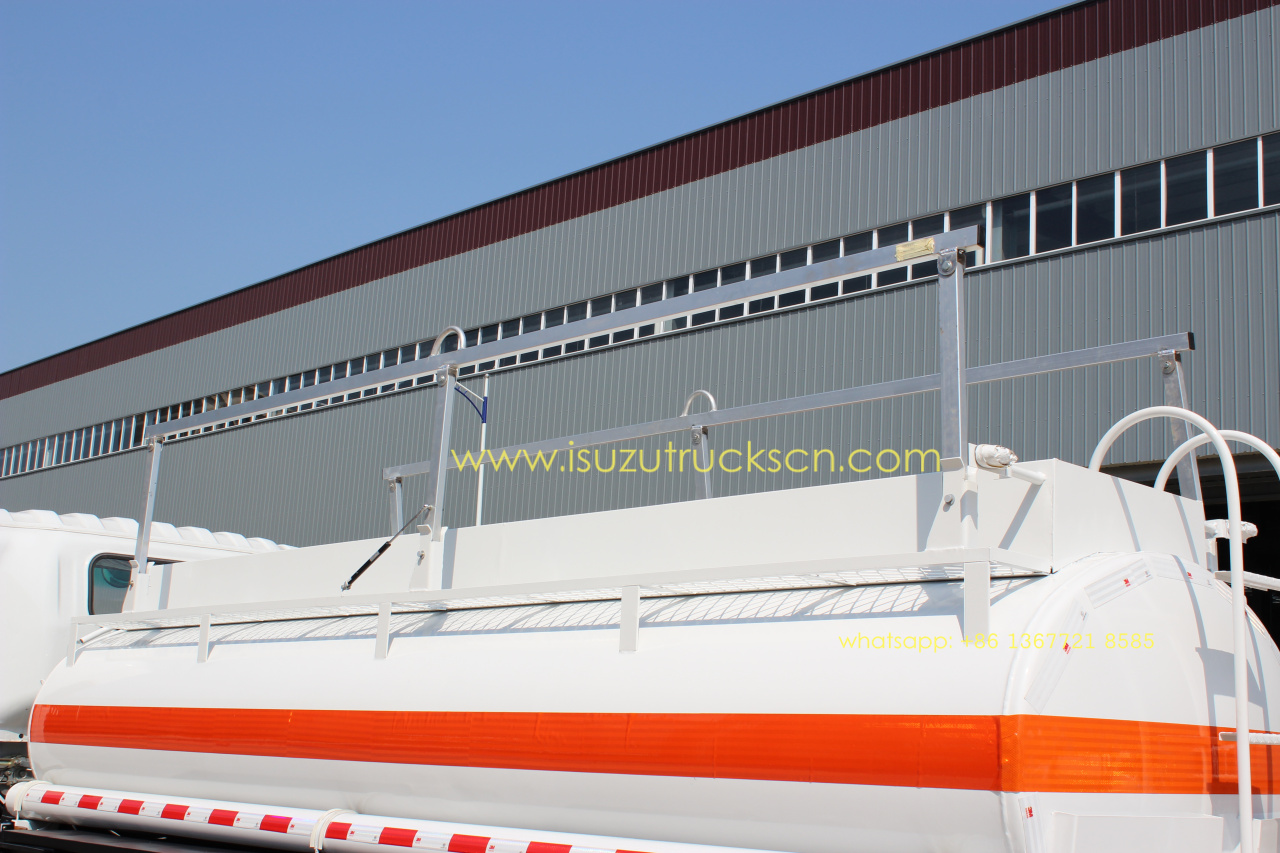

Walkway Platform:
|
It fixed on the top of
tank with anti – skid surface treatment.
|
|
Handrail:
|
No
|
|
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire
extinguisher
|
|
Pump Device
|
Yes
|
|
Flow meter
|
Yes
|
|
Tool box
|
Small box
|
|
Color
|
As option
|
Details of ISUZU Fuel Tank Truck:
 |
 |

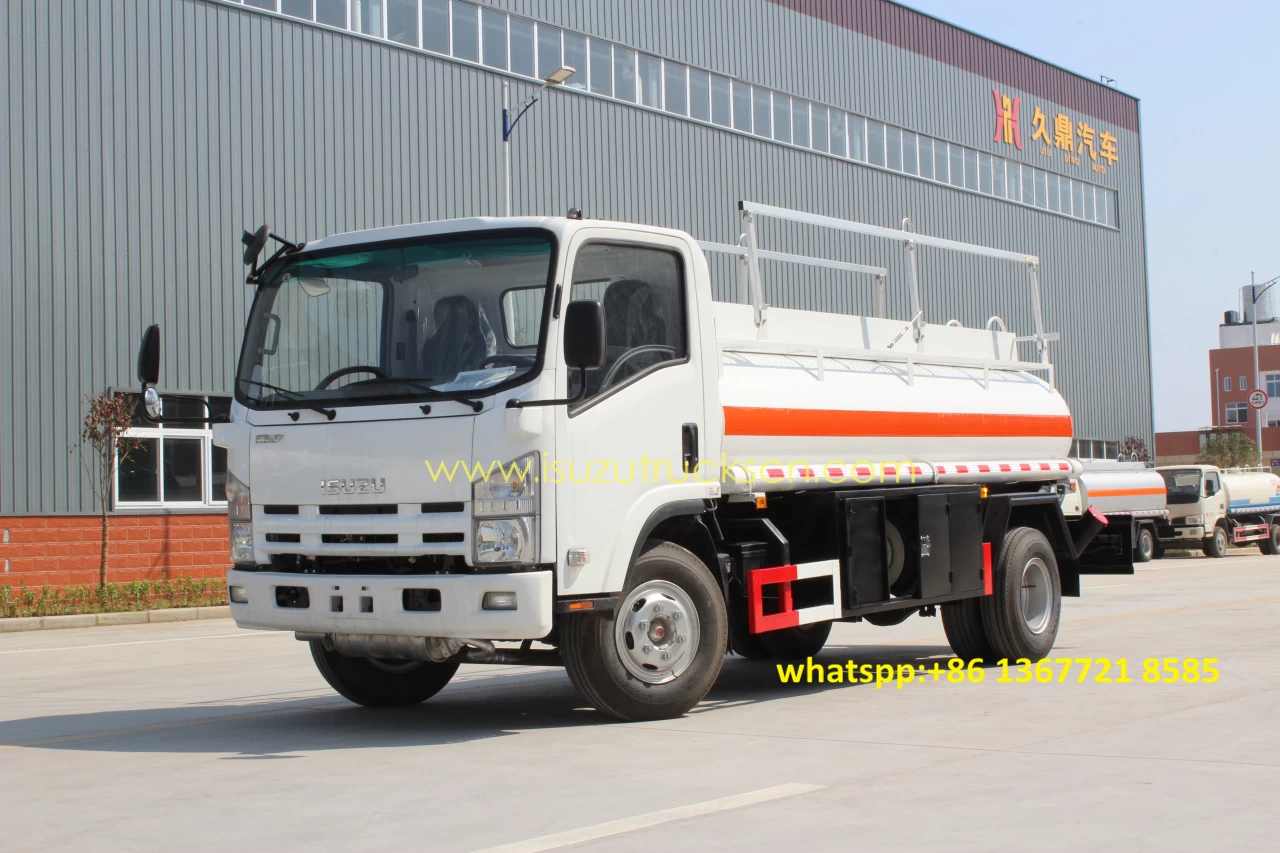

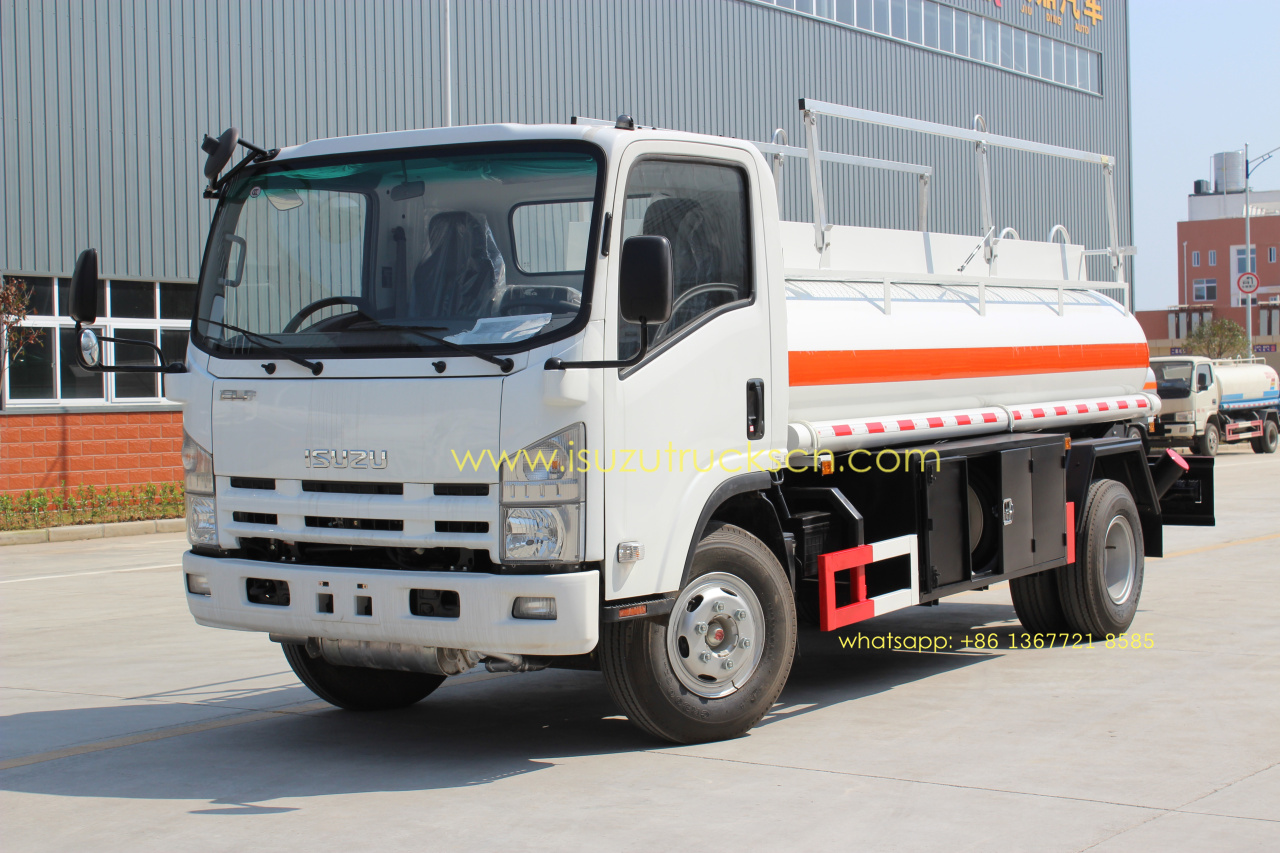

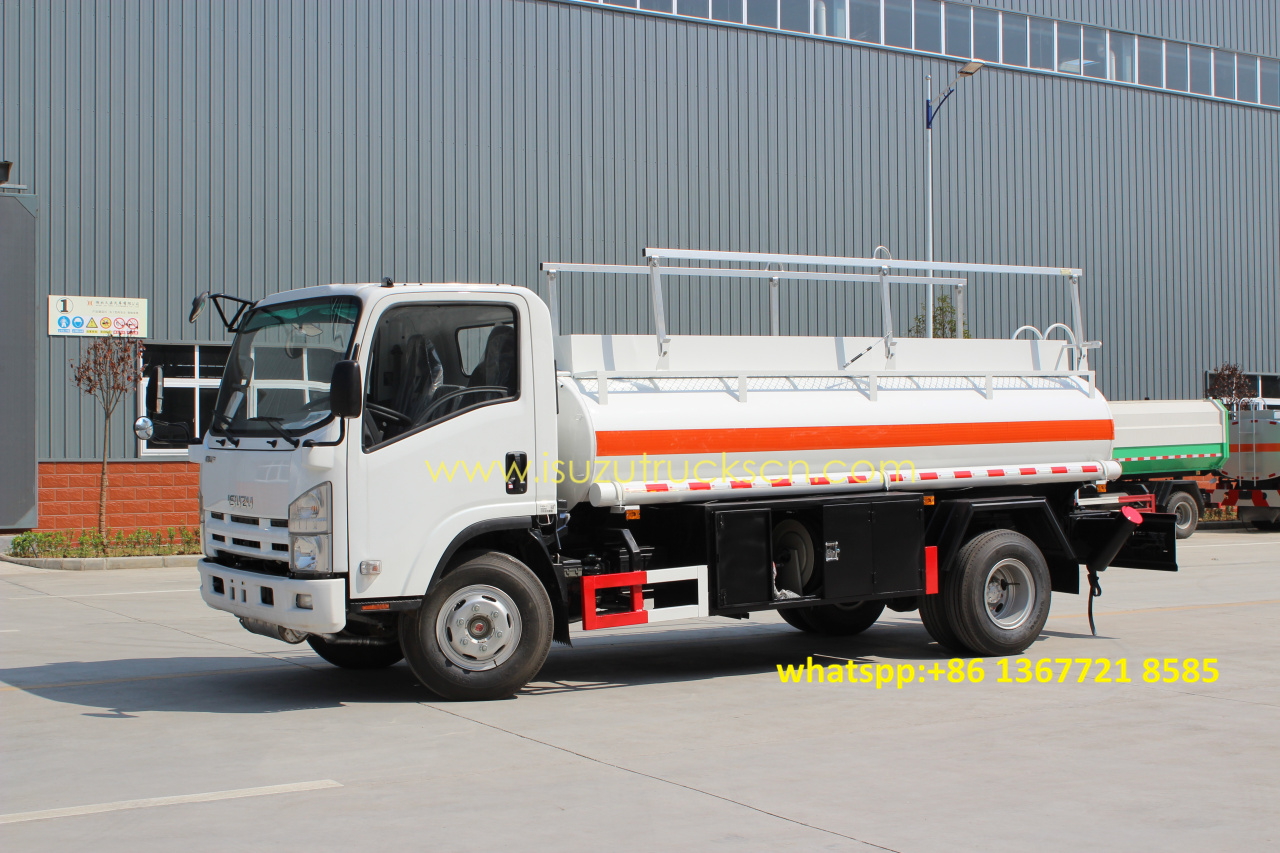

| Front left view |

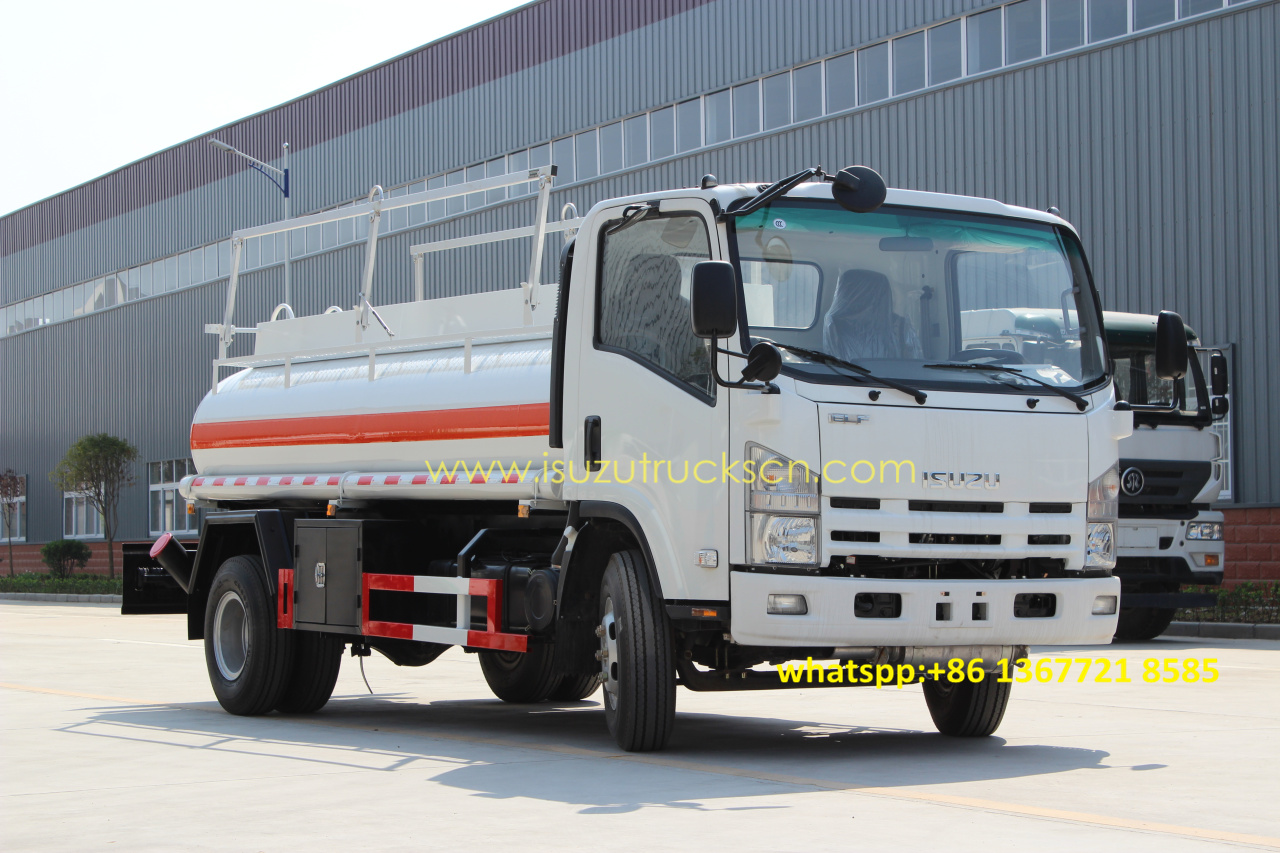

Front right view |
 |
 |

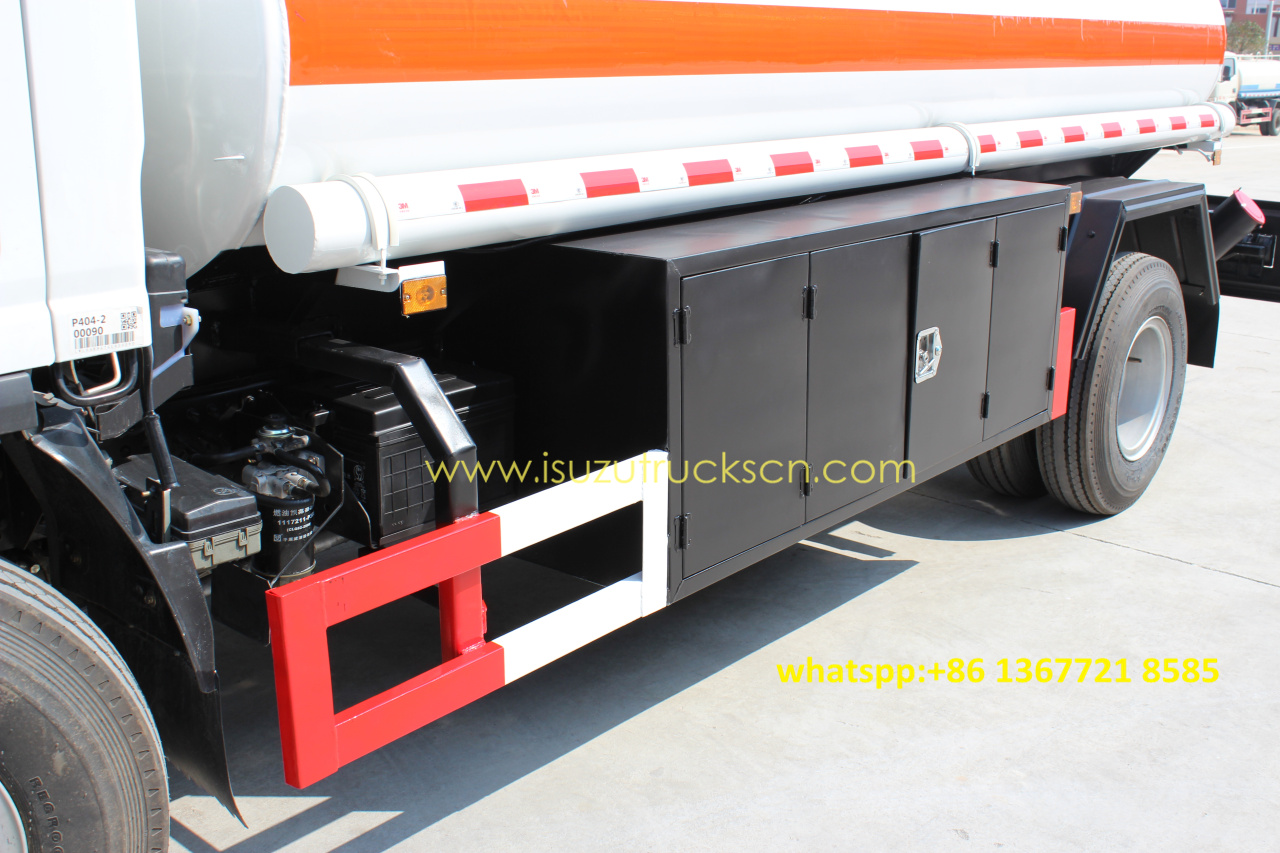

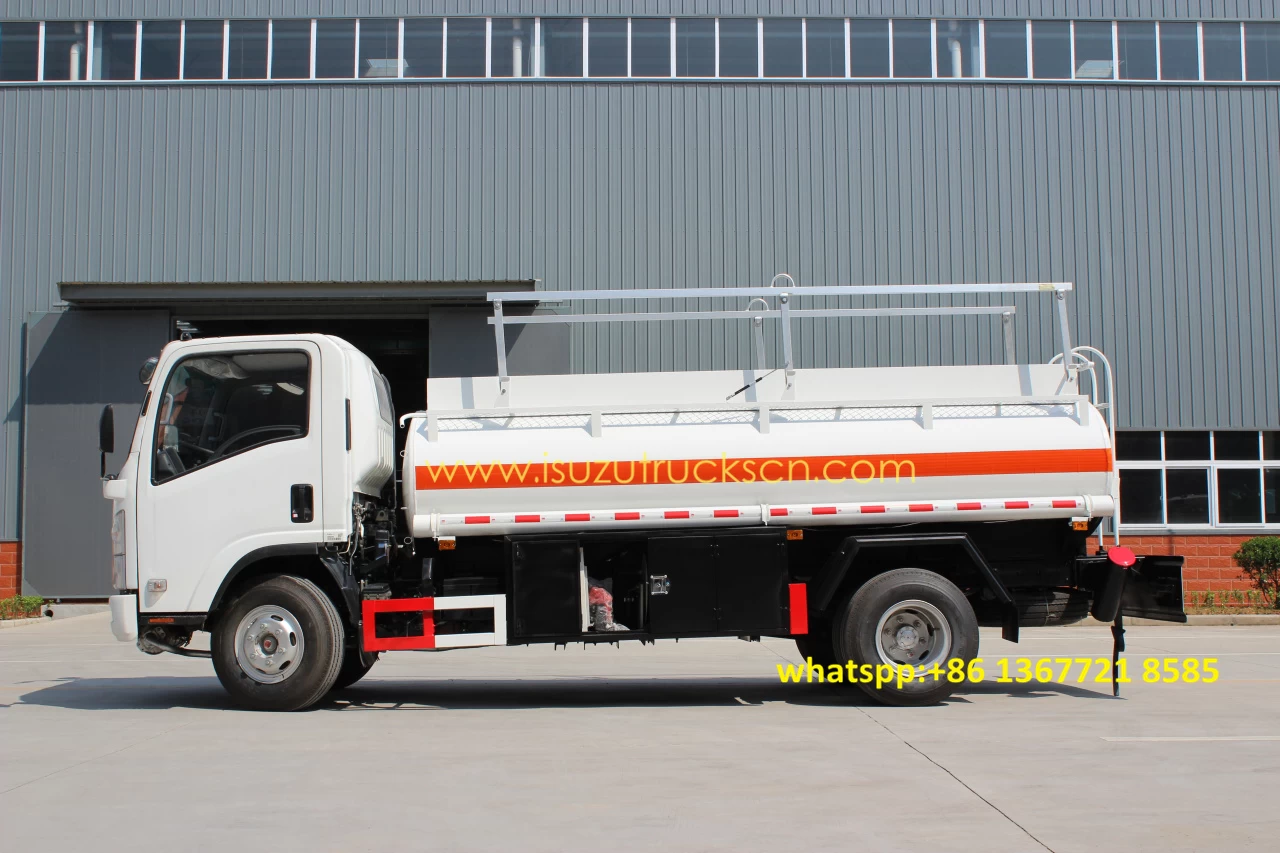

| Left side view |

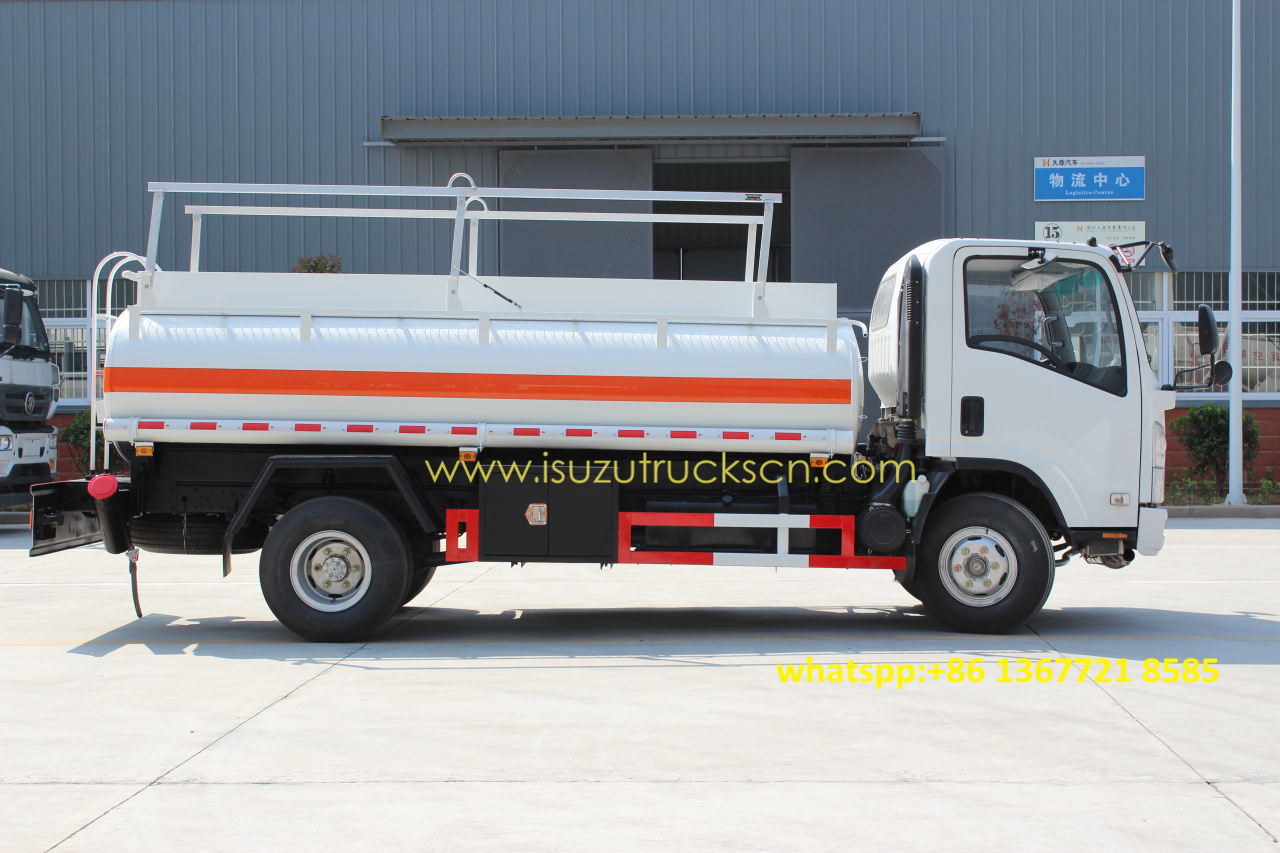

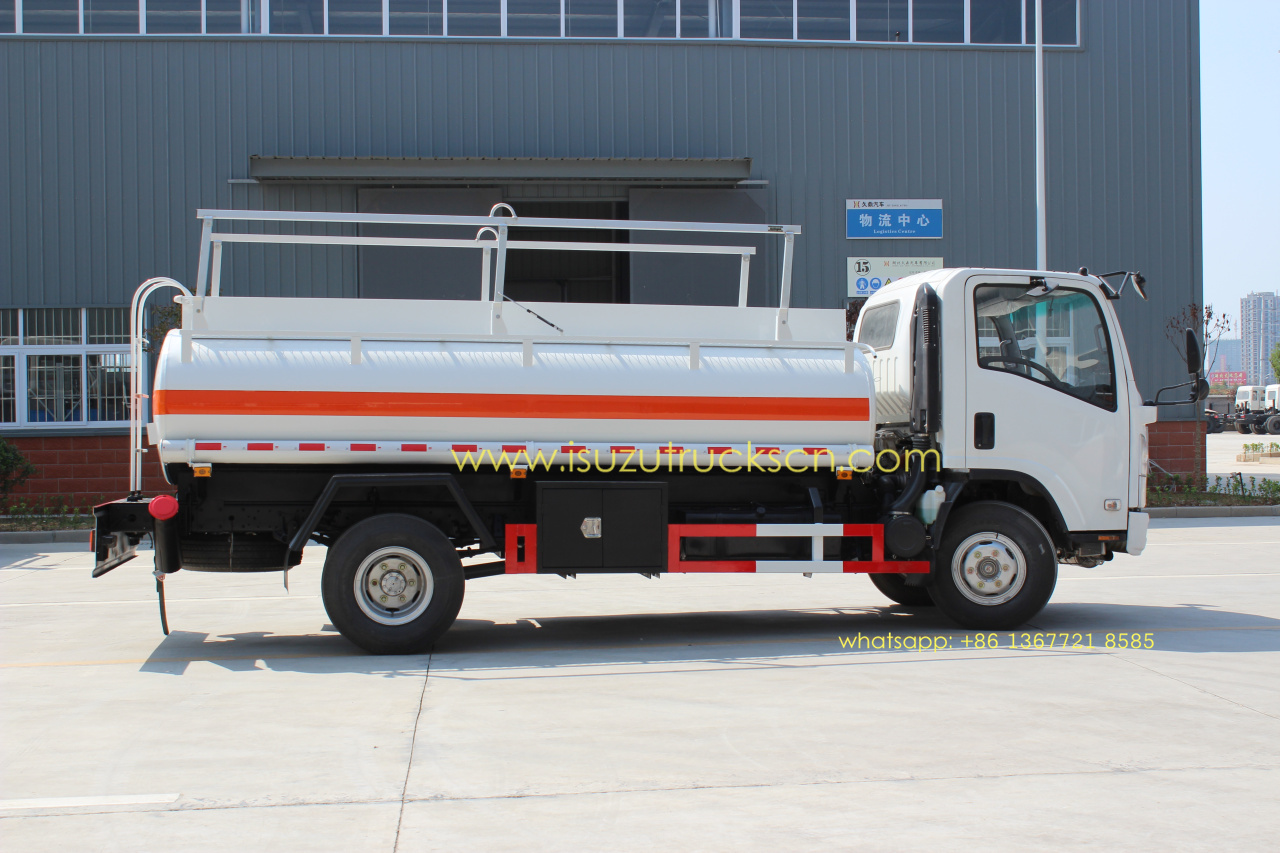

Right side view |
 |
 |

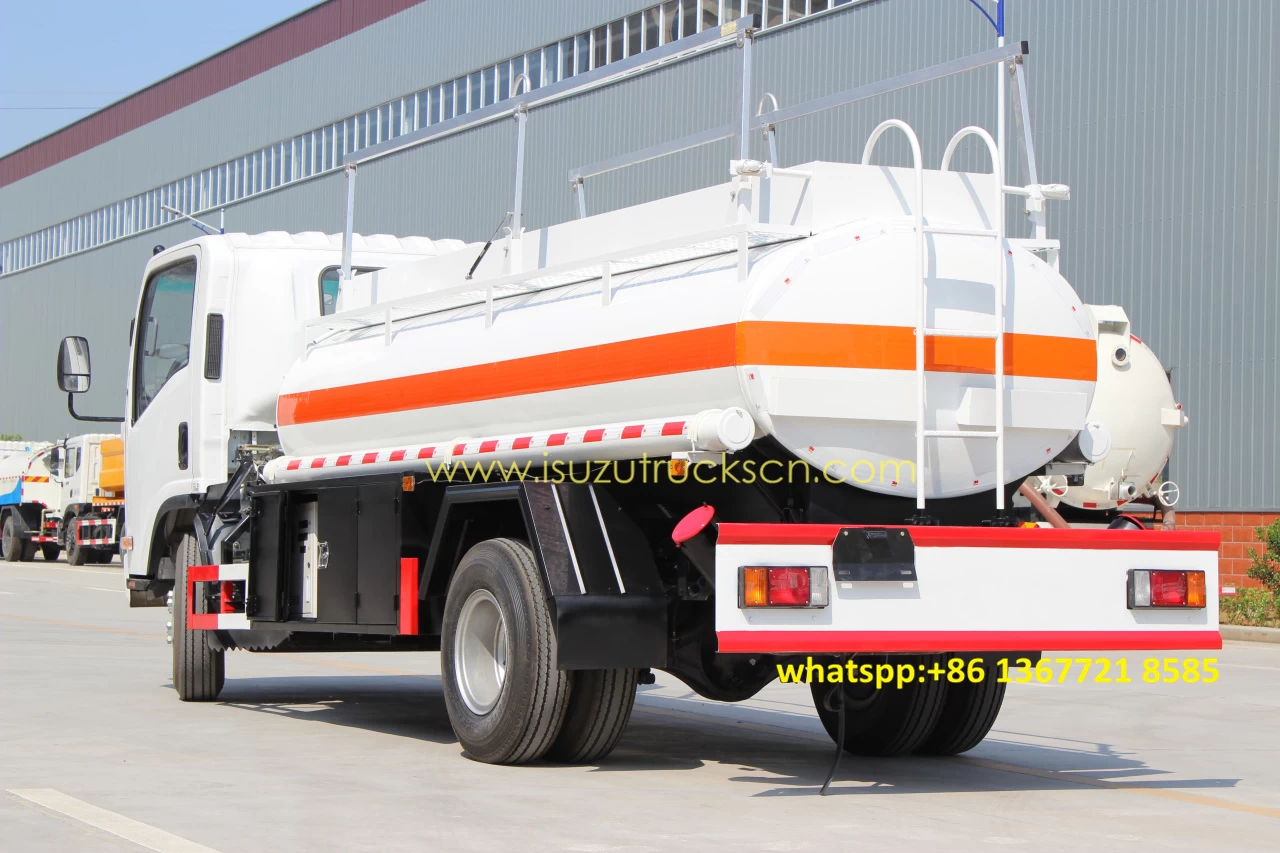

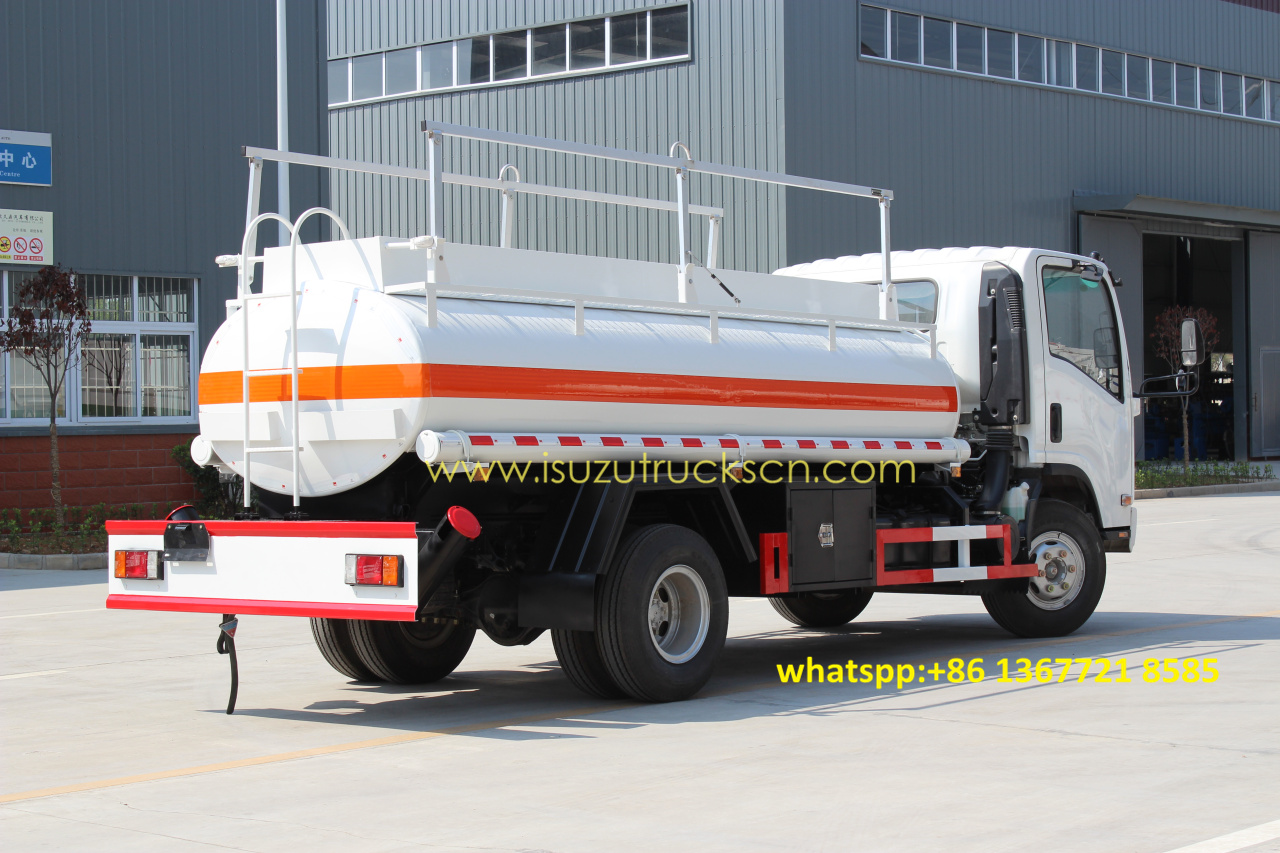

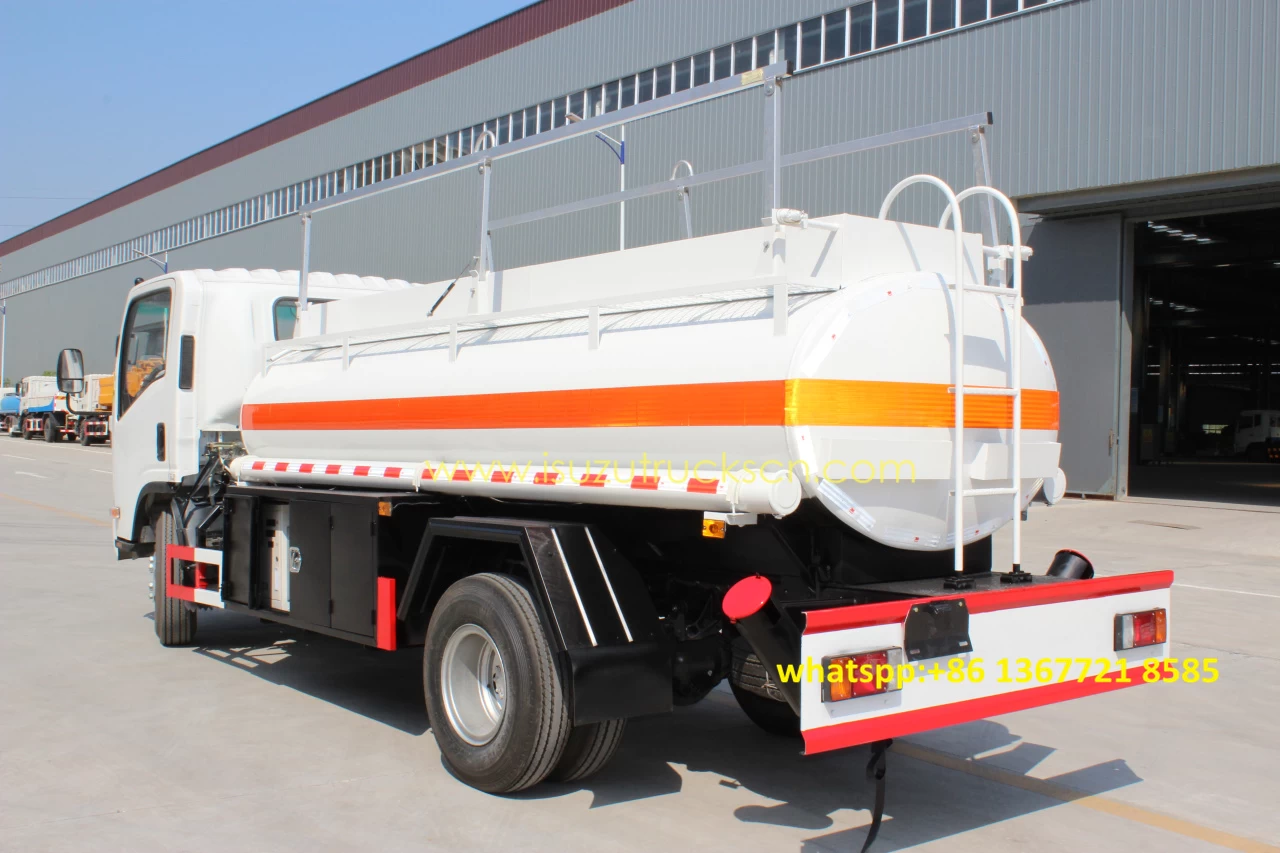

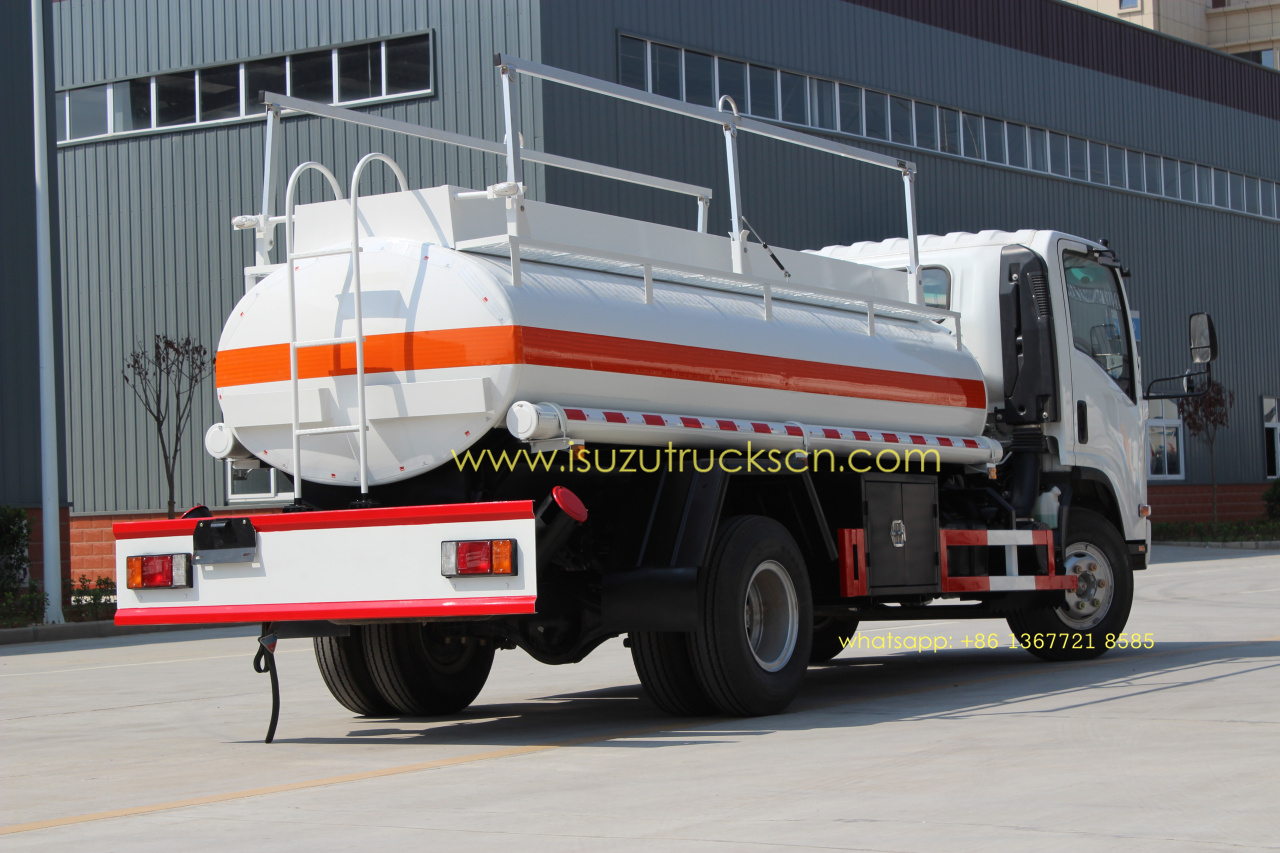

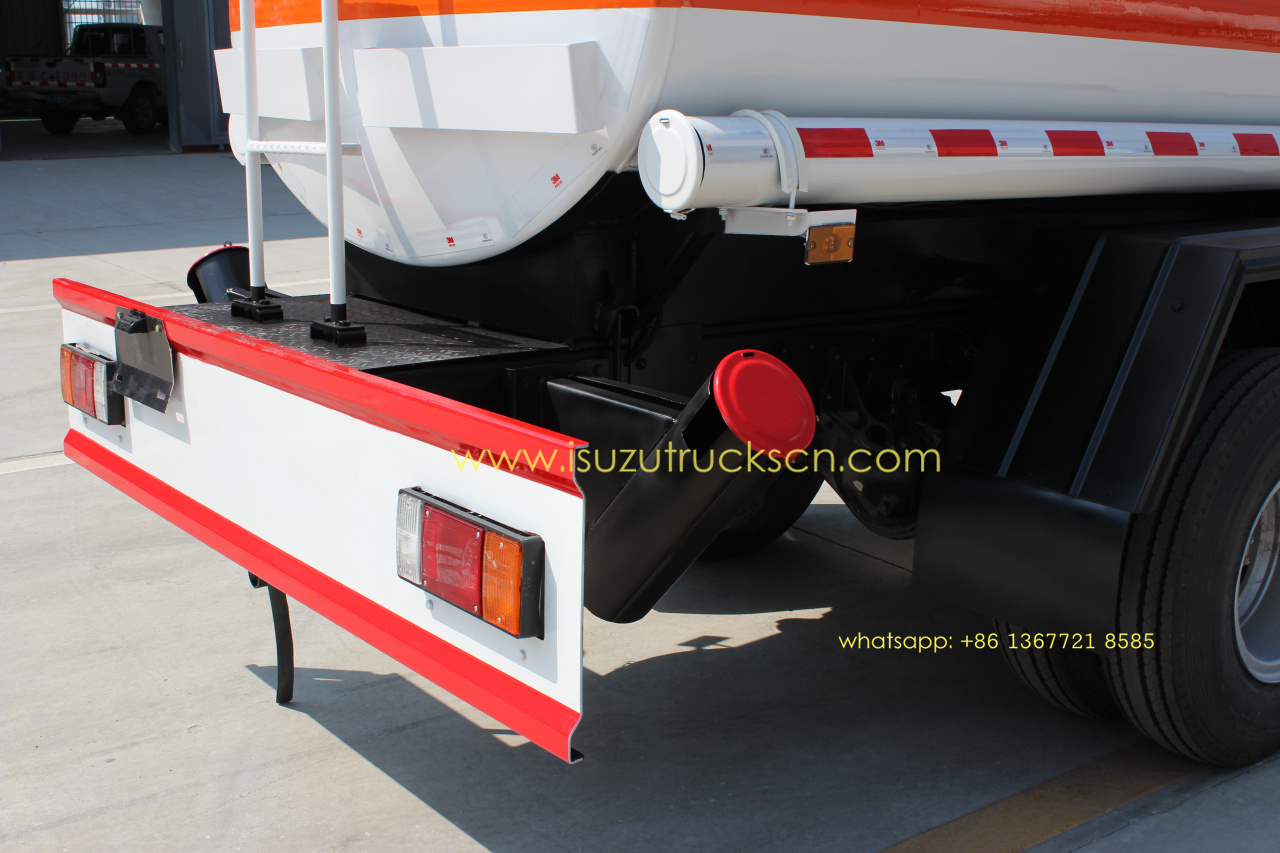

| Rear left view |
Rear right view |
 |
 |

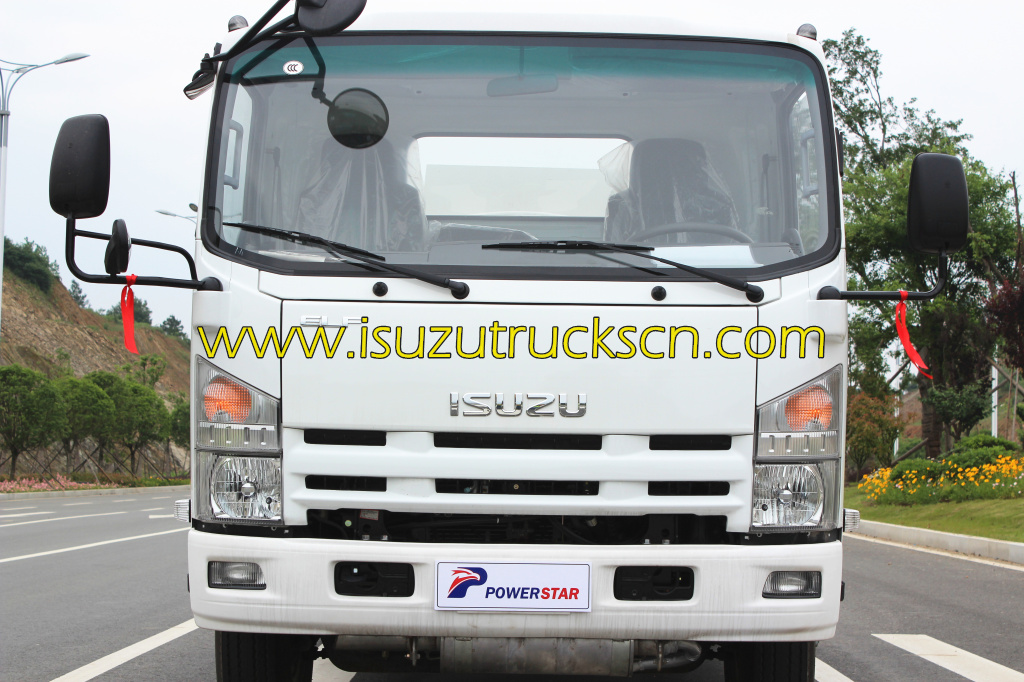

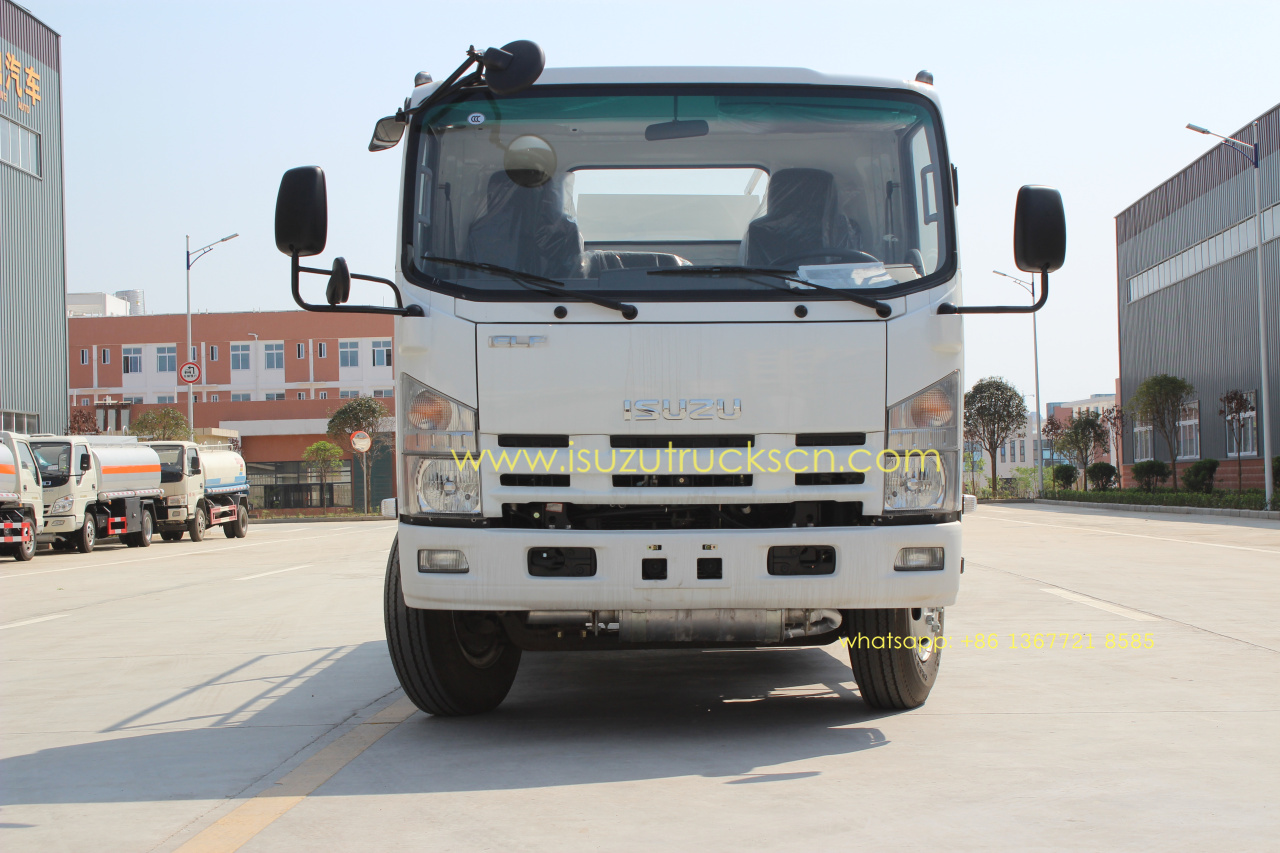

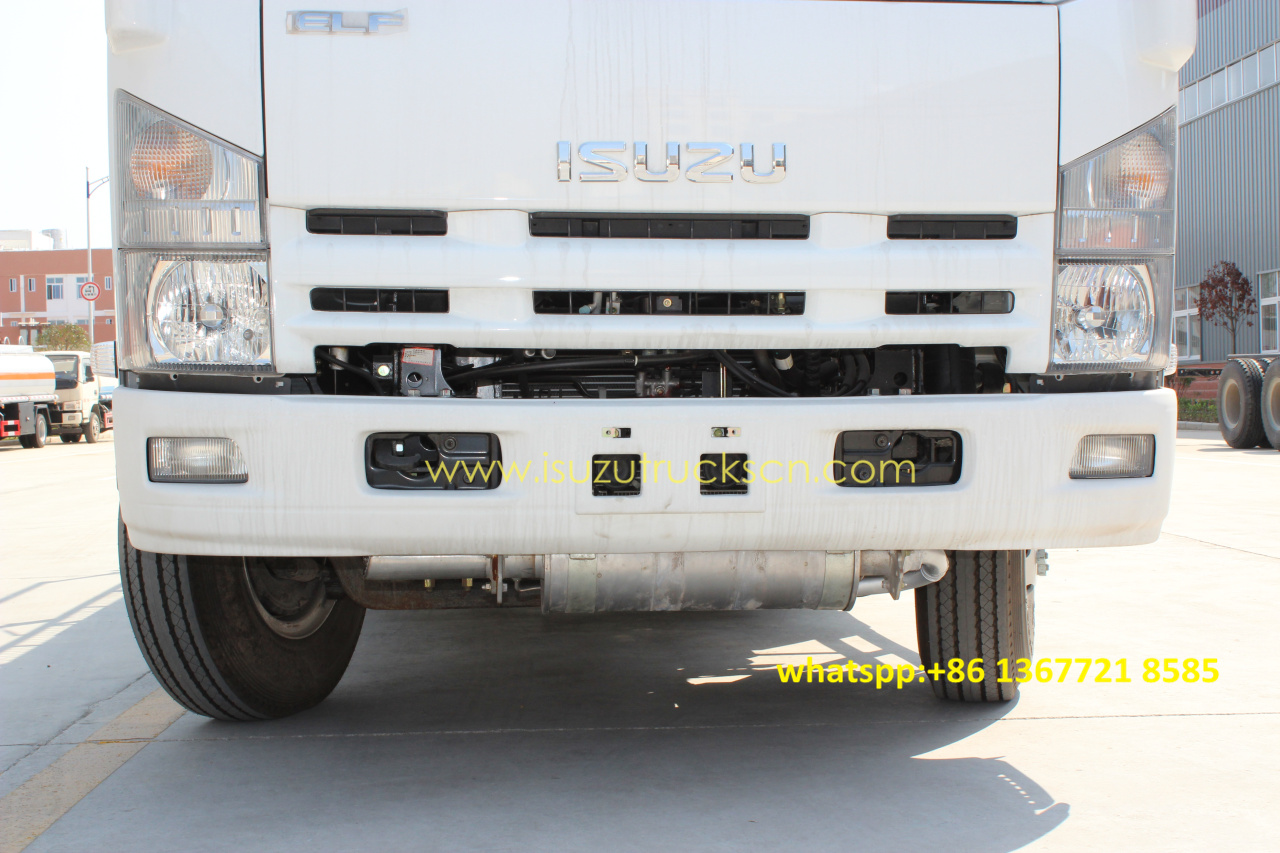

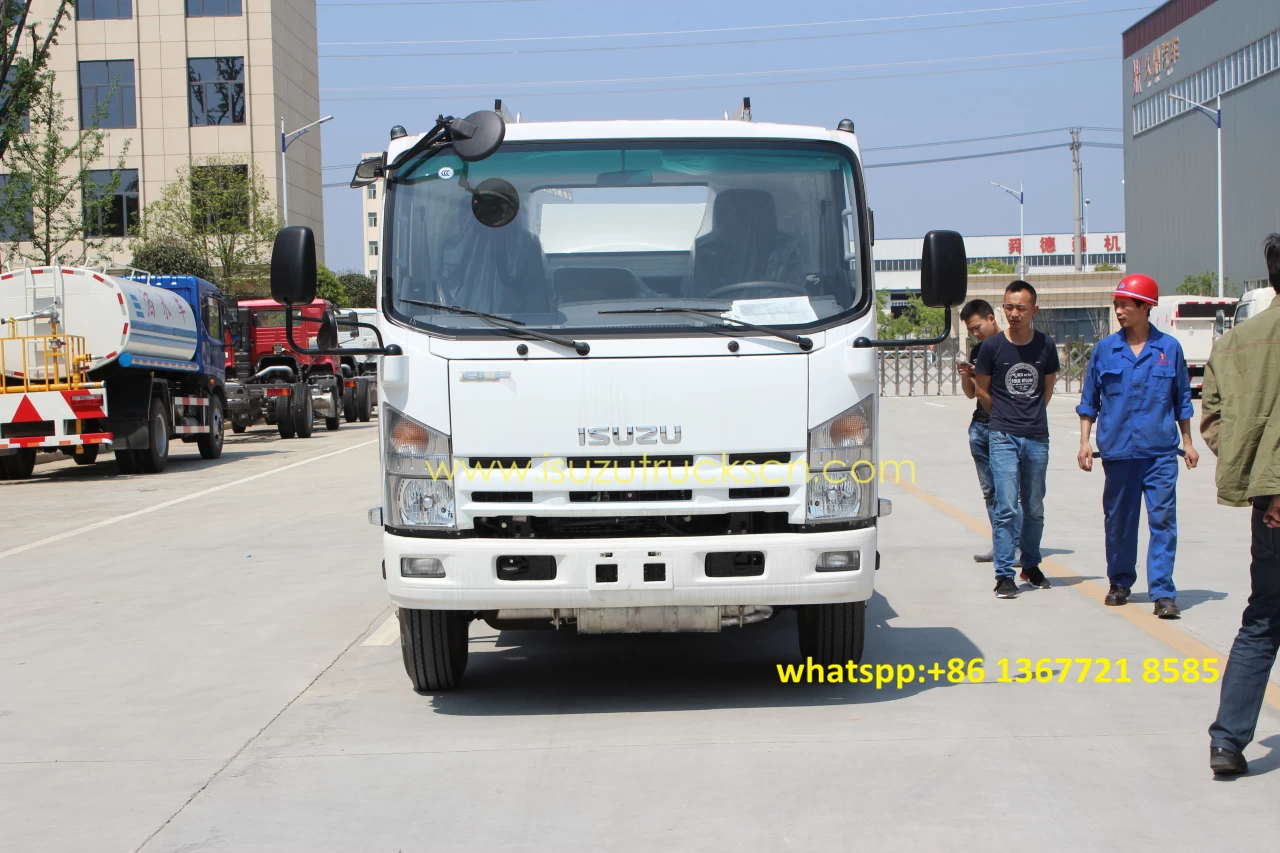

| Front view |

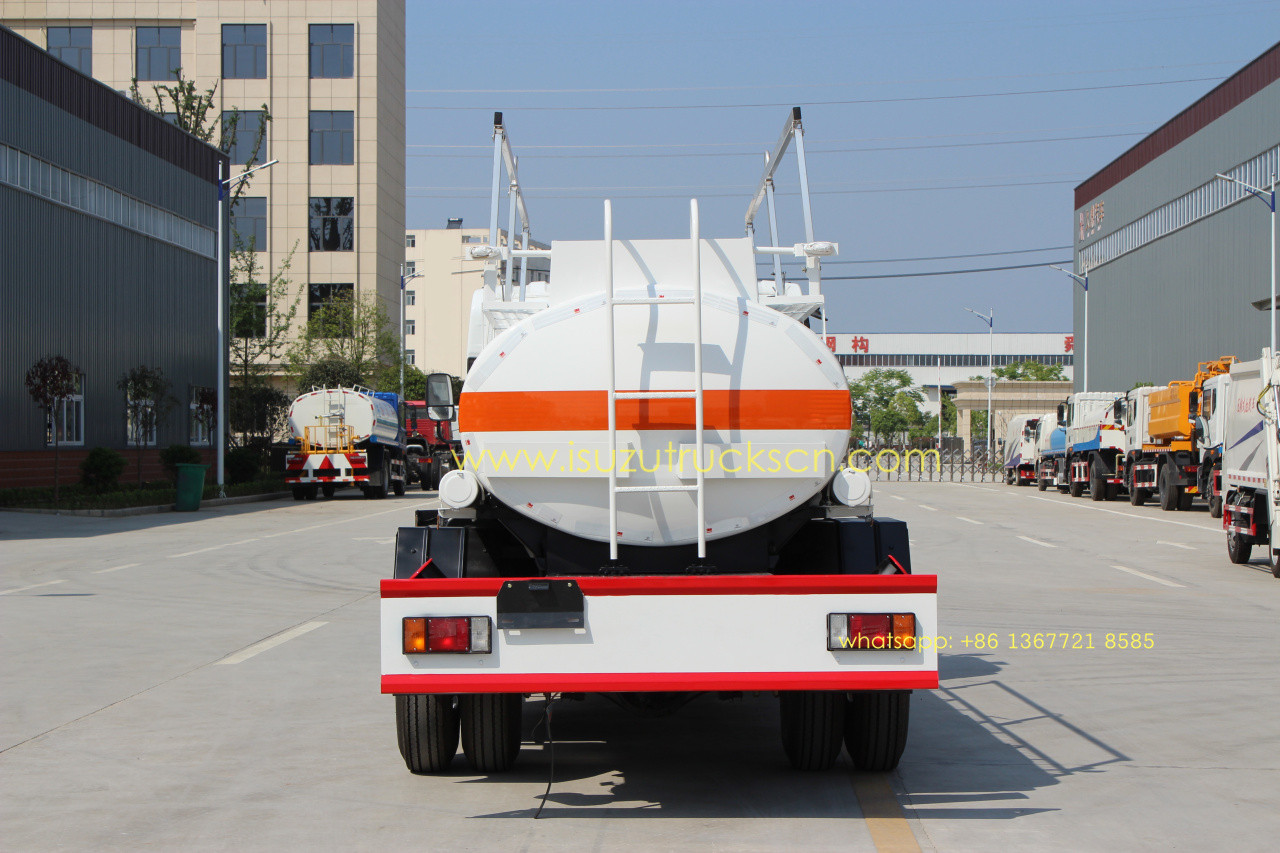

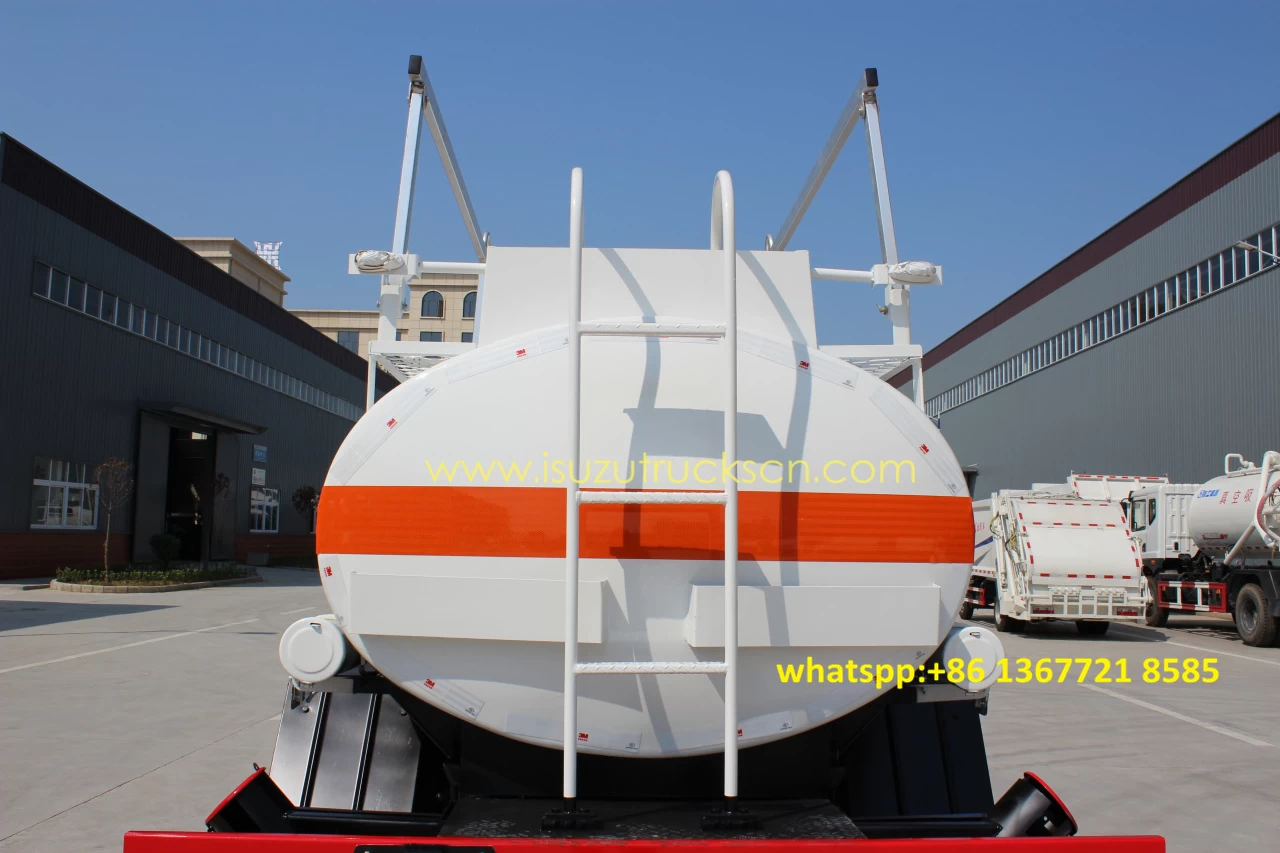

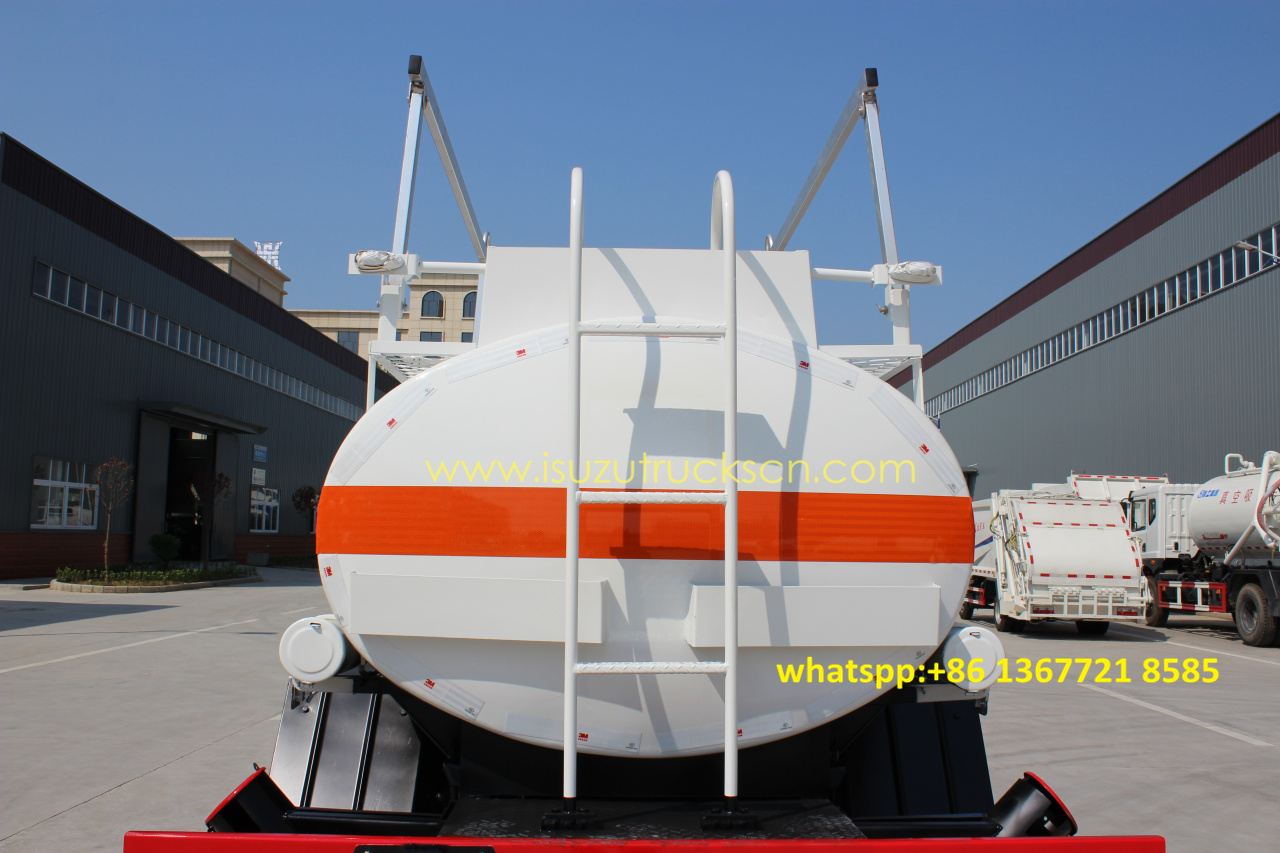

Rear view
|

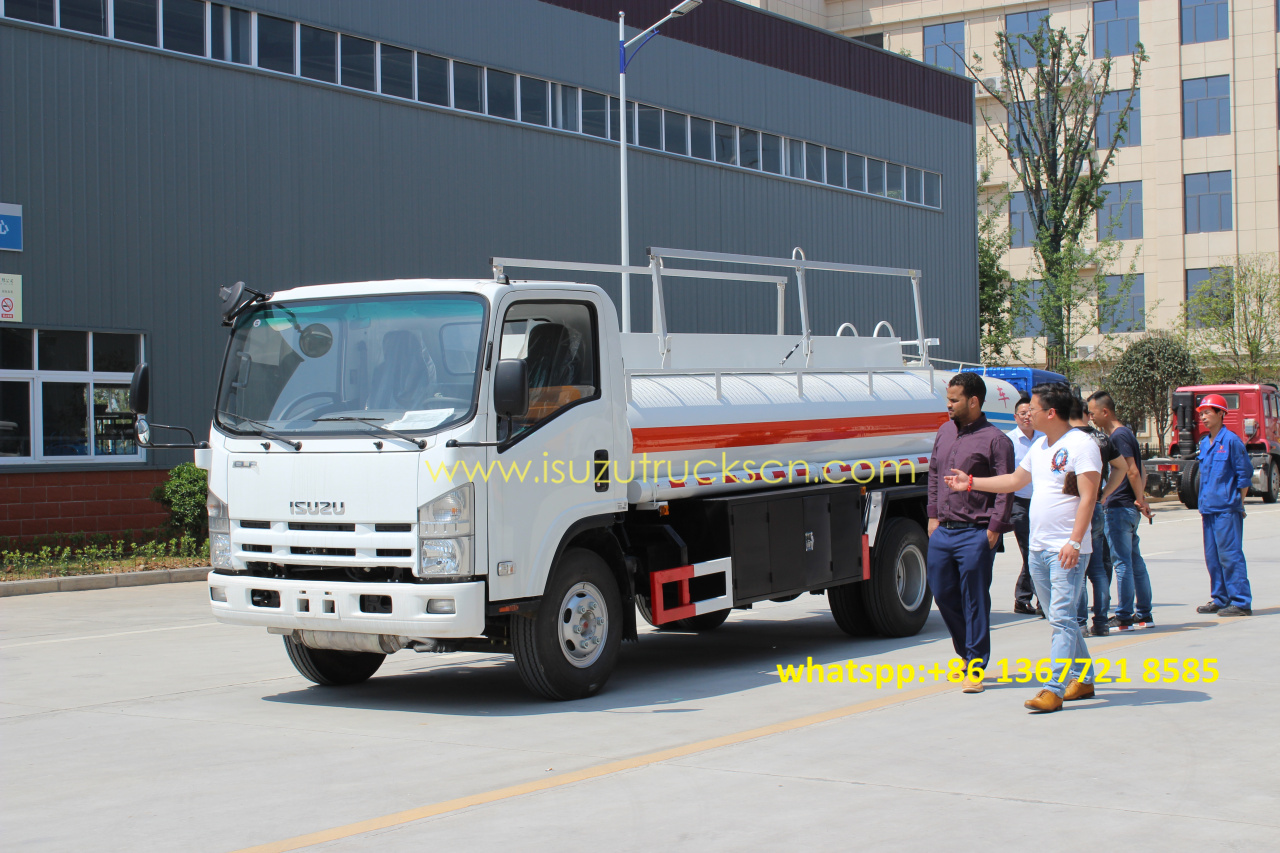

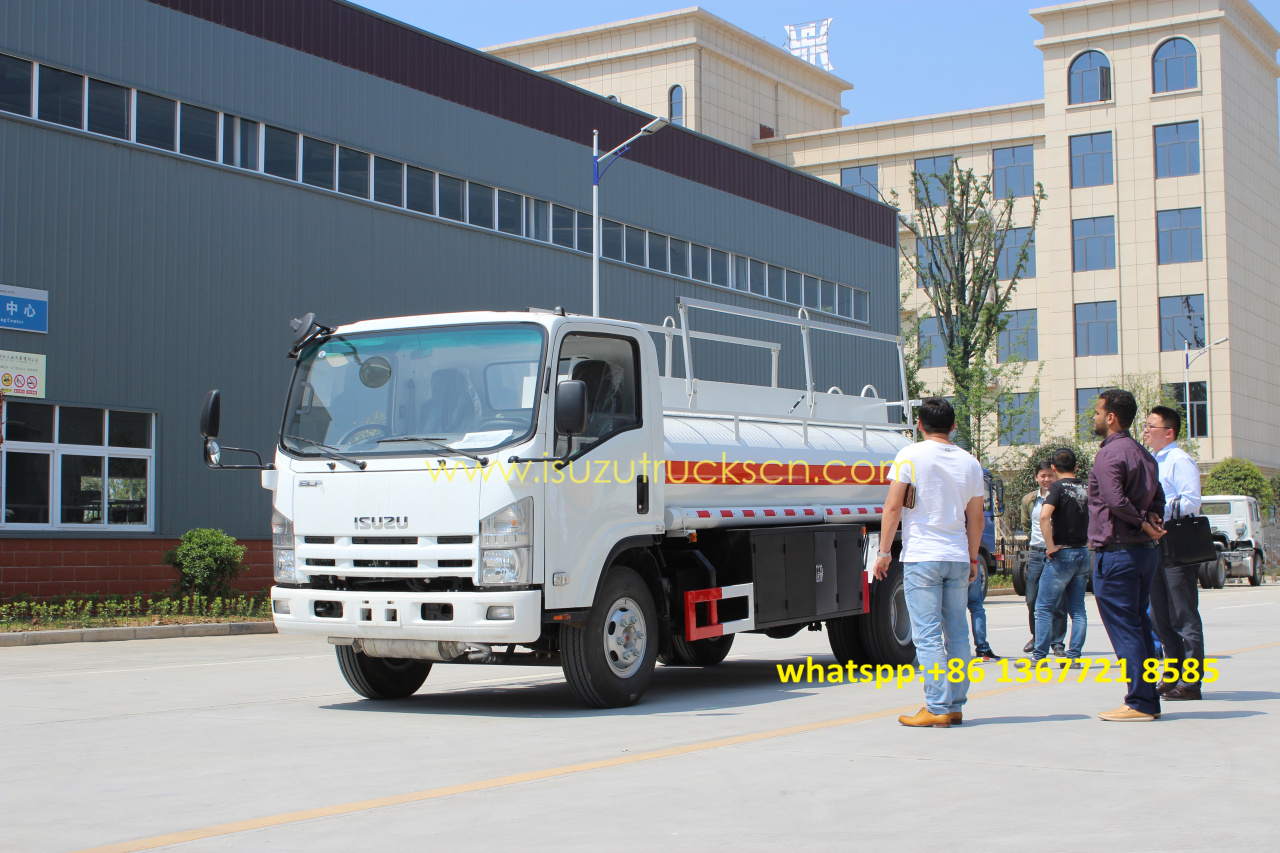

Our boss Tom and engineer presentation how to operation
Client visit our factory for more tanker trucks

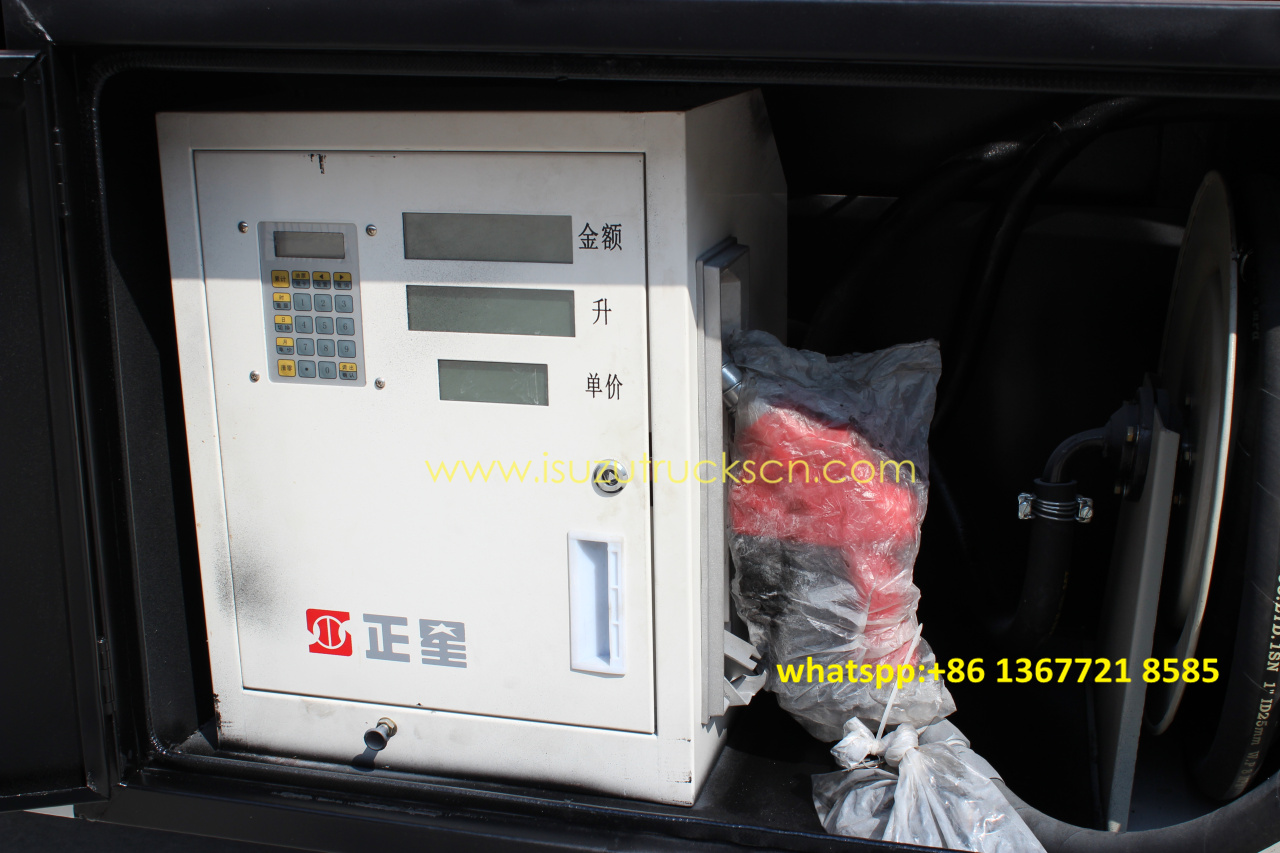

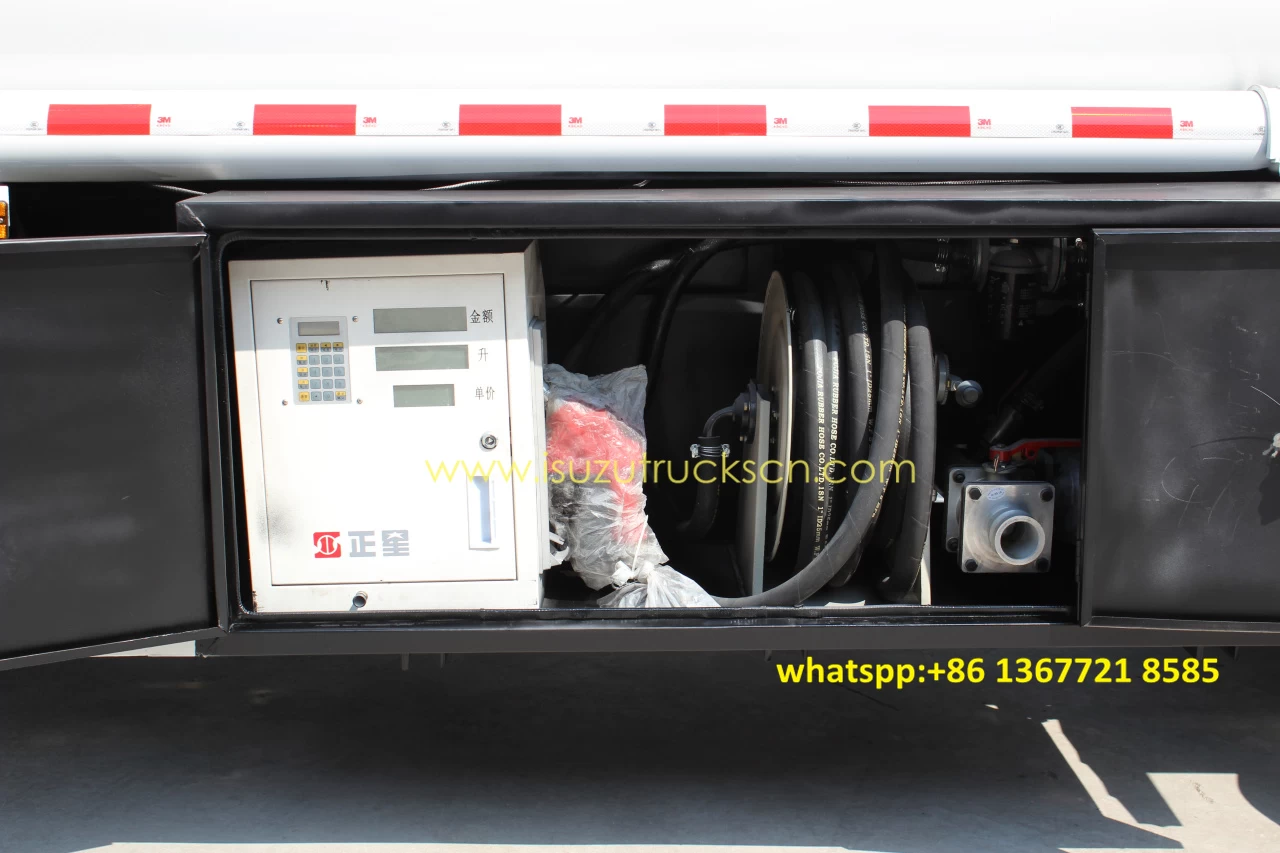

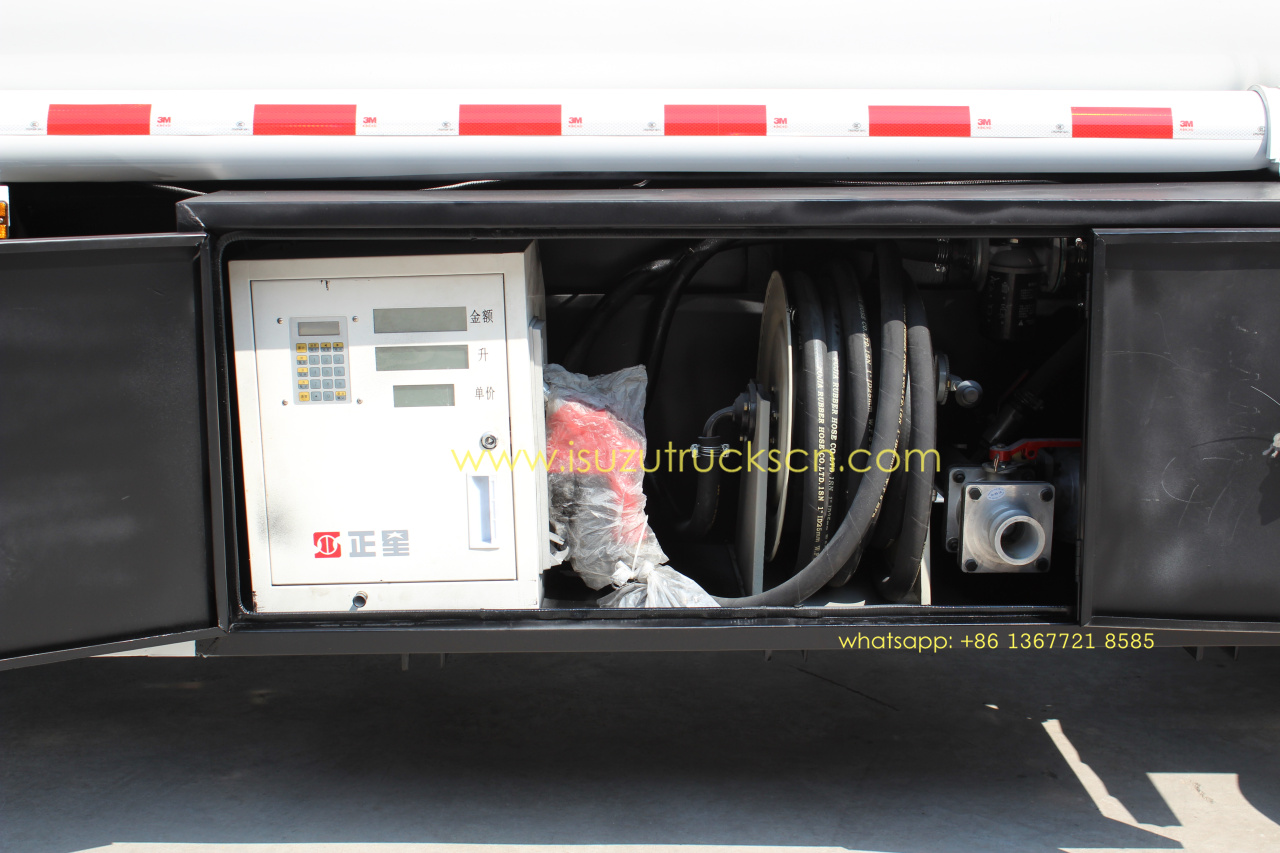

High performance computer fuel dispenser
Optional Equipment of ISUZU Fuel Tanker Truck
 |
|
 |
|
 |
|
 |
| Computer Fuel Dispenser |
|
API Adaptor Valve |
|
Bottom Valve |
|
Manhole Cover |
 |
|
 |
|
 |
|
 |
| Ball Valve |
|
Three Ways Set Ball Valve |
|
Level Gauge |
|
Oil and Gas Recovery Valve |
