5000L Foam Fire Extinguishing Truck ISUZU FTR

Description:
Foam Fire extinguishing Truck ISUZU (also called as foam fire vehicle, fire fighting engine, fire water tank truck, fire engine, fire tender, fire service vehicle, fire fighting trucks, fire appliance, foam tank fire fighitng truck) This Isuzu Fire fighting trucks are designed with stand the prevailing humen conditutions, much as ambient temperature, maximum relative humidity, the sand, the dust and the influence of high salinity condtions.
Fire fighting trucks types: Water fire truck, Foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other dapartments.
Features:
ISUZU FTR Chassis, Durable & Performance.
High performance fire pump and fire cannon
Tanker material: Carbon steel or Stainless steel
A complete set of fire fighting Accessories & Equipments, your can put work immediately.
FREE training in our factory if customers need.
Specifications
Manufacturer
|
POWERSTAR TRUCKS INDUSTRY CO., LIMITED
|
Product Name
|
Foam Fire Tender Truck ISUZU (4,000 L water+1,000L foam)
|
Vehicle Brand Series
|
ISUZU
|
Vehicle Model
|
PT5150GXFPM50
|
Chassis parameters
|
Overall dimensions
|
mm
|
7540*2200*3000
|
Gross weight
|
kg
|
15000
|
Curb weight
|
7580
|
Wheel base
|
mm
|
7420
|
Driving type
|
4X2
|
Number of axles
|
2
|
Tire specification
|
9.00-20
|
Number of Tires
|
6+1
|
Passengers in cab
|
2+3
|
Engine
|
Engine model
|
4HK1-TCG40
|
Type of fuel
|
Diesel
|
Power/Displacement
|
ml
|
190HP /5199
|
Max speed
|
Km/h
|
110
|
Emission standard(TAS)
|
EURO 4
|
Fire performance
|
Tank capacity
|
Water tank capacity: 4000 L
|
Foam tank capacity:1000 L
|
Fire pump
|
Model: CB10/40
|
Pressure (Mpa): 1.0
|
Rate (L/S): 40
|
Fire monitor
|
Model:Ps32
|
Flow:32L/S
|
Water jet distance:≥55m
|
Foam jet distance: ≥50m
|
Electronic alarm
|
LY CJB-100-C24
|
Alarm lamp
|
LY TBD-XF-168LED
|

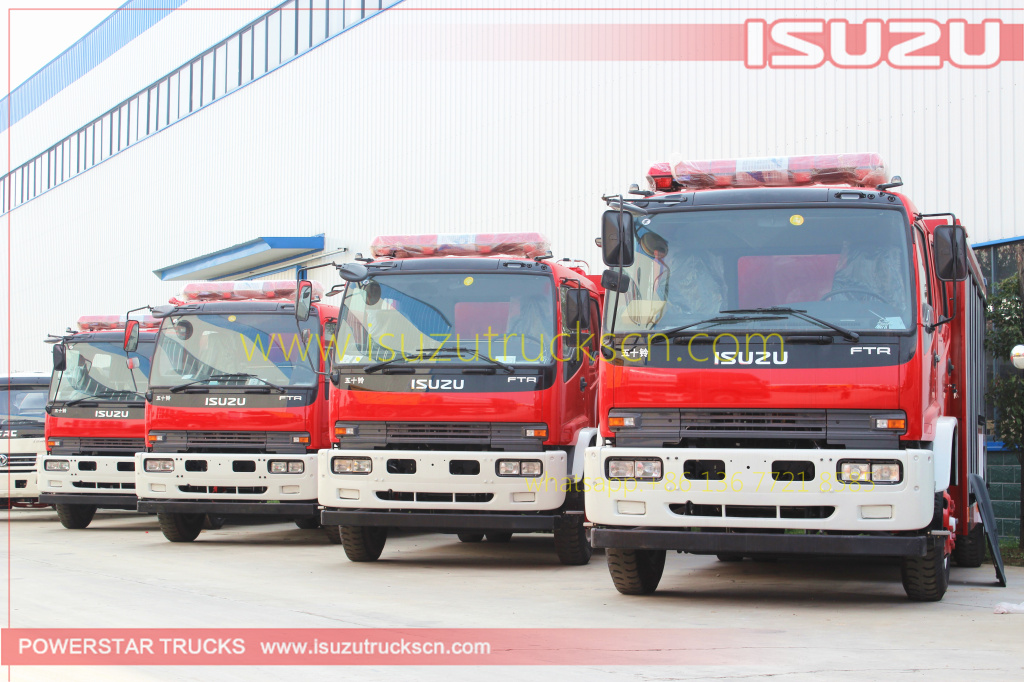

Detail Images
 |
|

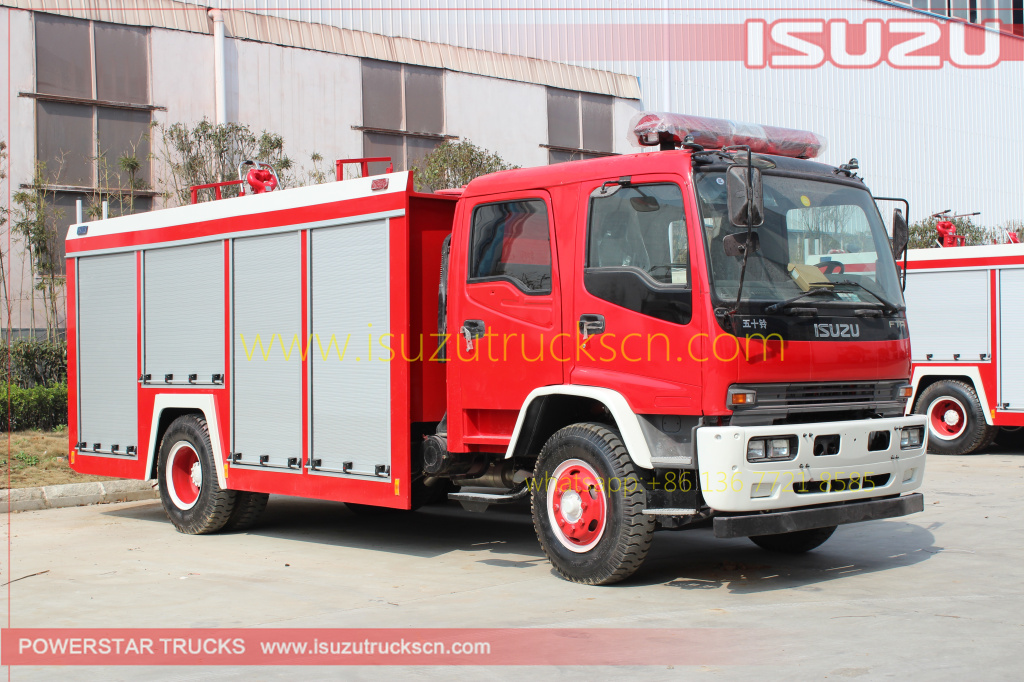

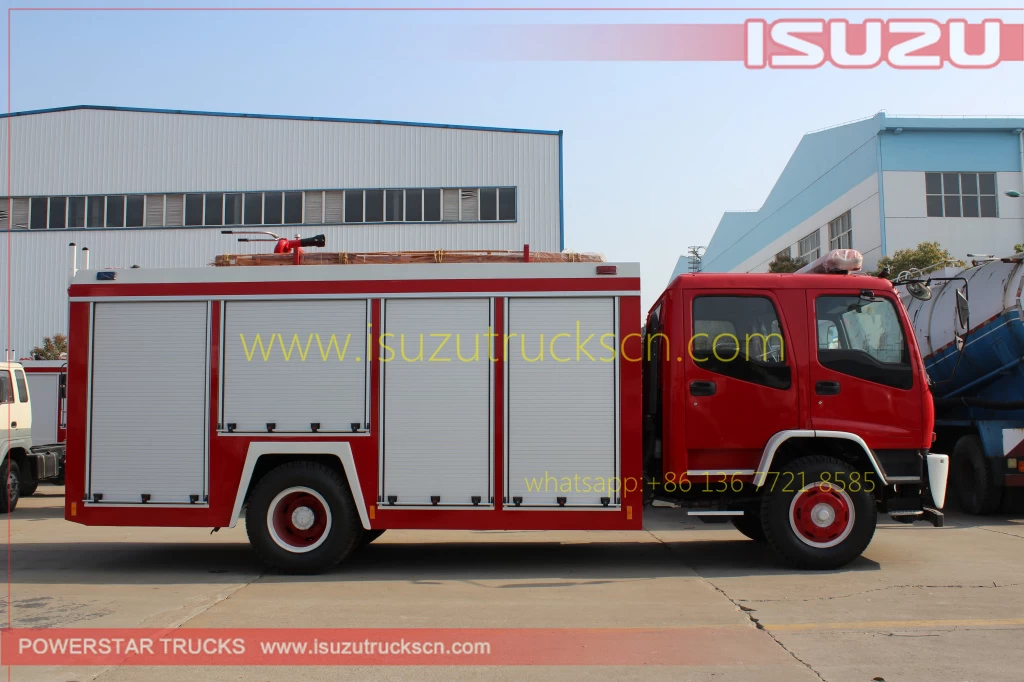

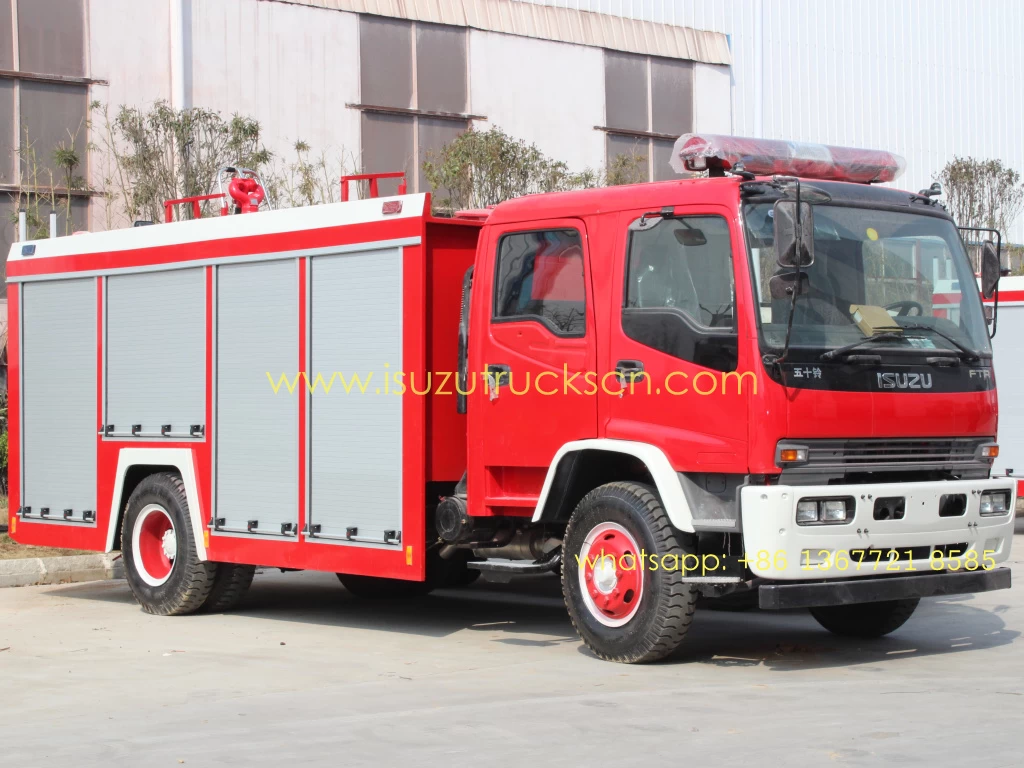

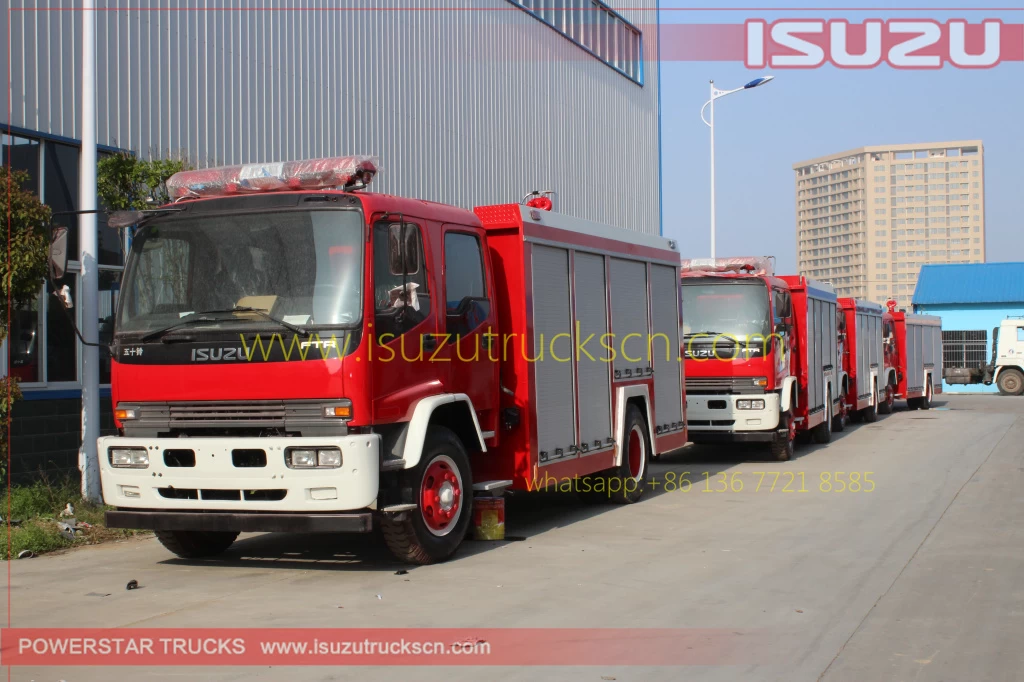

Front right view |

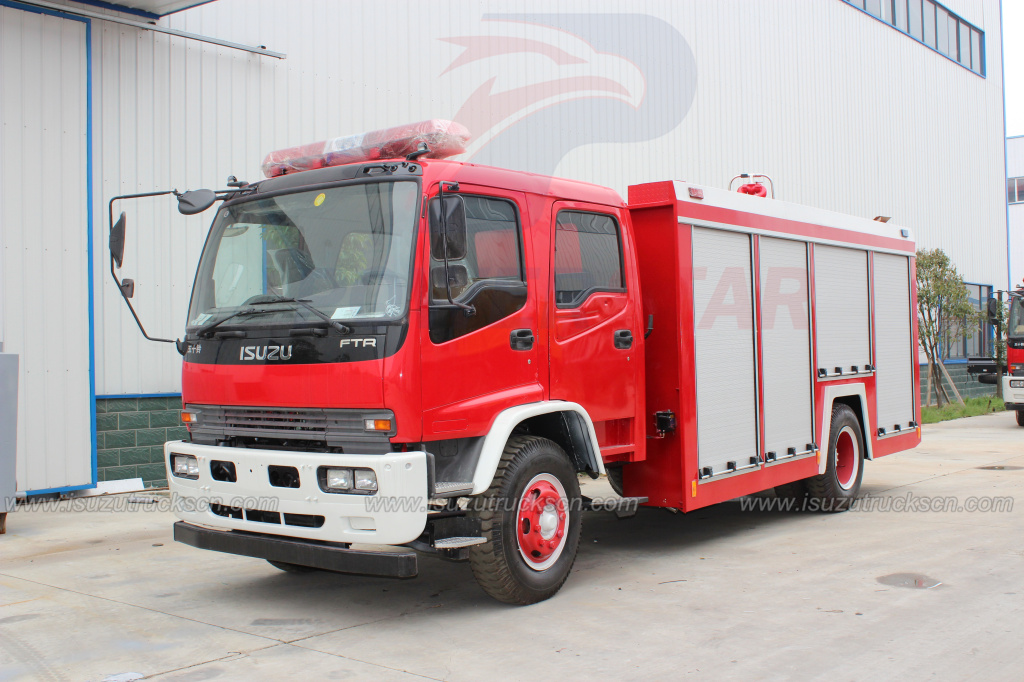

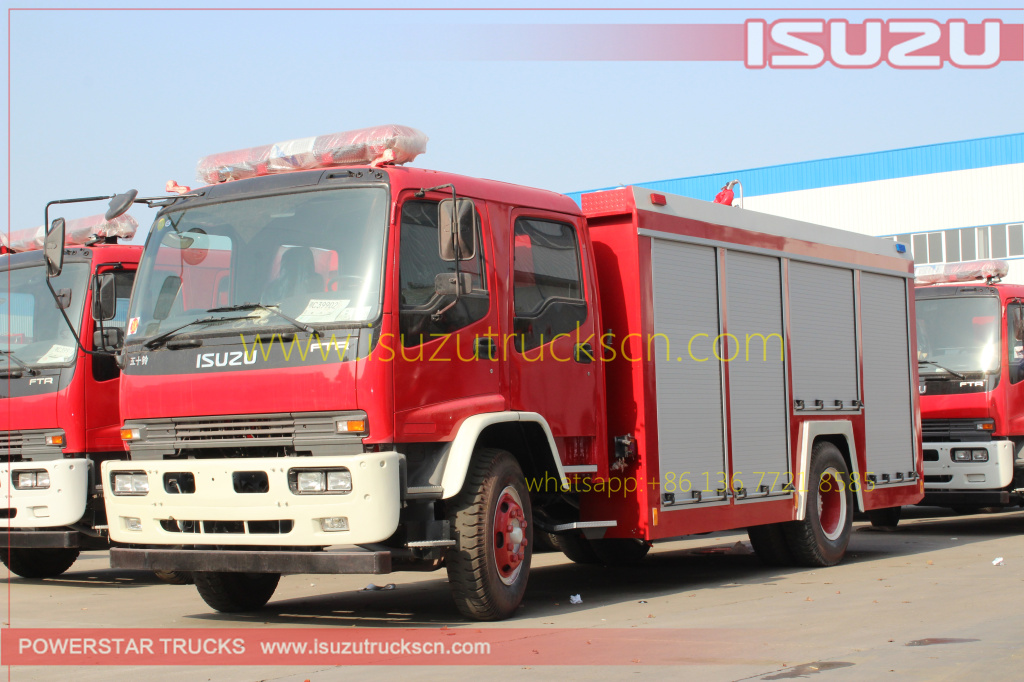

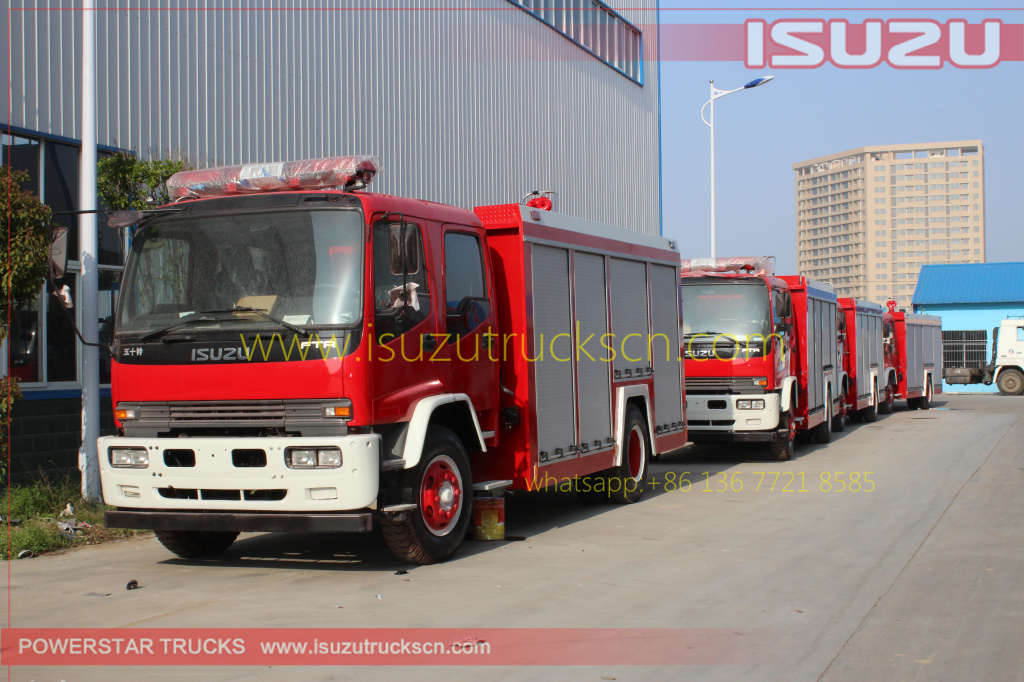

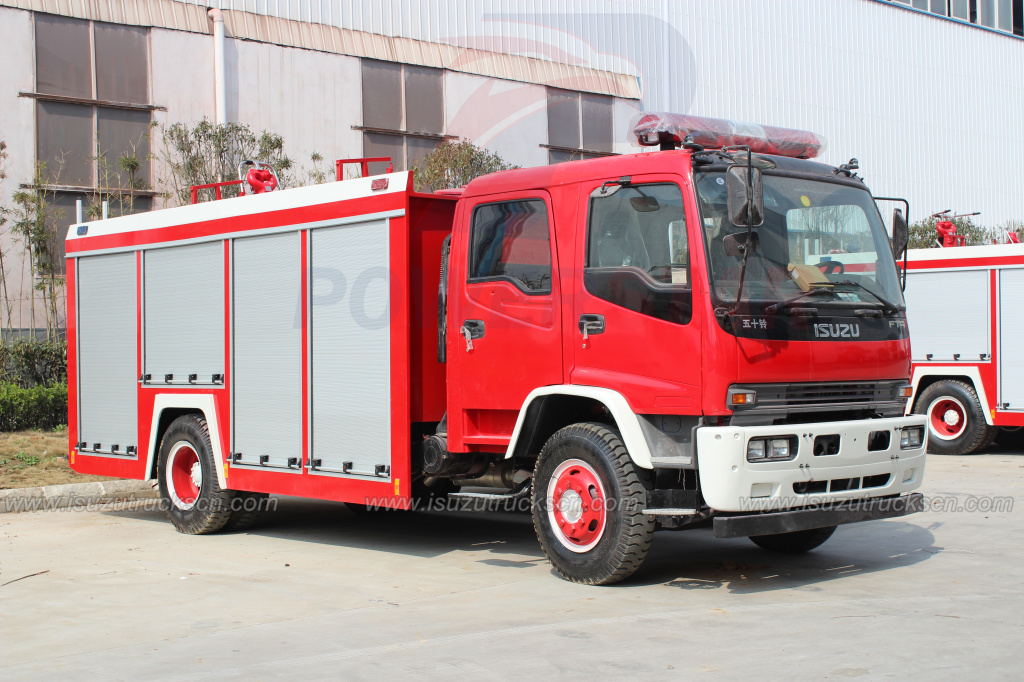

Front left view |
 |
 |

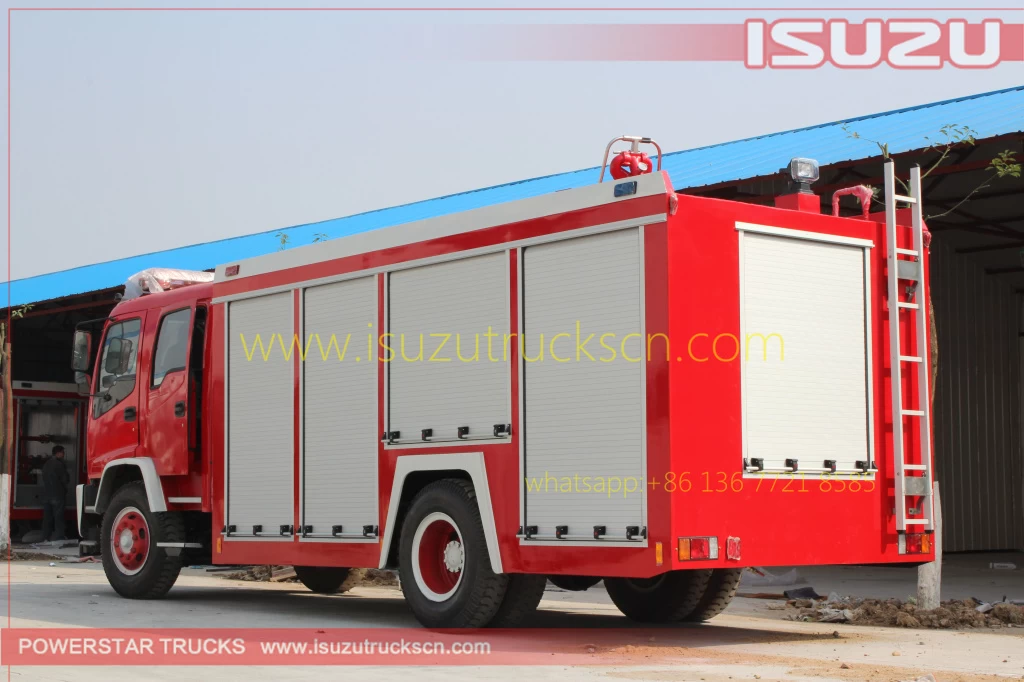

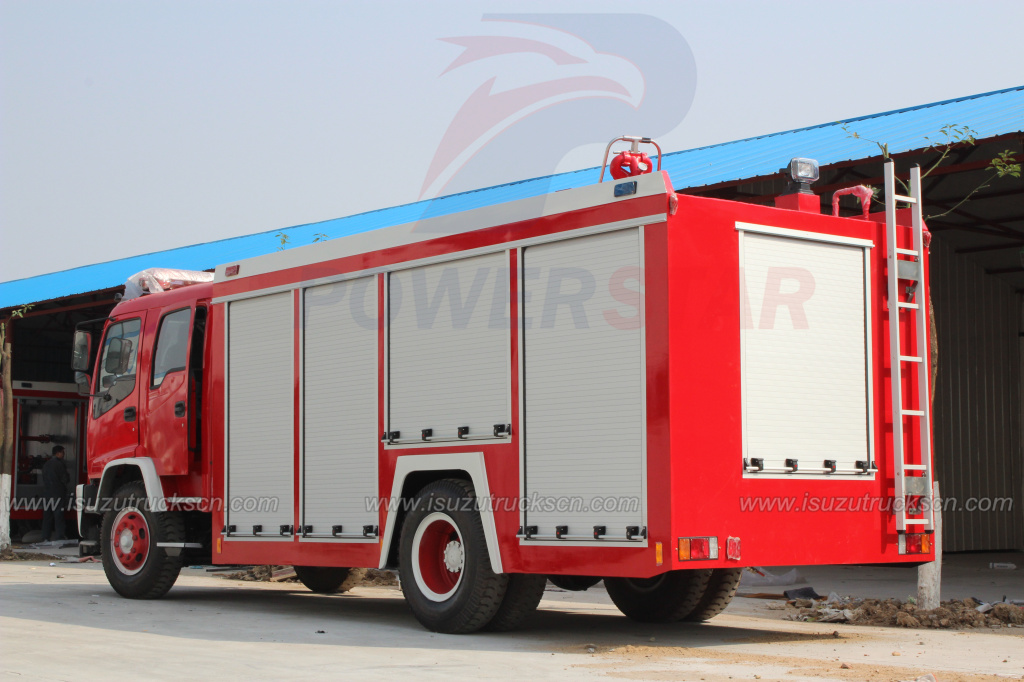

Rear left view |

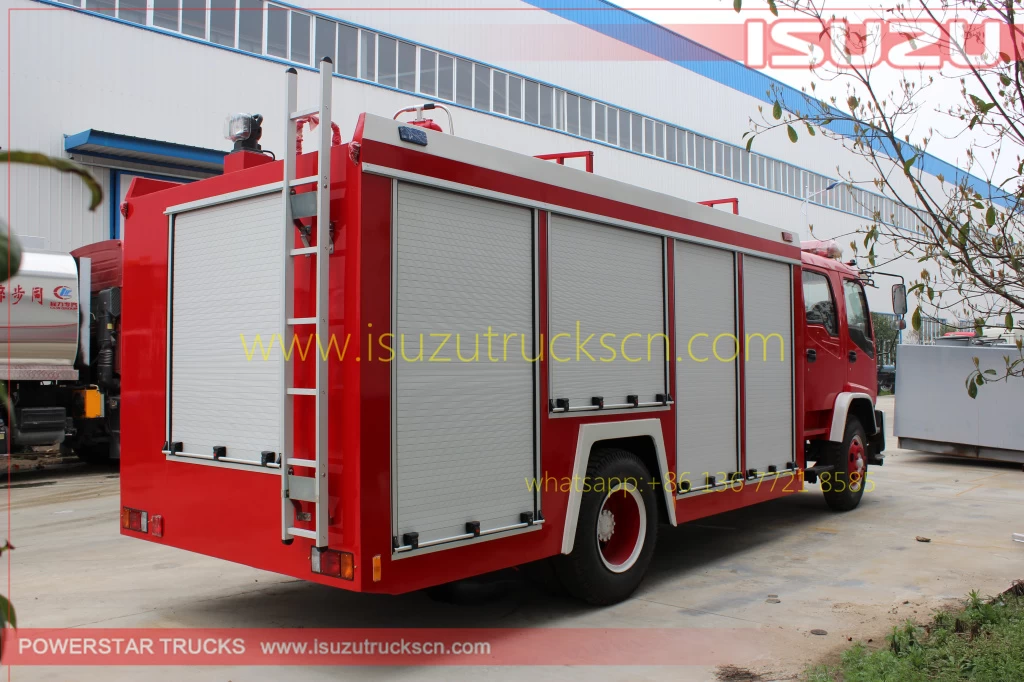

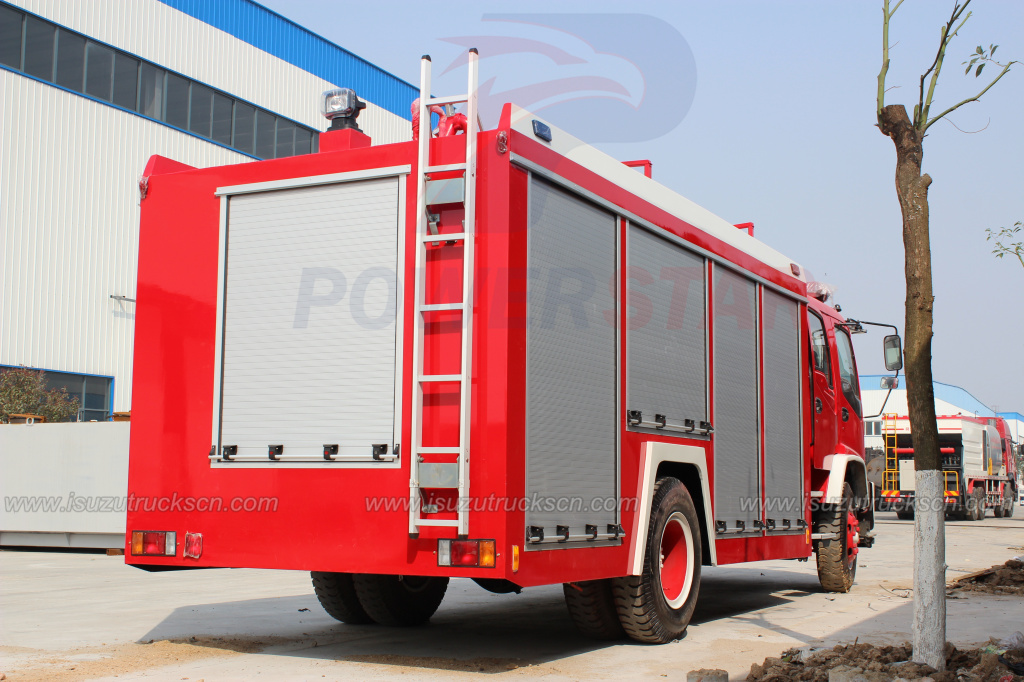

Rear right view |
 |
 |

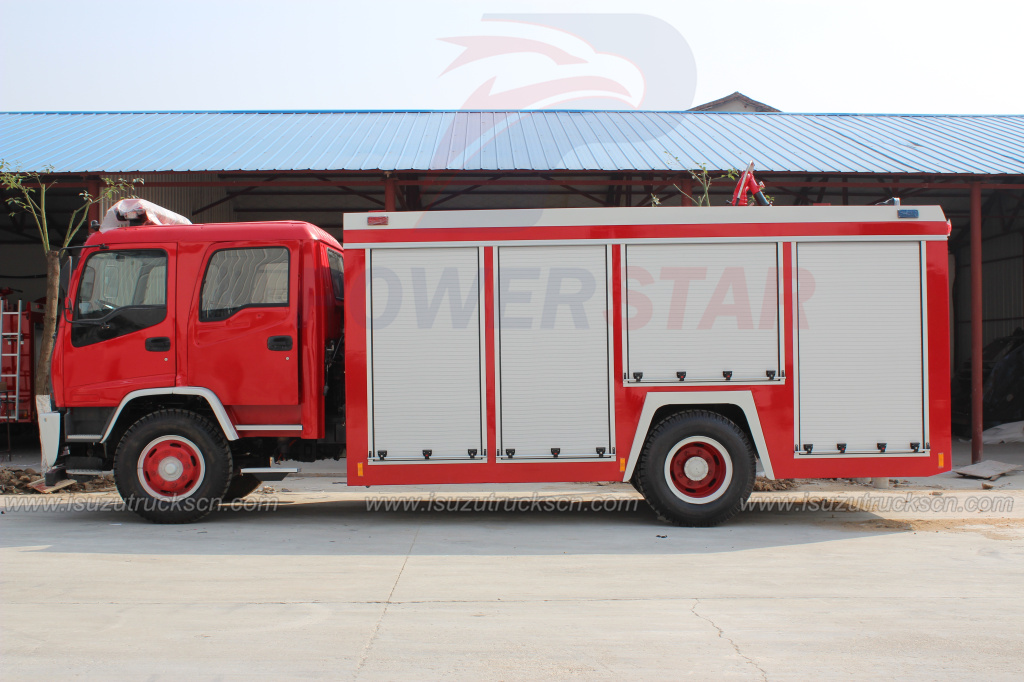

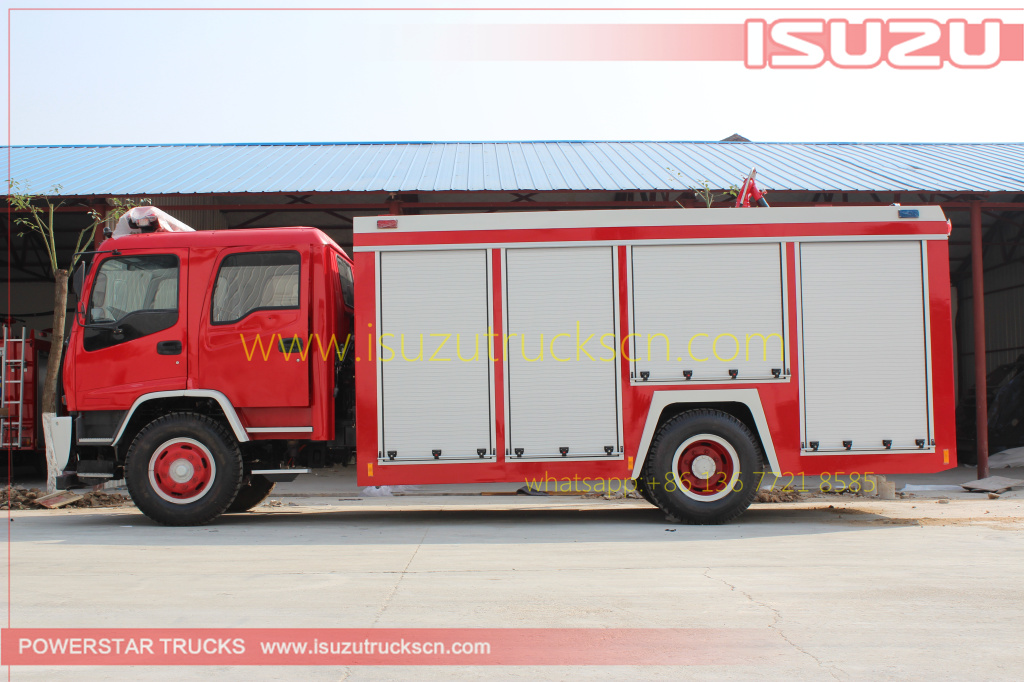

Left side view |

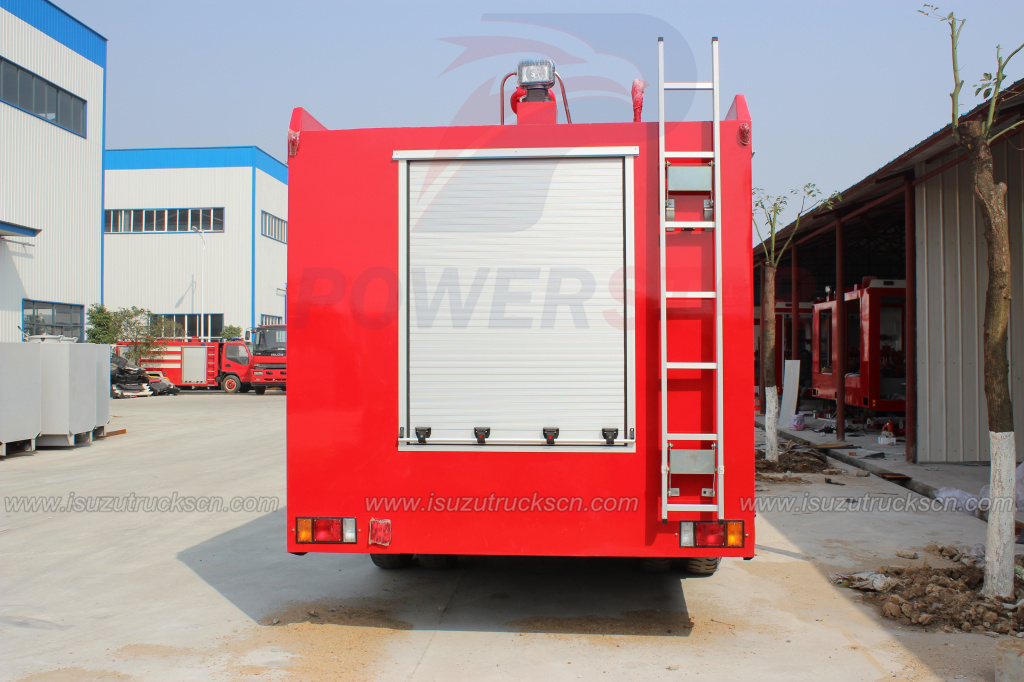

Rear view |
 |
 |

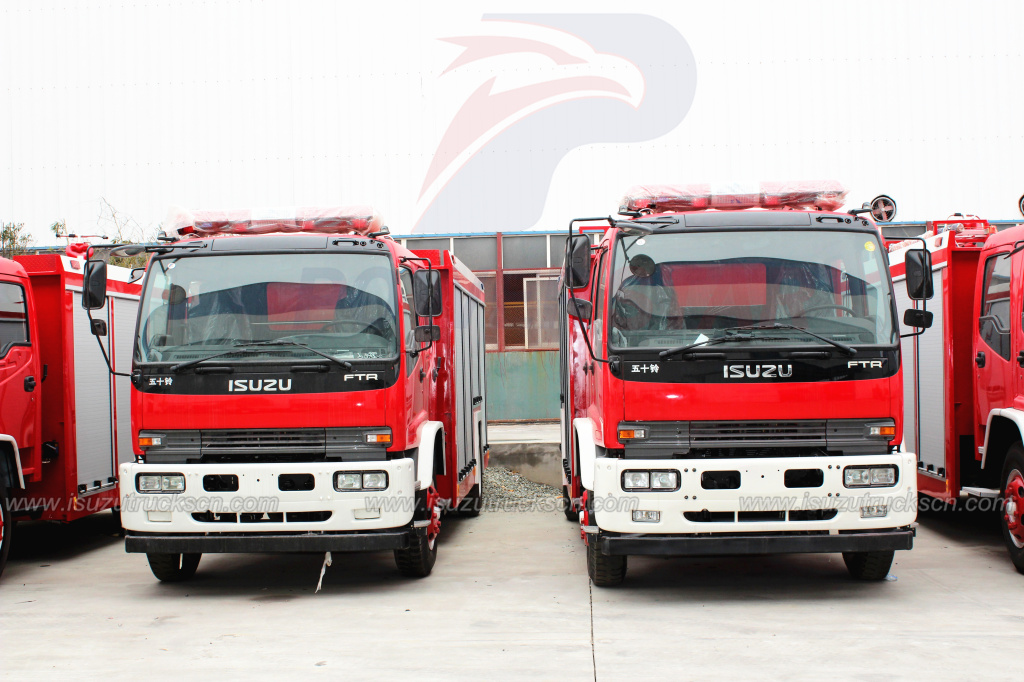

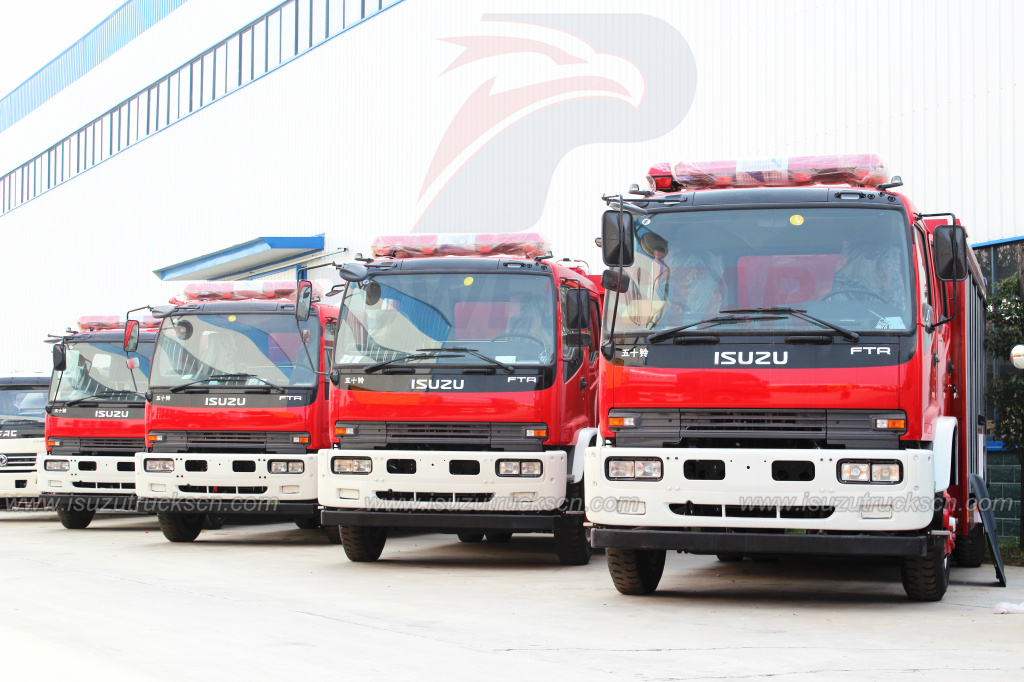

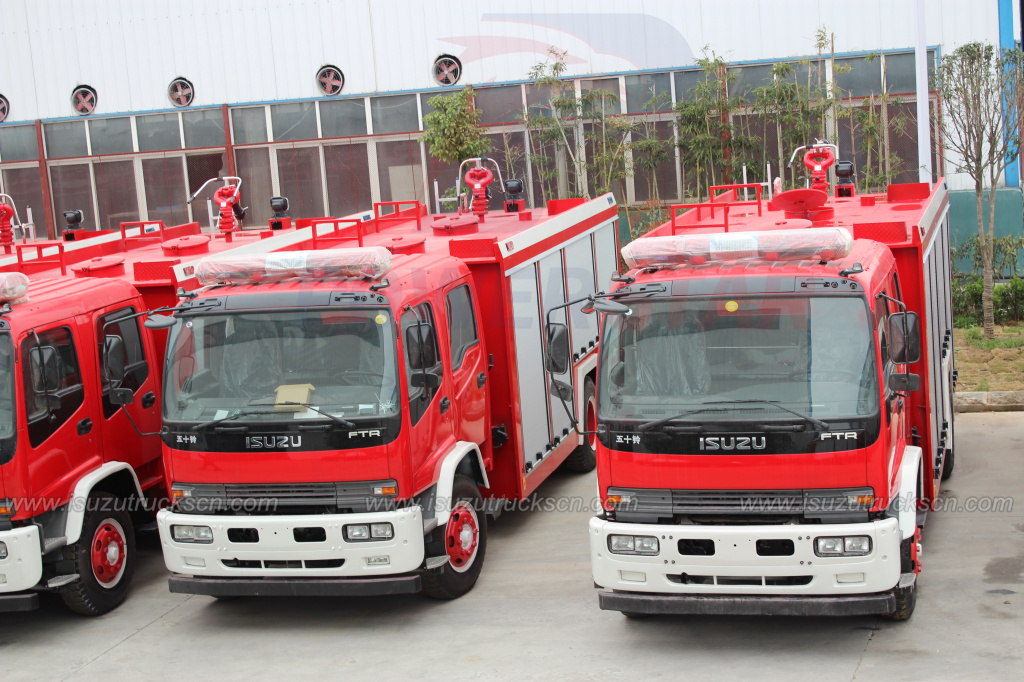

Front view |

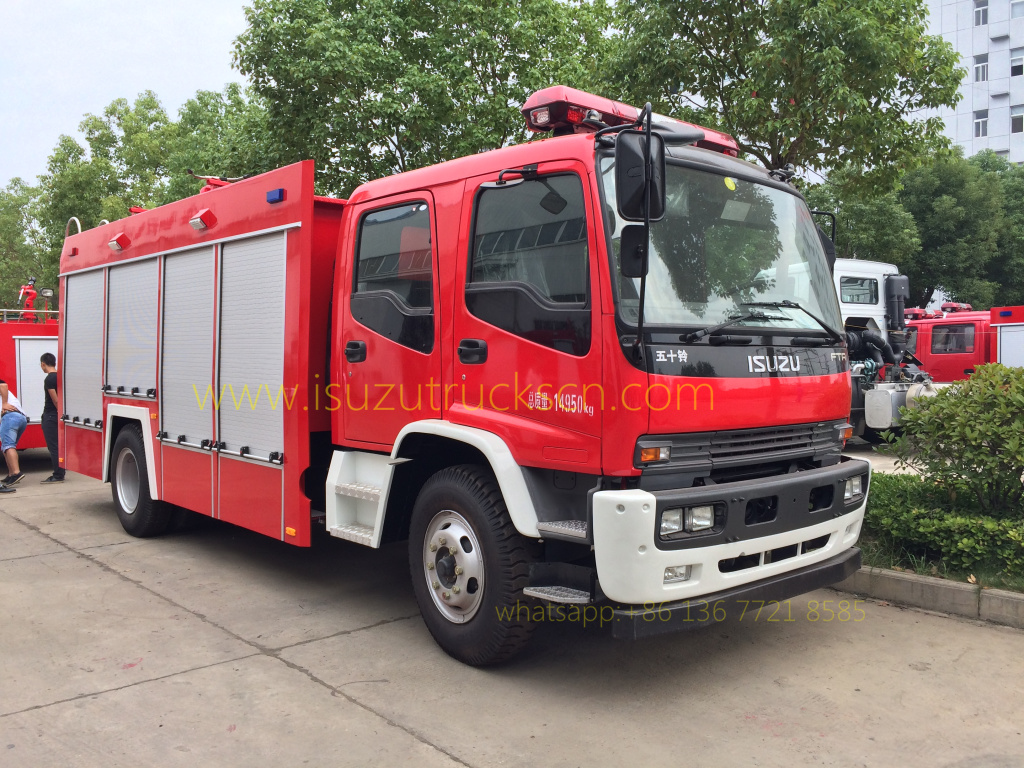

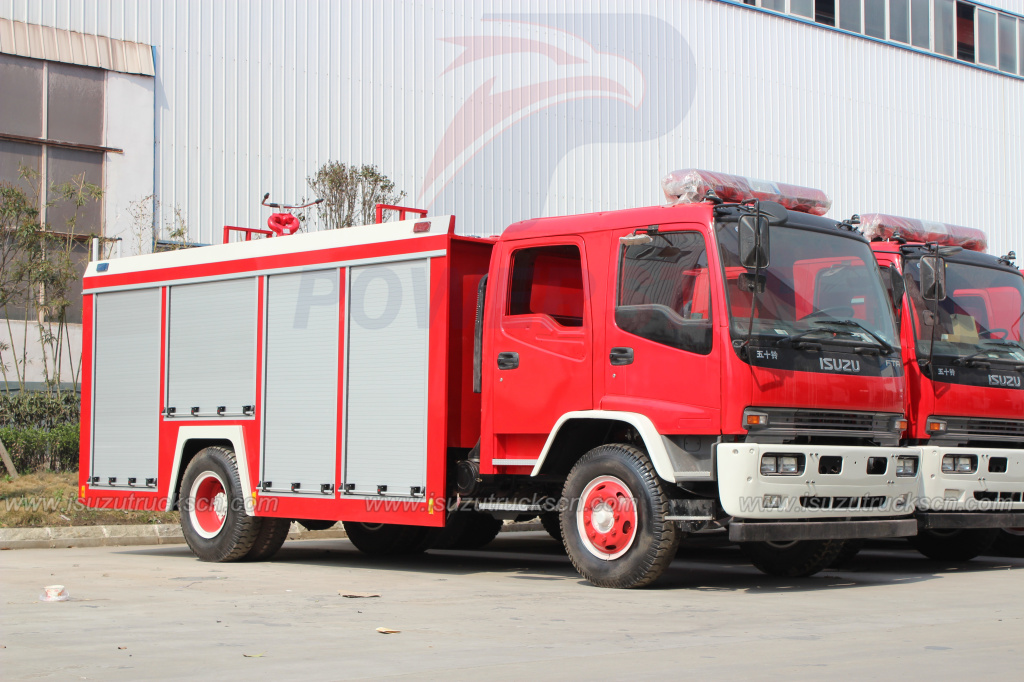

Front right view
|

Fire Equipments:

Performance Testing:



Accessories List:
(With below equipment, you can put into fire-fighting immediately)

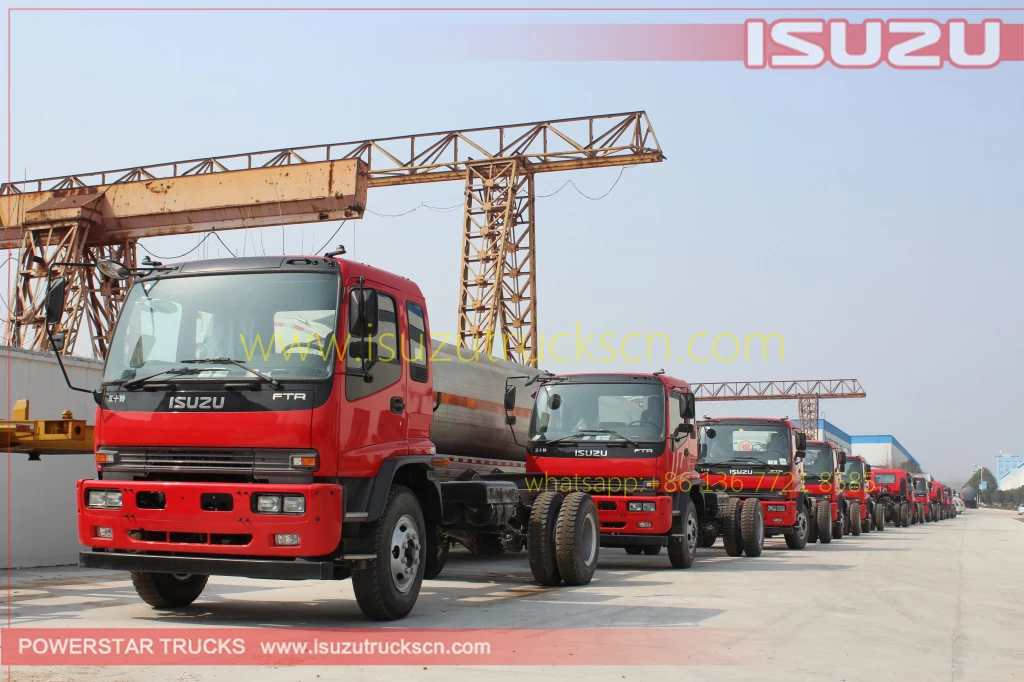

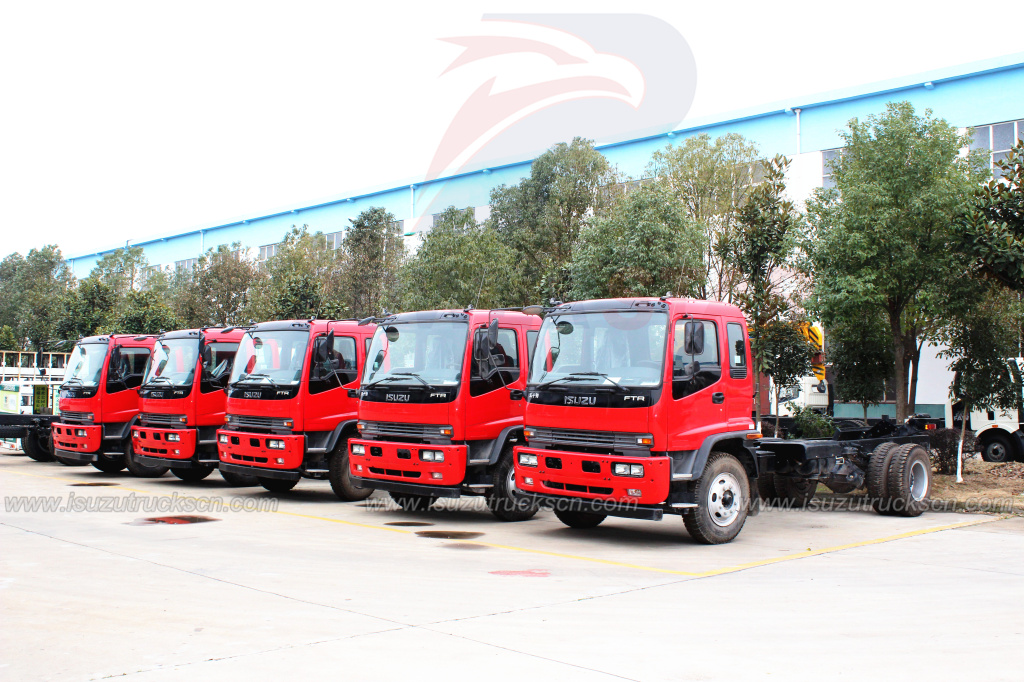

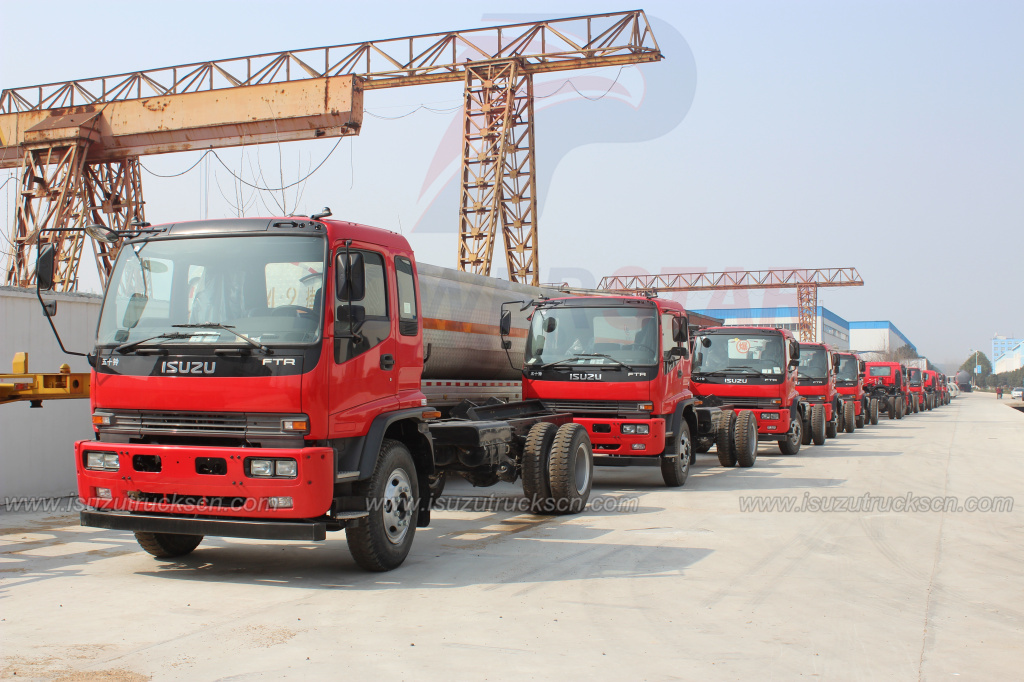

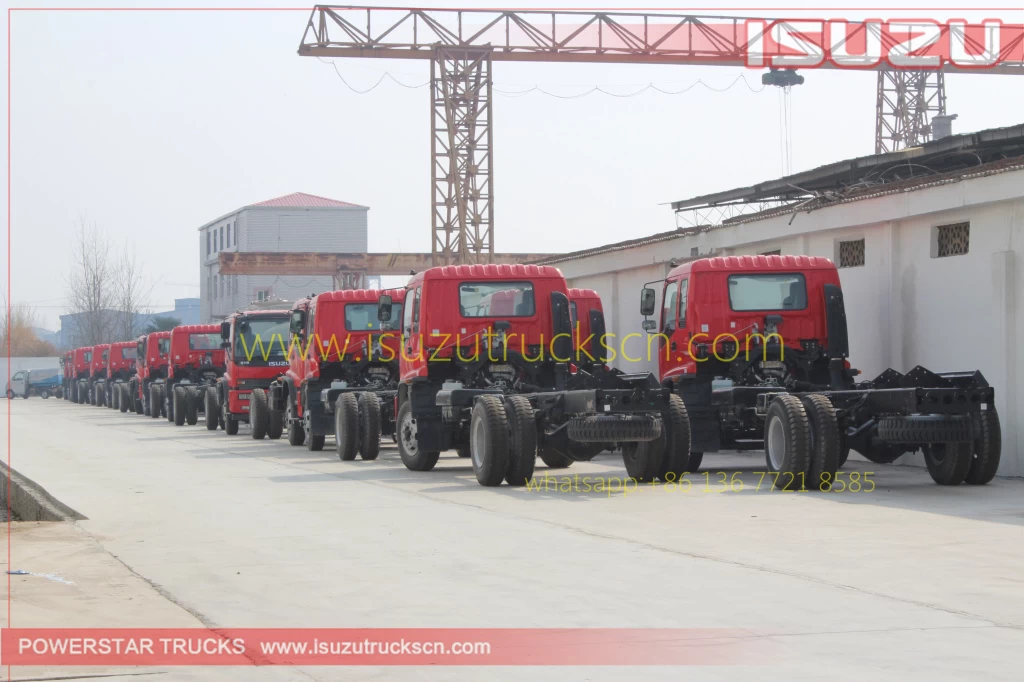

ISUZU FTR truck chassis for fire fighting truck application:
