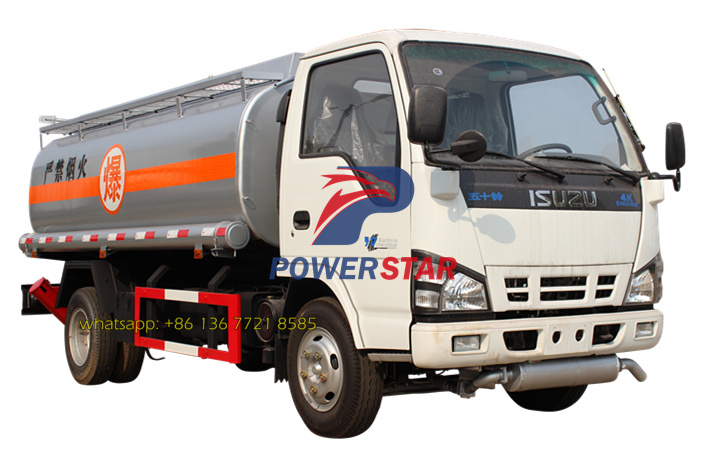

Isuzu Fuel Tank Truck Excellent Quality for Africa Market
Basic Description
Africa ISUZU Fule Tank Vehicle Truck also called as Diesel fuel tank truck, Fuel bowser, Oil tank vehicle, Fuel dispenser tank truck, Aluminium alloy fuel tankers, Gasoline tank truck Isuzu,Fuel storage tank truck, Isuzu Fuel transport Van, 6000L ISUZU oil dispenser Tank truck or Fuel Tank truck ISUZU exported to UAE for Fuel transport.
This high quality ISUZU oil tank truck is a type of special engineering machinery. It is usually used for transporting a lot of oil and chemical liquid in petrochemical sector, such as gasoline, diesel, crude oil, lubricating oil, coal tar oil and industrial chemicals.
Key Features
ISUZU NKR Chassis, Durable & Performance.
Tanker between 3,000 Liters and 25,000 Liters
Tank material can be Carbon steel, Aluminum ally or Stainless steel
Fuel Dispenser, Flow meter, Level gauage can be optional
POWERSTAR 20 years’ experience on Fuel/oil tank truck exporting.
Technical drawings:
Huge experience on tank design and manufacturing
Quickly delivery the truck, and ship to worldwide with safety
Easy use and long service life

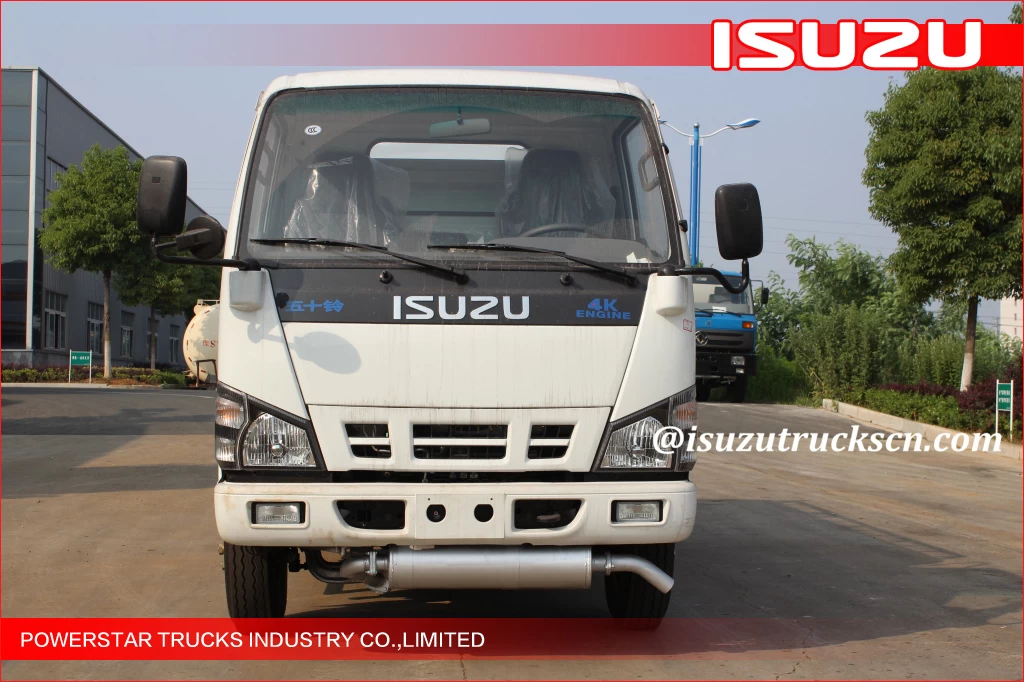

Cab of Isuzu Fuel Tank
Main specifications
|
Model
|
PT5070GJY
|
|
Driving
Type
|
4x2 (Left
hand drive)
|
|
Wheelbase
|
3360 mm
|
|
Engine
|
88 kw (120hp)
|
|
Tyre
|
7.00-16
|
|
Tank
|
Material:
|
Carbon steel(Q345)
|
|
Shell Body
|
5 mm nominal thickness
|
|
Head
|
6 mm nominal thickness
|
|
Baffles
|
3mm nominal thick, wave shape, four
pieces with Ø 500mm service port
|
|
Tank shape
|
Ellipse
|
|
Capacity
|
Full capacity 5000L
|
|
Compartment
|
No
|
|
Shell Finish
|
Shot blasted with 1anti-rust, 1
base coat and 1 finishing coat, the color of tank is according to
customer requirement.
|
|
Testing Pressure
|
36kPa, Water pressure test
|
|
Tank Fittings
|
Top inlet port
|
2pieces
|
|

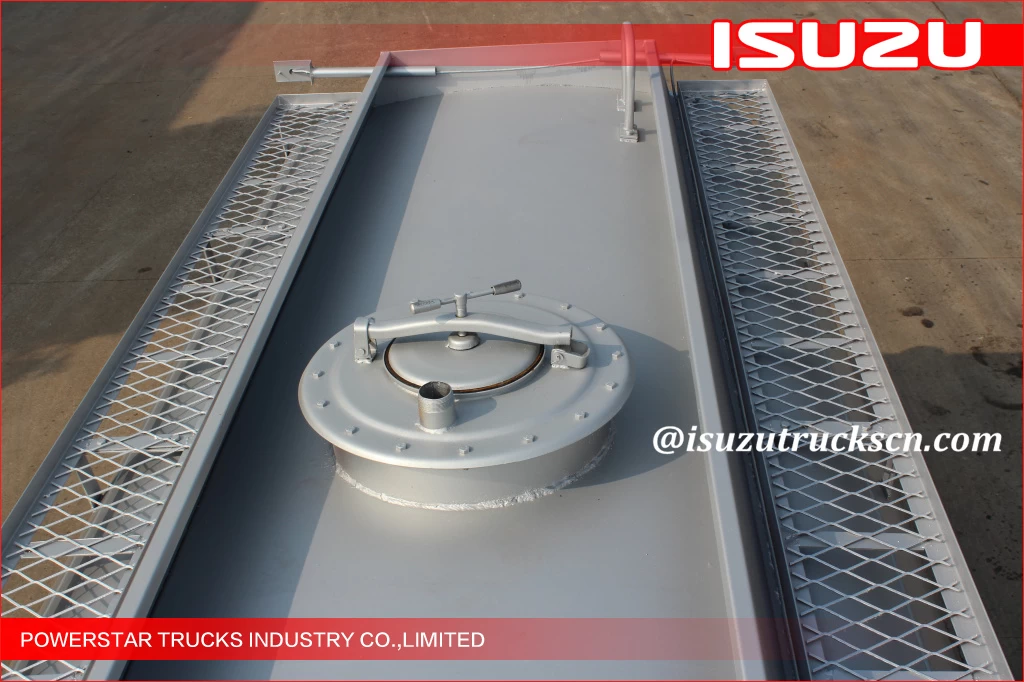

Manhole Cover
|
Aluminum alloy, 20”
self-latching manhole cover, with air-van.
|
|
Outlet port:
|
One pneumatic sea valve which at the
front of tank, the size of outlet port is 3 inches, fix all connector.
|
|
Pipe box:
|
It made of PVC material, round shape
which on the both sides of tank, one plastic pipe (5m)
|
|
Anti –Static System:
|
Static electricity plate ,
copper plate and earth cable reel
|
|
Tank Accessories
|
Ladder:
|
Stainless Steel
ladder fixed at rear of tank
|
|
Walkway Platform:
|
It fixed on the top of
tank with anti – skid surface treatment.
|
|
Handrail:
|
No
|
|
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire
extinguisher
|
|
Pump Device
|
Yes
|
|

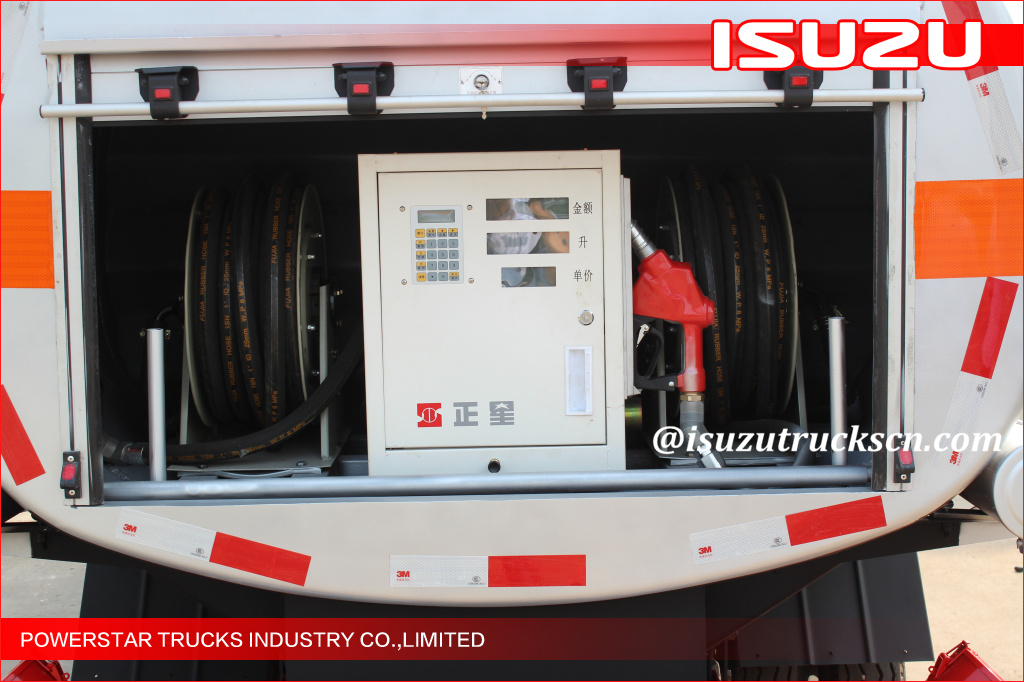

Flow meter
|
Yes
|
|
Tool box
|
Small box
|
|
Color
|
As option
|
Optional Equipment of ISUZU Fuel Tanker Truck
 |
|
 |
|
 |
|
 |
| Computer Fuel Dispenser |
|
API Adaptor Valve |
|
Bottom Valve |
|
Manhole Cover |
 |
|
 |
|
 |
|
 |
| Ball Valve |
|
Three Ways Set Ball Valve |
|
Level Gauge |
|
Oil and Gas Recovery Valve |

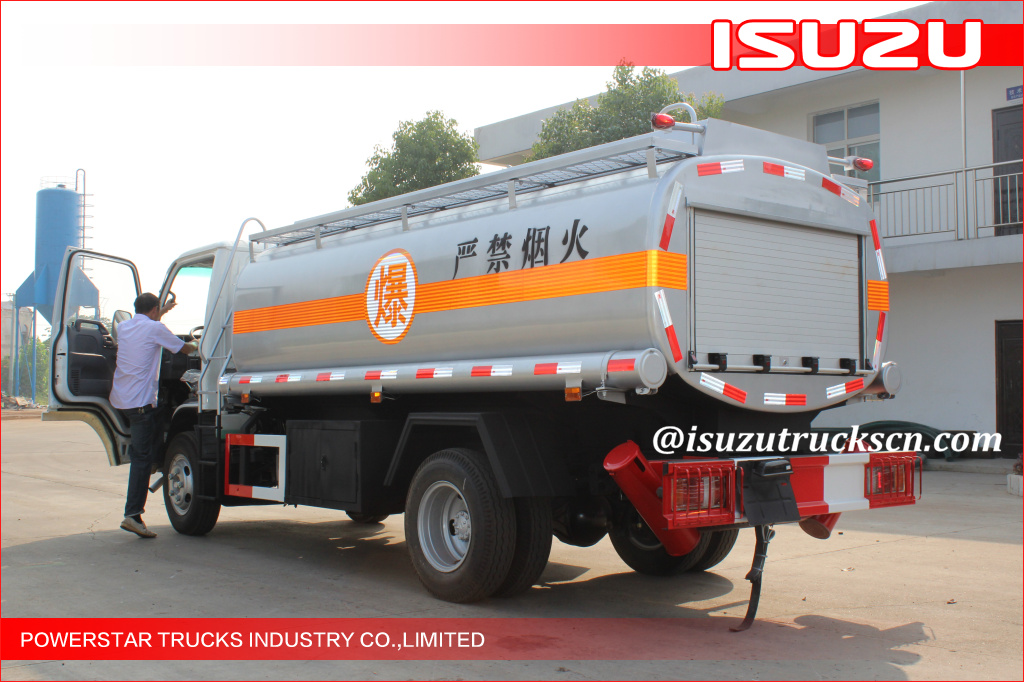

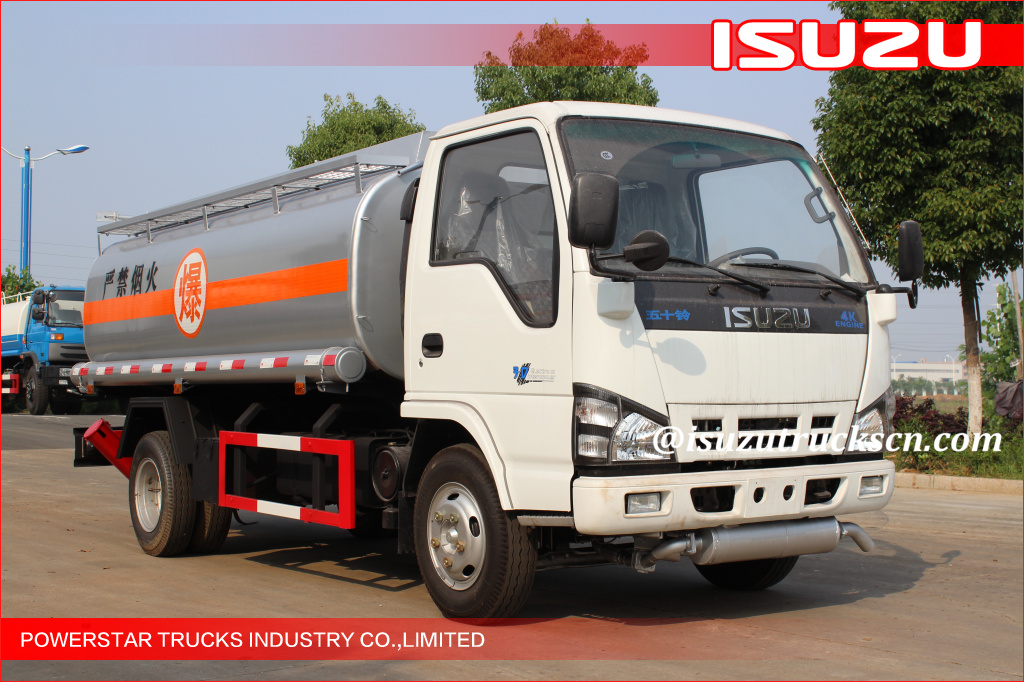

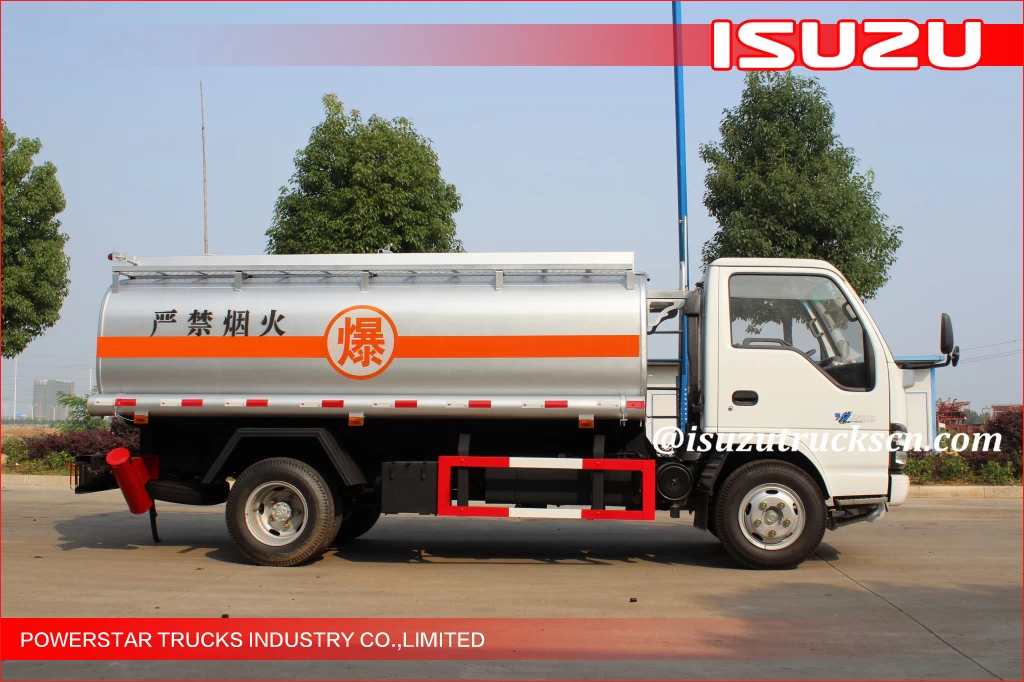

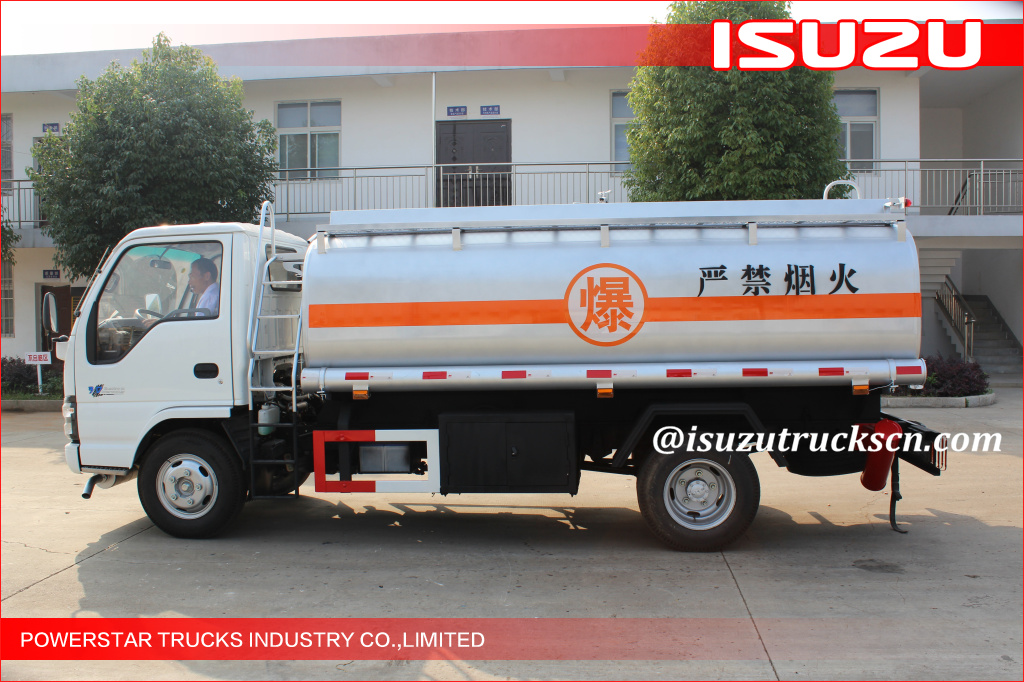

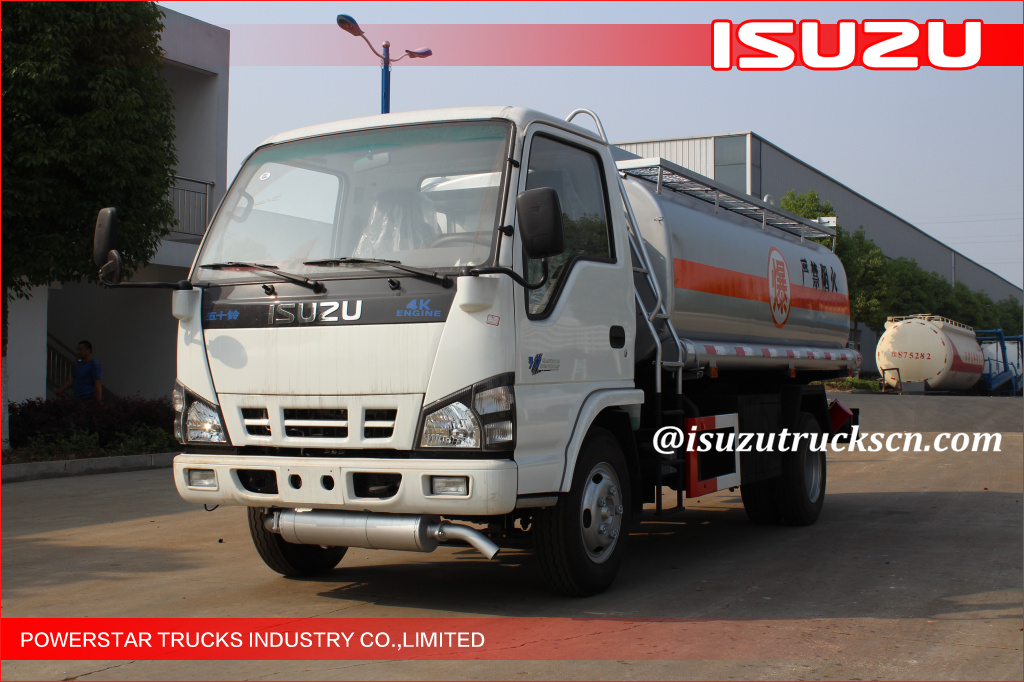

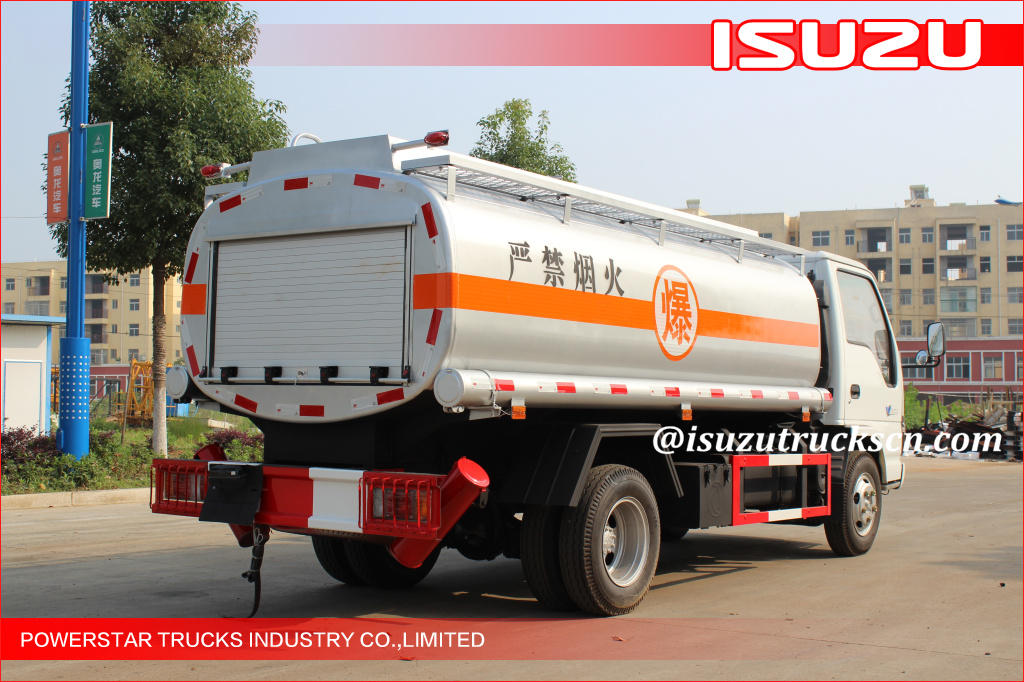

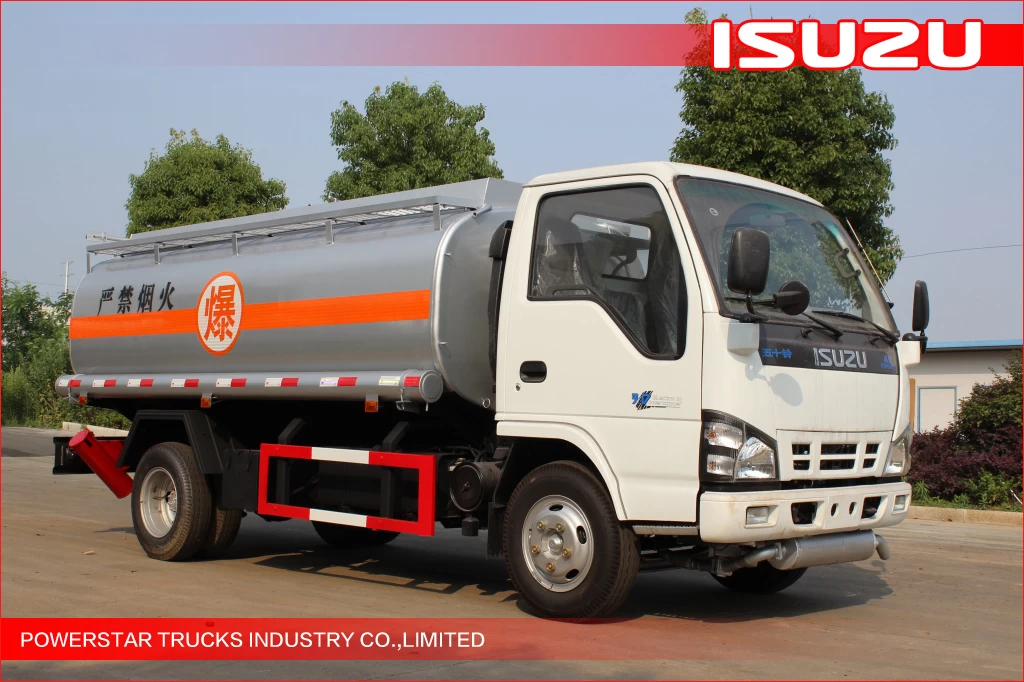

Recently Built Fuel Tank Trucks:
2.2 Tank Body
The tank body is elliptic cylindrical, round or trapezoidal cylindrical, etc., made of high quality steel plate,
The entire tank can be single-chamber or multi-compartment division, There are steel division plates with through holes welded in the tank to strengthen the anti-wave and relieve oil shocks. To prevent corrosion, the outer tank painted rust and decorative paint.

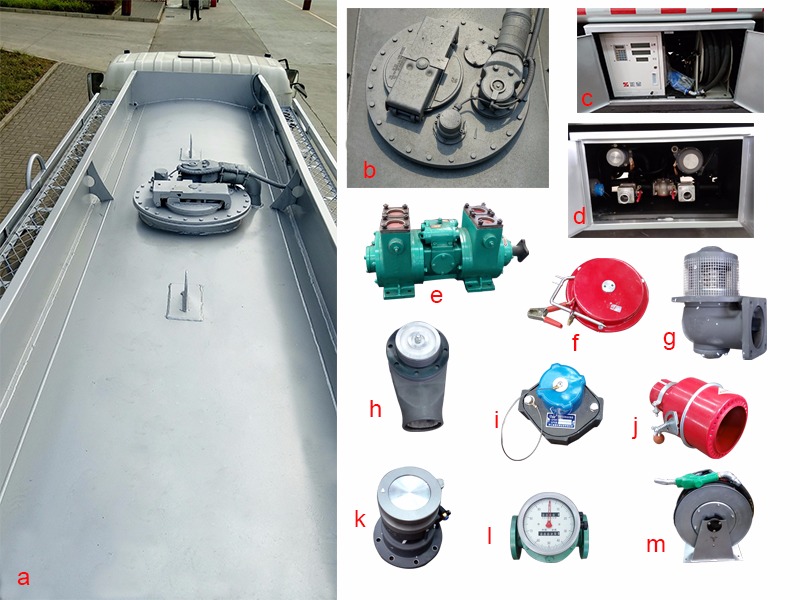

Tank image and main parts
.jpg "the detailed pics of fuel truck tanker")
