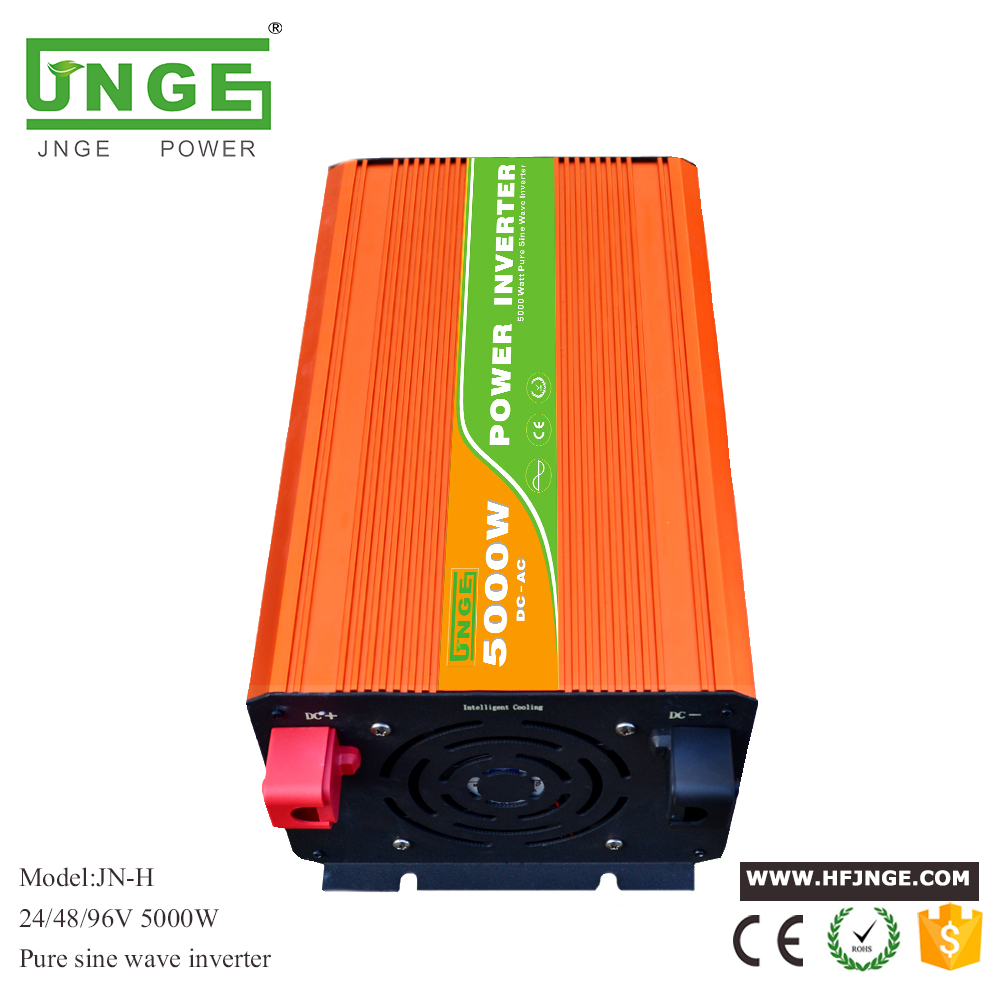

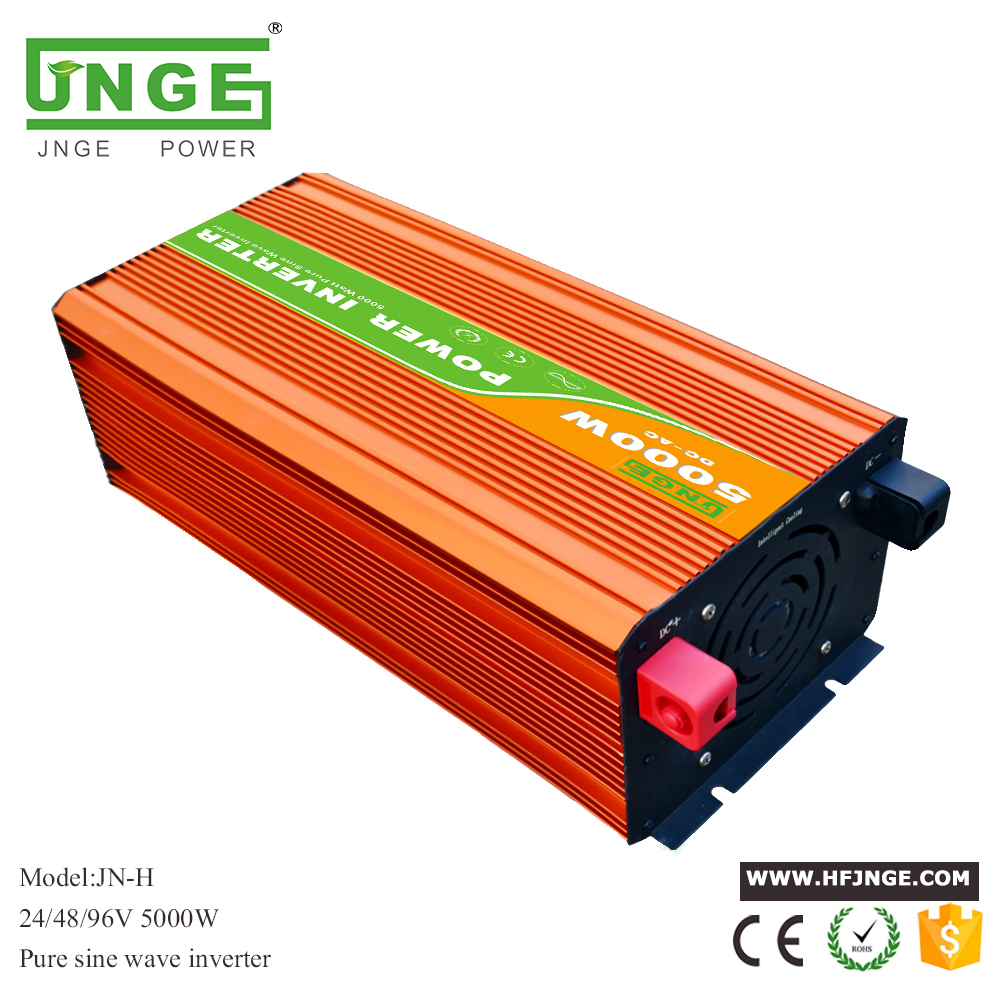

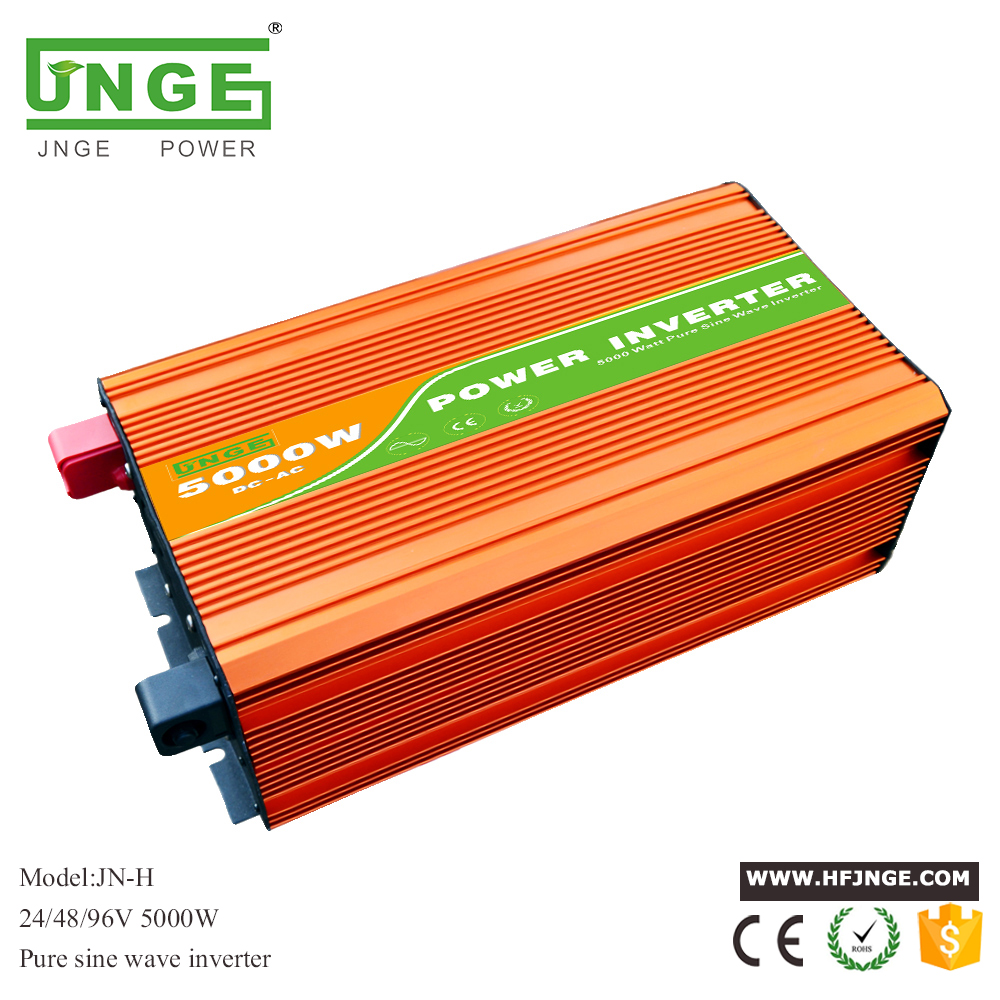

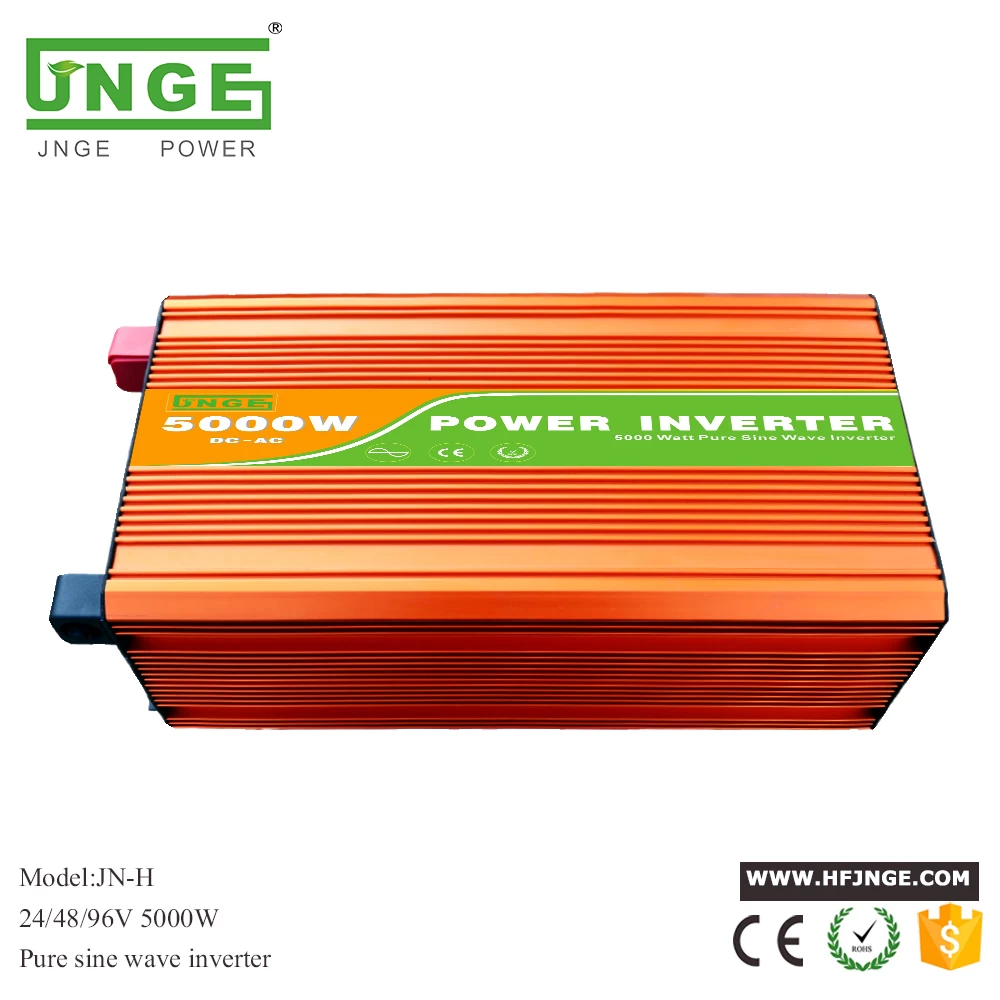

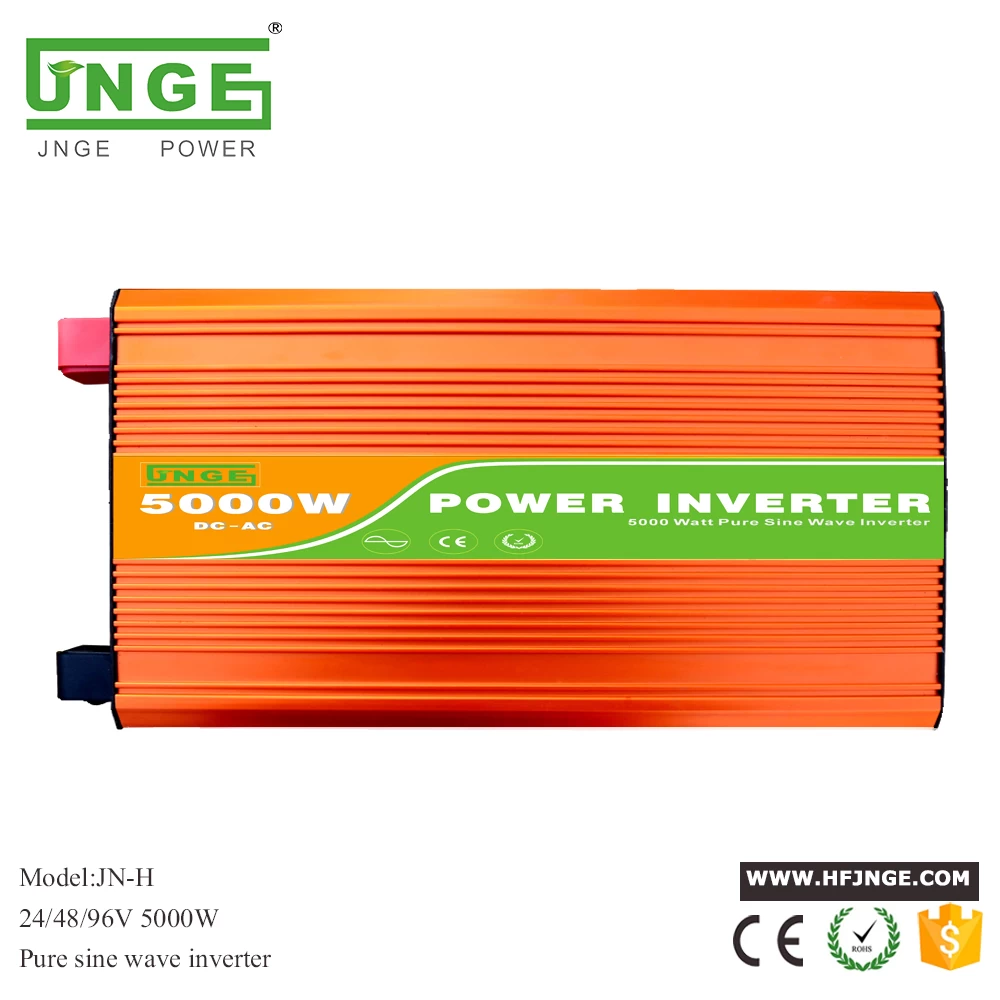

5000w high frequency inverter 24v 48v 96v DC to 100v -240v AC pure sine wave inverter

1. Pure sine wave output

2. Low work noise, high efficiency inverter

3. Small, light and artistic, benefited from adopting the SMD paster technology.

4. Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.

5. Cooling fan is intellectual controlled

6. With complete protections



This is a 24V 48V 96V 5000W pure sine wave power inverter which can generate 5000W of continuous power and up to 10KW of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters) It is more efficient compared to modified sine wave inverters.

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.


Product Parameters:

OUTPUT OUTPUT VOLT 100/110/120/220/230/240VAC
CONTINUOUS POWER 5000W
SURGE POWER 10000W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz/60Hz
AC REGULATION LOW & HIGH 10%
Non-load  Consumption <28W
EFFICEINCY >90%
INPUT USB OUTPUT 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 21-30VDC         40-60VDC          80-120VDC
PROTECTION WORKING INPUT 24VDC               48VDC               96VDC
FUSE 20A                     10A                     15A
Low battery alarm 21+0.5V              42+0.5V               84+0.5V
Low battery shut down 20+0.5V               40+0.5V               80+0.5V
Over voltage shut down 30.5+0.5V             60+0.5V                120+0.5V
Over load shut down 6000W over 10 seconds
Over heating shut down >75
Over Thermal  shut down the output
Working Temperature BETWEEN -10 and +50
soft start
OTHER DIMENSION(L*W*H)  490*216*153mm
INNER BOX DIMENSION  554*299*249mm
CARTON DIMENSION  555*300*250mm
NET WEIGHT 12±1KG
GROSS WEIGHT 13.6±1KG
PACKING 1PCS/CTN
