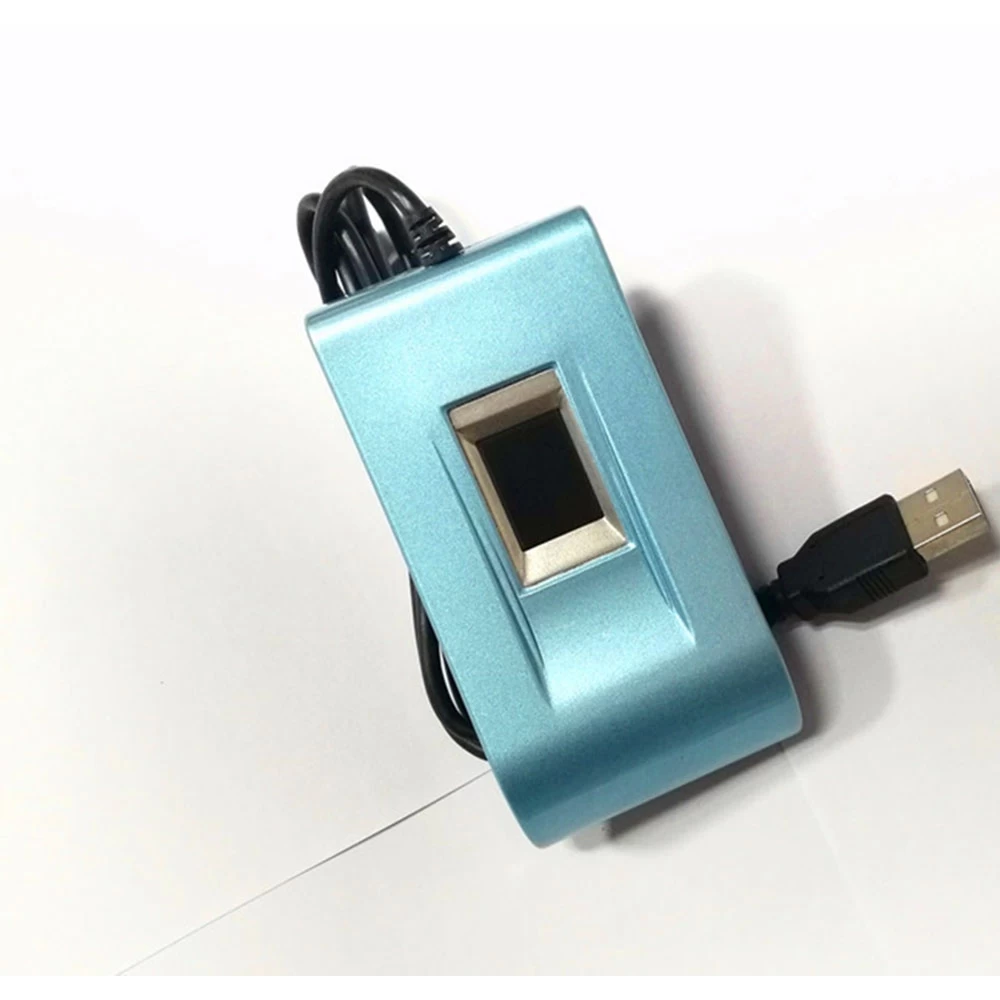

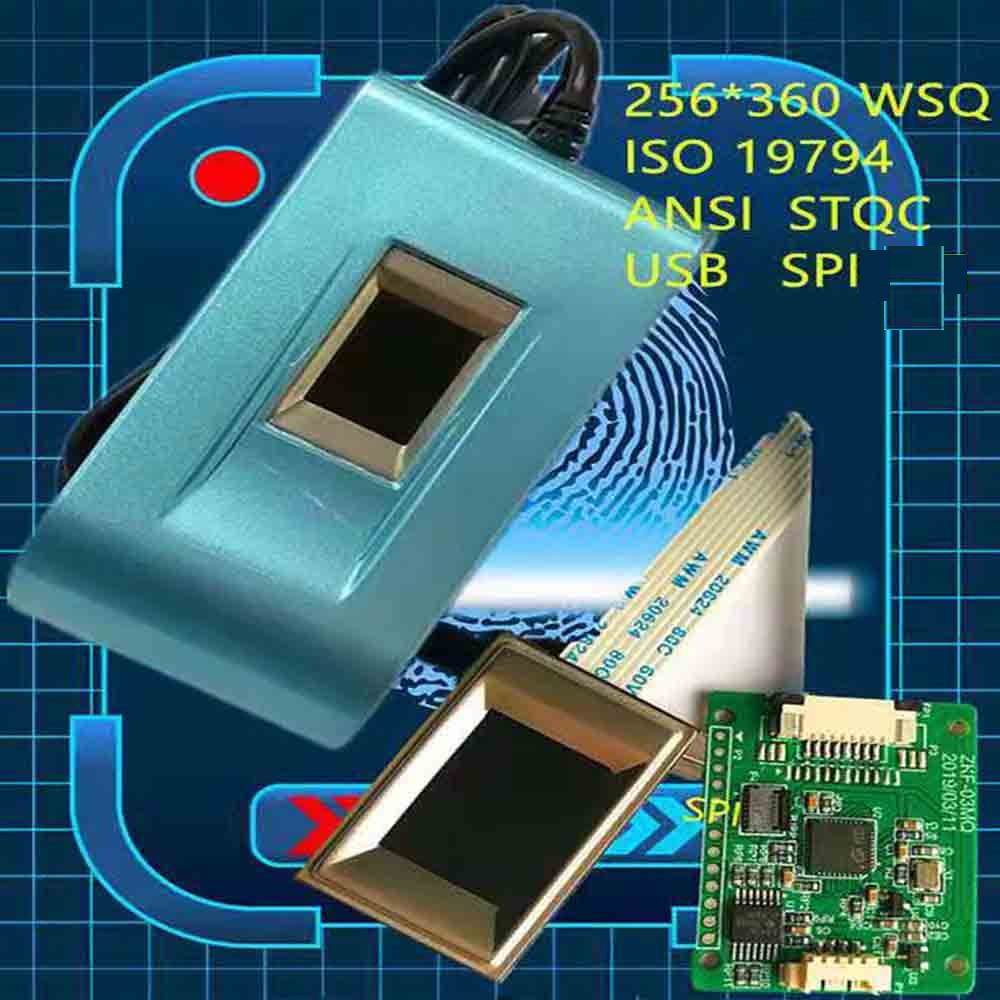

Product Name: 500DPI WSQ ANSI ISO Capacitive USB Biometric Fingerprint Reader for Authentication model FR503
Technical Specification:
fingerprint sensor：Capacitive sensor
Imaging area：256*360pixel
Image resolution：508 DPI
Capture Size：23*35mm
Capture Effecitve Size: 14.25*19.3mm
Anti-static:> 15 KV
FAR< 0.001 %（Security Level：3)
FRR< 0.1 %（Security Level：3 )
Match mode:1:N identification and 1:1 verification
International Standard:ANSI_FMR (ANSI/INCITS 378 - 2004)
ISO_FMR (ISO/IEC 19794 – 2/4 )
WSQ(Wavelet Scaler Quantization)
NFIQ(NIST Fingerprint Image Quality)
Time of response: 1:N match （full 3000 fingerprints）< 1s
Interface: Compatible with High Speed USB2.0
Communication: Windows, Android4.0 or Above
Max Operating Humidity:Max Operating Humidity
Working Environment:Working temperature ：-40℃ - +80 ℃
Working Humidity：0– 95%
Brand:Customized, free SDK for secondary development
Packing way:1pc *USB fingerprint reader 1pcs* user manual
Dimension: 98*20*49cm；
Weight:0.1KGS/pcs；
Packing info/carton: 50pcs/carton 7KGS

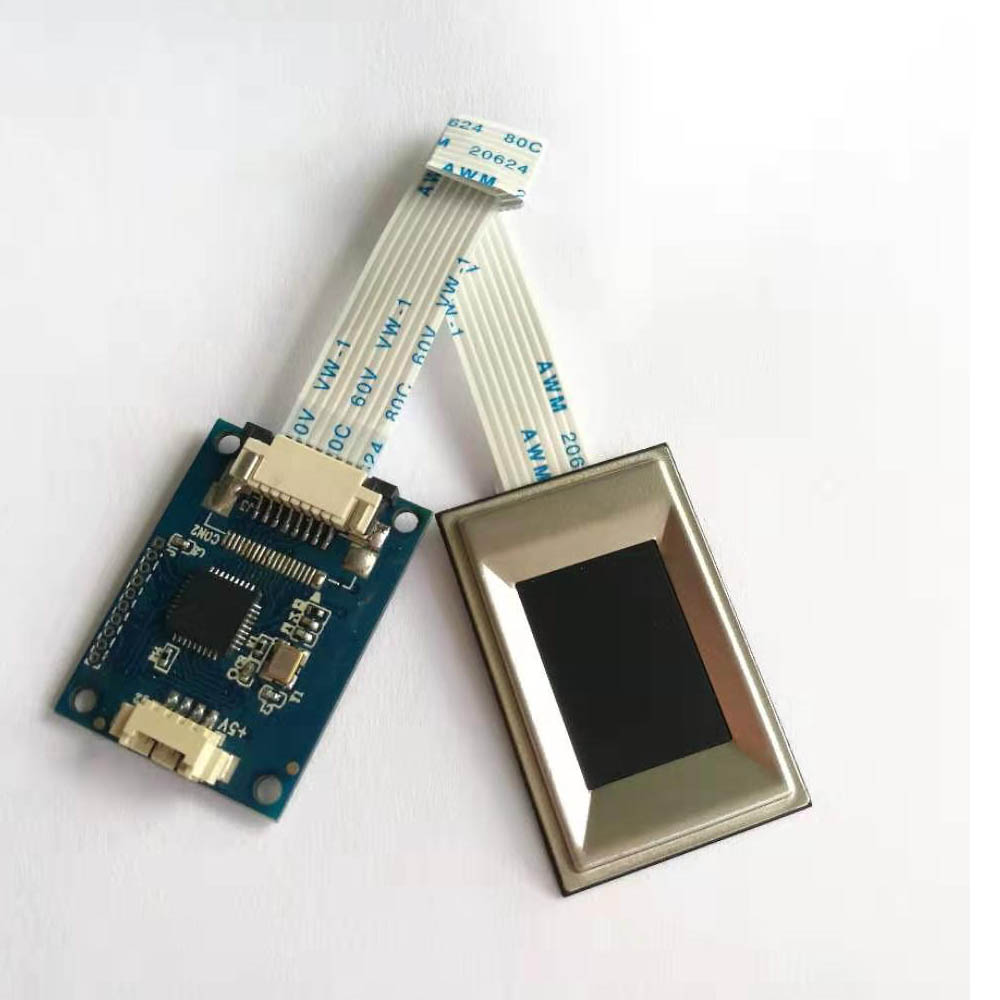

FR503 could sell in sperated fingerprint module alone for vending machine integration

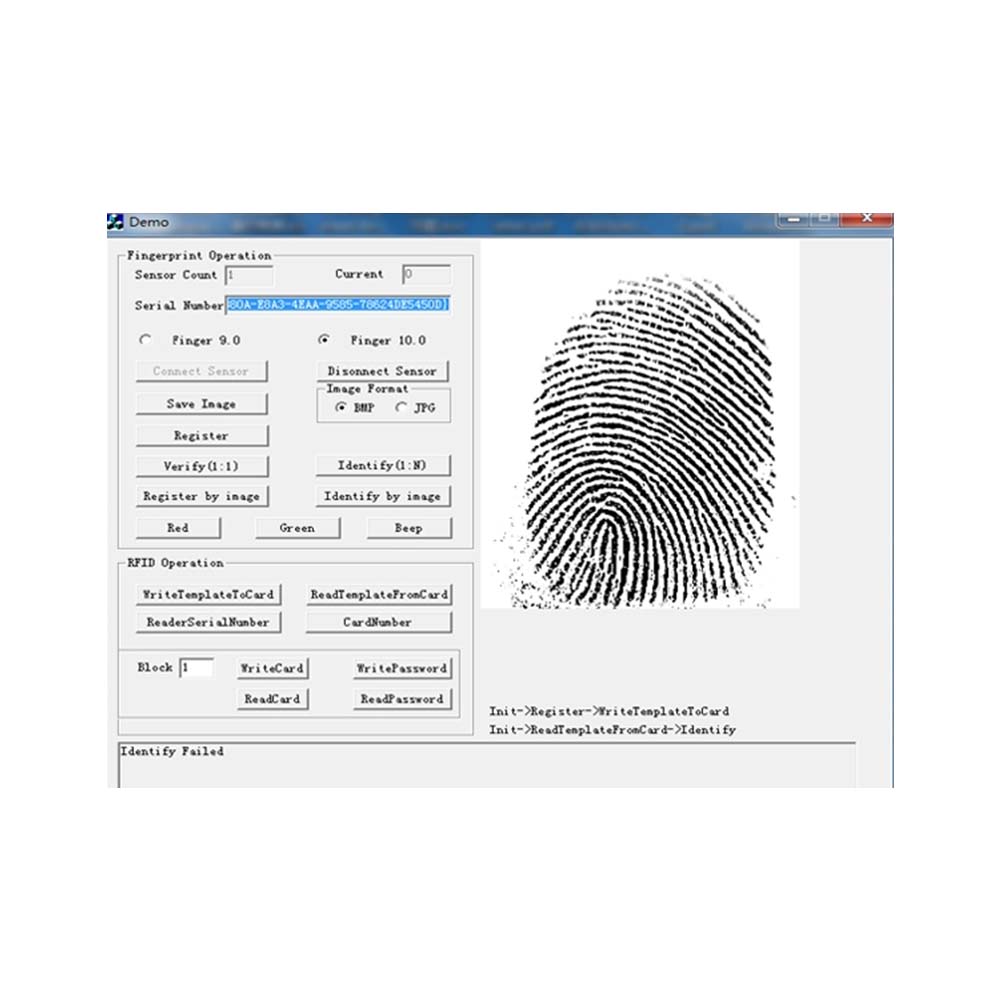

Free Demo for easy Secondary Software Integration
FR503 Big Fingerprint Reader could be used widely for various Government Project like Customs or ID card Registration with cheap cost....
