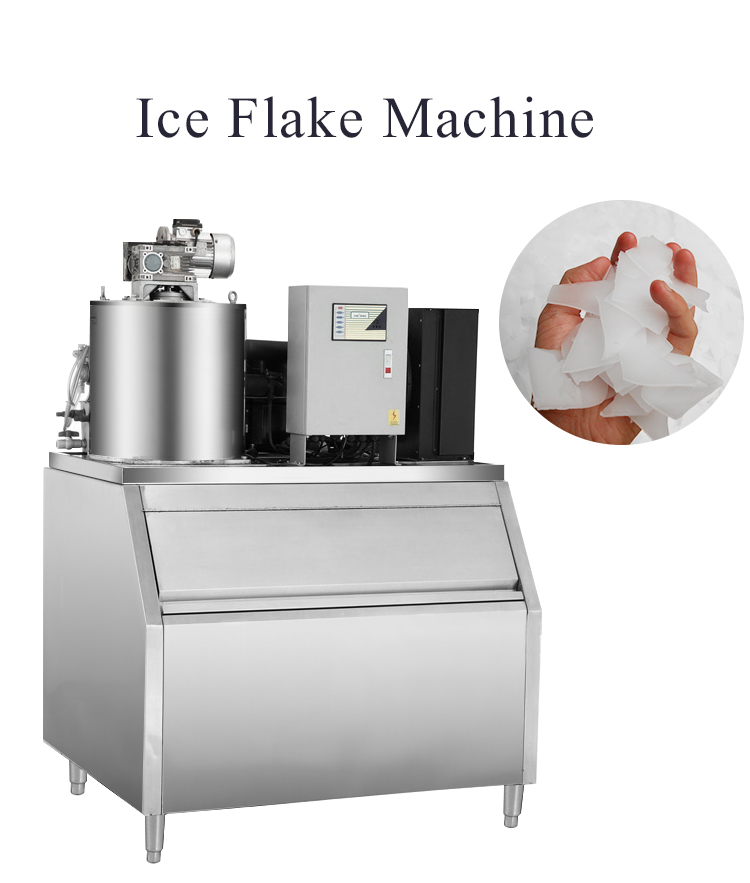

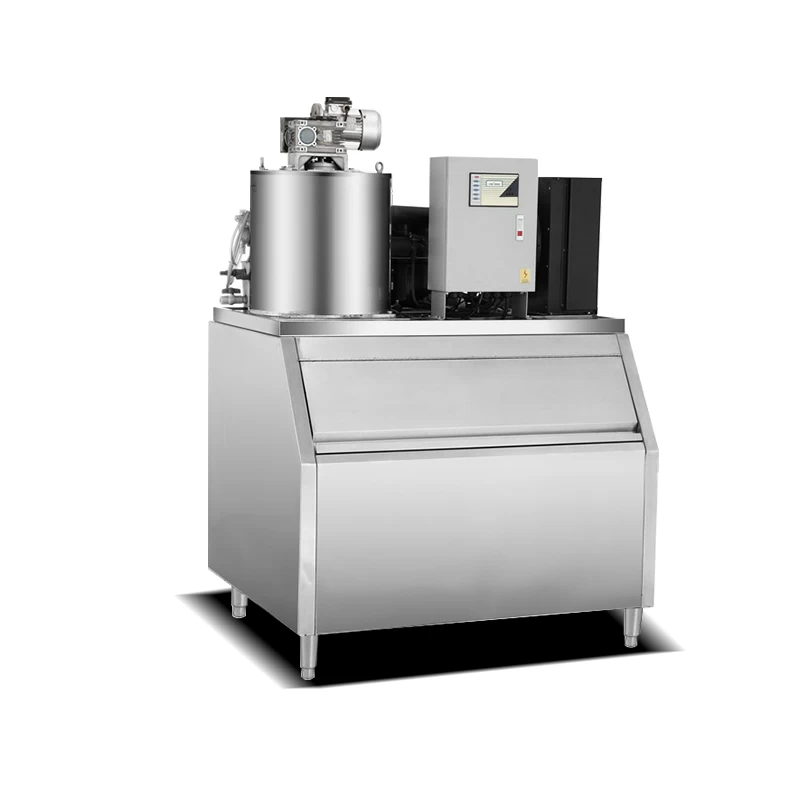

500kg Flake Ice Machine
Application:Food Processing/Fishery Processing/Fresh Preservation/Meat Processing/Medical Facilities/Supermarket/Environmental Engineering
1.High standards of evaporator, durability, safety and reliability;
2.Directly formed at low temperature, high efficiency;
3.Excellent design, stability and low breakdown rate;
4.Environment-friendly refrigerant, high efficiency and energy saving;
5.Full series of products for all applications;
6.Flake ice are dry, uniformity of thickness, and full capacity;
7.Full-automatic control;
8.Certificate CE;
9.With stainless steel or plastic storage, full series for selection;
10.The thin ice can be directly used for stirring and mixing refrigerated materials.
11.No acute edges and corners so it will not damage the surface of the cooled object.
|
Model:
|
GM-04K
|
GM-05K
|
GM-06K
|
GM-08K
|
|
Daily output:
|
400kg/24h
|
500kg/24h
|
600kg/24h
|
800kg/24h
|
|
Bin capacity:
|
300kg
|
300kg
|
300kg
|
400kg
|
|
Cooling capacity:
|
5000kal/h
|
2350kal/h
|
3000kal/h
|
4000kal/h
|
|
Compressor power:
|
3HP
|
3.5HP
|
4HP
|
5HP
|
|
Compressor input:
|
1.7kw
|
2.0kw
|
2.45kw
|
2.6kw
|
|
Reductor Power:
|
0.37kw
|
0.37kw
|
0.37kw
|
0.37kw
|
|
Circle pump power:
|
0.07kw
|
0.07kw
|
0.07kw
|
0.07kw
|
|
Total power:
|
2.4kw
|
2.8kw
|
3.2kw
|
3.4kw
|
|
Flake thickness:
|
1.5mm~2mm
|
1.5mm~2mm
|
1.5mm~2mm
|
1.5mm~2mm
|
|
Power supply:
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
|
Cooling way:
|
Air cooled
|
Air cooled
|
Air cooled
|
Air cooled
|
|
Water inlet diameter:
|
5/8"
|
5/8"
|
5/8"
|
5/8"
|
|
Ice dropping diameter:
|
360mm
|
360mm
|
360mm
|
460mm
|
|
N/W:
|
205kg
|
205kg
|
215kg
|
310kg
|
|
Product size:
|
1270*1030*1850mm
|
1270*1030*1850mm
|
1270*1030*1850mm
|
1320*1281*2100mm
|
