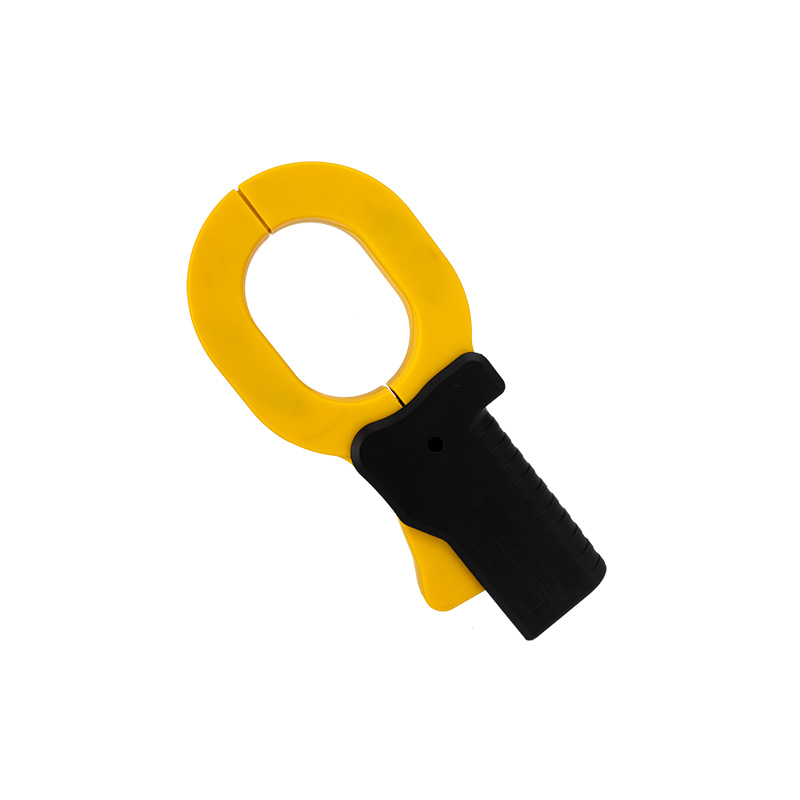

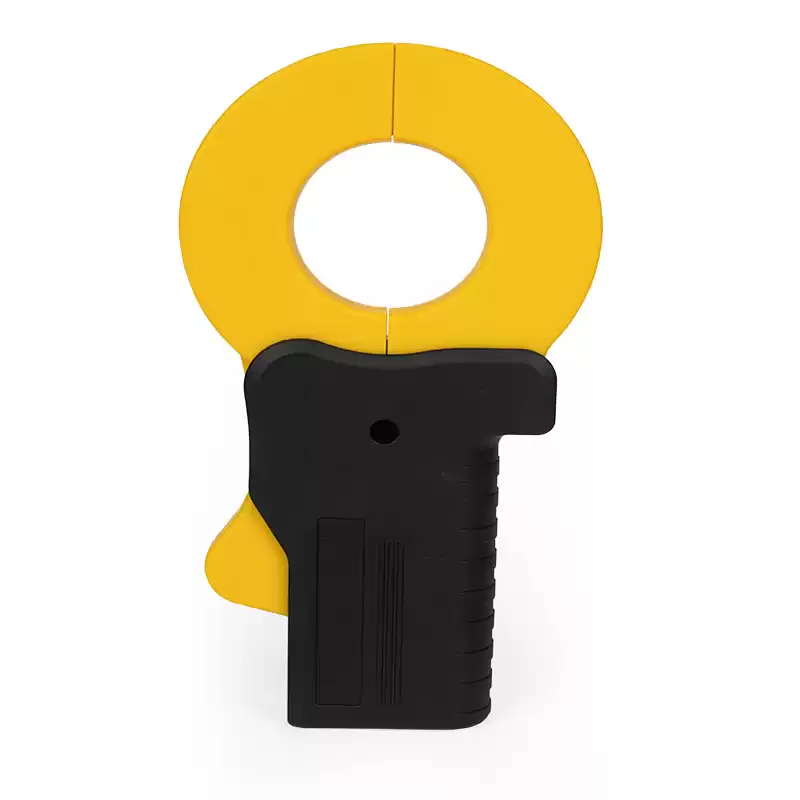

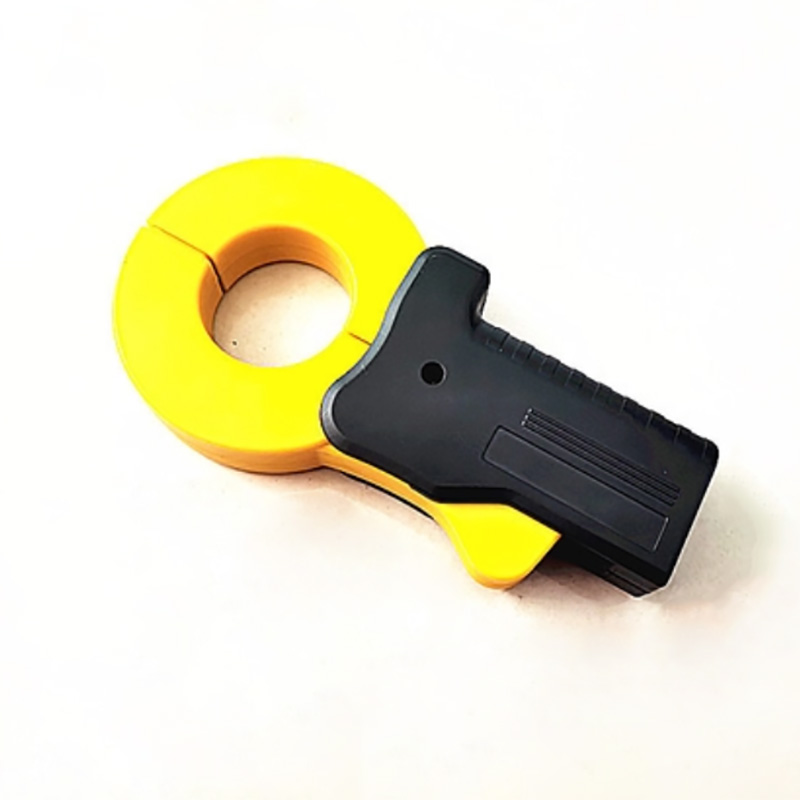

500mA UL Leakage ct AC Monitoring CT Clamp on Current Transformer

Products can be customised

Clamp current transformer current-carrying wire position correlation variance is small, anti-interference ability is strong, such as it will be connected to the high accuracy of the power meter, ammeter, phasor meter, can be more accurate on-site inspection, both safe and can improve work efficiency.

Facebook Twitter Pinterest LinkedIn 分享

Description

Introduction:

Outdoor waterproof current transformers are suitable for current measurement of 35kV AC power system and power supply equipment under 10kV, and can also be used for microcomputer protection. This type of clamp on current transformer adopts imported high permeability silicon steel as the magnetic material, which has the characteristics of low magnetic circuit loss and detachable. Its semicircular core and secondary winding are made of high-quality epoxy resin vacuum plating, cast in flame retardant and moisture-proof plastic casing (ABS or PC), stable performance, no maintenance.

Clamp on current transformer user's manual

Mainly using for:
Single-phase current test / quality warranty

High-precision current transformers

Locking snap current transformers

Split core current transformers

Clip on current transformers

Reliable linear performance transformers
Technial index notes:
Testing current：100mA - 6000A

Primary current: 100A - 6000A

Accuracy class is divided into 0.1, 0.2, 0.5 and 1.0 grade

Sencondary current：1mA to 5A, 0 to 5V, or DC 4 to 20mA

ABS anti-combustion plastic casing
Notes:
Suitable for single-phase electricity meter as well as anti-tampering electricity meter

There aren standard holes on the primary lead wire which can be directly fixed on the meter terminals with stansard bolts

There are standard holes on the external casing which fasilitates instalaton on a PCB

Clamp on current transformer can be customised

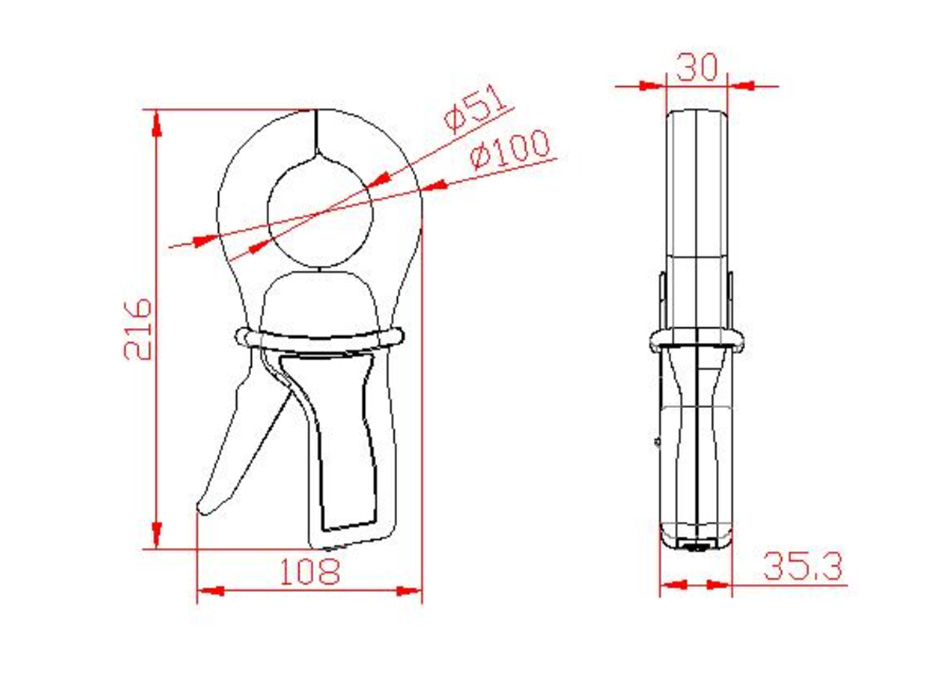

Output voltage	Output current	Inner diameter	Measuring range	Turns ratio	Accuracy	Secondary load
0~5V	0~1A	52mm	0.1A ~ 1200A	1 : 1000	≤0.1%	≤20Ω
0~5V	0~1A	64mm	0.1A ~ 2400A	1 : 2000	≤0.05%	≤20Ω

Application:

Large industrial loads
Electronic, Instrument
Measuring around cable bundles
Power load monitoring
Electrical utility
HVAC
Industrial maintenance
Laboratory
Plant maintenance
Cable fault tester

Features:

Measurement range of 1A to 3600A AC
Large jaw opening designed
Improved ergonomic design and easy operation
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to 3000A AC
Transformation ratio: 1000:5, 2000:5, 3000:5
Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC
Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges

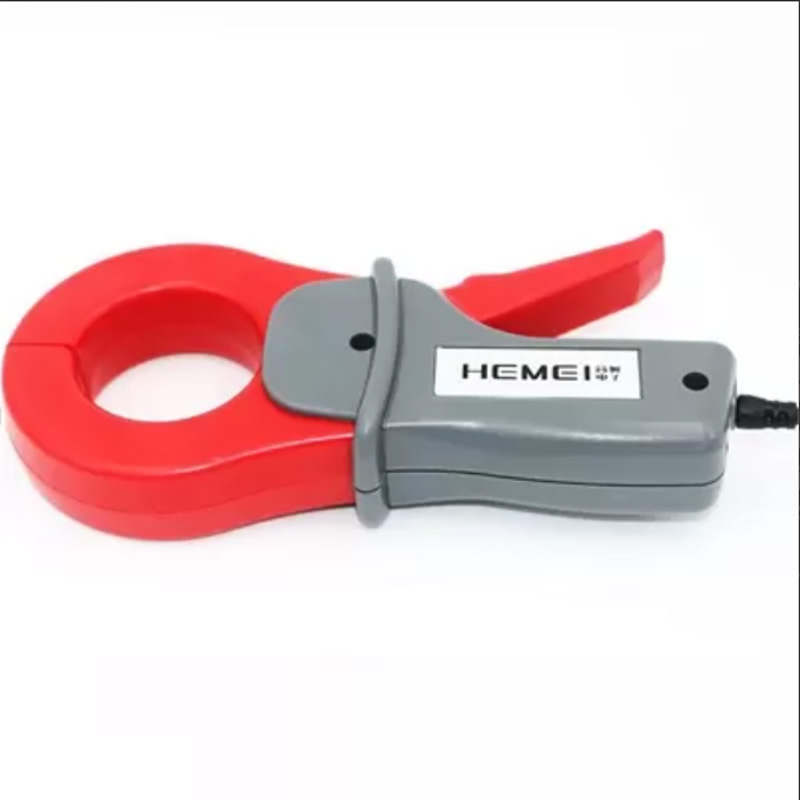

As a leading domestic manufacturer specialising in the research and development of electromagnetic model coupling, magneto-electric power conversion technology, Hemei Electronics can customise a variety of models for you, welcome to leave your requirements.
