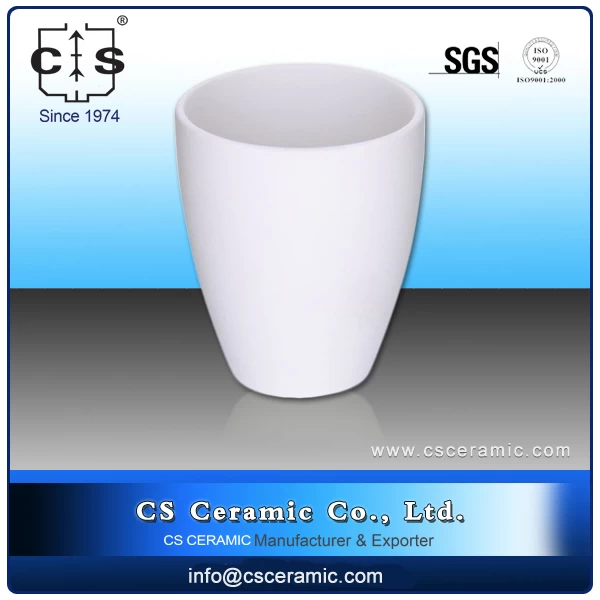

Product Item: 500ml to 5000ml Unglazed Rose Porcelain crucible Unglazed Labware
Crucibles and their lids are made of a ceramic that can withstand high temperatures. The crucible is used to heat chemicals (usually solids) to high temperatures. This may be necessary to dry a solid completely, or to initiate a reaction outside of solution.
Product size:
|
Item NO.
|
Capacity(ml)
|
Rim diam.(mm)
|
Bottom diam.(mm)
|
Height(mm)
|
|
5000
|
5000
|
165
|
100
|
265
|
Physical Parameters:
Acid resistance: more than 99.5%
Alkali resisitance: more than 97%
Temperature resistance: 1380 degrees celsius for unglazed
Wear resistance: less than 0.03g/cm2
Moh's hardness: 7 grade
Water absorption rate: less than 0.5%
Bulk density: 2.2-2.7g/cm3
Compressive strength: more than 300Mpa
Breaking strength: more than 40 Mpa
Thermal stability: 1050 degree celsius to room temperature
More dimension:
|
Item NO.
|
Capacity(ml)
|
Rim diam.(mm)
|
Bottom diam.(mm)
|
Height(mm)
|
|
5000
|
5000
|
165
|
100
|
265
|
|
1300
|
1300
|
140
|
85
|
160
|
|
1000
|
1000
|
135
|
80
|
150
|
|
750
|
750
|
115
|
65
|
150
|
|
500
|
500
|
105
|
65
|
170
|
Advantage:
1.passed ISO9001
2.Wear-resisting&acid-resisting
3. A factory
Special offer: Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
More lab ceramic consumables, such as Porcelain crucible with lid, Combustion tube, Spotting plate, ash crucibles and so on, please contact my us freely. info@csceramic.com
