LED wall washer is also called Outdoor LED Wall Washer, LED Wall washer light, led city color, led wall washer light ,etc. All of them with with Cree & Edison high power led. The led wall wash light Working Voltage: DC24V, AC110V or 220V, Constant current driver, No flash, fast response to achieve over-current,use of safty. RGB DMX512(1990 standard) and RDM system. No waterproof glue to seal the light, IP65 waterproof structure. Easy maintain and replace freely.
DMX decoder built inside, can be made with plug to plug connection.To make sure of high quality for the internal control LED Wall Washer Light, we use rubble cable.
Specifications of 36W IP65 LED Wall Washer RGB DMX512 Control:
|
Item Number
|
RS-WW36W-BS
|
|
Input Voltage
|
DC24V or AC110-240V, 50/60Hz
|
|
Input Current
|
320--350mA
|
|
Driver place
|
Internal driver and DMX decoder
|
|
Output Power
|
12*3W
|
|
Luminous Flux Output
|
80-90LM/W Epistar, 90-100LM/W for CREE
|
|
Rendering Index
|
>70Ra(white color)
|
|
Body size
|
W45*H62*L1000mm (H105mmwith bracket)
|
|
Beam angle
|
10--90degree or 15*80/ 10*45degree (confirm with client)
|
|
Light source
|
High power 1W Epistar LED/CREE LED
|
|
Operating temperature
|
-35~ +45 Degrees Celsius
|
|
Storage temperature
|
-30~ +65 Degrees Celsius
|
|
Color optional
|
White(2700-6500K), Red, Yellow, Green, Blue, RGB
|
|
Housing material
|
6063 Aluminum
|
|
LED’s Operating Life
|
≥45,000Hours
|
|
IP rate
|
IP65
|
|
Cable wire
|
1 meter 2core/3core/4core female-male cable
|
|
RGB Control way
|
Auto color change /DMX512 controllable
|
Features of 36W IP65 LED Wall Washer RGB DMX512 Control

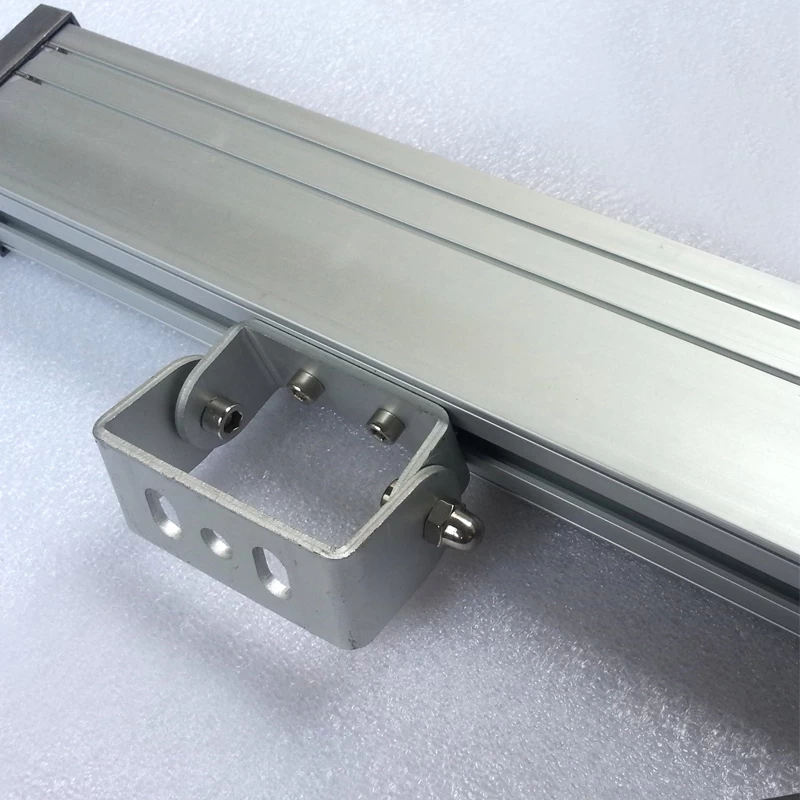

1. High quality die-casting Aluminum light body, be oxidized beauty and good heat dispersing performance. Private mold for all lamp housing.
2. Sealing up the tempered glass with silicone gaskets to reach IP65 waterproof rate. No waterproof glue inside of lamp. You can replace PCB with led freely once problem happened.
3. Using super-brightness and high power led chips. Built-in constant voltage power supply driver .
4. PMMA optical lens. with beam angle 8 -90 degrees. Achieve different floor requests.
5. Working voltage is: DC 24V,or AC110V-240V.
6. Single color with steady-on; Auto-control color change synchronously .DMX512 controllable system.
7. Long life, up to 45,000 hours.
Applications for 36W IP65 LED Wall Washer RGB DMX512 Control
Apply to Building, indoor or outdoor lights, Flooding for the landscape structure to outstanding building character. Hotels, airport, Metro. etc
