Working Principle of 808nm diode laser hair removal
Using selective light absorption, the Diode 808nm laser is preferentially absorbed through the melanin from the hair. The light energy is adopted through the hair follicle and transformed into heat energy, and minimal energy is used in your skin. This preferentially heats your hair reducing the risk of new hair growth. Special cooling technologies are applied concurrently during treatment to cool your skin and keep the skin safe.
The Diode 808 laser permanently reduces hair on all skin tones, including very fair skin and olive or African-American skin. Therapy are best on medium to dark hair on any type of skin.
Technical Parameters of 808nm diode laser hair removal machine
|
Laser type
|
808nm Diode Laser hair removal machine
|
|
Wavelength
|
808nm± 10nm
|
|
Laser Power
|
500W
|
|
Pulse Width
|
10ms~300ms
|
|
Repetition Rate
|
1Hz~10 Hz
|
|
Energy Fluence
|
0~40J/cm2
|
Beam Type
|
Collimated
|
|
Skin Cooling
|
Micro Channel Cooling + TEC +Sapphire (< 5 C)
|
|
Laser Window
|
13mm*13mm
|
|
Laser Cooling Liquid
|
Purified Water
|
|
Handle Piece Flow Rate
|
2~3 L/min
|
|
Handle Life Time
|
10,000,000 shots
|
|
Pedal Switch
|
support
|
|
Environment Temperature
|
5~28 C
|
|
Environment Moisture
|
< 80%
|
|
Input VAC
|
AC 220V /50 – 60 Hz(AC 110V optional)
|

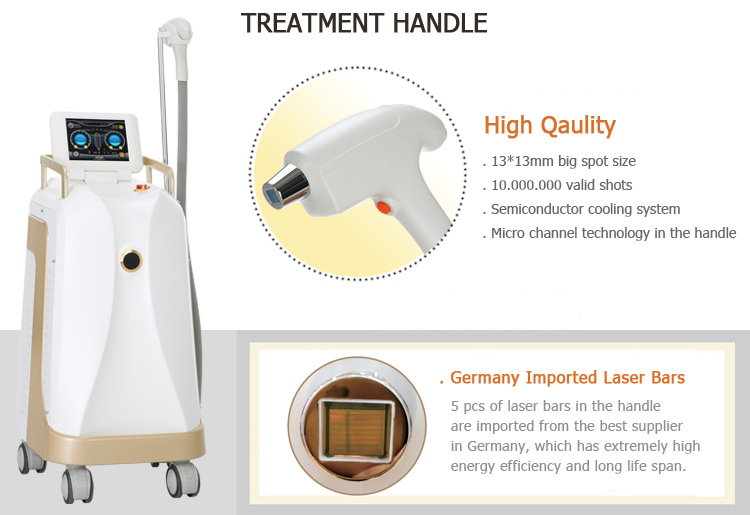

Handpieces of 808nm Diode Laser
– Germany imported bars
– Micro channel skin cooling technology
– Long working time of handpieces up to 10000 hours
– Manufacturing in dust-free environment ensure high quality
Handpiece of standard version
Handpiece of special version
Advantages of 808nm diode laser hair removal machine
1. The newest microchannel technology for skin cooling.
2. The advanced filtration system will alarm to protect water circulation and handle system when the ion contend is more than 5.
3. Self-test system makes sure the machine working properly and ensure a longer lifespan of the machine.
4. Five Germany imported diode laser bars inside the handle.
5. Germany imported waterway fitting
6. Long lamp pulses: 10000 hour pulses.
7. Easy to maintain – The testing system will make the machine stop working and warn you which part is breaking down if something wrong happens.
808 Diode Laser Hair Removal Treatment Before and After
