MCT specialized in manufacturing coil type products and filters products,50A precision current transformer hot selling, custom made available!
Quick Details
|
Part No: MCT14A50 Precision Current Transformer
|
|
Brand name: MCT
|
|
Operating temperature：-40°C~50°C
|
|
Custom made: Available
|
|
Storage temperature:-40°C~70°C
|
|
Logo: Can be customized
|
|
Relative humidity:10~95%
|
|
Packing: Carton, can custom
|
|
Rated input current:50A
|
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
|
OEM: Available
|
|
Lead time: 25 days after payment
|
|
Shipping: Air, Ship, etc
|
Part Information

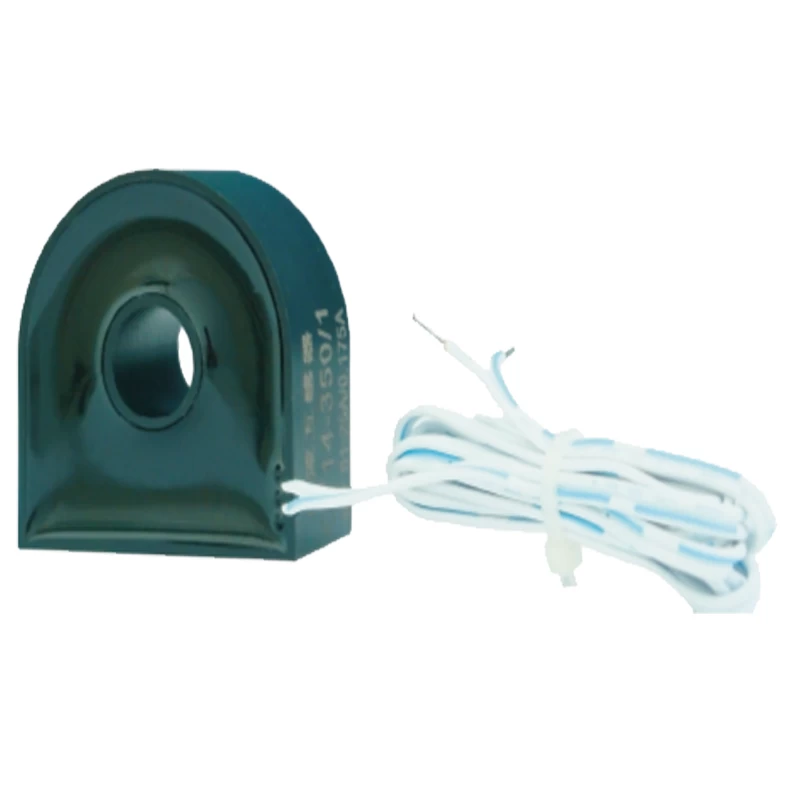

Product Name: 50A Precision Miniature PCB Mount Current Transformer
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Specification
|
MCT PN
|
Rated IN/OUT
|
Accuracy
|
Linearity Range
|
Phase shift
|
Load resistance
|
Isolated withstand voltage
|
Threading aperture,
Unit:mm
|
|
MCT14A50A
|
50A/5mA
|
0.2
|
0~100A
|
≤10’
|
≤500Ω
|
3000V
|
Φ13.5
|
|
MCT14A50B
|
50A/1A
|
0.2
|
0~60A
|
≤10’
|
≤0.1Ω
|
3000V
|
Φ13.5
|
|
MCT14A100
|
100A/1A
|
0.2
|
0~100A
|
≤10’
|
≤0.1Ω
|
3000V
|
Φ13.5
|

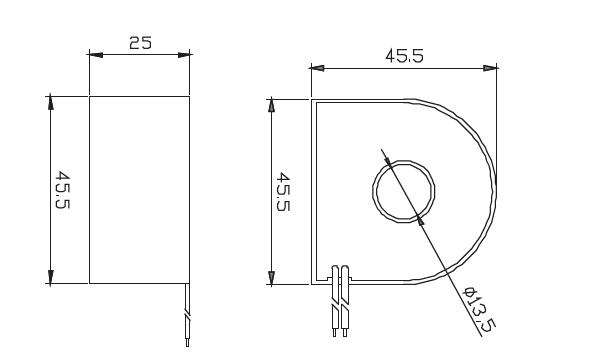

Dimension：mm
Notification
Power supply is needed when operational amplifier is added to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PPM.
Welcome customized type requirements.
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
