Insulated sandwich panel features
☆ Glass wool wall panels can be in various colors,while respecting the most demanding thermal and fire regulations;
☆ Non combustible facade adapted for public buildings and for logistics ;
☆ Length available:2m~11.95m,according to container size;
☆ Different kinds of surface ribs of panels for your choices.

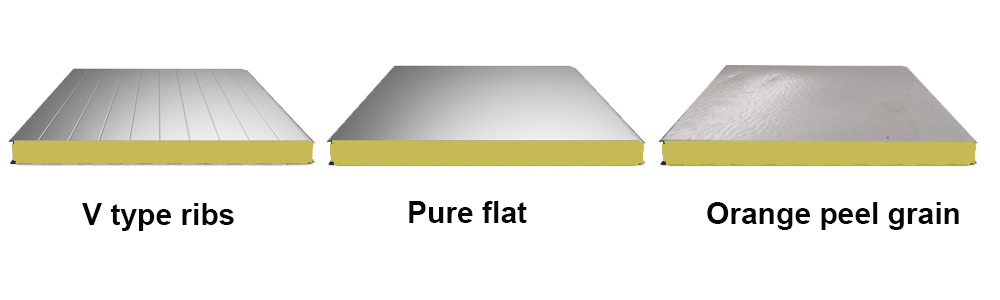

Metal sandwich panel surface ribs
This sandwich panel cladding has 3 kinds of surface treatment: V type corrugated ribs,pure flat and orange peel grain.All this three types are directly processed by our equipment.You can following your project requirement,and choose which one is suitable.
Sandwich panel dimensions
|
Product name
|
50mm fiberglass sandwich panel wall
|
Remark
|
|
Effective width
|
950/1150 mm
|
|
|
Panel thickness
|
50 mm
|
Other thickness for roof:
|
|
|
|
75, 100, 150, 200 mm
|
|
Surface sheets
|
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel/ PVC sheet
|
|
|
Steel thickness
|
0.35 - 0.70 mm
|
|
|
Aluminum sheets/ Al-Mg-Mn alloy metal sheets
|
0.70 - 1.20 mm
|
|
|
Stainless steel
|
0.40 - 0.60 mm
|
|
|
Core material density
|
48 - 68 KG/M³
|
|
|
Regular panel color
|
White grey, Sea blue, Sliver grey, Dk grey, Iron grey
|
Color could be customized too.
|
|
Coating type choice
|
PE/ PVDF/ HDP/ SMP, etc.
|
|
|
Available length
|
20FT container: ≤ 5.95m
40FT container: ≤ 11.95m
|
|
Sandwich panel cladding use

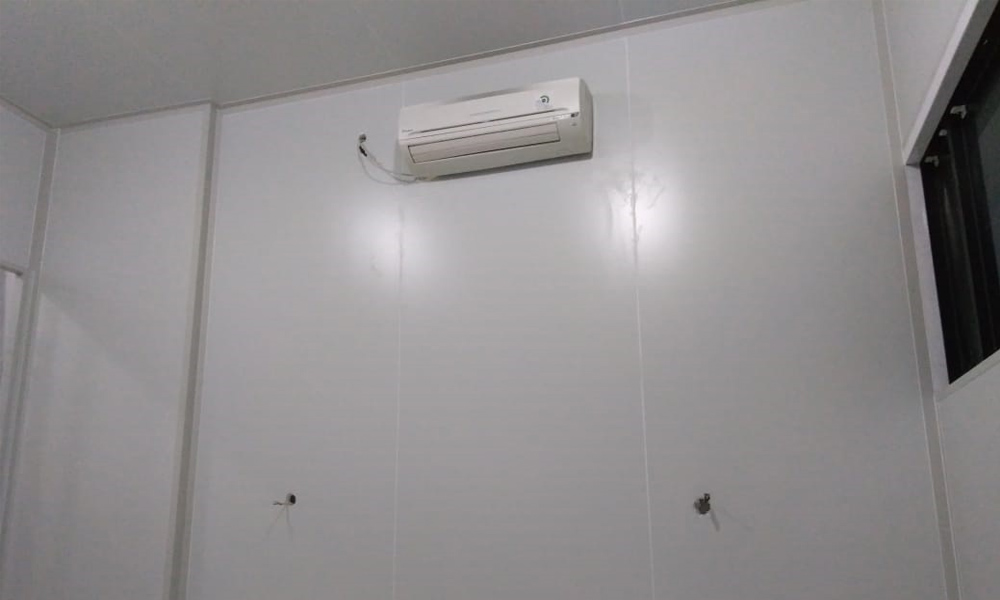

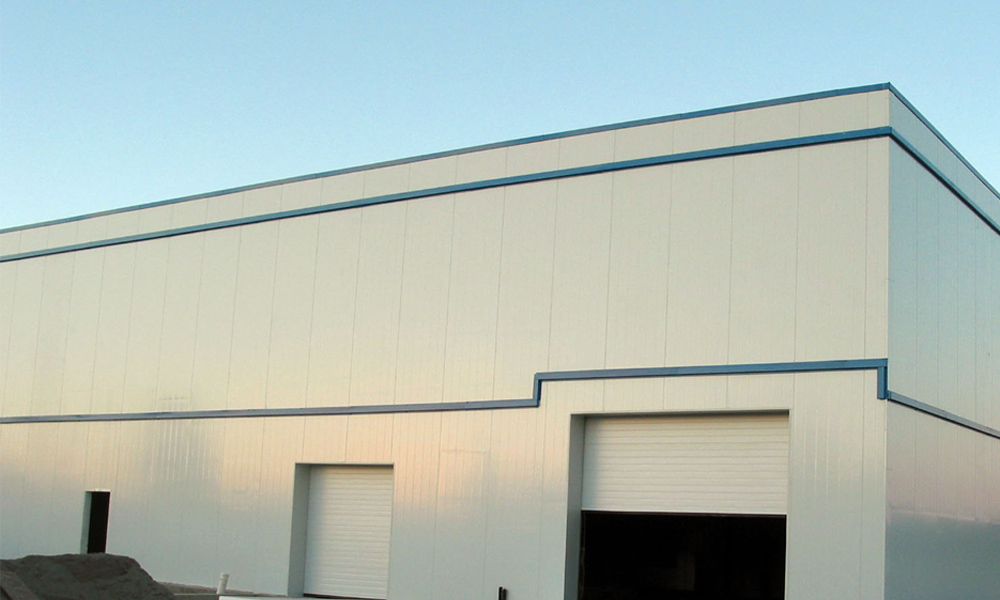

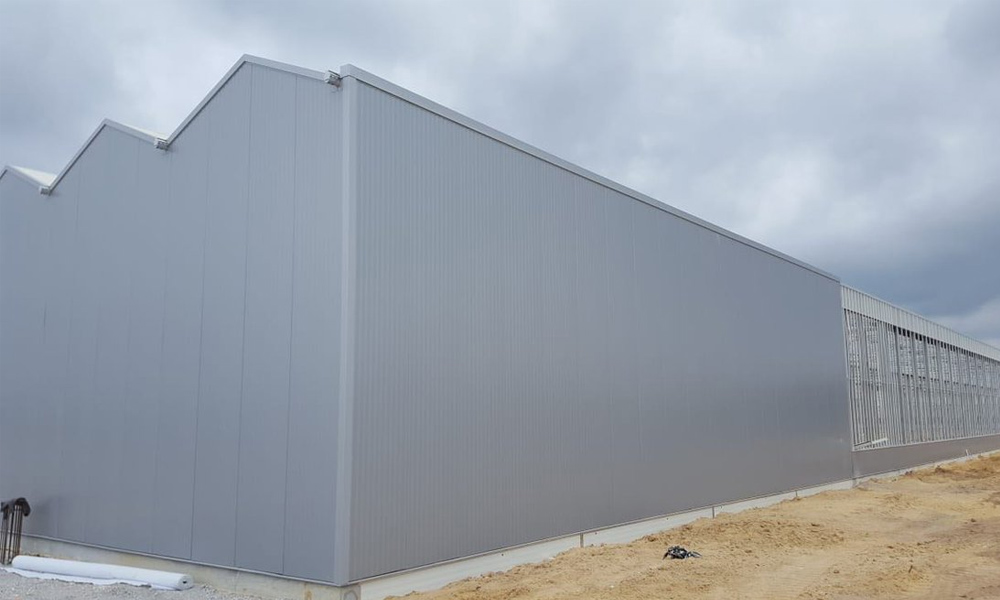

The glass wool wall sandwich panels can be used for storage room,industrial plants,prefab houses,container houses,steel warehouses,steel buildings,clean room,etc.
Thermal transmittance coefficient U value of wall panels
|
Panel thickness(mm)
|
50
|
75
|
100
|
150
|
200
|
|
U(W/m²·K)
|
0.97
|
0.55
|
0.40
|
0.26
|
0.20
|

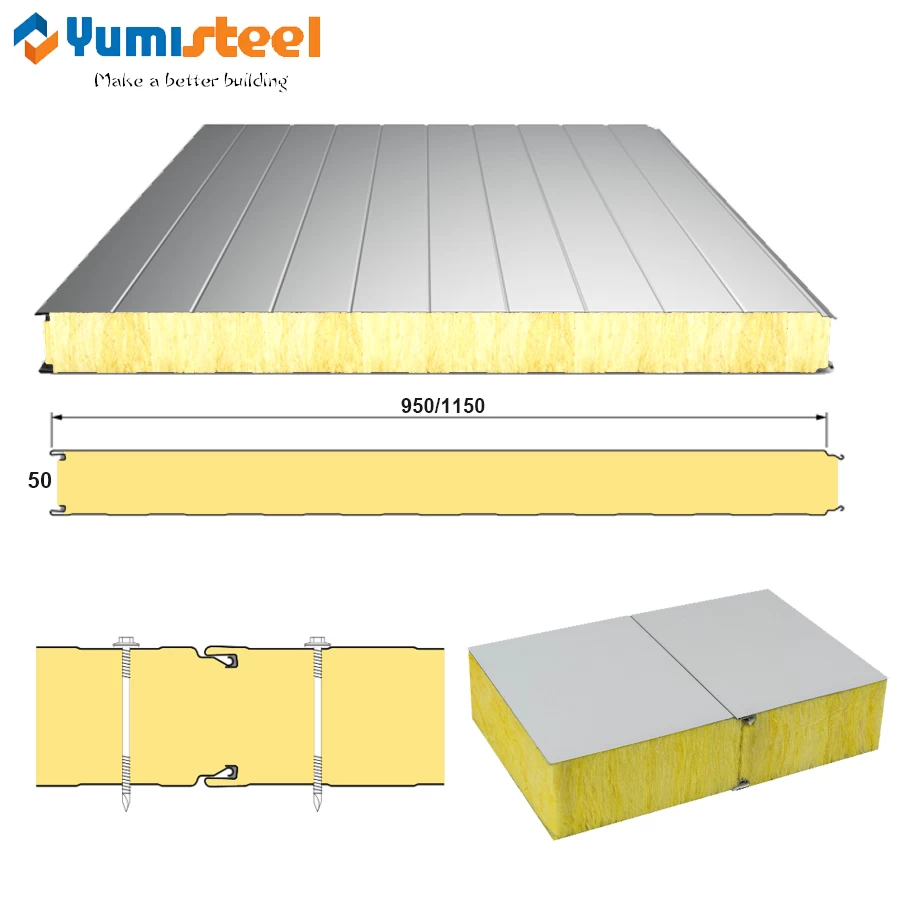

Steel wall sandwich panel rendering
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
