Sandwich panel wall features
☆ EPS insulated wall panel can offer economic solutions for your buildings.;
☆ EPS panel is environment-friendly, anti-bacterial, and lightweight;
☆ Especially for economic projects which do not require long life, for example,container offices and prefabricated temporary buildings;
☆ EPS insulated panels can also offer a modern and aesthetic appearance with lined and micro lined surface type alternatives, and wide range of colors.

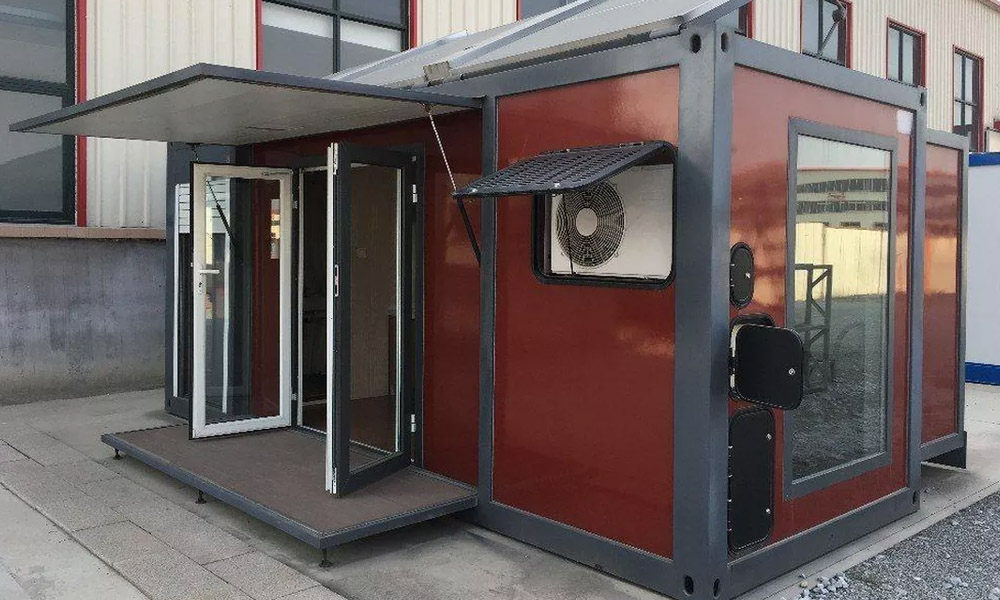

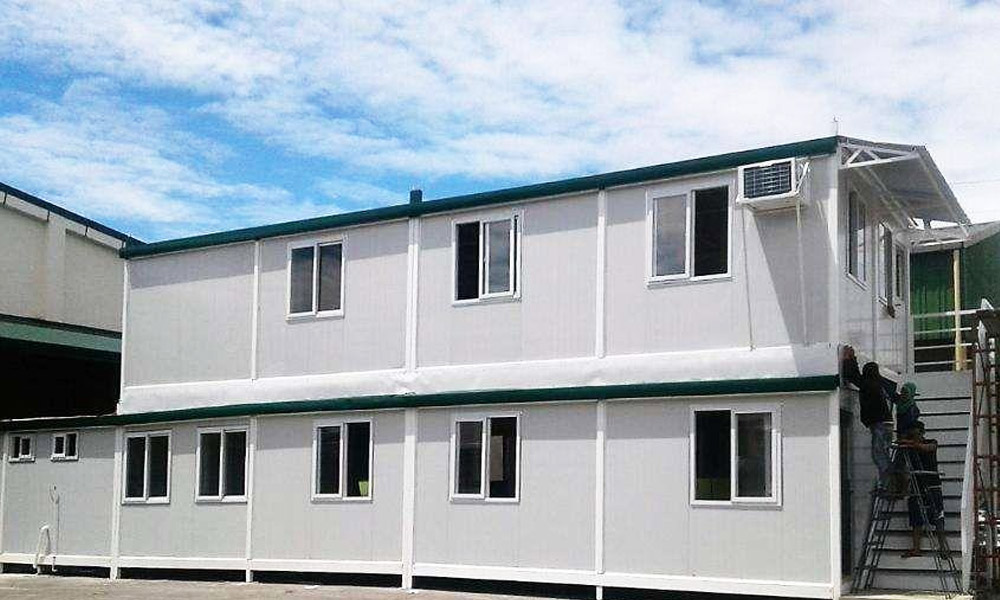

Precast sandwich panel wall application
EPS wall sandwich panels are especially for economic projects which do not need long life, such as,cheap container houses for offices,dormitories or prefab temporary buildings in construction site.It can save a lot of cost,with using EPS wall panels.

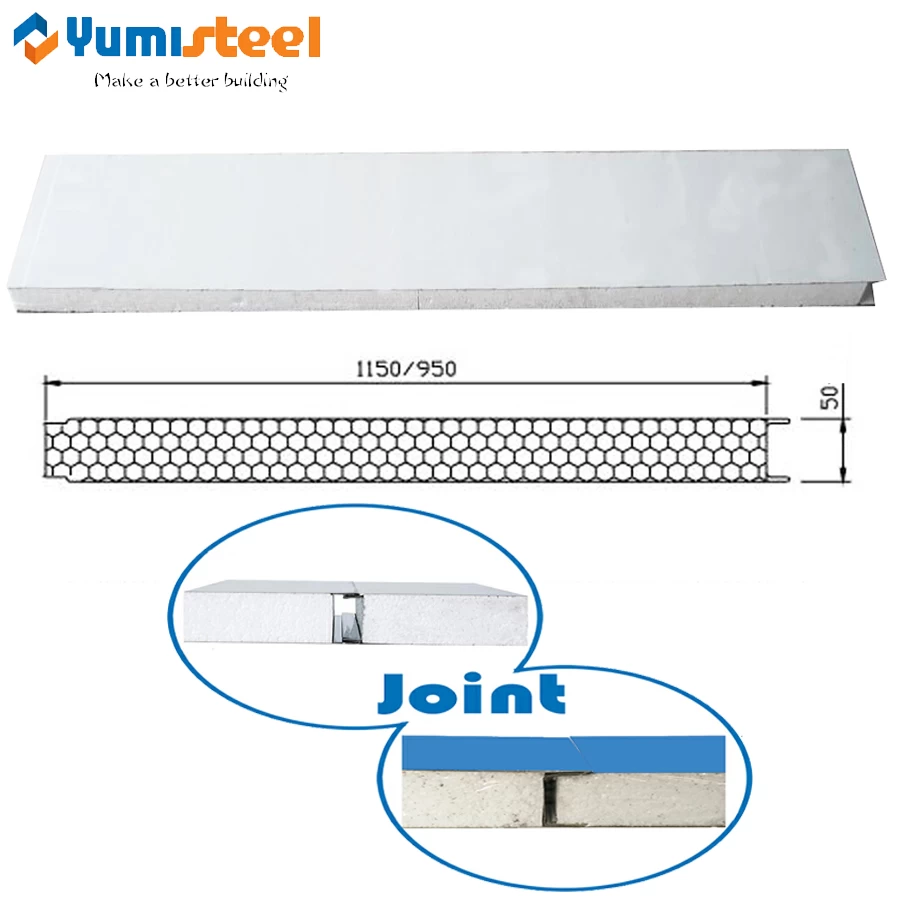

Two joint ways of wall panel difference
☆ Joint way with space:
Because there are two steel strips on two end of metal wall sandwich panel,panel connection has gap.With side steel strips,it can ensure panel strength,but when you require high air tightness,this panel can meet up your requirement well.
☆ Joint way without space:
This joint way is with one steel strip or without steel strip,but it's without gap,which make the panel air tightness more better.
Insulated metal wall panels specifications
|
Product name
|
50mm EPS insulation sandwich wall panel
|
Remark
|
|
Effective width
|
950/1150 mm
|
|
|
Panel thickness
|
50 mm
|
Other thickness for roof:
|
|
75, 100, 150, 200 mm
|
|
Surface sheets
|
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel/ PVC sheet
|
|
|
Steel thickness
|
0.40 - 0.70 mm
|
|
|
Aluminum sheets/ Al-Mg-Mn alloy metal sheets
|
0.70 - 1.20 mm
|
|
|
Stainless steel
|
0.40 - 0.60 mm
|
|
|
Core material density
|
8 - 20 KG/M³
|
|
|
Regular panel color
|
White grey, Sea blue, Sliver grey, Dk grey, Iron grey
|
Color could be customized too.
|
|
Coating type choice
|
PE/ PVDF/ HDP/ SMP, etc.
|
|
|
Available length
|
20FT container: ≤ 5.95m
40FT container: ≤ 11.95m
|
|

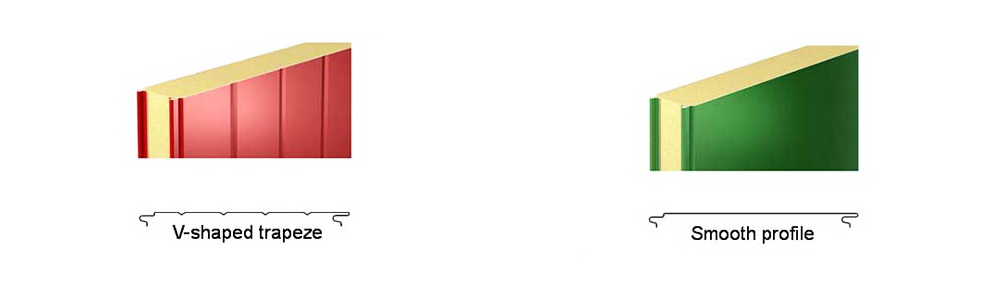

Sandwich panel wall surface ribs
EPS wall sandwich panels have two kinds of surface treatments,V shaped trapeze and smooth profile.You can choose as per your need.
Sandwich panel ceiling renderings
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
