Pu foam wall panel features
☆ We have different joint types of PU wall panel for your choice;
☆ No matter horizontal or vertical installation way,our PIR/PUR wall cladding panels can meet up your requirement;
☆ Pu panel has superior mechanical resistance and insulation performance;
☆ High panel strength to ensure less damage,when wall cladding insulation installation;
☆ Excellent waterproof performance than any other wall sandwich panels type.
Decorative wall cladding panel types & application
☆ Tongue and groove joint polyurethane wall sandwich panels type:

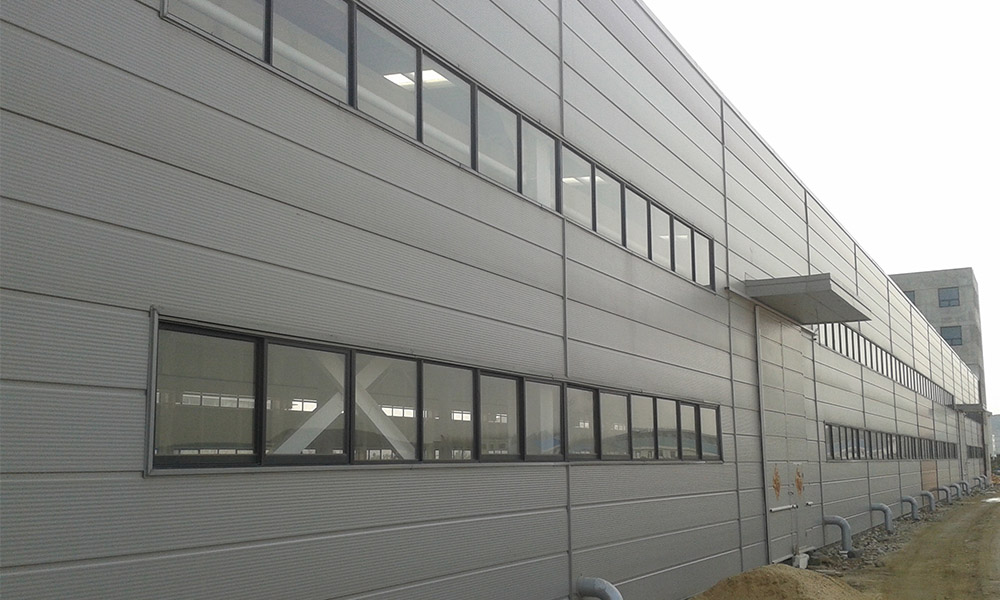

Normally this metal wall panel type is vertical installation,and it's typically a cold room panels type.The PU foam wall sandwich panels are widely used in cold storage industry,steel structure buildings,office buildings,etc.
☆ Concealed joint PUR/PIR wall panels type:

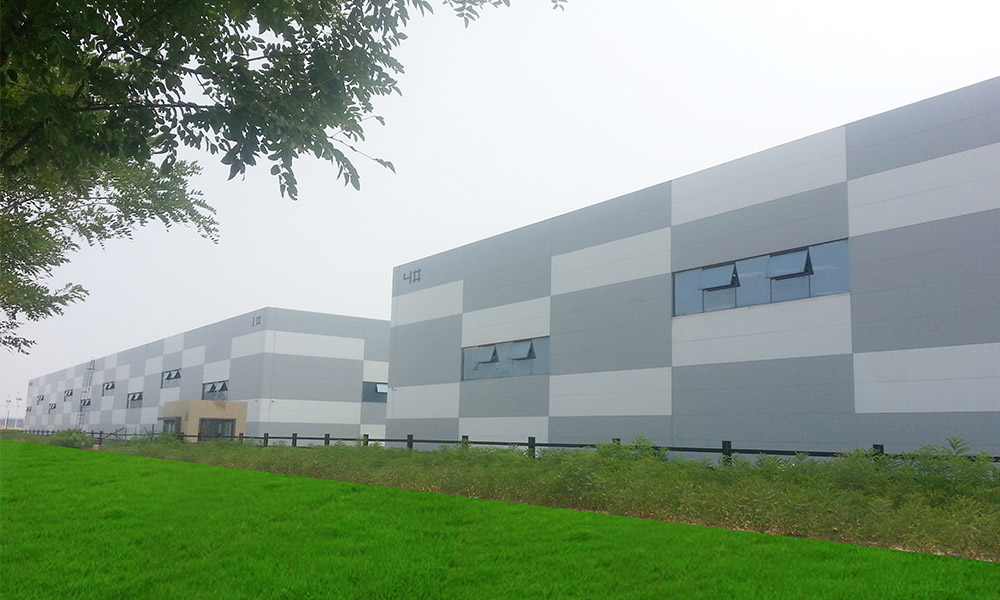

This metal panel can be with 1 or 2 cm wide or without decorative seam,it's up to your project design request.The wall panel cladding has great potential and it can bring you stunning architectural effects depending on the design requirements.So most of modern and fashion buildings choose this type,in order to get the architectural effects they went.
Insulation wall panels specifications
|
Product name
|
50mm PU foam insulation sandwich wall boards
|
Remark
|
|
Effective width
|
930/1000/1120 mm
|
|
|
Panel thickness
|
50 mm
|
Other thickness for roof:
|
|
|
|
30, 35, 40, 60, 75, 100, 120, 150, 200, 250 mm
|
|
Surface sheets
|
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel/ PVC sheet
|
|
|
Steel thickness
|
0.40 - 0.70 mm
|
|
|
Aluminum sheets/ Al-Mg-Mn alloy metal sheets
|
0.70 - 1.20 mm
|
|
|
Stainless steel
|
0.40 - 0.60 mm
|
|
|
Core material density
|
40 - 42 KG/M³
|
|
|
Regular panel color
|
White grey, Sea blue, Sliver grey, Dk grey, Iron grey
|
Color could be customized too.
|
|
Coating type choice
|
PE/ PVDF/ HDP/ SMP, etc.
|
|
|
Available length
|
20FT container: ≤ 5.95m
40FT container: ≤ 11.95m
|
|
Composite sandwich panel wall rib types
There are 4 types of panel surface profiled for your choices.Trapeze, Micro profiling, V-shaped trapeze, Smooth profile.
☆ Trapeze,is also called wide ribs,or linear;
☆ Micro profiling is also called micro ribs,or corrugated ribs;
☆ V-shaped trapeze is also known as V wide ribs,or grooved ribs;
☆ Smooth profile is know as pure flat,or no profiling,too.

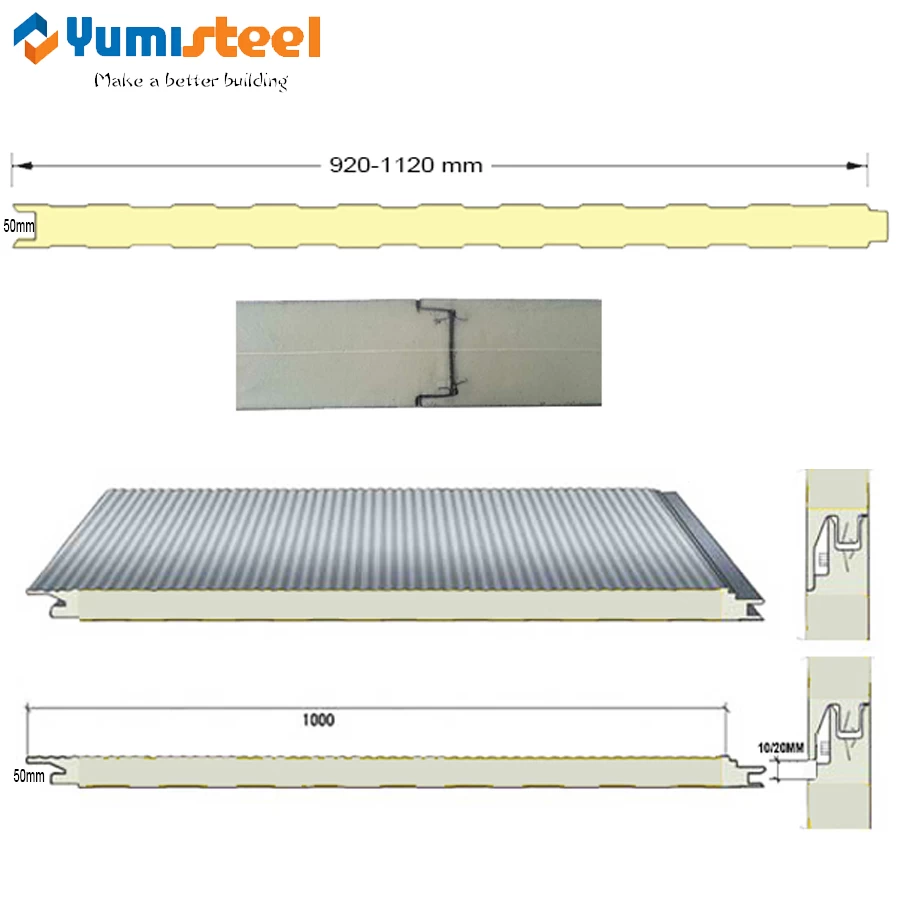

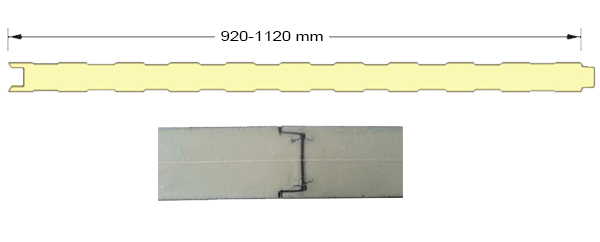

Tongue and groove joint metal wall panel renderings

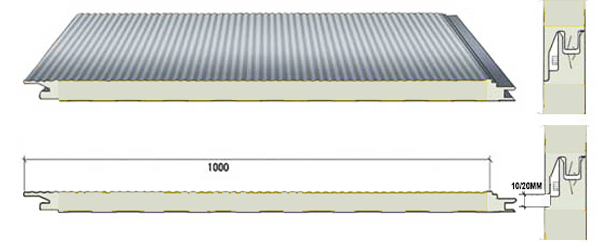

Hidden screws joint PIR wall panel renderings
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
