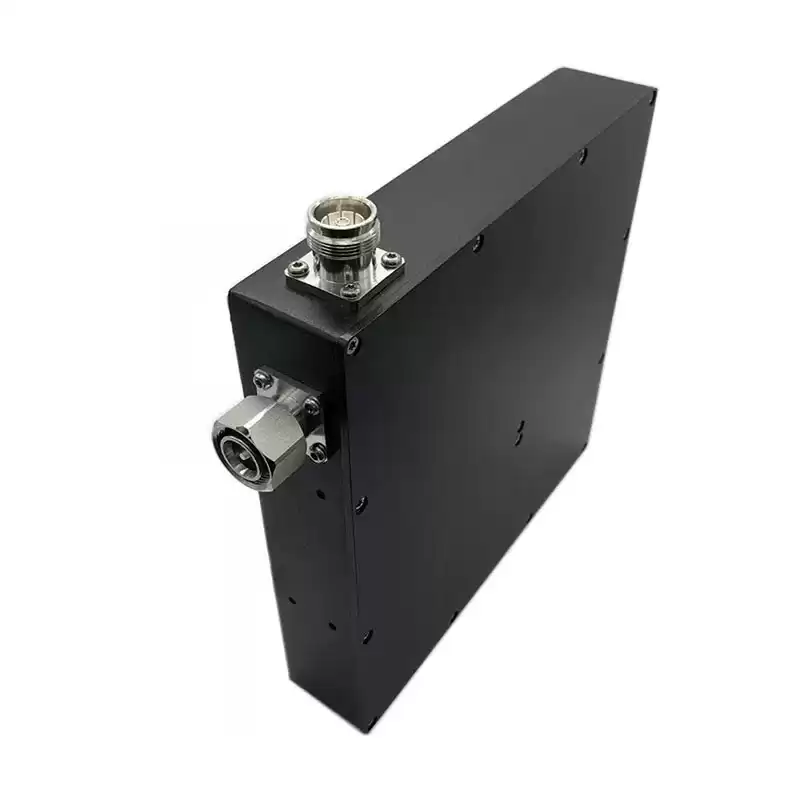

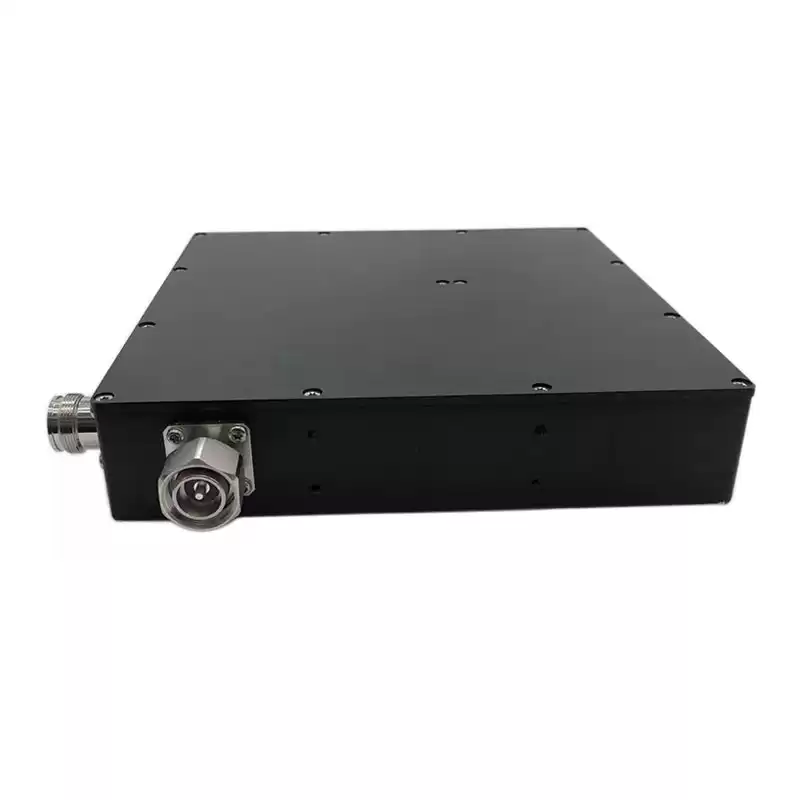

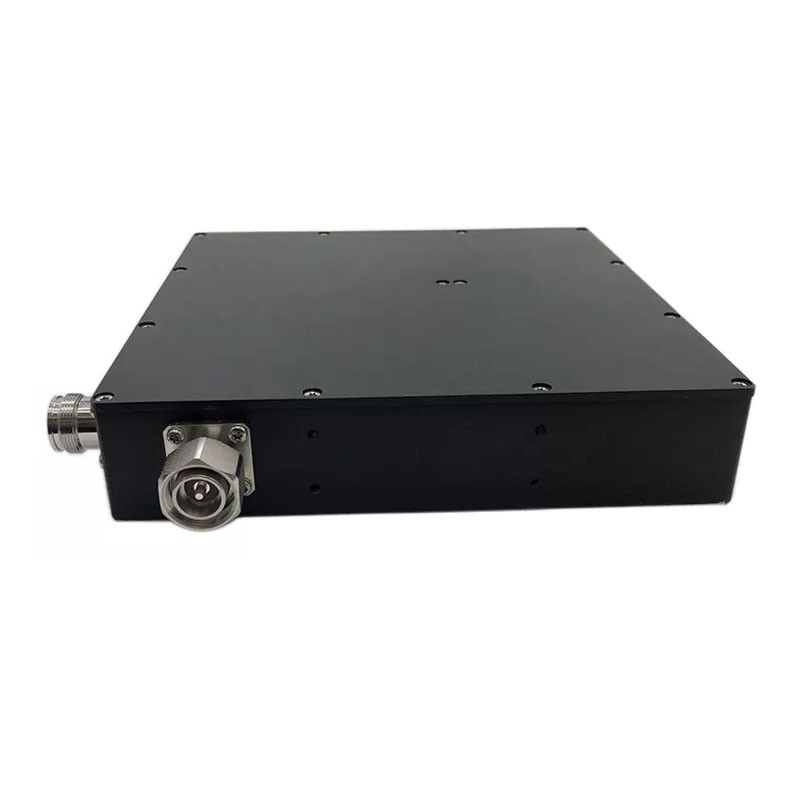

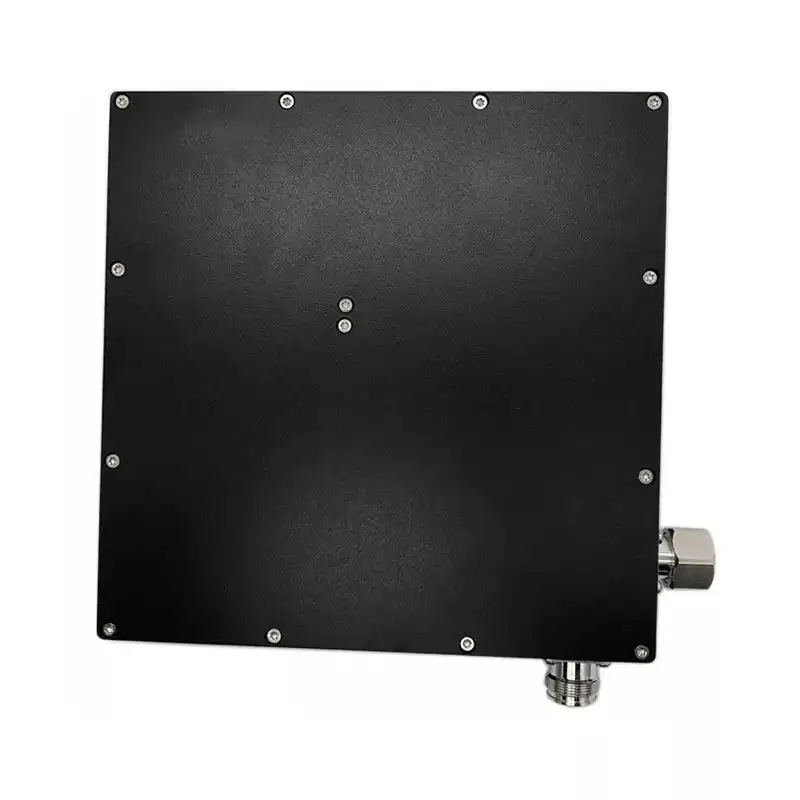

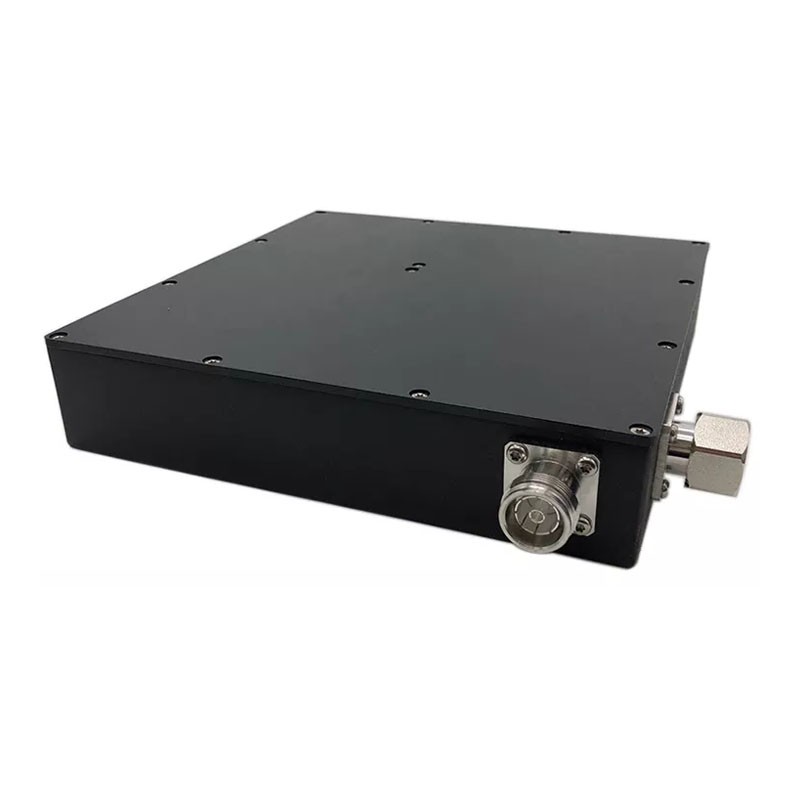

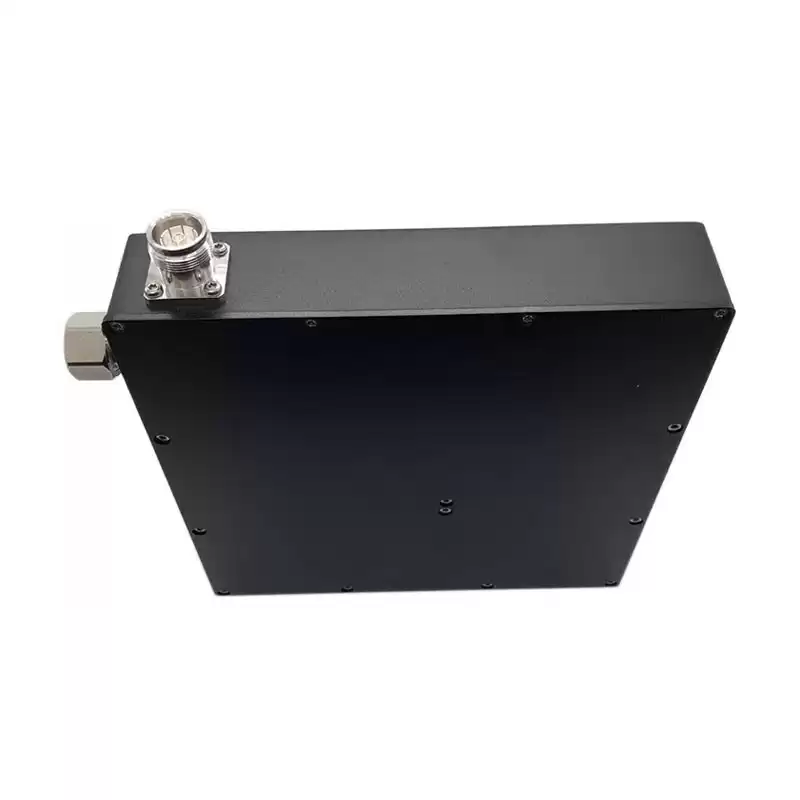

50W 10dB RF Coaxial Attenuator Low Pim 698-3800MHz RF Attenuator with 4.3-10 Female to Male Mini Din Connector
4.3-10 Attenuator Features：
- 4.3-10 connector input, out connector can be 4.3-10 or N;
- Maximum frequency of 18GHz;
- A male gender in and a female gender out;
- Attenuation values range from 1dB to 40dB.
50W 10dB RF Coaxial Attenuator Low Pim 698-3800MHz RF Attenuator with 4.3-10 Female to Male Mini Din Connector
The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 4.3-10 Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 100W 4.3-10 to 4.3-10 Attenuator has a 4.3-10 male gender on side 1 and a 4.3-10 female connector on side 2. attenuation Max value is 20dB, frequency Max is 6GHz.
Specifications
| ELECTRICAL DATA | |
| Frequency | DC~3GHz/4GHz |
| Connector | 4.3-10 Female to N Male |
| VSWR | ≤1.2 |
| Power | 50W |
| Impedance | 50Ω |
| Attenuation value | 1-20dB |
| Attenuation | 3, 5, 6, 10, 15, 20dB is available 1-10dB.±0.5dB,15-20dB±1dB |
| Temperature Range | -55℃～+125℃ |
| MATERIAL DATA | |
| Connector body | Brass,Plating Ni |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze ,Plating Au |
| Housing | Aluminum,Black |
Applications
- Mobile Communication
- Network Optimization
- In-door distribution system
- Satellite communication
- Shortwave communication
- Hopping radio
