50W-150W LED Solar Garden Light for Outdoor
This product is IP65 protection grade solar garden light, which is easy to install and maintain. Besides, adopt domestic famous brand SMD-2835 light source, which has high brightness, small light attenuation and longer service life.
In the power supply adopt high-stability isolated constant current power supply scheme, it has the characteristics of over-temperature protection, wide voltage range, high power factor, high efficiency and good heat dissipation effect. In the heat sink, adopt high-purity aluminum radiator solar garden light with high thermal conductivity. The radiator is specially designed, taking aerodynamics and hydromechanics into full consideration, maximizing the heat dissipation area and the efficiency of heat exchange with cold and hot air, so that the heat generated by the light source can be efficiently emitted and the reasonable temperature can be maintained, thus ensuring the stability of the product function and prolonging its service life.
For application: LED solar garden light outdoor light is widely used for road lighting on one side or both sides of public places such as slow lanes, narrow lanes, residential quarters, tourist attractions, parks, squares, private gardens, courtyard corridors, etc.

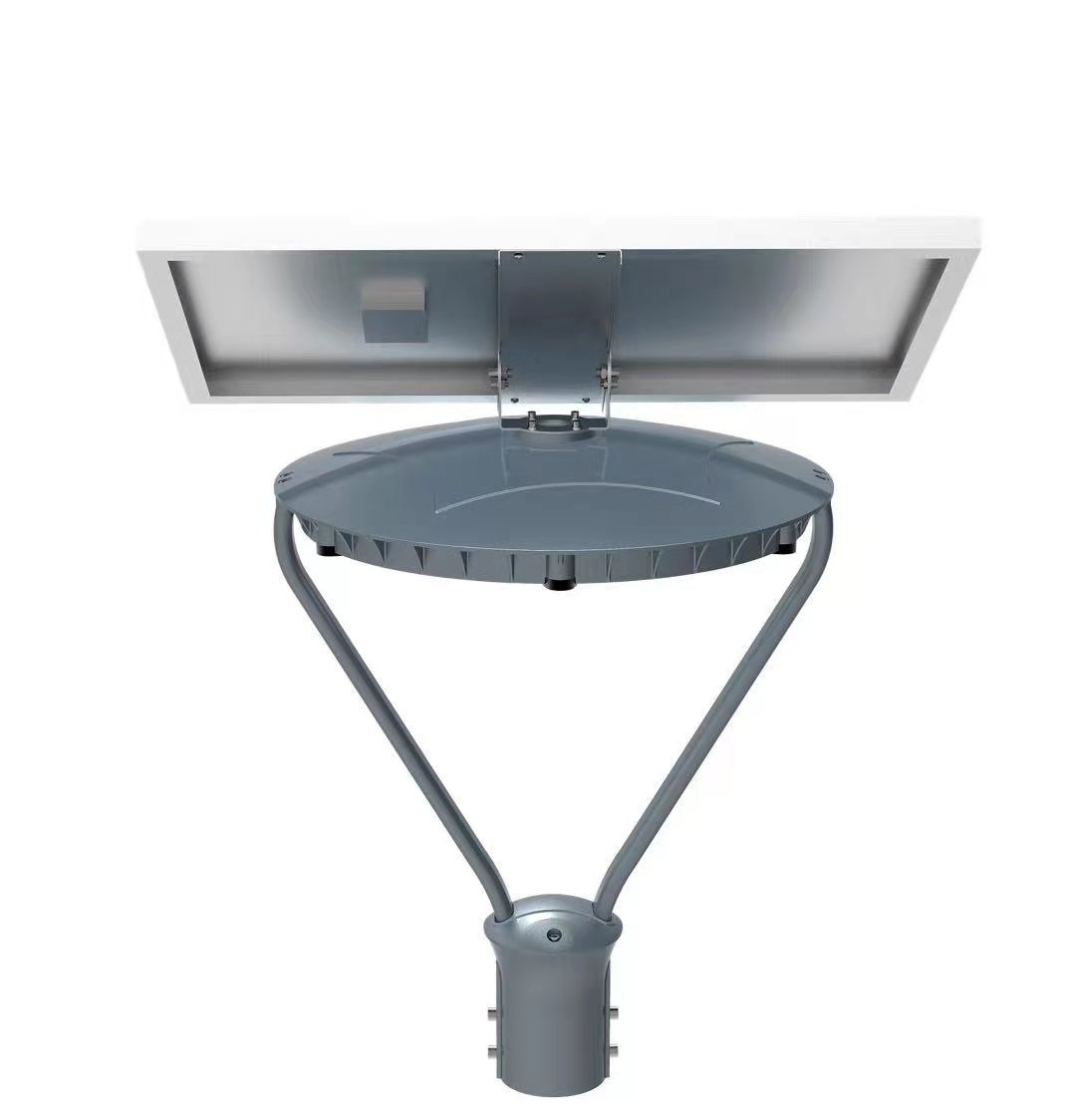

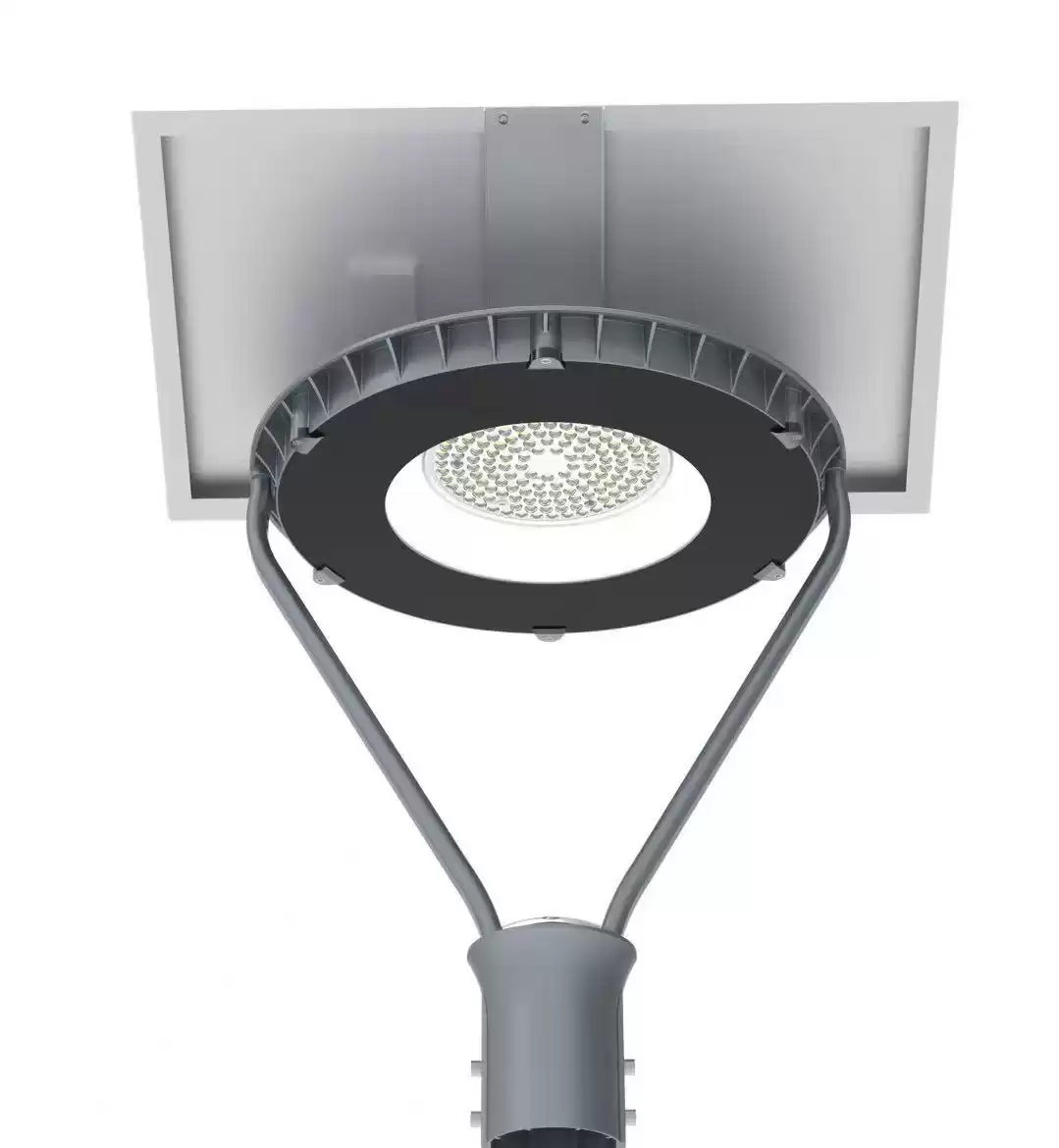

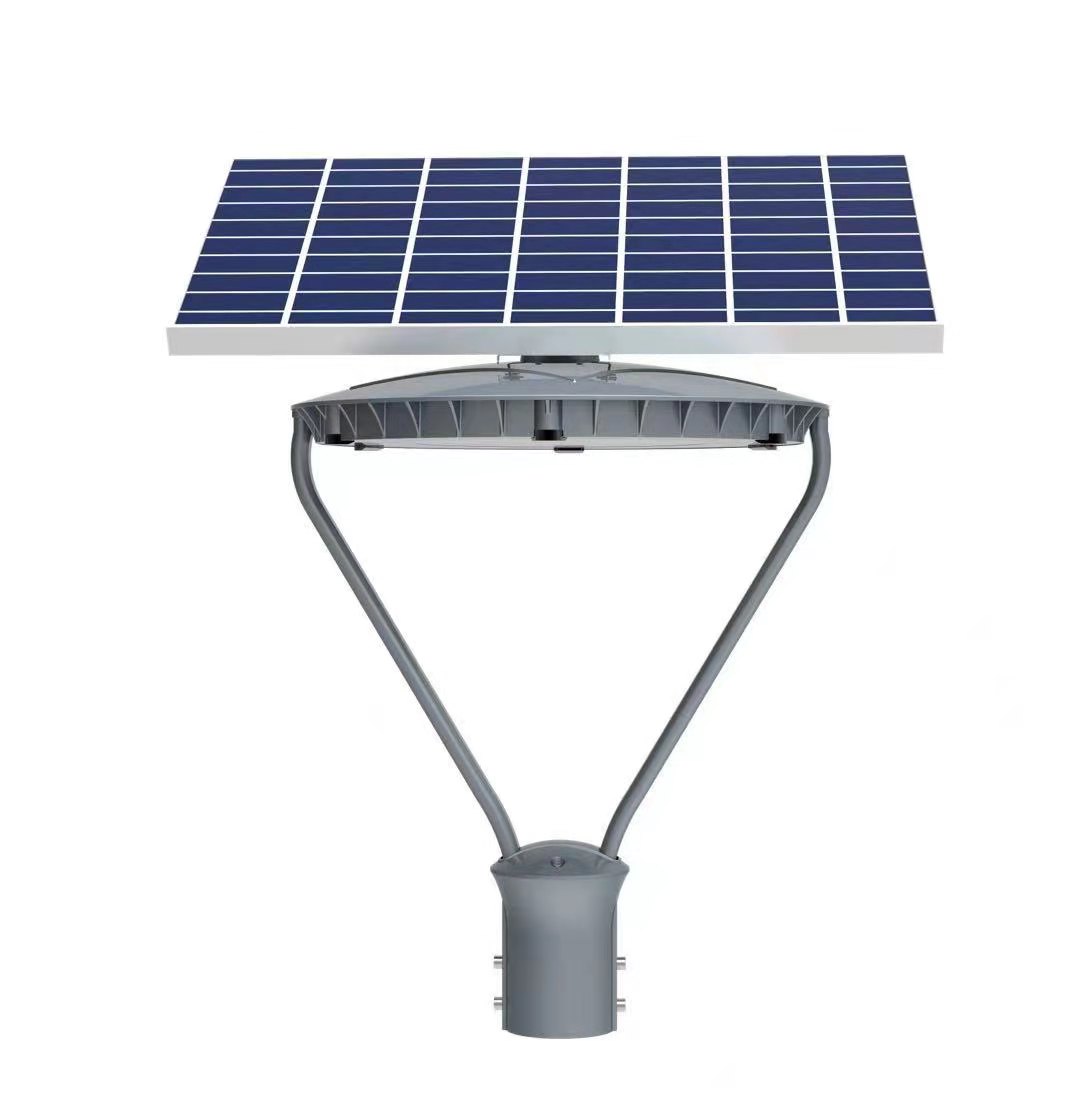

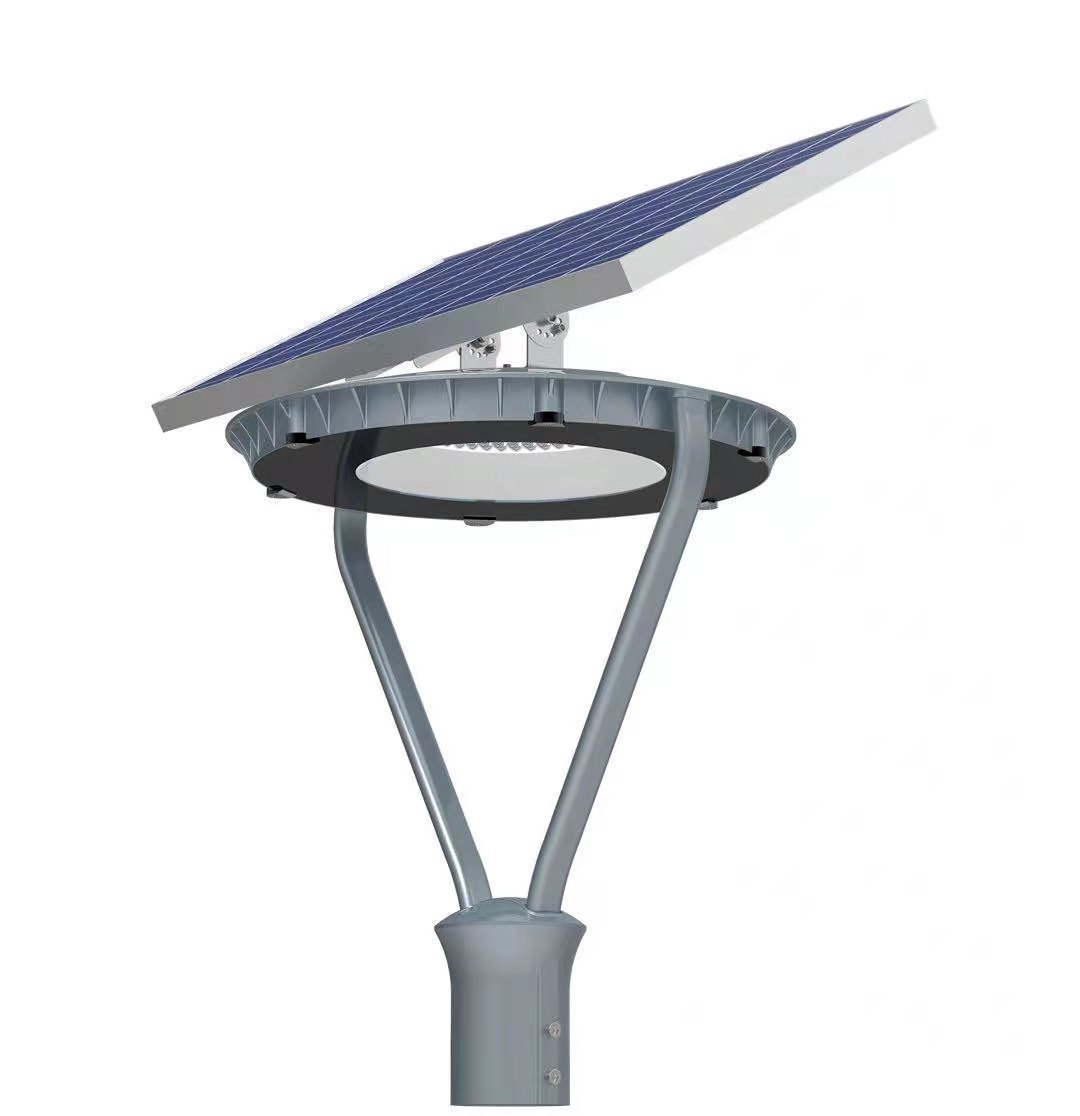

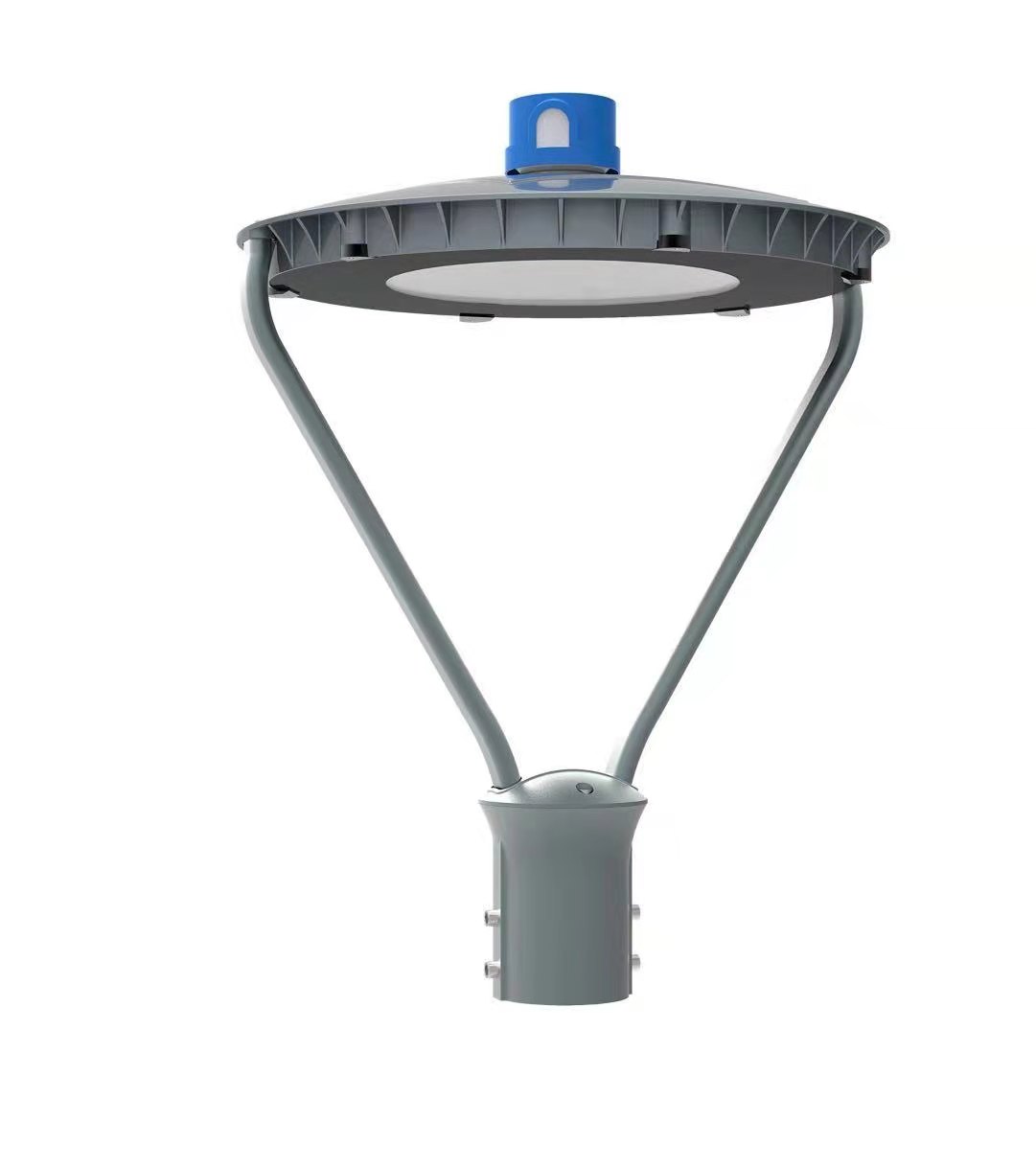

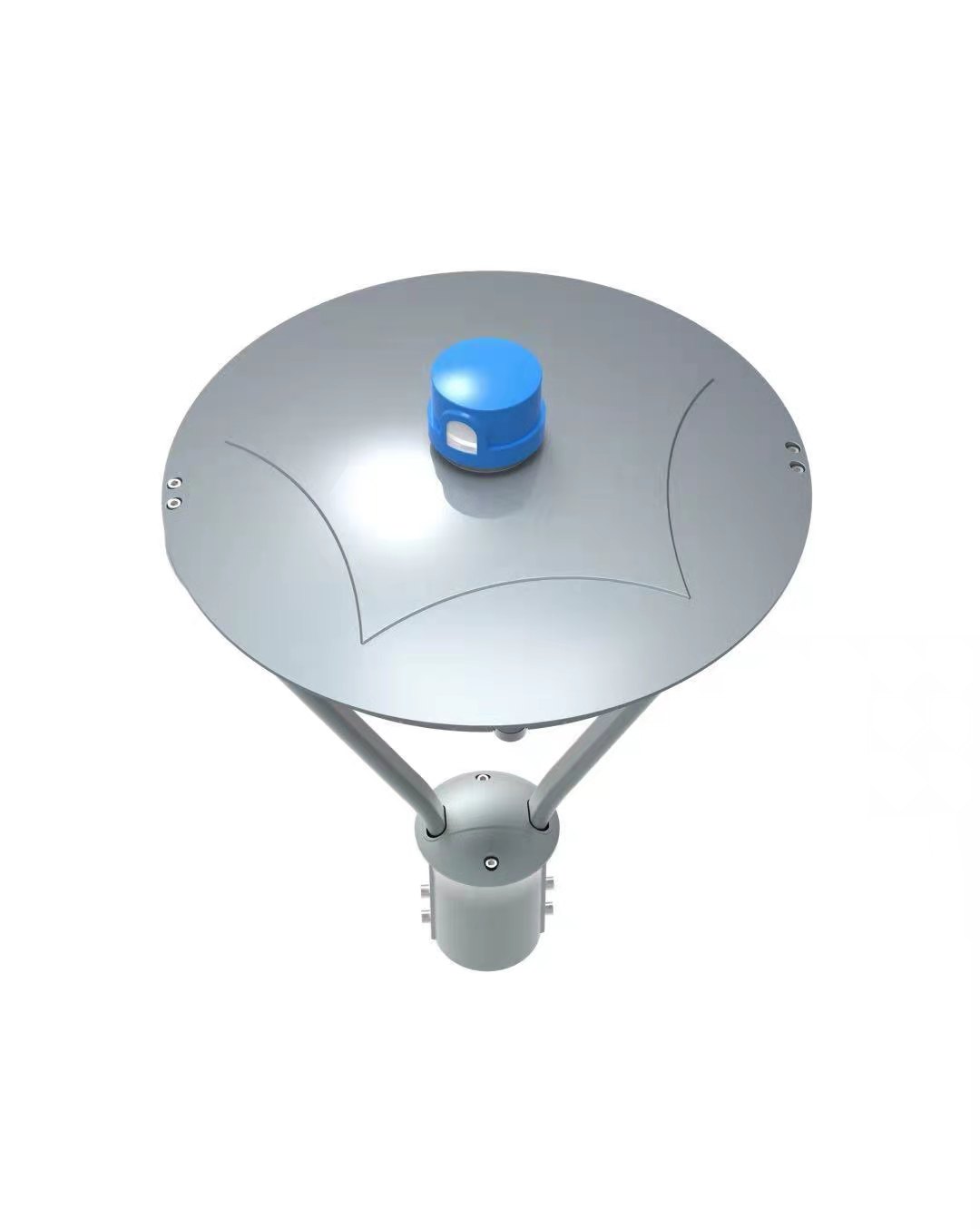

PRODUCT APPEARANCE
PRODUCT SPECIFICATION
|
Production No.
|
MS-SEGL1001D-50W
|
MS-SEGL1002D-100W
|
MS-SEGL1003D-150W
|
|
Power
|
50W±5%
|
100W±5%
|
150W±5%
|
|
Input voltage
|
AC 100-265V～50/60Hz
|
AC 100-265V～50/60Hz
|
AC 100-265V～50/60Hz
|
|
Light effect
|
110-120 lm/W
|
110-120 lm/W
|
110-120 lm/W
|
|
Luminous flux
|
11000-12000 lm
|
11000-12000 lm
|
11000-12000 lm
|
Luminous
|
5000LM
|
10000LM
|
15000LM
|
|
Material
|
AL+Tempered glass
|
AL+Tempered glass
|
AL+Tempered glass
|
|
Color temperature
|
6000k/4000k/3000k
|
6000k/4000k/3000k
|
6000k/4000k/3000k
|
|
Color rendering index
|
Ra＞70
|
Ra＞70
|
Ra＞70
|
|
Color tolerance adjustment
|
≤10SDCM
|
≤10SDCM
|
≤10SDCM
|
|
Power factor
|
≥0.95
|
≥0.95
|
≥0.95
|
|
THD
|
≤15%
|
≤15%
|
≤15%
|
|
Efficiency
|
≥88%
|
≥88%
|
≥88%
|
|
Working temperature
|
-25℃— 40℃
|
-25℃— 40℃
|
-25℃— 40℃
|
|
Service life
|
30000 H
|
30000 H
|
30000 H
|
|
IK/IP protection level
|
IK08/IP65
|
IK08/IP65
|
IK08/IP65
|
|
Insulation grade
|
Class I
|
Class I
|
Class I
|
|
Surge protection
|
4KV
|
4KV
|
4KV
|
|
Angle
|
120°
|
120°
|
120°
|
|
CRI
|
80 Ra
|
80 Ra
|
80 Ra
|
PRODUCT DIMENSION
PACKING INFORMATIONS
|
Production No.
|
MS-SEGL1002D-100W
|
MS-SEGL1003D-150W
|
|
External dimensions
|
Φ466.6mm*565.1mm
|
Φ466.6mm*565.1mm
|
|
Light sensing version size
|
Φ466.6mm*565.1mm
|
Φ466.6mm*620.4mm
|
|
Size of Carton
|
520mm*600mm*135mm
|
520mm*600mm*135mm
|
|
Gross weight
|
6.87 kg
|
7.03 kg
|
|
Net weight
|
5.50 kg
|
5.66 kg
|
