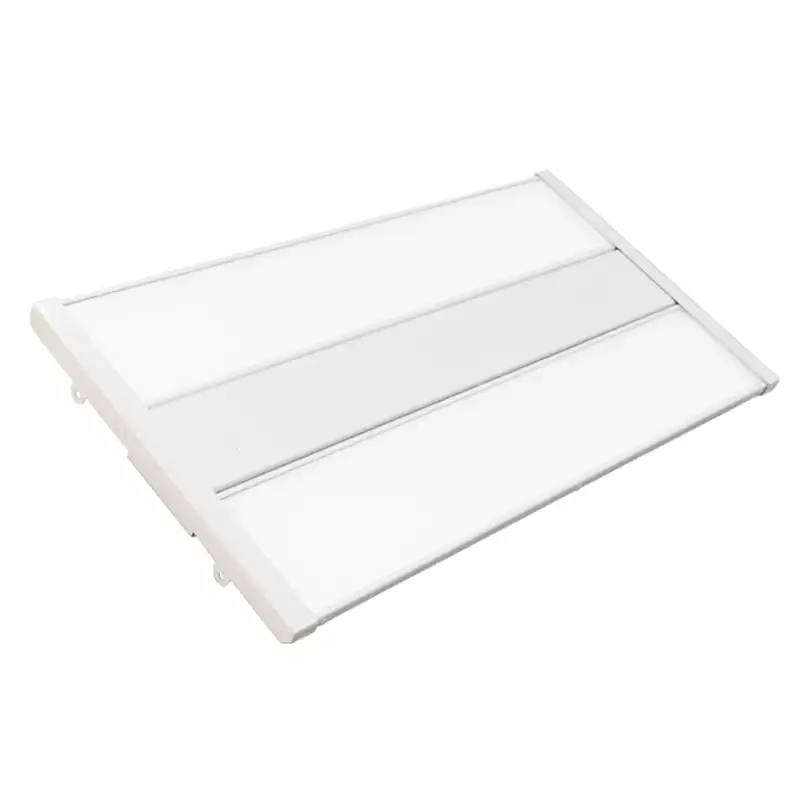

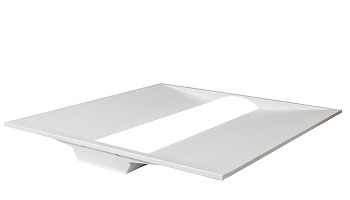

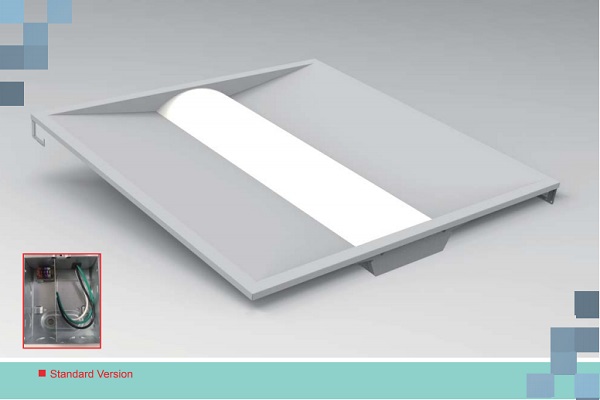

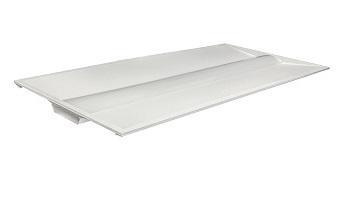

Recessed Commercial Troffer Light
This Center-basket designed troffer light provides a series of dark slots, which can be used in conjunction with MORSTAR wireless lighting control system to control fixtures. Intelligent educational troffer lighting also offers adjustable color temperatures that enable better control over spaces while simplifying project specification, ordering and installation – all while still achieving remarkable color quality and consistency.
In addition, this Troffer light with smart control delivers up to 6250 lumens of exceptional 80 CRI light while achieving up to 125 lumens per watt. Along with a variety of dimming options that increase energy savings and help meet local energy codes. Ideal for LED architectural lighting applications, these troffers are available in a variety of color temperatures.
PRODUCT SPECIFICATION
Efficacy: 125 lm/W
CRI: >80
Color Temperature: WW:3465±245K; NW:3985±175K; DW:5028±285K
Input Voltage: 100-277V
|
SPECIFICATION
|
HTF301E22CP
|
HTF302E24CP
|
HTF303A22AP
|
HTF304A24AP
|
HTF305A22AP
|
HTF306A24AP
|
|
CCT+Power Adjustable
|
APP Smart Fixture :Bluetooth; daylight+PIR Sensor
|
|
Power Consumption
|
26-32-40W
2X2ft
|
32-40-50W
2X4ft
|
33W 2X2ft
|
50W 2X4ft
|
26W 2X2ft
|
40W 2X4ft
|
|
Equivalent Wattage
|
120W CFL
|
140W CFL
|
100W CFL
|
140W FCL
|
100W CFL
|
130W CFL
|
|
Lumens Delivered
|
5,000 lm
|
6,250 lm
|
3,750 lm
|
6,250 lm
|
3,770 lm
|
5,800 lm
|
|
SPECIFICATION
|
HTF301B22
|
HTF302B22
|
HTF303B22
|
HTF303B24
|
HTF304B24
|
HTF305B24
|
|
Normal Type
|
|
Power Consumption
|
26W 2X2ft
|
32W 2X2ft
|
40W 2X2ft
|
32W 2X4ft
|
40W 2X4ft
|
50W 2X4ft
|
|
Equivalent Wattage
|
60W CFL
|
80W CFL
|
120W CFL
|
80W CFL
|
120W CFL
|
140W CFL
|
|
Lumens Delivered
|
3,250 lm
|
4,000 lm
|
5,000 lm
|
3,250 lm
|
5,000 lm
|
6,250 lm
|

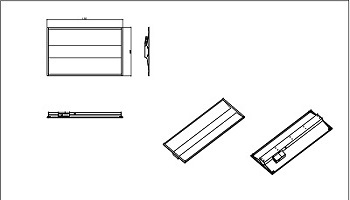

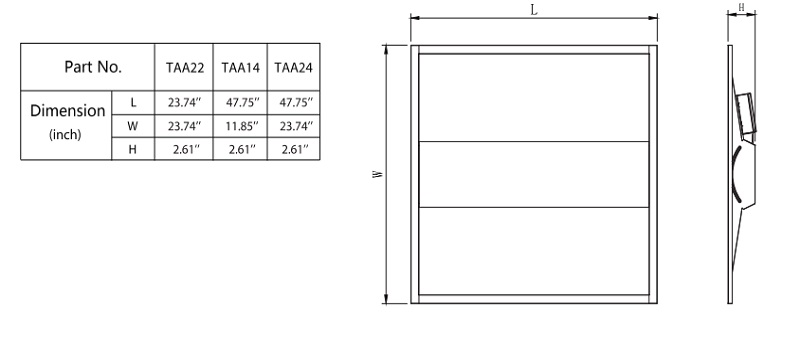

PRODUCT DIMENSION

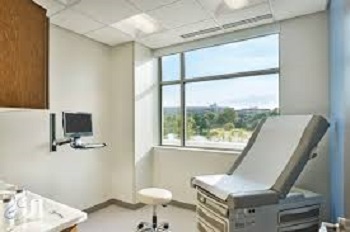

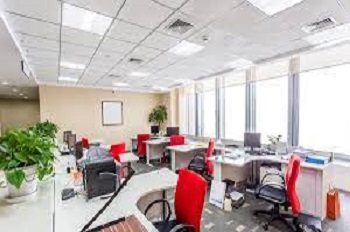

PRODUCT APPLICATION
